Gloss White Rectangular Freestanding Bathtub, Tapered Walls, 59 & 67 in

SKU D-8352-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8352-150

SANIKB D-8352 is a gloss rectangular freestanding tub in white acrylic, with rounded corners and straight walls that taper down to a smaller flat base. The shell is double-ended, with a 30 mm rim, a center drain and an overflow midway along one long side.

It is offered as D-8352-150, 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), and D-8352-170, 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The rim has no tap holes; a floor-standing or wall-mounted filler serves it, and the tub holds cUPC certification. Other options are in the freestanding bathtubs collection.

Product PDF D-8352-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8352

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

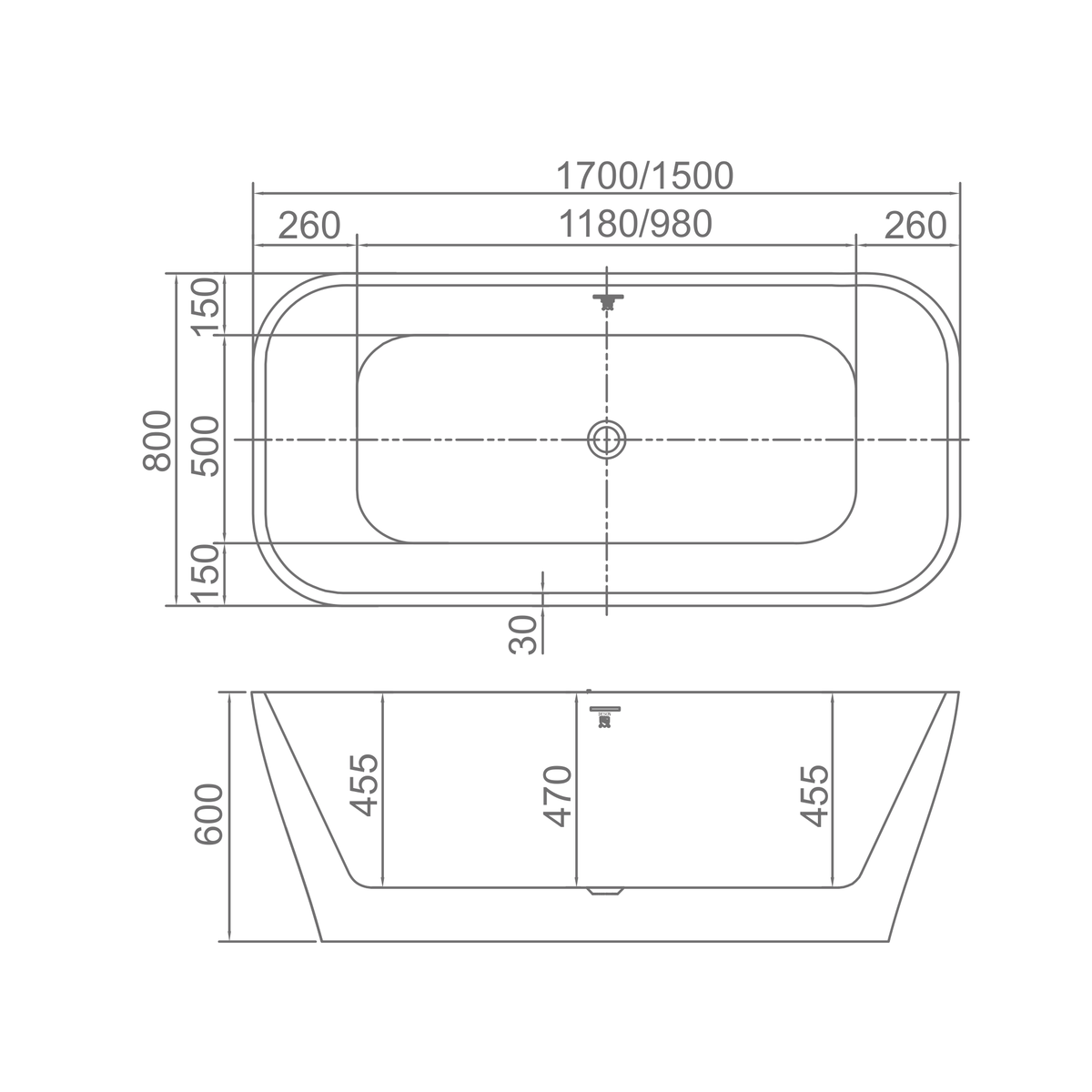

SANIKB D-8352 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8352-15059" x 31"
D-8352-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8352-15067" x 31"D-8352-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Gloss White Rectangular Freestanding Bathtub, Tapered Walls, 59 & 67 in SKU D-8352-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Surface

    Straight tapered walls in gloss white

    D-8352 keeps a rounded-rectangle plan, symmetric in both directions, and its walls run in straight lines from rim to base. The surface is glossy.

    01 / RIM

    30 mm rim deck

    The drawing gives D-8352 a 30 mm (1.2 in) rim. The overflow is placed midway along a long side, so neither end carries fittings.

    02 / RECLINE

    Either end as backrest

    The drawing is symmetric, so either end serves as the backrest. Inner depth is 470 mm (18.5 in) at the center and 455 mm (17.9 in) at each end.

    Compare rectangular and oval outlines in the freestanding bathtub range.

    Fit & Footprint

    Two lengths, one 800 x 600 mm section

    D-8352-150 measures 59 x 31.5 x 23.6 inches (1500 x 800 x 600 mm) and D-8352-170 measures 67 x 31.5 x 23.6 inches (1700 x 800 x 600 mm).

    D-8352-150
    59" x 31.5" x 23.6" (1500 x 800 x 600 mm)
    D-8352-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Inner Length (as drawn)
    980 mm (39 in) on D-8352-150, 1180 mm (46 in) on D-8352-170
    Faucet Mounting
    Floor-standing or wall-mounted filler

    Each end section is drawn at 260 mm, and the 800 mm width divides into 150 + 500 + 150 mm. Since the straight walls taper, the base standing on the floor is narrower than the rim.

    Take the D-8352 drain location from the approved drawing before the waste is roughed in.

    Construction & Finish

    Glossy acrylic in white

    D-8352 is built from pure acrylic sheet, with a gloss white surface on its tapered walls.

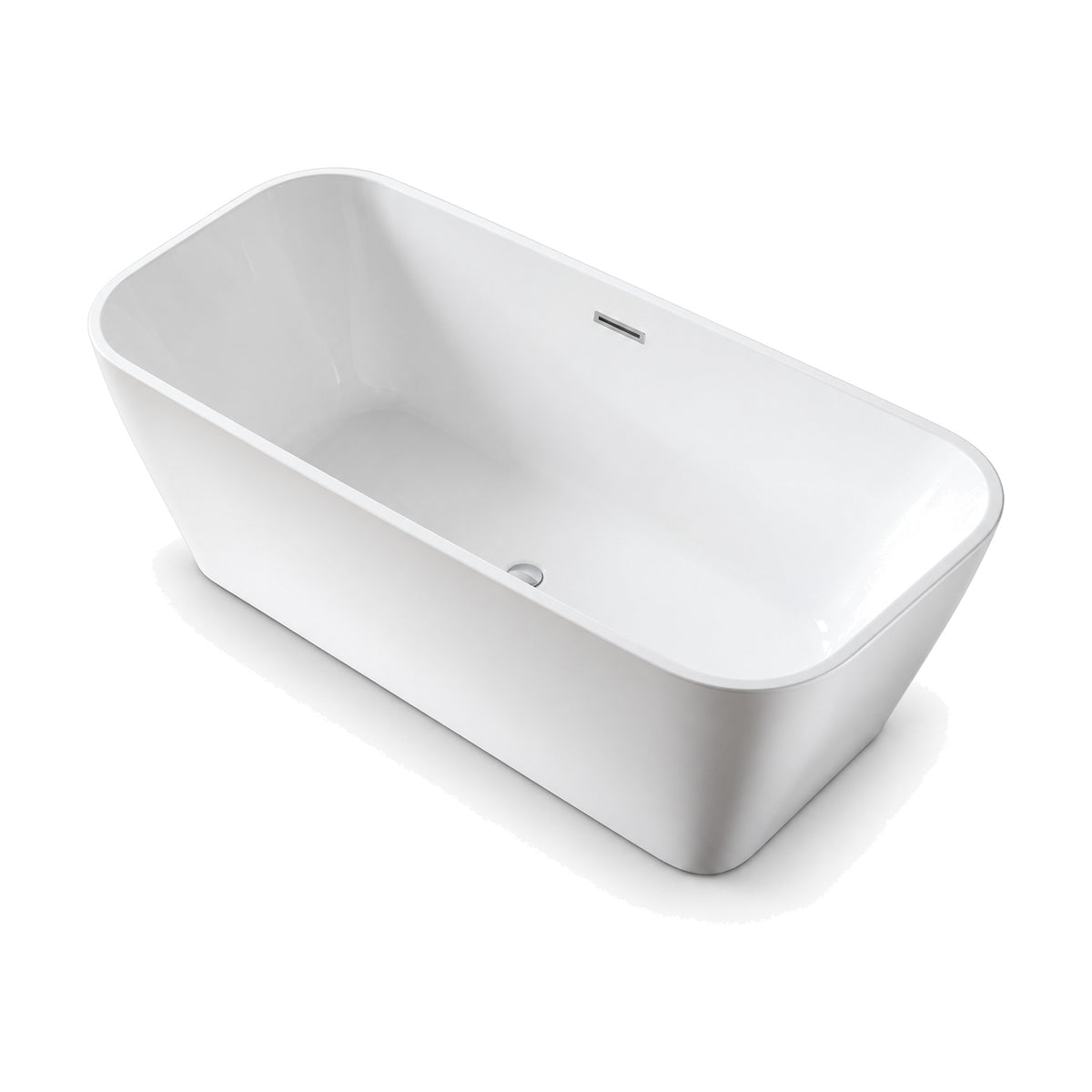

    SANIKB D-8352 - gloss white rectangular freestanding bathtub with rounded corners and straight tapered walls

    White

    Reflective surface

    Gloss sits naturally with glazed ceramic basins and toilets. Approve the D-8352 sample alongside those fixtures to check the white tone.

    The base is flat and rests directly on the floor, so set D-8352 on a level, finished surface.

    The approved D-8352 sample is the finish reference for production.

    Compliance

    cUPC for D-8352

    Documents by SKU

    Request certificates against D-8352-150 or D-8352-170.

    Both D-8352 SKUs are cUPC certified. Ask for the certificate number and expiry to include in the submittal.

    Give the destination market and paperwork list at enquiry stage; SANIKB responds in writing within 12 business hours.

    Procurement

    D-8352 order planning

    D-8352 quotations are issued per size, with 30-45 days after sample approval as the production window.

    Size SKUs
    D-8352-150, D-8352-170
    Standard Lead Time
    30-45 days after sample approval

    Specify protective film and corner guards for the gloss shell of D-8352 in the packing terms.

    Include these details with the RFQ

    • Required quantity of D-8352-150 and D-8352-170
    • Destination port and market
    • Filler preference, floor or wall
    • Carton print and branding
    • Target ship date
    Request D-8352 Quote View OEM & ODM Program

    Lead time for D-8352 is settled at quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What sizes is the gloss D-8352 available in?

    Two, sharing an 800 mm width: D-8352-150, which is 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), and D-8352-170, which is 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    Is D-8352 gloss or matte?

    Gloss. The white acrylic shell has a glossy surface, rounded corners and a 30 mm rim.

    Is D-8352 double-ended?

    Yes. The drawing is symmetric with the drain in the center, and the overflow is midway on a long side, so the bather can recline at either end.

    What is the inner depth of D-8352?

    The drawing shows 470 mm (18.5 in) at the center and 455 mm (17.9 in) at the ends.

    What faucet options fit D-8352?

    D-8352 has no tap holes in the rim, so it pairs with a floor-standing or wall-mounted filler. Plan the filler location together with the center drain on the approved drawing.

    How is D-8352 ordered?

    Send the quantity per SKU, destination and filler choice. Expect a written quote within 12 business hours and production 30-45 days after sample approval.
