Gloss White Freestanding Tub on Stepped Plinth, Flared Ends, 59 & 67 in

SKU D-8357-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8357-150

SANIKB D-8357 is a double-ended freestanding bathtub in gloss white acrylic, set on a stepped, molded plinth. The plan is a rounded rectangle with slightly bowed sides, and the ends flare outward to a slim rim. Of the 600 mm (23.6 in) height, 110 mm (4.3 in) is plinth. Two sizes are offered, D-8357-150 at 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) and D-8357-170 at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in).

The slim rim has no tap holes, so a floor-standing or wall-mounted faucet fills the tub. D-8357 is cUPC certified. See other bases in the freestanding bathtub collection.

Product PDF D-8357-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8357

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

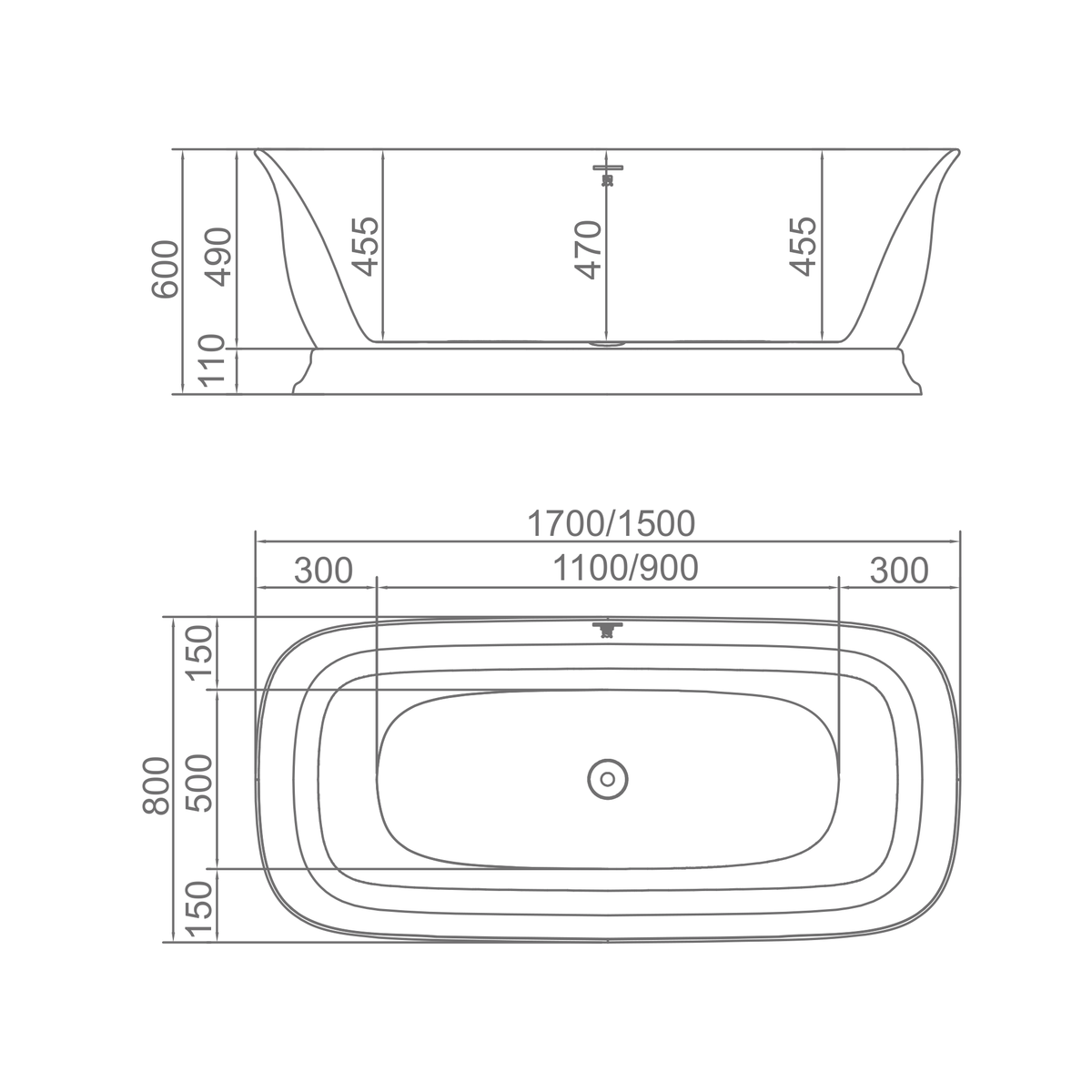

SANIKB D-8357 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8357-15059" x 31"
D-8357-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8357-15067" x 31"D-8357-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Gloss White Freestanding Tub on Stepped Plinth, Flared Ends, 59 & 67 in SKU D-8357-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Plinth & Ends

    Flared ends over a stepped plinth

    D-8357 lifts the bowl on a molded plinth: of the 600 mm height, 110 mm (4.3 in) is plinth and 490 mm (19.3 in) is bowl.

    01 / PLINTH

    Stepped, molded base

    The plinth is molded in steps below the bowl, giving the tub a pedestal base rather than a plain bottom edge.

    02 / ENDS

    Ends that flare to the rim

    Both ends turn outward as they rise to the slim rim, and the long sides bow slightly. The outline is symmetric, with the drain in the middle.

    Other plinth and pedestal bases are in the freestanding bathtub range.

    Two Lengths

    Two lengths over one 110 mm plinth

    The 1500 mm and 1700 mm sizes share an 800 mm (31.5 in) width and a 600 mm (23.6 in) height. The inner basin is 900 mm (35 in) long on the 1500 mm size and 1100 mm (43 in) on the 1700 mm size.

    D-8357-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8357-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Height Split
    110 mm plinth + 490 mm bowl
    Inner Depth
    455 / 470 mm (17.9 / 18.5 in)

    Each side has 150 mm of shell around a 500 mm basin width. The drain is centered, so the floor waste goes under the middle of the plinth, and the overflow is on a long side.

    Take the waste position for each length from the approved drawing.

    Material & Finish

    Gloss white acrylic on a molded base

    D-8357 is made from pure acrylic sheet and has a gloss white finish.

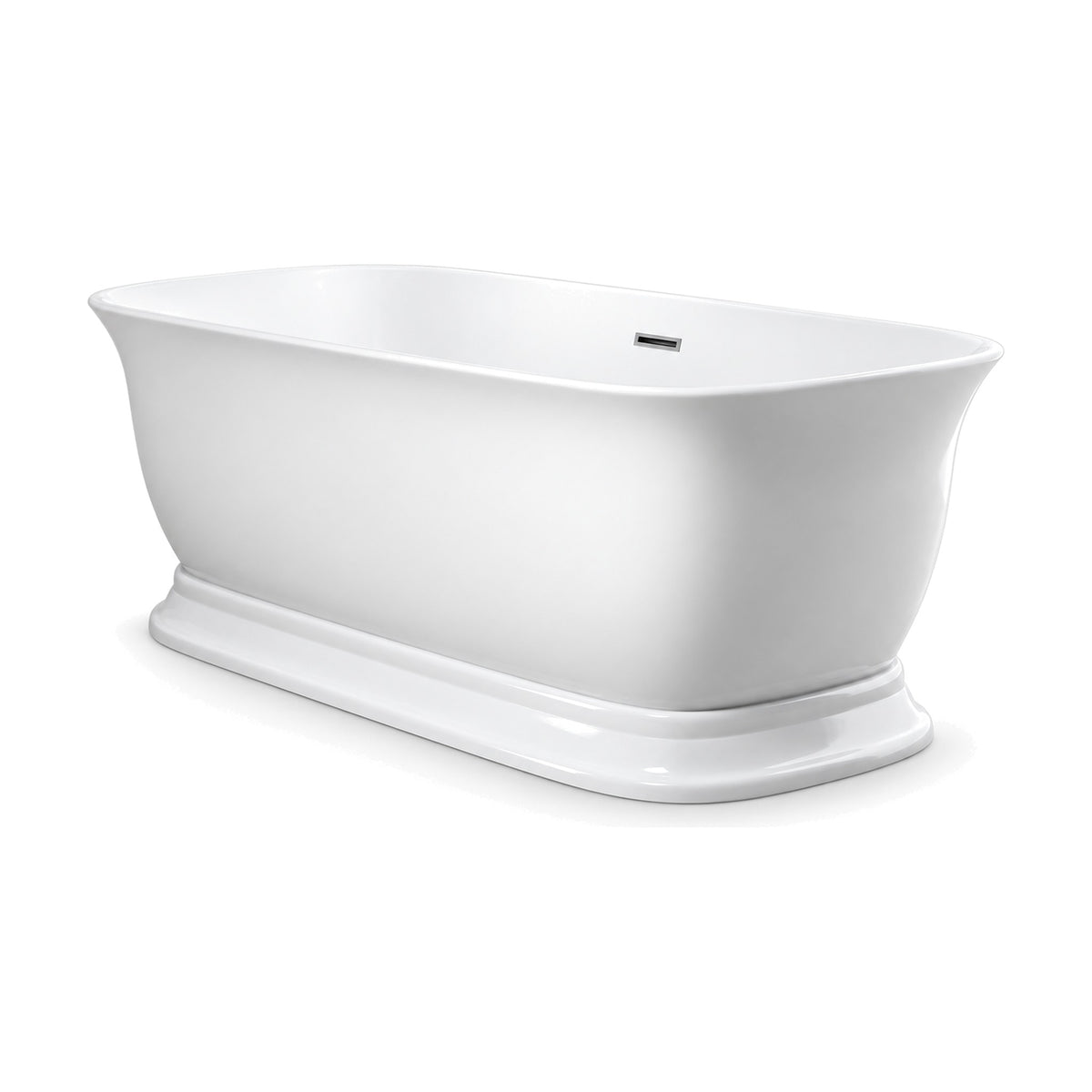

    SANIKB D-8357 - gloss white rounded-rectangle freestanding tub with flared ends on a stepped molded plinth

    White

    Steps caught in the gloss

    The gloss picks out the edges of each plinth step and the flare at both ends. Check that plinth and bowl match on the approval sample.

    The flared ends and the plinth steps take the first knocks in transit. Ask for end caps in the carton, and record any chips at delivery.

    Gloss shows fine scratches, so inspect the surface under raking light when unpacking.

    Compliance

    cUPC certification for D-8357

    Per-length references

    The two lengths share a width and height, so the SKU on the documents is what tells them apart.

    D-8357 is cUPC certified. Ask for the current certificate number against whichever of D-8357-150 and D-8357-170 is being specified.

    Put the destination market in the enquiry, and a written reply follows within 12 business hours.

    Procurement

    Ordering D-8357

    D-8357-150 and D-8357-170 are both made to a lead time of 30-45 days after sample approval.

    Standard Lead Time
    30-45 days after sample approval
    Plinth Height
    110 mm (4.3 in)

    Approval of the sample confirms the plinth steps, the end flare and the gloss level before the run.

    Include these details with the RFQ

    • Quantity per length
    • Floor-standing or wall-mounted faucet
    • Destination market and port
    • Documents for submittal
    • End protection in the carton
    • Shipping window
    Request D-8357 Quote View OEM & ODM Program

    Consider the lead time indicative until the quotation is issued.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Which two lengths is D-8357 offered in?

    D-8357-150 is 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) and D-8357-170 is 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in), both on the same stepped plinth.

    How tall is the plinth?

    110 mm (4.3 in). The bowl above it makes up the other 490 mm (19.3 in) of the 600 mm height.

    What inner depth does D-8357 give?

    Inner depths are 455 mm (17.9 in) and 470 mm (18.5 in), with a centered drain.

    Is D-8357 double-ended?

    Yes. The outline is symmetric and both ends flare the same way, so it can face either direction.

    Which faucet does it take?

    A floor-standing or wall-mounted faucet, set beside the tub or on the wall; the rim has no tap holes.

    How is a D-8357 order started?

    Send the quantity per length and the destination port. SANIKB quotes within 12 business hours, and the lead time is 30-45 days after sample approval.
