Chrome L-Shaped Right-Angle Spout Single-Lever Kitchen Faucet
More in Gooseneck Kitchen Faucet
Mix any models in one 20ft container · no per-model minimum
-
DL-02 411Square Base C-Tube Chrome Cold Water Gooseneck Kitchen Faucet DL-02 411Deck-mounted, single hole
-
DL-02 405Curved Lever Chrome Cold Water Gooseneck Kitchen Faucet DL-02 405Deck-mounted, single hole
-
DL-02 404Square Flat Spout Chrome Cold Water Gooseneck Kitchen Faucet DL-02 404Deck-mounted, single hole
-
DL-02 402Round Tube Cold Water Gooseneck Kitchen Faucet DL-02 402Deck-mounted, single hole
-
DL-05 104Inverted-U Flat Spout Chrome Gooseneck Kitchen Faucet DL-05 104Deck-mounted, single hole
-
DL-05 105Flared Base Slim Tube Chrome Gooseneck Kitchen Faucet DL-05 105Deck-mounted, single hole
-
DL-05 008Tall Narrow C-Spout Chrome Gooseneck Kitchen Faucet DL-05 008Deck-mounted, single hole
-
DL-05 034Bell Body Scroll Lever Antique Brass Gooseneck Kitchen Faucet DL-05 034Deck-mounted, single hole
-
DL-05 086Square Block Ribbon Spout Chrome Gooseneck Kitchen Faucet DL-05 086Deck-mounted, single hole
-
DL-05 001Angled Lever Matte Black Gooseneck Kitchen Faucet DL-05 001Deck-mounted, single hole
-
DL-05 007Flat-Tip Arched Spout Gooseneck Kitchen Faucet DL-05 007Deck-mounted, single hole
-
DL-05 087Cone Stem Chrome Gooseneck Kitchen Faucet DL-05 087Deck-mounted, single hole
-
K1032 03Swan Stem Brushed Rose Gold Gooseneck Kitchen Faucet K1032 03Deck-mounted, single hole
-
K127 03Matte Black & Brushed Gold Noir Gilt Gooseneck Kitchen Faucet K127 03Deck-mounted, single hole
-
FYF-05045Brushed Nickel 3-Way Water Filter Kitchen Faucet, Dual Handle12.8" H × 9.8" reachDeck-mounted single hole
-
FYF-05022Chrome Single-Lever Gooseneck Kitchen Faucet, High-ArcDeck-mounted, single hole
-
FYF-0514913.6-Inch Gooseneck Kitchen Faucet with 8-Inch Spout Reach – FYF-0514913.6" H × 9.4" WDeck-mounted single hole
-
FYF-0505817.3 Inch Gooseneck Kitchen Faucet with Blade Lever – FYF-0505817.3" H × 9.1" spout reachDeck-mounted single hole
-
FYF-0505515-Inch Gooseneck Kitchen Faucet with 8.3-Inch Spout Reach – FYF-0505515.0" × 9.6"Deck-mounted single hole
-
FYF-05019Two Handle Gooseneck Kitchen Faucet with 8-Inch Centers – FYF-0501913.0" H × 9.3" W, 7.5" spout reachDeck-mounted, 3-hole 8" centers
-
FYF-05054Compact Brushed Nickel Gooseneck Kitchen Faucet – FYF-0505413.4" H × 6.9" spout reachDeck-mounted single hole
-
FYF-0501314.8-Inch Gooseneck Kitchen Faucet, Single-Handle – FYF-0501314.8" H × 8.7" spout reachDeck-mounted single hole
Model sheet
2 factory configurations of FYF-05151
Every option below is a produced configuration with its own SKU. 2 finishes. Name the exact SKU on each purchase order line.
-
NO. FYF-05151CR
Chrome -
NO. FYF-05151BK
Black
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Right-Angle Spout
An L-shaped spout on a 310 by 295 mm envelope
The FYF-05151 turns the spout at a right angle instead of curving it. Published height and width are close to equal.
Straight run, square corner
The spout leaves the column horizontally after a single corner. The line reads as architectural rather than domestic.

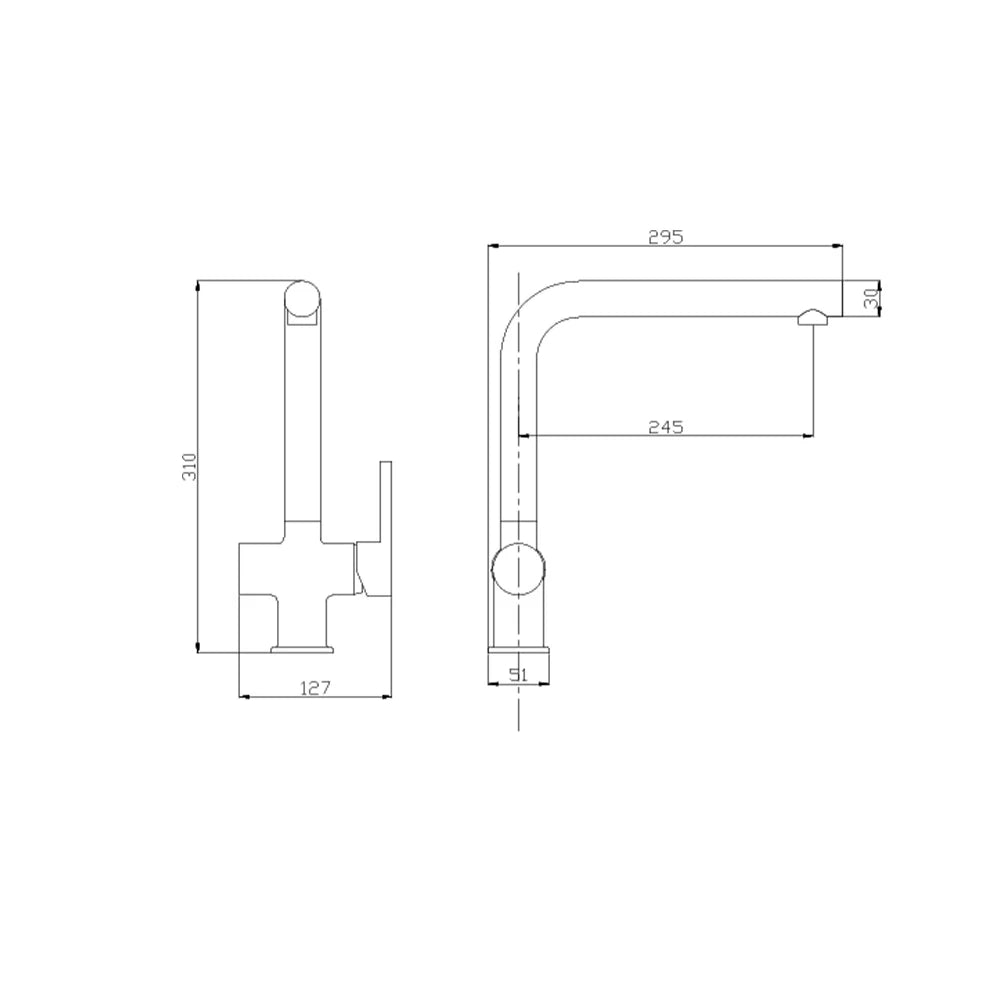

310 mm tall, 295 mm wide
The width is nearly the height. Plan the tap position so the outlet lands over the bowl and not over the deck.
Chrome and black are the two published codes for this body. Related kitchen shapes are in the gooseneck kitchen faucet range.
Fit & Clearance
Placing a 295 mm horizontal run over the bowl
Published size is 12.2 inches high by 11.6 inches wide.
- Overall Size
- 12.2" H x 11.6" W (310 x 295 mm)
- Mounting
- Deck-mounted single hole
- Finishes
- Chrome, Black
- Published SKUs
- FYF-05151CR, FYF-05151BK
Because the spout runs straight out, the outlet position is fixed by where the tap is drilled. Set the hole against the bowl centre, not against the sink edge.
Hole diameter is not published on this page. Take it from the installation drawing.
Mark the outlet position on the sink before the counter is drilled.
Construction & Finish
Solid brass body in two finishes
Solid brass body is the exact wording carried in the specification.
Finish · 2
Body material stated in the spec
The record says solid brass body. That is a material statement, so quote it as written and leave anything about production to the enquiry.
-

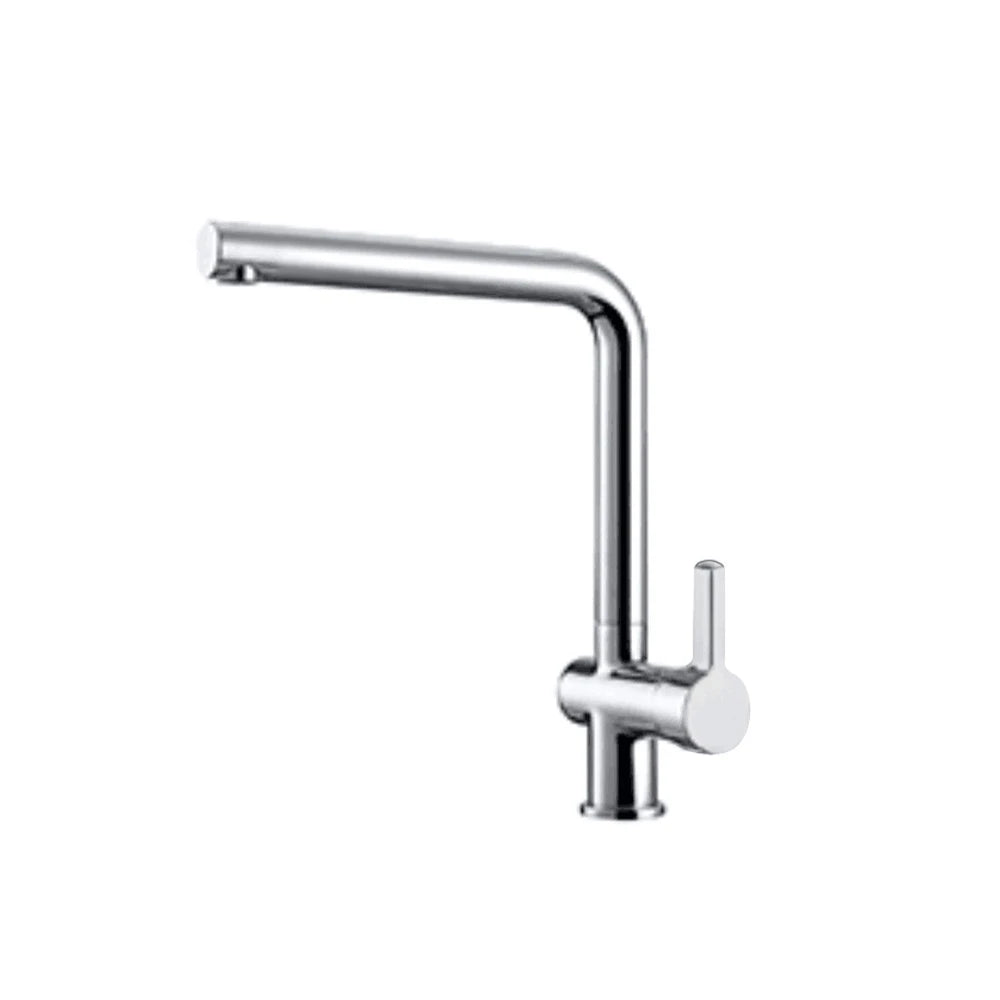

Chrome
-
Black

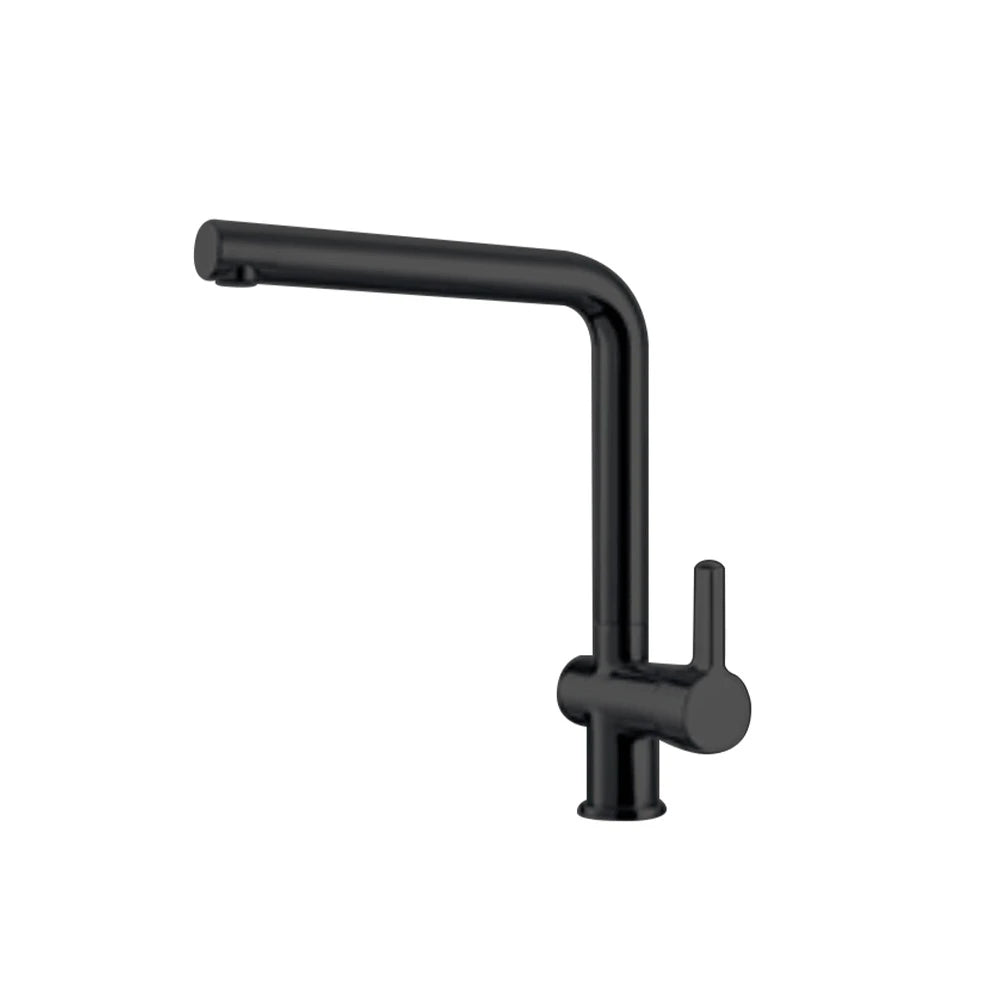

Chrome and black are the only published codes. Black on a hard-edged body is the pairing most often asked for in a dark scheme, so hold a sample of it.
Ask for the black sample if the display is built around dark fittings.
Compliance
Kitchen taps answered as kitchen taps
Kitchen taps and basin taps can be treated differently. Ask for the answer against this product type.
FYF-05151 is cUPC listed. Ask for the current listing number and certificate validity once the finish code is fixed.
Say which country the goods clear customs in. The documentation answer is issued in writing before the order is confirmed.
Procurement
Two codes under one carton specification
Chrome and black come off the same body, so the minimum is read once and not twice.
- Published MOQ
- 100 pcs
- Standard Lead Time
- 30–45 days (typical)
Two codes and one carton spec make private label straightforward through the SANIKB OEM and ODM program.
Include these details with the RFQ
- Quantity per finish
- Destination port and Incoterm
- Installation drawing
- Carton and label artwork
- Required market documents
- Sample requirement
- Target ship window
Give us the required arrival date and we quote back against it.
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
