Fluted Basin with Short-End Tap Deck
Fine vertical flutes run around the upright outside walls of this fluted basin with short-end tap deck. The smooth washing cavity occupies the remaining length beside that integrated ceramic platform. One tap hole belongs to the short-end deck; a separate floor opening sits within the washing cavity. The plan distinguishes the openings without dimensioning their exact spacing. D588 is 355 × 195 × 120 mm, while D590 is 445 × 260 × 115 mm. Both white ceramic models are specified for above-counter mounting. All three outside dimensions change between them. Select the complete model and its own drawing together, rather than treating the wider option as a uniform enlargement of every dimension.
Shape & size
Shape and size of D588 / D590
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
-
NO. D588355 × 195 × 120 mm -
NO. D590445 × 260 × 115 mm
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Vertical outside flutes · smooth washing cavity
The texture stays on the outer upright walls
Closely spaced vertical grooves follow the outside body, including its curved corner transitions. The inner bowl remains smooth; the fluting is an exterior shape detail rather than a separately specified surface material.
Short-end ceramic platform · one tap position
The tap deck occupies one end of the complete body
One hole is shown in a ceramic platform at a short end, beside the washing cavity. The deck is part of the published outside footprint; no independent platform width is dimensioned.
Separate bowl floor opening · unequal occupied areas
The floor opening lies within the bowl beside the end platform
The plan shows a tap hole in the end platform and a separate opening within the washing cavity. These belong to different parts of the basin; no exact hole spacing or handed installation is declared.
Two factory models · three changing outside dimensions
The larger footprint has a different complete outside height

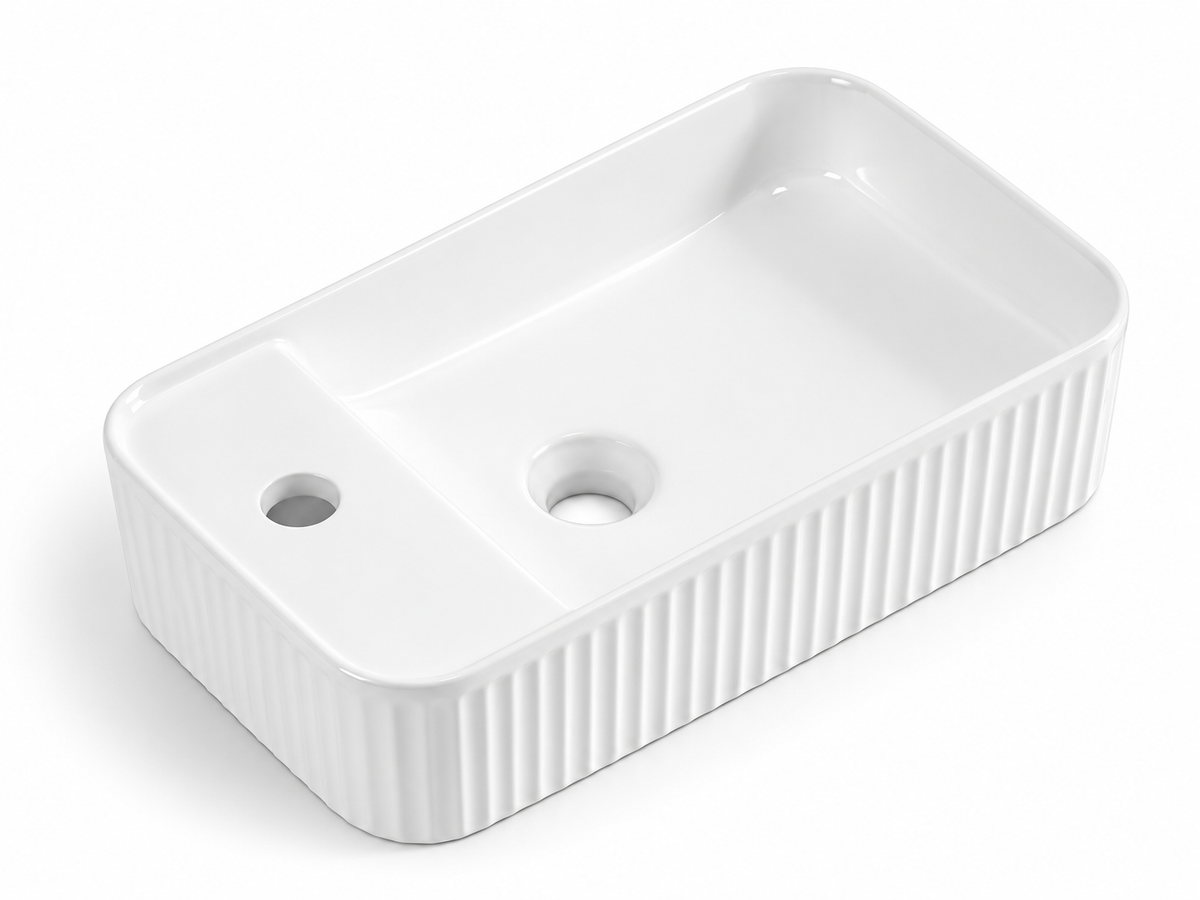

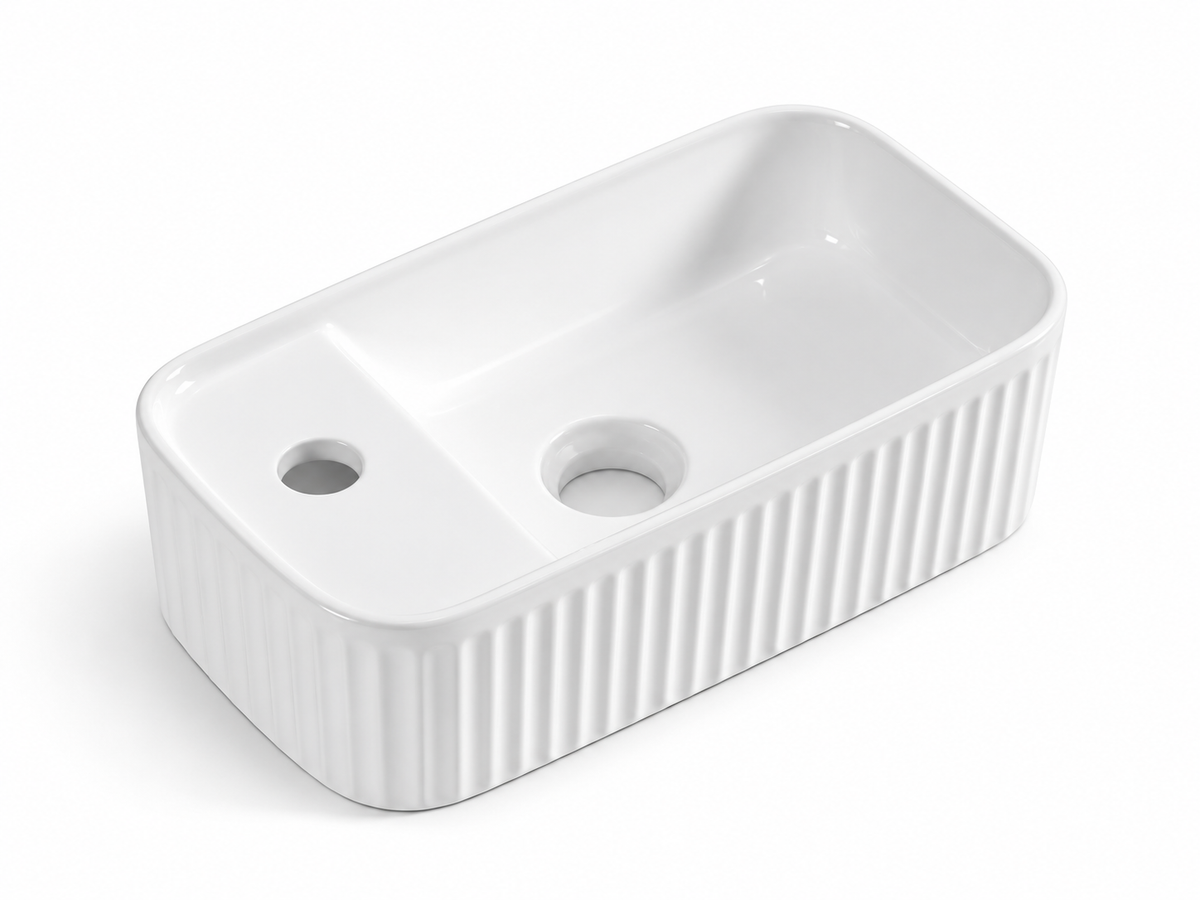

D588 measures 355 × 195 × 120 mm, and D590 measures 445 × 260 × 115 mm. Length, front-to-back span and complete height all vary. Both are above-counter ceramic bodies; these outside dimensions do not define usable bowl depth.
D588
355 × 195 × 120 mm
D590
445 × 260 × 115 mm
D588/D590 fluted exterior and short-end ceramic tap platform
- D588 — 355 × 195 × 120 mm
- D590 — 445 × 260 × 115 mm
