Flared-Rim Freestanding Tub on Set-Back Plinth Band, 67 in

SKU D-8362-170
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 67" × 31.5" × 23.6" (1700 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8362-170

SANIKB D-8362 is a double-ended freestanding bathtub in white acrylic with a soft rounded-rectangle plan. A thin rim flares outward at the top, and the sides taper down onto a plinth band set back from the shell. The drain and overflow are centered. D-8362 is made in one size, SKU D-8362-170, at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in), with inner depths of 475 and 490 mm (18.7 and 19.3 in).

The flared rim has no tap holes; the tub takes a floor-standing or wall-mounted faucet. D-8362 is cUPC certified. More plinth designs are in the freestanding bathtub collection.

Product PDF D-8362-170

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8362

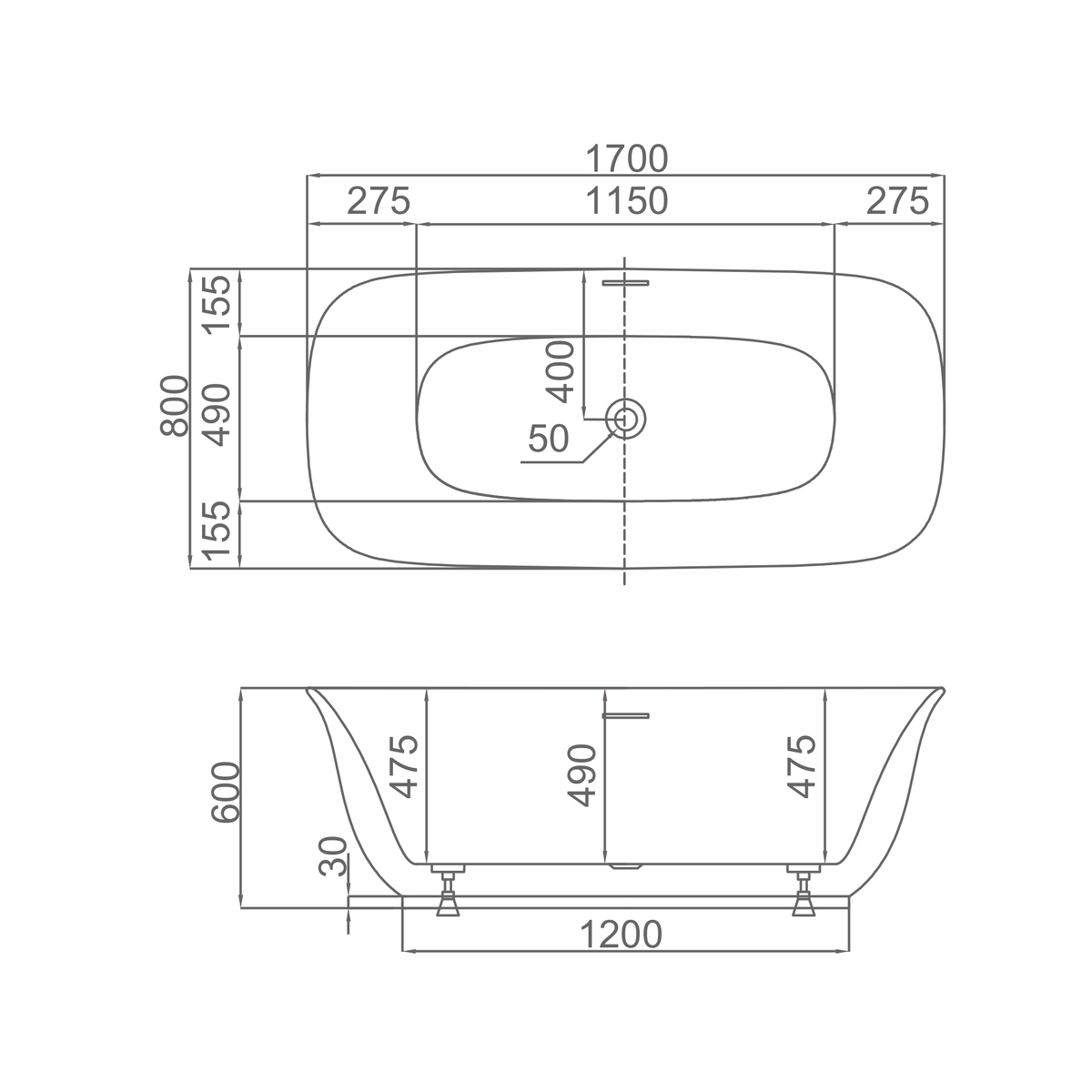

SANIKB D-8362 dimension drawing
Dimension drawing
Size range67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
InstallationFreestanding
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Flared-Rim Freestanding Tub on Set-Back Plinth Band, 67 in SKU D-8362-170
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Rim & Plinth

    Flared rim above, set-back plinth below

    D-8362 is shaped in three bands: a thin rim that flares outward, sides that taper inward, and a plinth band set back at floor level.

    01 / RIM

    Outward flare

    The rim turns outward at the top, so the outline is wider at the lip than across the body. The dimension drawing puts 155 mm of shell on each side of a 490 mm basin.

    02 / PLINTH

    Set-back base band

    The sides narrow onto a plinth band that sits in from the shell. Adjustable feet, 30 mm high and spread 1200 mm apart, sit under the base for leveling.

    Other pedestal and plinth designs are in the freestanding bathtub range.

    Fit & Depth

    1700 × 800 × 600 mm with a 1150 mm basin

    D-8362-170 measures 1700 mm (67 in) by 800 mm (31.5 in) and is 600 mm (23.6 in) high. The inner basin is 1150 mm (45 in) long, with 275 mm of shell at each end.

    D-8362-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Inner Depth
    475 / 490 mm (18.7 / 19.3 in)
    Drain
    50 mm, 400 mm from the side
    Base
    Set-back plinth on adjustable feet

    The 50 mm drain sits 400 mm from the side, on the center line of the tub. Adjustable feet let the installer level the tub on the finished floor before the waste is connected.

    Confirm the waste position against the approved drawing before tiling.

    Material & Finish

    White acrylic in a banded profile

    D-8362 is made from pure acrylic sheet in white.

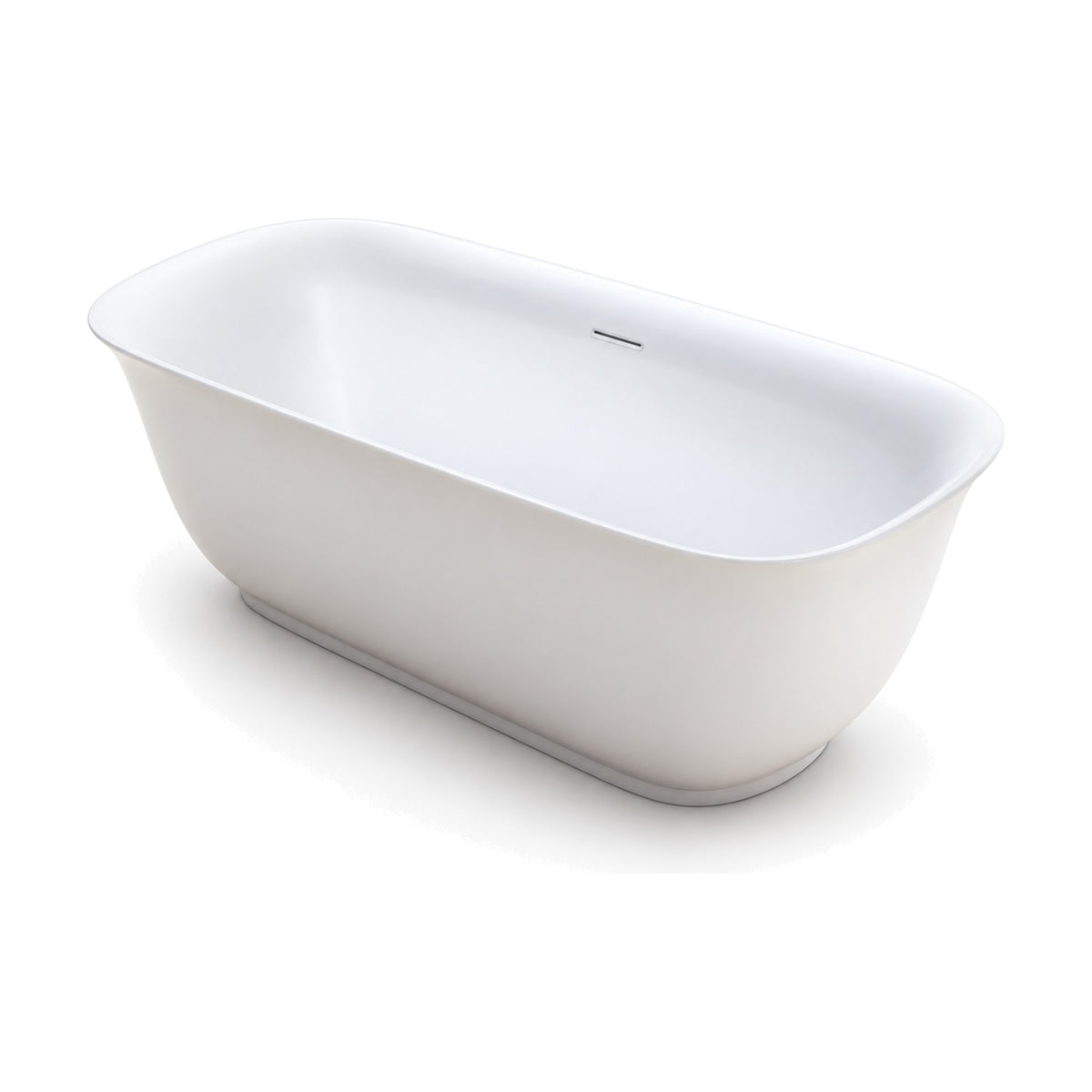

    SANIKB D-8362 - white rounded-rectangle freestanding tub with a flared thin rim and sides tapering onto a set-back plinth

    White

    Shadow line at the base

    The set-back plinth throws a shadow under the white shell, which separates the tub from the floor finish. Confirm the surface sheen on the approval sample.

    The flared rim is the outermost edge and the first to be struck in handling. Ask for edge protection around the rim and check it when the carton is opened.

    The approval sample stands as the reference for white tone and sheen.

    Compliance

    cUPC certification for D-8362

    Drawing with the documents

    Ask for the approved drawing, showing the plinth and feet, to be issued with the certificate so installers work from the same sheet.

    D-8362 is cUPC certified. For a submittal, request the current certificate number against D-8362-170.

    The enquiry should name the destination market; SANIKB puts its reply on D-8362 in writing within 12 business hours.

    Procurement

    Ordering D-8362

    D-8362-170 is quoted with a lead time of 30-45 days after sample approval.

    Standard Lead Time
    30-45 days after sample approval
    Size
    1700 × 800 × 600 mm

    Sample approval covers the rim flare, the plinth set-back and the surface finish, and production follows it.

    Include these details with the RFQ

    • Quantity of D-8362-170
    • Floor-standing or wall-mounted faucet
    • Drain and overflow finish
    • Destination market and port
    • Rim edge protection in packing
    • Shipping window
    Request D-8362 Quote View OEM & ODM Program

    The issued quotation settles the lead time.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How large is D-8362?

    D-8362 is built in a single 1700 mm length: SKU D-8362-170, 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in).

    How deep is the D-8362 basin under the flared rim?

    Inner depths are 475 mm (18.7 in) and 490 mm (19.3 in), over a basin 1150 mm (45 in) long.

    What is the base of D-8362?

    The sides taper onto a set-back plinth band, with adjustable feet 30 mm (1.2 in) high for leveling.

    Where does D-8362 put its drain and overflow?

    Both are centered. The 50 mm drain sits 400 mm from the side of the tub.

    Is D-8362 double-ended?

    Yes. The outline is symmetric and the drain is in the middle, so either end can be the backrest.

    How is D-8362 ordered?

    List the quantity of D-8362-170, the faucet type and the port. The quotation arrives within 12 business hours, and the lead time is 30-45 days after sample approval.
