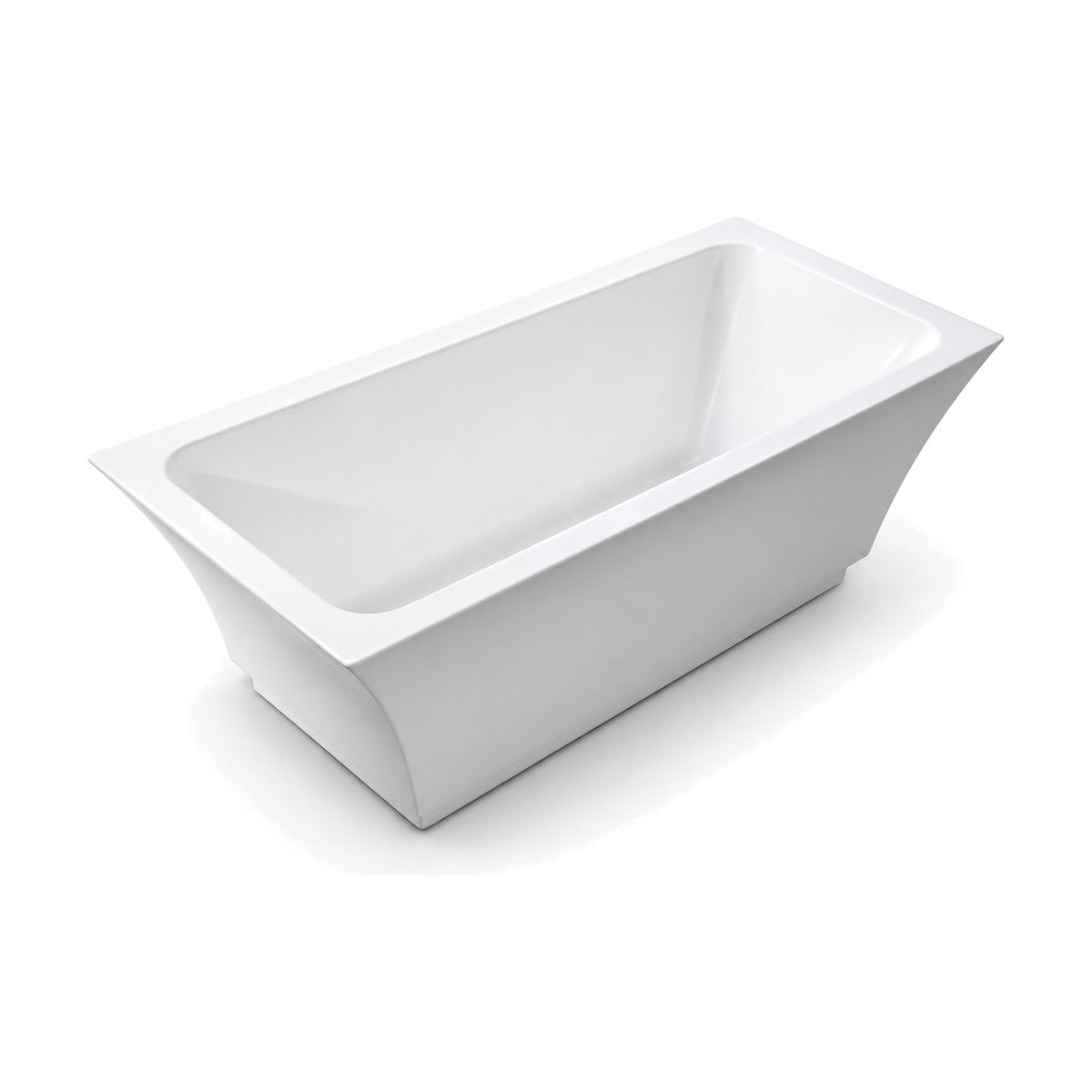

SANIKB D-8051 - white rectangular freestanding tub with concave flared sides on a stepped plinth base

01 / 02

Flared Rectangular Freestanding Tub on Stepped Plinth, 59 & 67 in

SKU D-8051-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 30.7" × 23.6" (1500 × 780 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8051-150

SANIKB D-8051 is a double ended rectangular freestanding bathtub in white acrylic that stands on a stepped rectangular plinth. Its sides flare outward in a concave curve to a flat rim of moderate width, and the drain is centered. D-8051-150 measures 1500 x 780 x 600 mm (59 x 30.7 x 23.6 in); D-8051-170 measures 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The rim has no tap holes, so the faucet is a floor-standing or wall-mounted filler.

D-8051 is cUPC certified, and a quote for either size goes out within 12 business hours. Other shapes in this family are in the freestanding bathtub collection.

Product PDF D-8051-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8051

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 30.7" / 31.5" × 23.6" (1500 / 1700 × 780 / 800 × 600 mm)

Sizes59" x 31"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8051-150	59" x 31"
D-8051-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 31"D-8051-150	67" x 31"D-8051-170
Overall L×W×D	59″ × 30.7″ × 23.6″ 1500 × 780 × 600 mm	67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Flared Rectangular Freestanding Tub on Stepped Plinth, 59 & 67 in SKU D-8051-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Base & Profile

Concave flared sides over a stepped plinth

D-8051 is raised on a stepped rectangular plinth, and its walls flare outward in a concave curve from the plinth to the rim. The plan is a square-cornered rectangle, symmetric at both ends.

01 / PLINTH

Stepped rectangular base

The tub body sits on a stepped plinth rather than directly on the floor or on feet. The step sets the shell back from the floor line and gives the tub a pedestal look.

02 / RIM

Flat rim of moderate width

The rim is flat and wider than a slim lip, forming a level edge around the whole basin. It has no tap holes; the faucet is a floor-standing or wall-mounted filler.

Other plinth and flat-base designs sit in the freestanding tub range.

Fit & Sizes

Two lengths with different widths

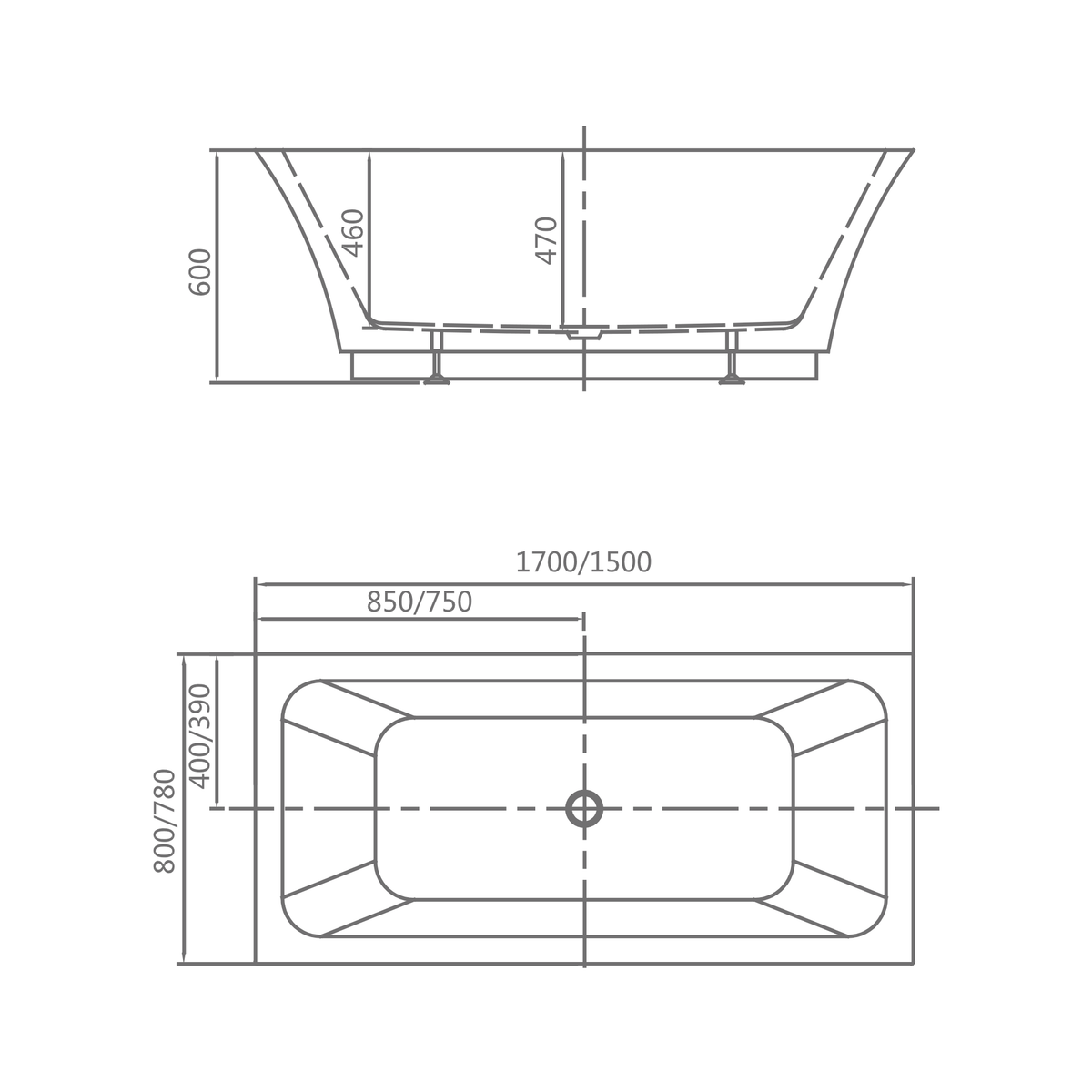

The two D-8051 sizes differ in width as well as length: 780 mm (30.7 in) on the 1500 mm tub and 800 mm (31.5 in) on the 1700 mm tub. Both are 600 mm (23.6 in) high, with an inner depth drawn at 460 to 470 mm (18.1 to 18.5 in).

D-8051-150: 59" × 30.7" × 23.6" (1500 × 780 × 600 mm)
D-8051-170: 67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
Drain Position: Center: 750/850 mm from the end, 390/400 mm from the side
Base: Stepped rectangular plinth

The drain is centered on both axes, so on the 1500 mm size it falls 750 mm from the end and 390 mm from the side, and on the 1700 mm size 850 mm and 400 mm. Plan the floor finish around the plinth outline, not the rim, because the plinth is the part that meets the floor.

Take the plinth footprint from the approved drawing for the chosen length.

Material & Finish

Pure acrylic sheet in white

D-8051 is formed from pure acrylic sheet and made in white.

White

A white tub on a raised base

D-8051-150 and D-8051-170 are both made in white, which keeps the plinth models in a project visually matched.

The gloss level of D-8051 is confirmed on the approval sample, together with the finish where the shell meets the plinth step.

Hold the approved sample as the finish standard for arrival checks.

Compliance

cUPC certification for D-8051

Name the model in every request

Ask for D-8051 documents by model number and give the SKU for each length in the same request.

D-8051 is cUPC certified. Both sizes carry the same model number, so request the certificate reference with D-8051-150 and D-8051-170 named together.

Mention the destination market up front; the documents are matched to it at quotation, and answers arrive within 12 business hours.

Procurement

Ordering D-8051

The 1500 mm and 1700 mm sizes are quoted as separate lines. Both are built to a lead time of 30-45 days after sample approval.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: within 12 business hours

Use the sample to check the step on the plinth and the curve of the flared sides before the run is released.

Include these details with the RFQ

Quantities of D-8051-150 and D-8051-170
Floor or wall faucet position
Sample SKU to approve
Market and discharge port
Private-label carton print
Shipping window

Request D-8051 Quote View OEM & ODM Program

The clock for lead time starts at sample approval.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

What are the D-8051 dimensions?

D-8051-150 is 1500 x 780 x 600 mm (59 x 30.7 x 23.6 in) and D-8051-170 is 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). The longer size is also 20 mm wider.

Does D-8051 have feet or a base?

It stands on a stepped rectangular plinth, not on feet. The flared sides of the tub rise from the plinth to a flat rim.

Is one end of D-8051 set aside as the head end?

D-8051 is double ended with a centered drain, so both ends are shaped for reclining and the tub can be turned either way in the room.

What faucet should be used with D-8051?

The flat rim has no tap holes, so pair D-8051 with a floor-standing or wall-mounted filler placed beside the plinth or on the wall.

What is D-8051 made of?

Pure acrylic sheet in white for both sizes. The gloss level, and the finish at the plinth step, are signed off on the approval sample.

What goes into a D-8051 order request?

Send quantities by SKU with your destination port. A written quote follows within 12 business hours, and lead time is 30-45 days after sample approval.
