SANIKB D-8013 - white rectangular freestanding bathtub with square corners, flared walls and thin flat rimSANIKB D-8013 dimension drawing
01 / 02
01 / 02

Flared Rectangular Freestanding Bathtub, Square Corners, 59-67 in

SKU D-8013-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8013-150

SANIKB D-8013 is a flared rectangular bathtub for freestanding installation, with four square corners and walls that flare outward from a flat base to a thin, flat rim, giving an inverted trapezoid in side view. The white acrylic shell is double-ended with a center drain.

The flared shell is offered in three lengths on the same 800 mm width: 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) as D-8013-150, 1600 x 800 x 600 mm (63 x 31.5 x 23.6 in) as D-8013-160 and 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) as D-8013-170. It takes a floor-standing or wall-mounted filler, since the rim has no tap holes, and it is cUPC certified. See the freestanding bathtub collection.

Product PDF D-8013-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8013

Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.

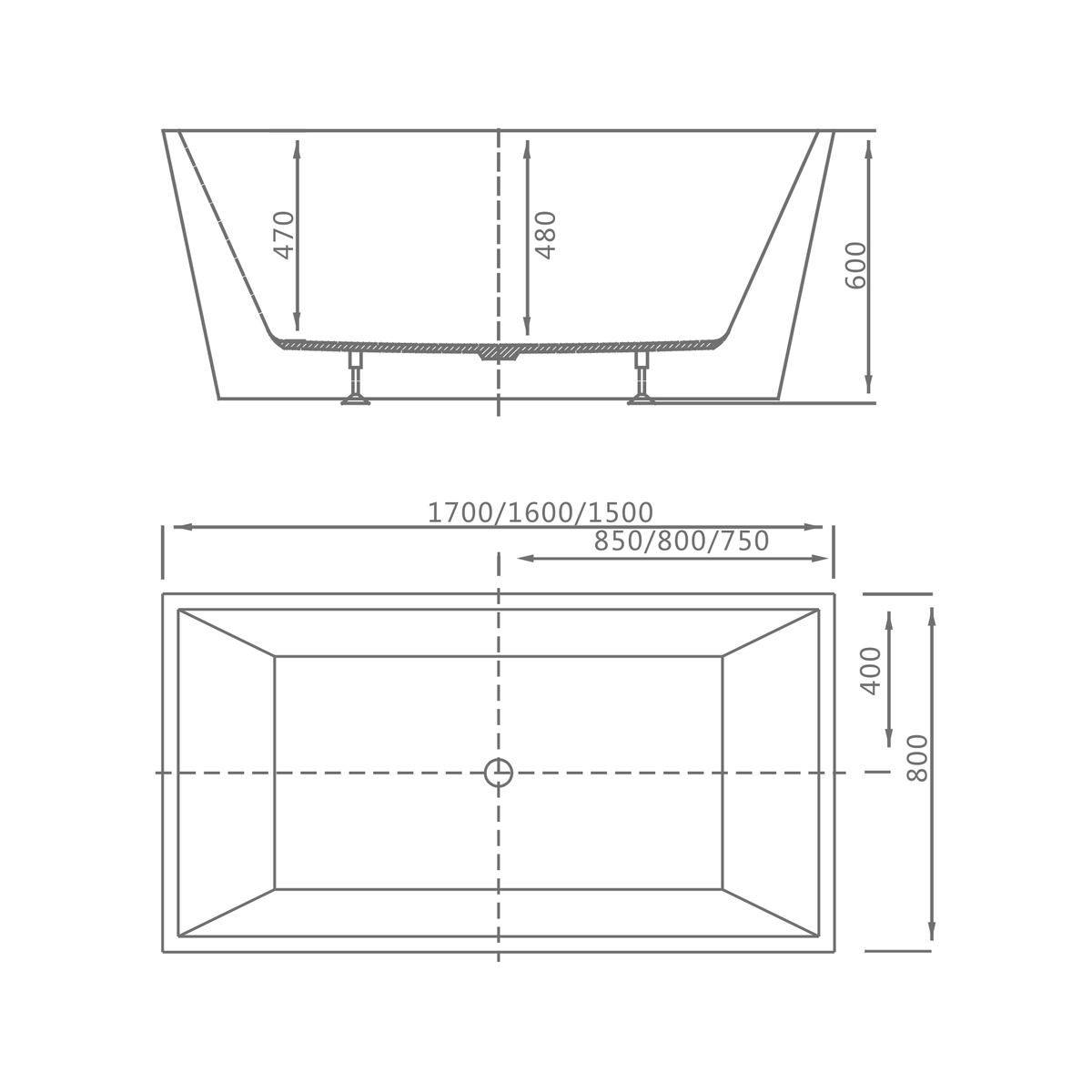

SANIKB D-8013 dimension drawing
Dimension drawing
Size range59" / 63" / 67" × 31.5" × 23.6" (1500 / 1600 / 1700 × 800 × 600 mm)
Sizes59" x 31"63" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8013-15059" x 31"
D-8013-16063" x 31"
D-8013-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 3 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (63 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8013-15063" x 31"D-8013-16067" x 31"D-8013-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
63″ × 31.5″ × 23.6″
1600 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Flared Rectangular Freestanding Bathtub, Square Corners, 59-67 in SKU D-8013-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Rim

    Square corners over flared walls

    D-8013 is drawn as a rectangle with four square corners, symmetric along both axes. From the side, each end flares outward so the rim outline is larger than the base.

    01 / PROFILE

    Inverted trapezoid

    The walls lean out as they rise, which keeps the floor footprint smaller than the 800 mm top width. The rim is thin and flat.

    02 / DRAIN

    Drain on the center line

    The drain is drawn at half the length from each end and 400 mm (15.7 in) from the side, which puts it at the center of the floor on all three sizes.

    Compare other rectangular shapes in the freestanding bathtub range.

    Fit & Footprint

    1500, 1600 and 1700 mm, all 800 mm wide

    All three D-8013 sizes are 800 mm (31.5 in) wide and 600 mm (23.6 in) high; lengths are 59, 63 and 67 inches.

    D-8013-150
    59" x 31.5" x 23.6" (1500 x 800 x 600 mm)
    D-8013-160
    63" x 31.5" x 23.6" (1600 x 800 x 600 mm)
    D-8013-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Inner Depth (as drawn)
    18.5" and 18.9" (470 / 480 mm)

    The drawing places the drain 750, 800 or 850 mm from the end for the 1500, 1600 and 1700 mm sizes. The rim has no tap holes, so plan a floor-standing or wall-mounted filler at the layout stage.

    Check the D-8013 drain set-out against the approved drawing of the length ordered.

    Construction & Finish

    White acrylic, thin flat rim

    The flared D-8013 shell is made from pure acrylic sheet in white.

    SANIKB D-8013 - white rectangular freestanding bathtub with square corners, flared walls and thin flat rim

    White

    Sheen set by sample

    D-8013 is made in white, and its gloss level is set on the pre-production sample before the run starts.

    The base is flat and sits directly on the floor with no plinth. Level the floor so the thin rim runs true against surrounding tile lines.

    Keep the signed-off D-8013 sample as the finish benchmark.

    Compliance

    D-8013 cUPC certification

    Record per length

    Document requests should name the D-8013 SKU for the length being shipped.

    D-8013-150, D-8013-160 and D-8013-170 are cUPC certified. For submittals, request the certificate number with its validity.

    Share the destination market and document needs when enquiring; SANIKB issues a written reply for D-8013 within 12 business hours.

    Procurement

    D-8013 quotation

    D-8013 is quoted by length, and production is 30-45 days after sample approval.

    Size SKUs
    D-8013-150, D-8013-160, D-8013-170
    Standard Lead Time
    30-45 days after sample approval

    Square corners are the most exposed points in a carton, so ask for guards on all four corners of D-8013.

    Include these details with the RFQ

    • Quantities per length for D-8013
    • Port of discharge and market
    • Floor-standing mixer or wall spout
    • Branding on cartons
    • Shipping timeframe
    Request D-8013 Quote View OEM & ODM Program

    Expect D-8013 lead time to be confirmed with the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Which lengths of the flared D-8013 are available?

    Three, each 800 mm wide and 600 mm high: 1500 mm (59 in) as D-8013-150, 1600 mm (63 in) as D-8013-160 and 1700 mm (67 in) as D-8013-170.

    What is the D-8013 profile?

    Square corners in plan and walls that flare outward from a flat base to a thin flat rim, an inverted trapezoid when seen from the side.

    Where is the drain placed in the flared D-8013?

    At the center: 750, 800 or 850 mm from the end depending on length, and 400 mm from the side. Both ends flare, so the tub is double-ended.

    How deep is D-8013?

    Inner depth is drawn at 470 mm and 480 mm (18.5 and 18.9 in), inside a shell that is 600 mm (23.6 in) high overall.

    What faucet goes with D-8013?

    D-8013 has no tap holes in its thin flat rim, so it takes a floor-standing or wall-mounted filler, placed to the approved drawing.

    How do we order D-8013?

    Give quantities per length, the destination and faucet plan. Quotes are sent within 12 business hours, and the standard lead time for D-8013 is 30-45 days after sample approval.
