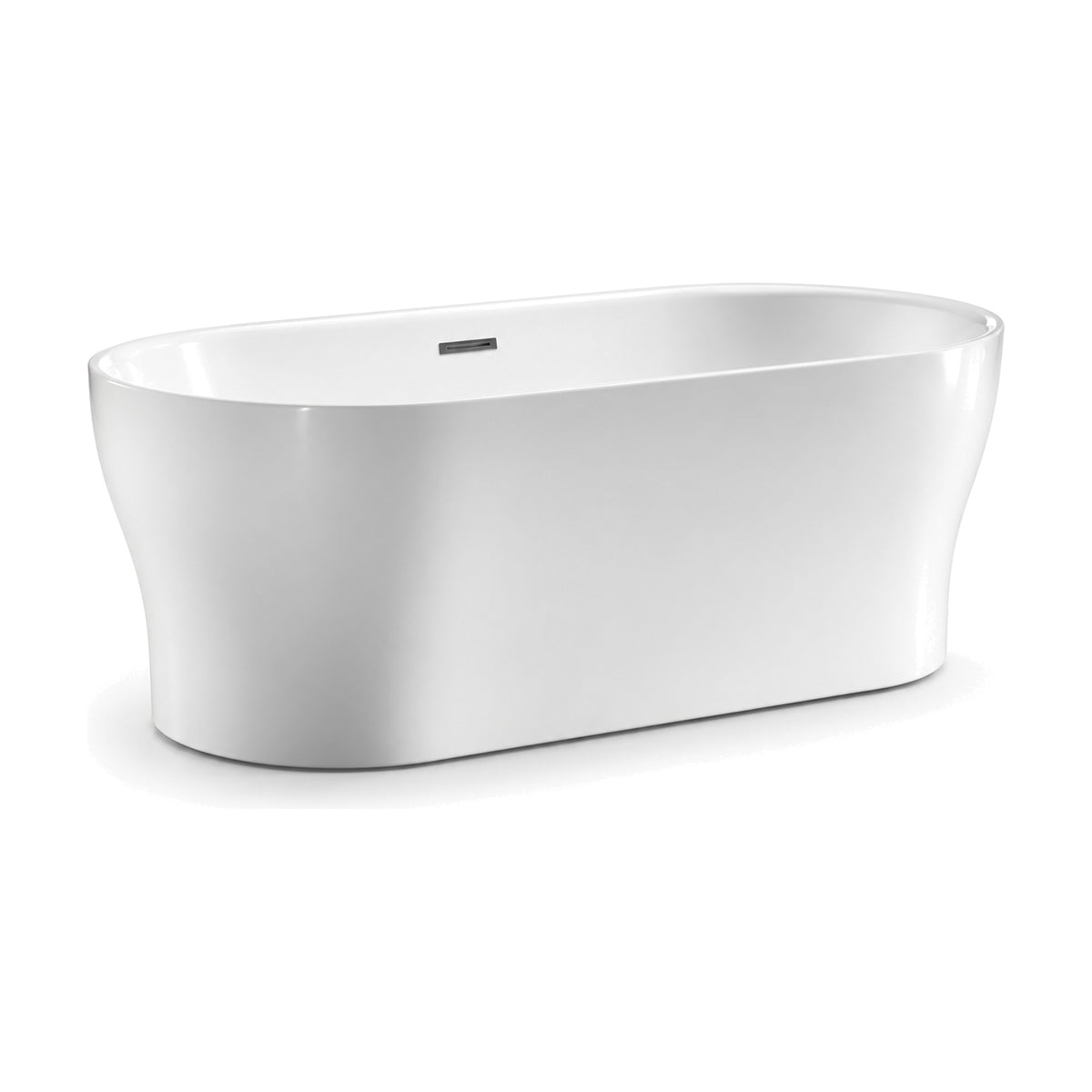

SANIKB D-8319 - gloss white capsule freestanding bathtub with ends flaring from a narrow base to a slim level rim

01 / 02

Flared End Capsule Freestanding Bathtub, Gloss White, 59 & 67 in

SKU D-8319-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8319-150

SANIKB D-8319 is a capsule-shaped freestanding bathtub in gloss white acrylic whose ends flare outward from a narrower base up to a slim, level rim, with plain smooth sides. Two sizes are made, the 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) D-8319-150 and the 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) D-8319-170. The drain sits at the exact center of the plan. Its rim has no tap holes, so D-8319 is paired with a floor-standing or wall-mounted filler. D-8319 is cUPC certified, and each enquiry is quoted within 12 business hours.

See the full freestanding bathtub range.

Product PDF D-8319-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8319

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)

Sizes59" x 31"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8319-150	59" x 31"
D-8319-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ

	59" x 31"D-8319-150	67" x 31"D-8319-170
Overall L×W×D	59″ × 31.5″ × 23.6″ 1500 × 800 × 600 mm	67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Flared End Capsule Freestanding Bathtub, Gloss White, 59 & 67 in SKU D-8319-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Shape & Profile

Ends that flare from a narrow base

D-8319 has straight long sides and round ends on a symmetric stadium plan. The ends flare outward as they rise, so the rim is longer than the base.

01 / ENDS

Outward flare at each end

The flare on D-8319 is at the ends rather than along the sides, which keeps the long sides plain and smooth while the rim reaches its full length.

02 / DRAIN

Drain at the exact center

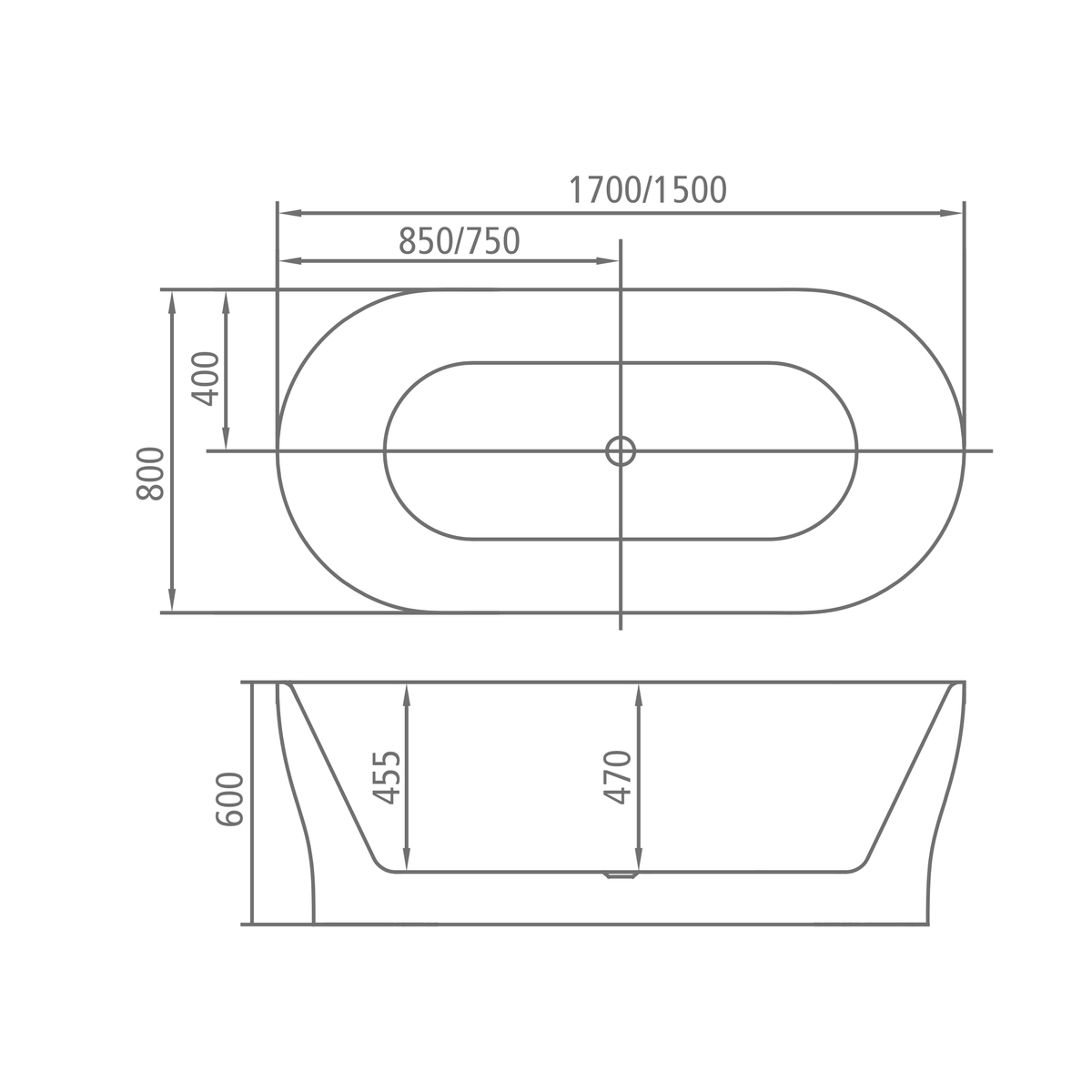

The drawing places the drain 850 mm (33 in) from the end on the 1700 mm size, 750 mm (30 in) on the 1500 mm size, and 400 mm (15.7 in) from the side on both.

Compare flared and straight profiles in the SANIKB freestanding collection.

Fit & Plumbing

A waste point at the middle of the footprint

The drawing sets D-8319 at 1500 or 1700 mm (59 or 67 in) in length on an 800 mm (31.5 in) by 600 mm (23.6 in) section. Its drain position is half the length and half the width.

D-8319-150: 59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
D-8319-170: 67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
Drain Position: 750 / 850 mm (30 / 33 in) from end, 400 mm (15.7 in) from side
Inner Depth: 455 mm (17.9 in) ends to 470 mm (18.5 in) center

Because the D-8319 base is shorter than the rim, leave clearance to walls based on the rim length. The rim is not drilled for taps, so allow for a floor-standing or wall-mounted filler in the layout.

Confirm the center waste on the approved D-8319 drawing before the floor is closed.

Material & Finish

Smooth gloss white acrylic

D-8319 is made from pure acrylic sheet with a gloss white finish and plain, untextured sides.

White

Smooth sides, one finish

The plain sides of D-8319 leave the flared ends and the gloss surface to carry the design. Fix the finish with an approved sample.

The flared ends of D-8319 overhang the base, so they take the first contact in handling. Ask how the ends are cushioned in the carton.

Record any damage to the ends or rim at delivery, before the tub is installed.

Compliance

cUPC certification for D-8319

Two sizes, two references

Keep D-8319-150 and D-8319-170 on separate lines of the document request.

D-8319 is cUPC certified. Ask for the current certificate details for the model and the SKU on your order ahead of the submittal.

Let us know the country of installation with the enquiry; SANIKB puts its reply in writing within 12 business hours.

Procurement

Ordering D-8319

SANIKB manufactures D-8319 and quotes the 1500 and 1700 mm lengths separately.

Sizes: 1500 / 1700 mm
Standard Lead Time: 30-45 days after sample approval

D-8319 ships on a standard lead time of 30-45 days after sample approval. Name both lengths in the enquiry if the project has rooms of different sizes.

Include these details with the RFQ

D-8319-150 and D-8319-170 quantities
Floor filler or wall spout
Destination market and port
Waste and overflow fittings, if needed
Carton marking or private label
Shipping window for D-8319

Request D-8319 Quote View OEM & ODM Program

Dates for D-8319 are held as indicative until the quotation is issued.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

Which D-8319 sizes can be ordered?

There are two: D-8319-150 for rooms that take a 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) tub, and D-8319-170 at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

Where exactly is the D-8319 drain?

At the center of the plan: 850 mm (33 in) from the end on the 1700 mm size or 750 mm (30 in) on the 1500 mm size, and 400 mm (15.7 in) from the side.

Does D-8319 have one backrest or two?

Double ended. Both ends slope for reclining and the drain is centered, so the tub is not handed.

How is D-8319 filled?

From a floor-standing filler or a wall-mounted spout; the D-8319 rim has no tap holes. Fix the supply position before the floor or wall is finished.

What do the flared ends of D-8319 mean for the layout?

The ends widen from a narrower base up to the rim, so the rim is the largest outline. Measure clearance to walls and doors from the rim. The shell is gloss white pure acrylic with smooth sides.

What information does a D-8319 quote need?

A quantity for each length and a note of the waste fittings needed at the center drain. Answers come within 12 business hours. The standard lead time, 30-45 days after sample approval, applies to both D-8319 lengths.
