Home›Sinks›Kitchen› Stainless Steel› 9653AL
SANIKB 9653AL — Extra-Wide 37-3/8" Double Bowl Undermount Kitchen Sink, 304 StainlessSANIKB 9653AL dimension drawingSANIKB 9653AL compatible accessories9653AL left-large stainless double sink in a hotel prep kitchen
01 / 04

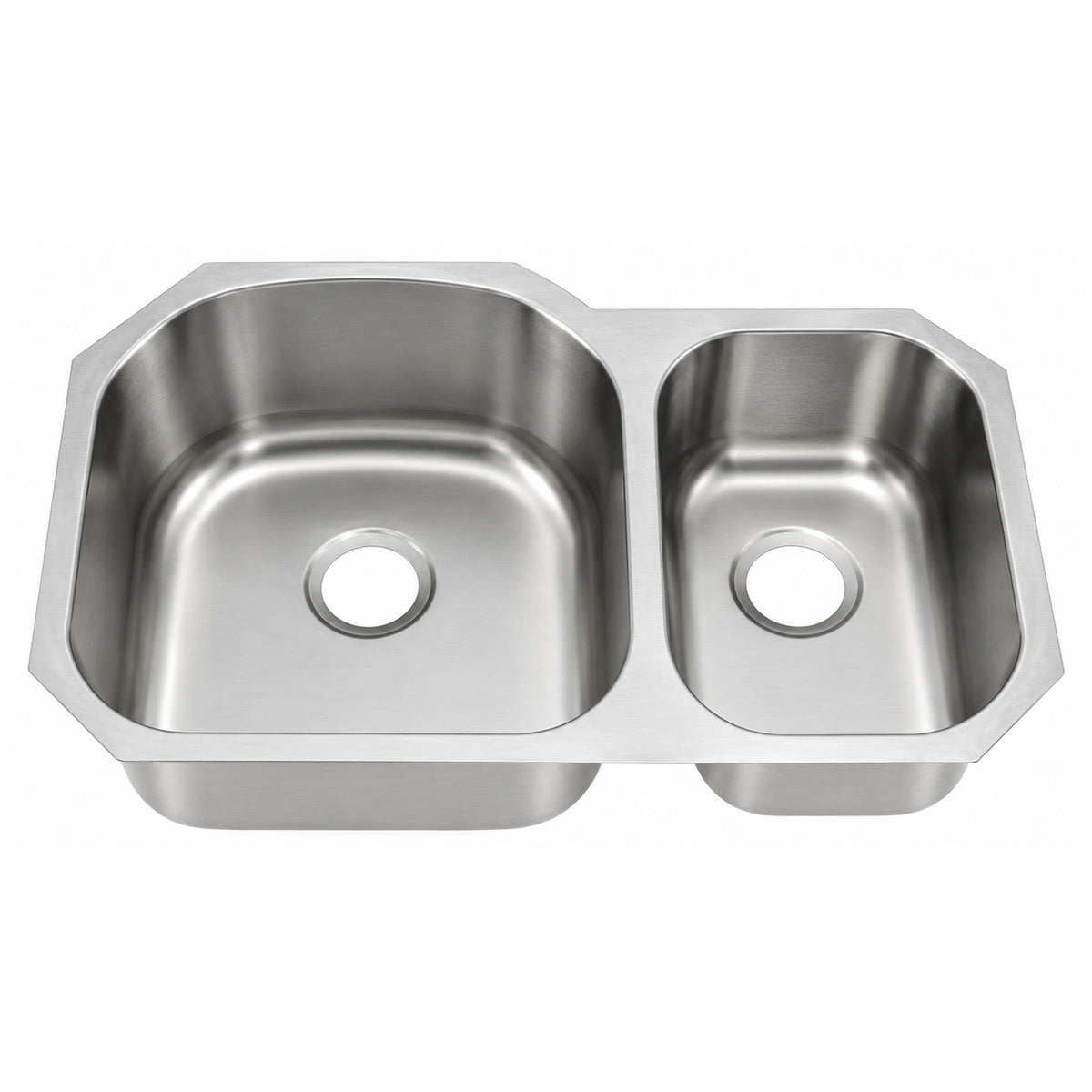

Extra-Wide 37-3/8" Double Bowl Undermount Kitchen Sink, 304 Stainless

SKU 9653AL
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Undermount Double Bowl Kitchen Sink
Size 37.4" × 20.9" (949 × 530 mm) Custom sizes
Mount Undermount
Finish
Brushed Satin

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

9653AL is our widest stainless double bowl undermount sink, 949 × 530 mm overall, with a large 21-1/4" × 18-7/8" bowl beside a small 13" × 16-1/2" bowl.

Made in 304 stainless steel at our Foshan factory, with a Brushed Satin finish, 3-1/2" drain openings and underside padding. Choose 16 or 18 gauge and a 6" to 9" depth.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for 9653AL

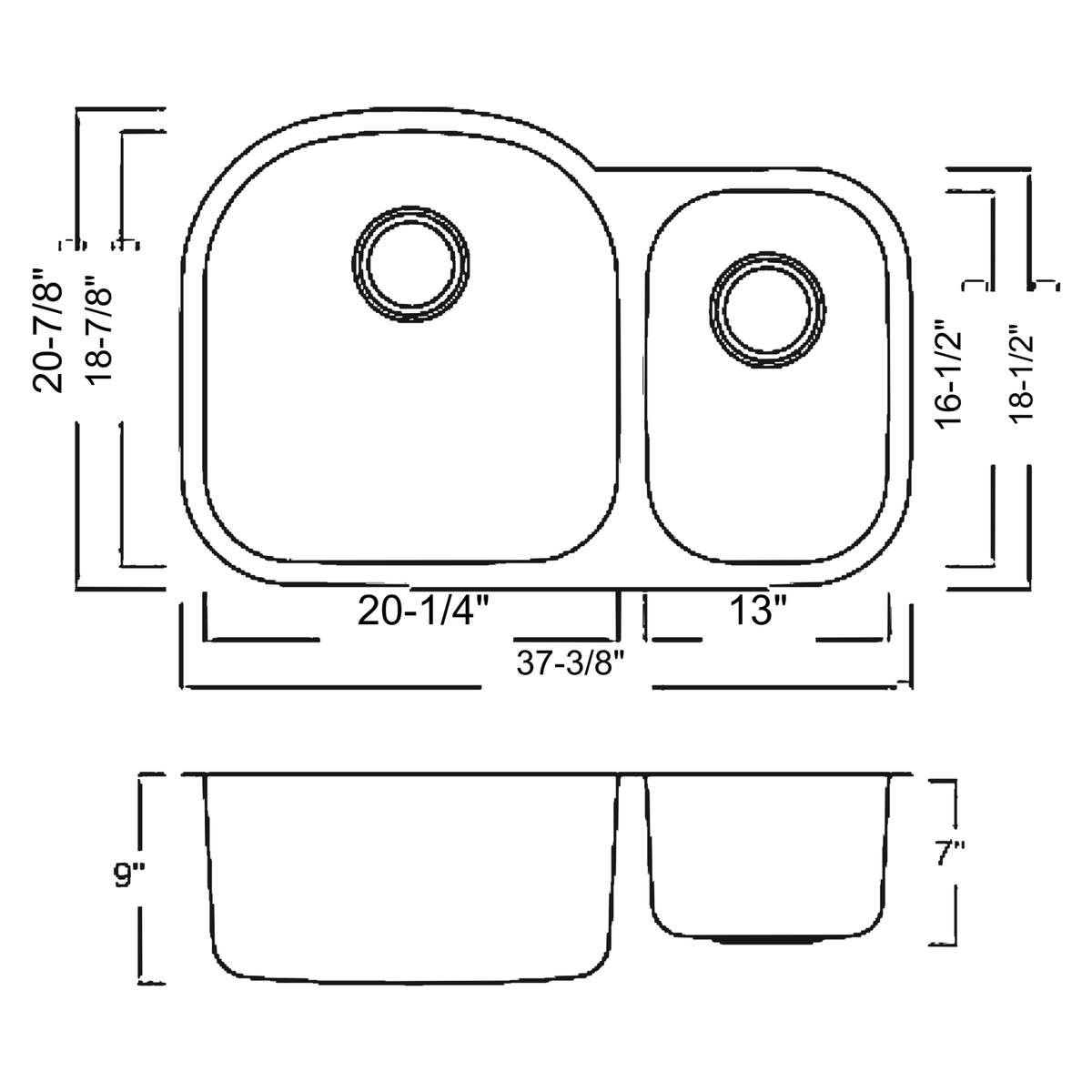

SANIKB 9653AL dimension drawing
Dimension drawing
Overall size37.4" × 20.9" (949 × 530 mm)
BowlBig Bowl Size: 21-1/4" X 18-7/8"
Small Bowl Size: 13" X 16-1/2"
Depth6" / 7" / 8" / 9"
Gauge16G/18G
Drain3-1/2"
FinishBrushed Satin
Material304 stainless steel

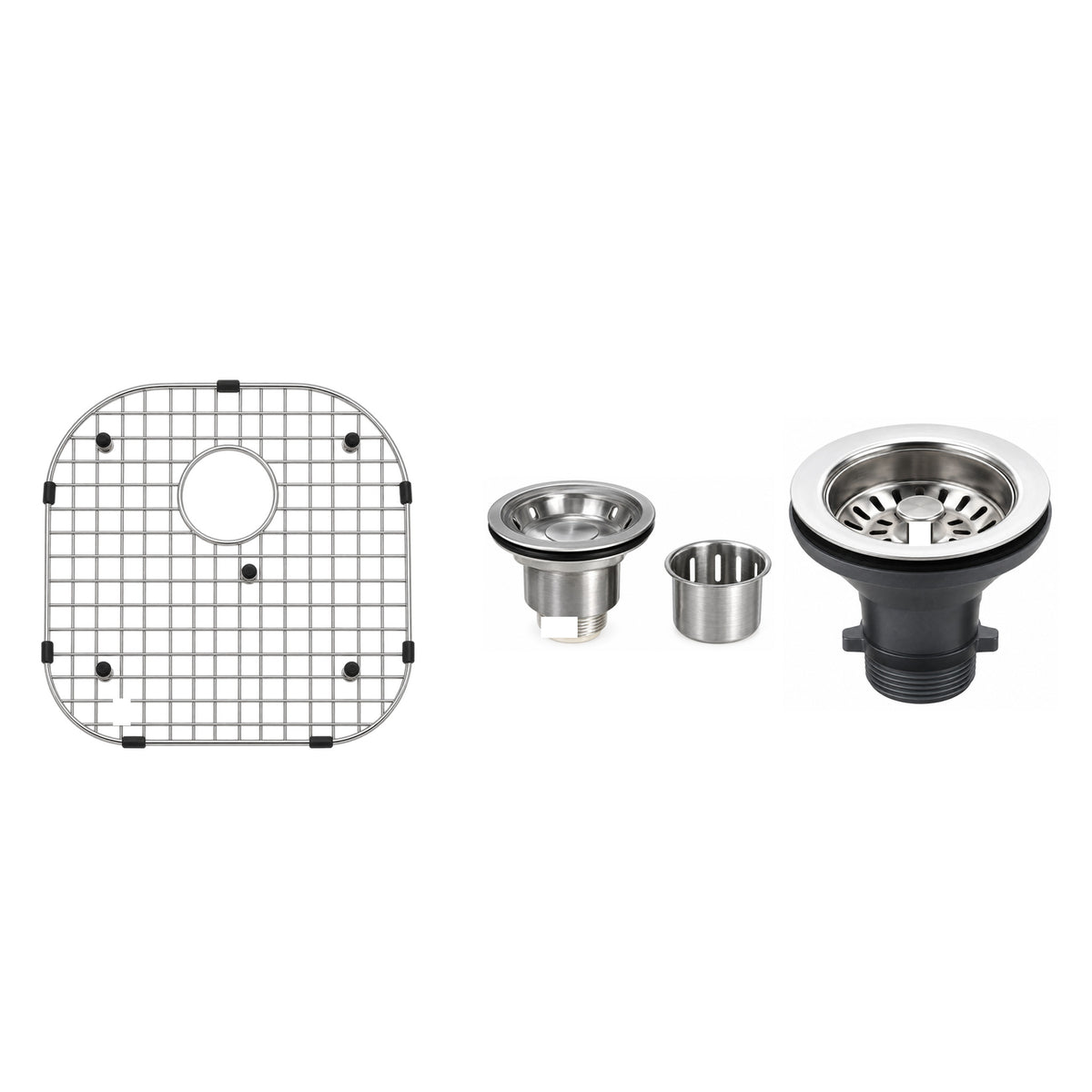

SANIKB 9653AL compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about Extra-Wide 37-3/8" Double Bowl Undermount Kitchen Sink, 304 Stainless SKU 9653AL
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    EIGHT COMBINATIONS

    9653AL: an 8 inch undermount kitchen sink in eight builds

    Two gauges and four depths give 9653AL eight configurations. Every one of them is the same 37 inch double bowl undermount sink in outline, installed beneath the countertop, so the cutout does not change when the gauge or depth does.

    Settle the depth first. A 6" or 7" body suits cabinets with a drawer or pull-out underneath, while 8" and 9" bodies give the large bowl more capacity. The 8 inch undermount kitchen sink variant sits between the two.

    Then choose the gauge per line: 16 gauge (1.5 mm) for the heavier sheet, 18 gauge (1.2 mm) for the lighter one. Give the stone fabricator the cabinet interior dimensions before the template is cut, and plan the kitchen layout around the 949 mm width.

    WIDEST DOUBLE

    9653AL size, both bowls and drain data

    Model
    9653AL
    Overall size
    37.4" × 20.9" (949 × 530 mm)
    Large bowl
    21-1/4" × 18-7/8"
    Small bowl
    13" × 16-1/2"
    Bowl depths
    6" / 7" / 8" / 9"
    Drain opening
    3-1/2"
    Gauge
    16G / 18G (1.5 mm / 1.2 mm)
    Material
    304 stainless steel
    Finish
    Brushed Satin
    Mount
    Undermount

    At 949 mm this is the widest stainless steel double bowl in our range, so confirm cabinet width before the cabinets for a whole project are ordered.

    UNEQUAL PAIR

    What each bowl does in a working kitchen

    Large basin

    At 21-1/4" × 18-7/8", it takes oversize pans, trays and stock pots without tilting them.

    Small basin

    At 13" × 16-1/2", it stays free for rinsing produce or holding a strainer while the large side is busy.

    Matching drains

    Both bowls use a 3-1/2" opening, so one strainer size covers either side.

    Face and underside

    Brushed Satin 304 stainless steel forms the face, with padding fixed beneath the bowls.

    DRAWING SET

    Spec sheet and cabinet drawing for 9653AL

    SANIKB 9653AL — Extra-Wide 37-3/8" Double Bowl Undermount Kitchen Sink, 304 Stainless

    Brushed Satin

    Model spec sheet available

    Request the 9653AL spec sheet with your enquiry. Use it for the cutout and cabinet width, and note it on the order so every batch follows the same drawing.

    Add the countertop material to the enquiry. Quartz and solid surface both suit an undermount rim, and the fabricator can then set the reveal from your drawing. The wide top leaves ample space beside the bowls.

    LOAD PLANNING

    Shipping 9653AL with narrower sinks

    Minimum order
    50 pcs
    Container
    Mixed 1×20 ft
    Quotation reply
    Within 12 business hours

    Pair this model with narrower 50/50 or single bowl sinks to cover different cabinet sizes in one shipment. Our OEM and ODM service covers private label cartons and logo marking.

    Send before we quote

    • Cabinet width and countertop material at the site
    • Gauge and bowl depth per line
    • Quantity and destination port
    • Private label or carton requirements

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    How wide a cabinet does a 37 inch double bowl undermount sink need?

    Plan for at least the 949 mm overall width plus the side panels your cabinet maker uses. Front to back, the sink needs 530 mm of countertop. That is the widest cutout among our stainless steel double bowls, so confirm it before cabinets are ordered for a whole project.

    What are the two bowl sizes on 9653AL?

    Large bowl: 21-1/4" × 18-7/8". Small bowl: 13" × 16-1/2". Both sit inside one 949 × 530 mm outline. The bowls are deliberately unequal, so bulky cookware goes in one side while the other stays free for rinsing, and both bowls take the same depth on an order line.

    Is there an 8 inch undermount kitchen sink option on this model?

    Yes. Depths of 6", 7", 8" and 9" are all tooled, in 16 gauge (1.5 mm) or 18 gauge (1.2 mm), so eight combinations exist. Brushed Satin 304 stainless steel is standard on each. List the gauge and depth split per line on your enquiry so production matches your stock plan.

    Can 9653AL ship in a mixed container?

    Yes. The minimum is 50 pcs, and a mixed 1×20 ft container is accepted. Combine it with narrower sinks if your projects use different cabinet widths. Every model, gauge and depth then appears on one quotation, which keeps the receiving list short for your warehouse team.

    Do you offer private label packing for 9653AL?

    Yes. Private label cartons and logo marking are available on request through our OEM and ODM service. Send artwork and carton requirements with the first enquiry, so the quotation covers packing and the sink order together. Mention the model, gauge, depth and quantity in the same message, and we return one quotation for the whole shipment.
