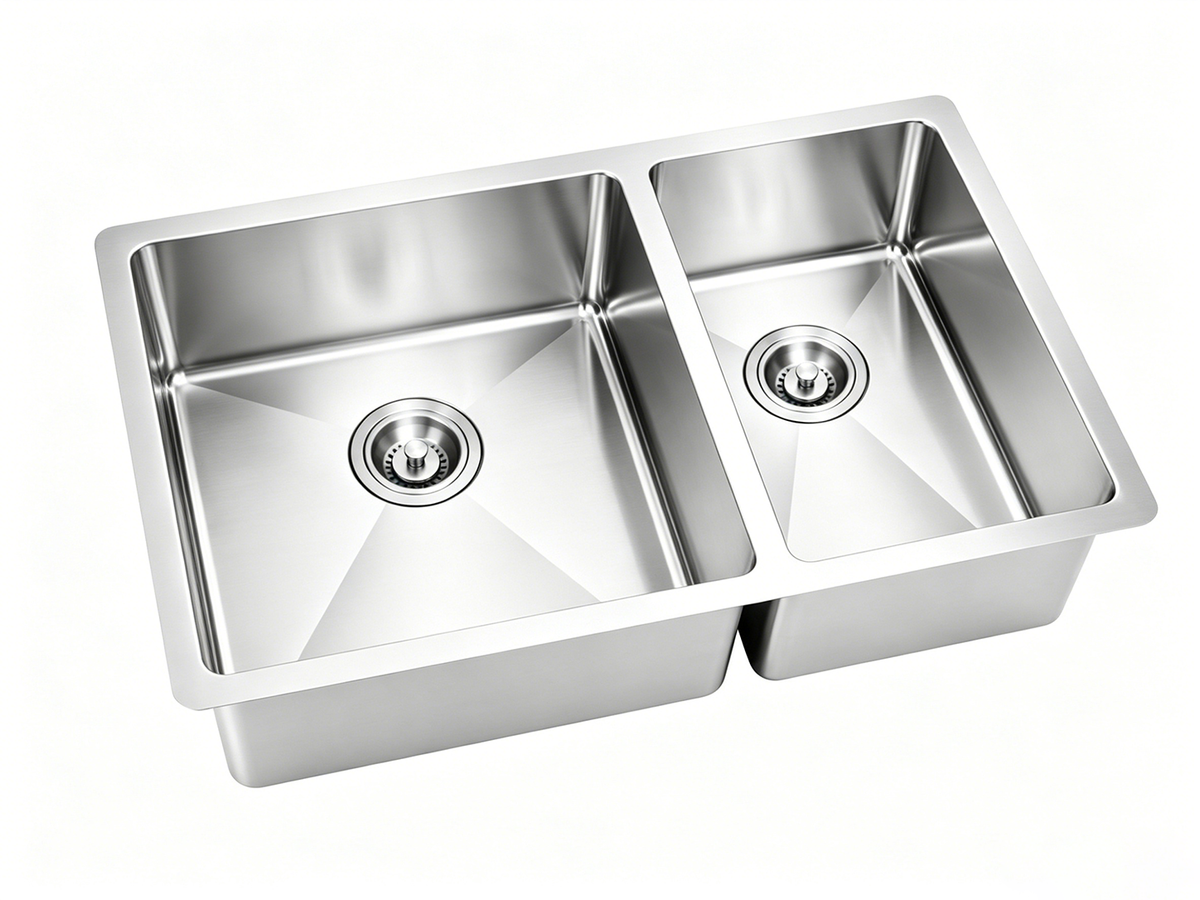

32" 60/40 Offset Double Bowl Undermount Stainless Steel Sink

DR3219 and DR3219B cut the same hole in the counter. Both are a double bowl undermount stainless steel sink measuring 32" × 19" × 10" (813 × 483 × 254 mm). Only the bowl plan inside the outline changes.

Overall size

32" x 19" x 10"

Size in mm

813 × 483 × 254 mm

Bowl layout

60/40 offset double bowl

Mounting

Undermount

Depth

10" (254 mm)

Material

SUS304 stainless steel, 18 gauge (1.2 mm)

Finish

Brushed stainless

Undermount sinks live or die on clear internal cabinet width, so measure the sink base cabinet carcass, not the nominal size.

The 60/40 plan gives one large bay for pans and trays and one small bay for rinsing or a disposer. DR3219 splits the same body 50/50, so the choice is about how your customers wash.

Corners are small radius, tighter than on the rounded-corner D3219 in this 32 inch group. Check the corner shape on the drawing before the cutout is cut.

Uneven bays put the wastes at uneven spacing. Order the drawing for this code, and have the plumber check trap height inside the carcass before approval.

Start with the survey. Record the clear internal width and depth of every base cabinet in the project, then group units that share a size. Each group can take one sink code.

Next, decide the bowl plan per group. Units with a disposer or dishwasher drain on one side suit DR3219B, while open runs with no fixed waste suit the even DR3219.

Then release the drawing to the fabricator, who needs the countertop material and the sink on one cut out template. Because both splits share the 32" × 19" outline, one cutout template covers the project and the plan can still change without redrawing the stone.

Last, send the drawing to the plumber. Two unequal wastes need their centres confirmed before the trap and the supply lines are set.

DR3219B is handmade at our factory from SUS304 stainless steel, 18 gauge (1.2 mm), with a brushed stainless finish.

Equal split and offset share the same stainless steel kitchen sink grade, gauge and finish, so stocking both adds no second material line. Label cartons by code and by bowl plan, because DR3219 and DR3219B look alike.

The model carries cUPC certification. Name the destination market in the RFQ and we quote documents against it.

Two codes at one size give a choice while the fitting instructions stay the same. Both ship under one approved artwork, with the code printed per line through our OEM and ODM route.

MOQ

50 pcs per code

Lead time

30-45 days after sample approval

Compare the wider stainless steel kitchen sinks range if the project also needs other body sizes or a different split.

Programme buyers can combine several codes on one order, as long as each code reaches 50 pcs. Both splits can sit on the same order. Mark each code on the carton so the receiving team can check against the order.

Send the list below and we quote within 12 business hours.
