Deck-Mount Oval Freestanding Bathtub with Offset Basin, 59 & 67 in

SKU D-8358-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8358-150

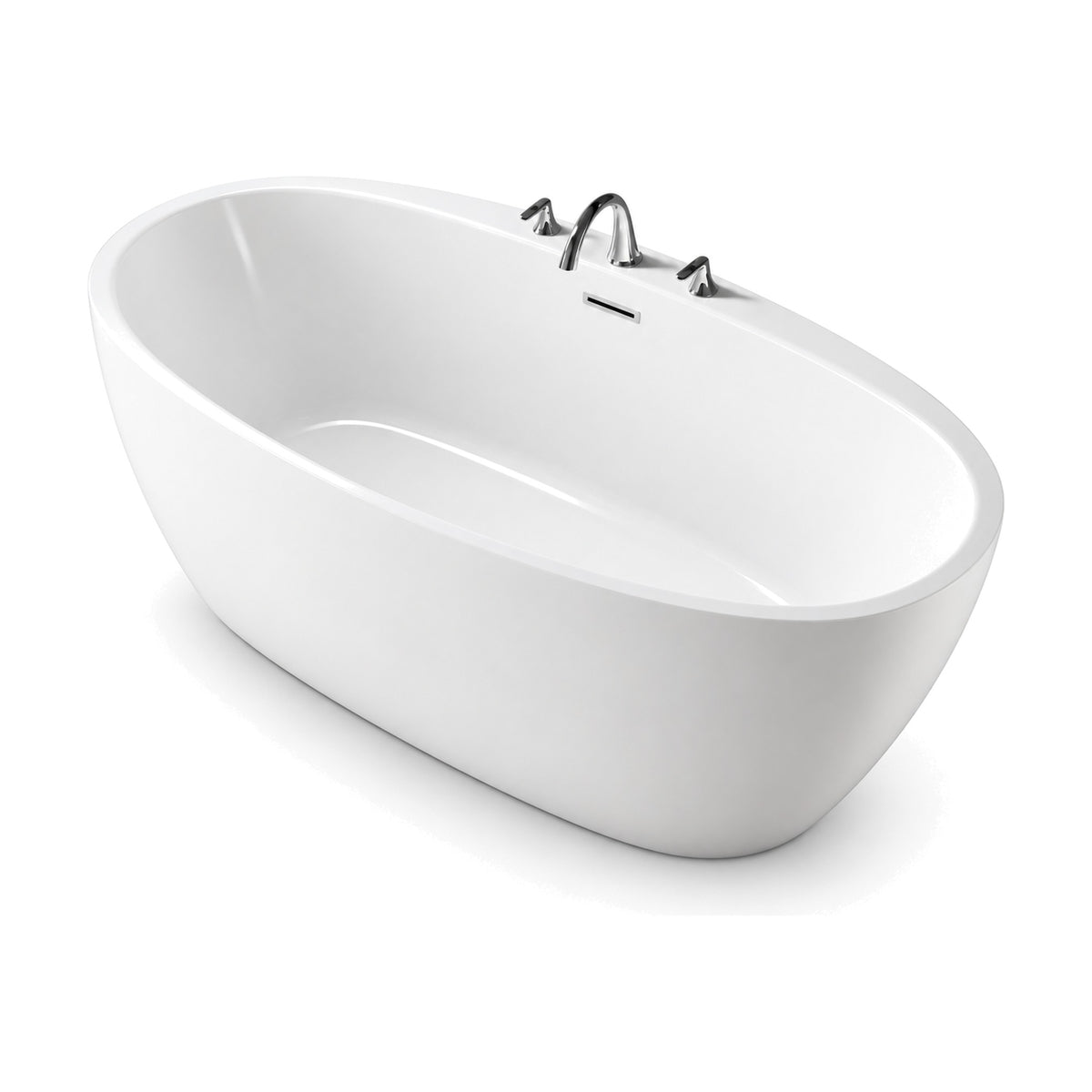

SANIKB D-8358 is a gloss white acrylic freestanding bathtub with an elliptical plan and a basin set toward one long side, which leaves a wider back rim for the faucet. That rim has three faucet holes for a deck-mounted set; whether the faucet set is supplied is agreed at quotation. D-8358-150 covers the 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) size, D-8358-170 the 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) size. The tapered sides sit straight on the floor and the drain is centered. D-8358 is cUPC certified, and enquiries receive a quote within 12 business hours.

See more freestanding bathtubs from SANIKB.

Product PDF D-8358-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8358

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

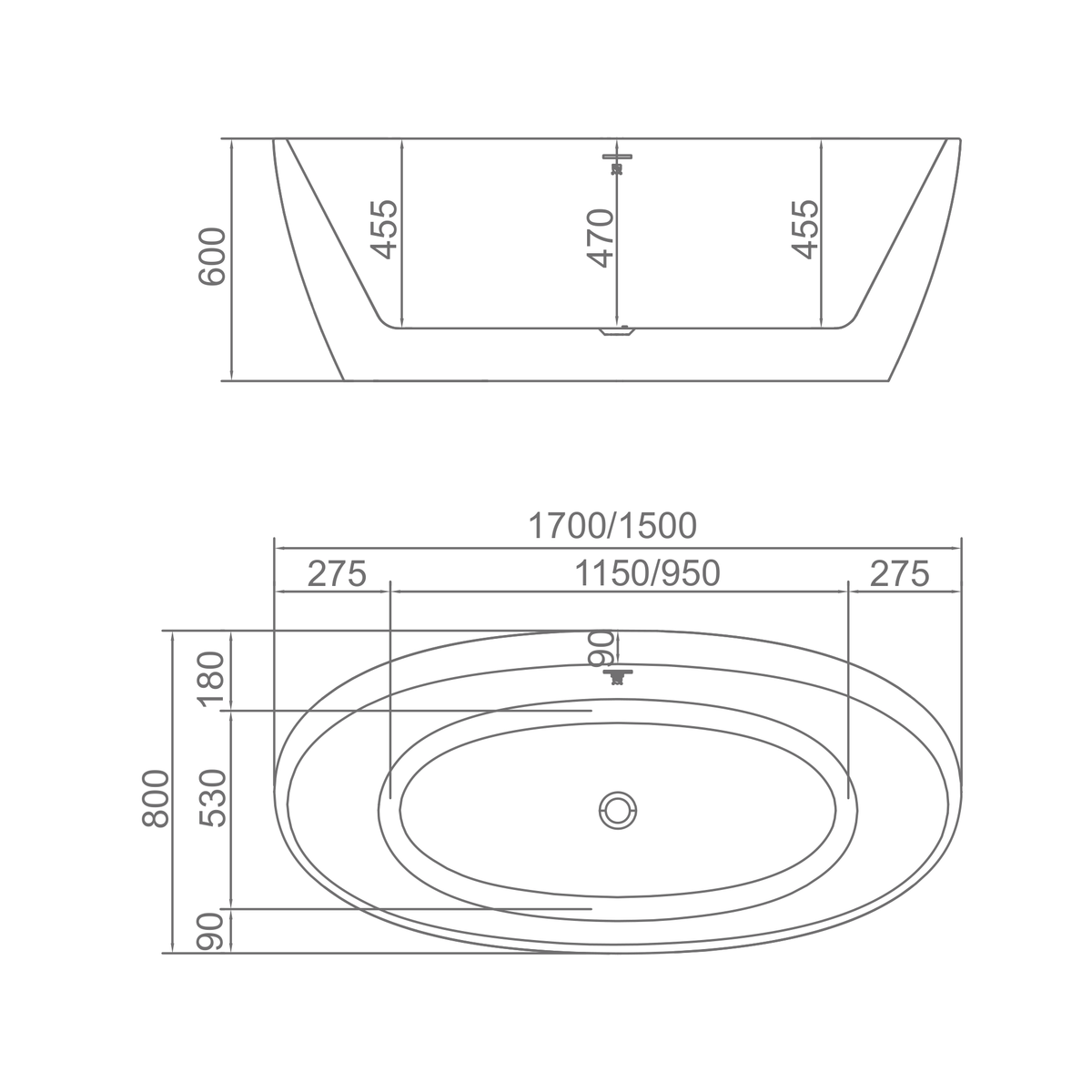

SANIKB D-8358 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8358-15059" x 31"
D-8358-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8358-15067" x 31"D-8358-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Deck-Mount Oval Freestanding Bathtub with Offset Basin, 59 & 67 in SKU D-8358-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Faucet Deck

    Offset basin with a wide rim for deck taps

    D-8358 is elliptical in plan with a level rim, but the basin is not centered across the width. It is shifted toward one long side: the basin floor sits 180 mm (7.1 in) from one long edge and 90 mm (3.5 in) from the other, so the rim is wider on the faucet side.

    01 / DECK

    Wide faucet deck with 3 holes

    The wider side of the D-8358 rim is the faucet deck, with three holes for a deck-mounted set. The hole layout is confirmed on the approved drawing against the faucet chosen for the project.

    02 / BASIN

    1150 or 950 mm inner length

    Set 275 mm (11 in) in from each end, the basin floor is 1150 mm (45 in) long on the 1700 mm size and 950 mm (37 in) on the 1500 mm size, and 530 mm (20.9 in) wide.

    Models filled from the floor or wall are in the SANIKB freestanding range.

    Fit & Plumbing

    Wide rim to the back, center drain

    Both D-8358 sizes are 800 mm (31.5 in) wide and 600 mm (23.6 in) high; length is 1500 mm (59 in) or 1700 mm (67 in). Place the wide rim on the side where the supply pipes will rise.

    D-8358-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8358-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Faucet Mount
    Deck mounted, 3 holes on the wide rim
    Inner Depth
    455 / 470 mm (17.9 / 18.5 in), end / drain

    Deck-mounted taps need supply lines brought up under the tub to the wider rim, so that pipework has to be in place before D-8358 is set. The drawing places the overflow 90 mm (3.5 in) from the edge.

    Confirm the tap-hole layout on the approved drawing against the faucet chosen for the project.

    Material & Finish

    Gloss white acrylic with a faucet deck

    D-8358 is made from pure acrylic sheet in gloss white.

    SANIKB D-8358 - gloss white oval freestanding tub with offset basin and wide back rim holding 3-hole deck-mounted taps

    White

    Faucet trim against a gloss rim

    Faucet finish shows clearly on a gloss white deck. If the faucet set is supplied with the tub, agree its finish when the D-8358 sample is approved.

    Send the faucet specification sheet with the enquiry so the hole spacing on the D-8358 deck can be checked against it.

    Whether the faucet set is supplied is agreed at quotation; state the scope in the enquiry.

    Compliance

    cUPC certification for D-8358

    Tub and faucet documents apart

    If a faucet travels with D-8358, list the tub and faucet paperwork as separate items.

    D-8358 is cUPC certified. Before the submittal, ask for the current certificate details against the model and the SKU being ordered.

    Identify the destination market in the enquiry; replies on D-8358 are issued in writing within 12 business hours.

    Procurement

    Ordering D-8358 with a deck faucet

    SANIKB manufactures D-8358 in two lengths, each quoted as its own SKU.

    Sizes
    1500 / 1700 mm
    Standard Lead Time
    30-45 days after sample approval

    Plan D-8358 deliveries on the standard lead time of 30-45 days after sample approval. Because the faucet mounts on the tub, send the faucet hole pattern with the first enquiry.

    Include these details with the RFQ

    • D-8358-150 and D-8358-170 quantities
    • Faucet model or hole spacing for the 3-hole deck
    • Faucet set: supplied with the tub or by others
    • Destination market and port
    • Carton marking
    • Shipping window
    Request D-8358 Quote View OEM & ODM Program

    The D-8358 schedule is confirmed once the faucet scope and the quotation are settled.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    Which lengths can D-8358 be ordered in?

    Two. D-8358-150 measures 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in), and D-8358-170 extends to 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) with the same width and height.

    Where does the faucet mount on D-8358?

    On the rim. The basin is offset toward one long side, leaving a wider rim on the other side as the faucet deck, with three holes for a deck-mounted set. Whether the faucet set is supplied is agreed at quotation.

    Is D-8358 handed?

    No. It is double ended with a centered drain; the only orientation choice is which long side carries the wider faucet rim, and that is set by turning the tub.

    What plumbing does the D-8358 installer need?

    Supply lines have to rise under the wide rim to the deck faucet, and the waste connects at the center drain. Take the waste position from the approved D-8358 drawing and the supply positions from the faucet chosen for the project.

    What is the D-8358 finish?

    Gloss white on pure acrylic sheet, with tapered sides that sit straight on the floor.

    What should a D-8358 quote request include?

    Attach the faucet hole pattern, state whether a faucet is part of the order, and give quantities per SKU. We answer within 12 business hours, and the deck-mount tub follows a standard lead time of 30-45 days after sample approval.
