Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8502-170

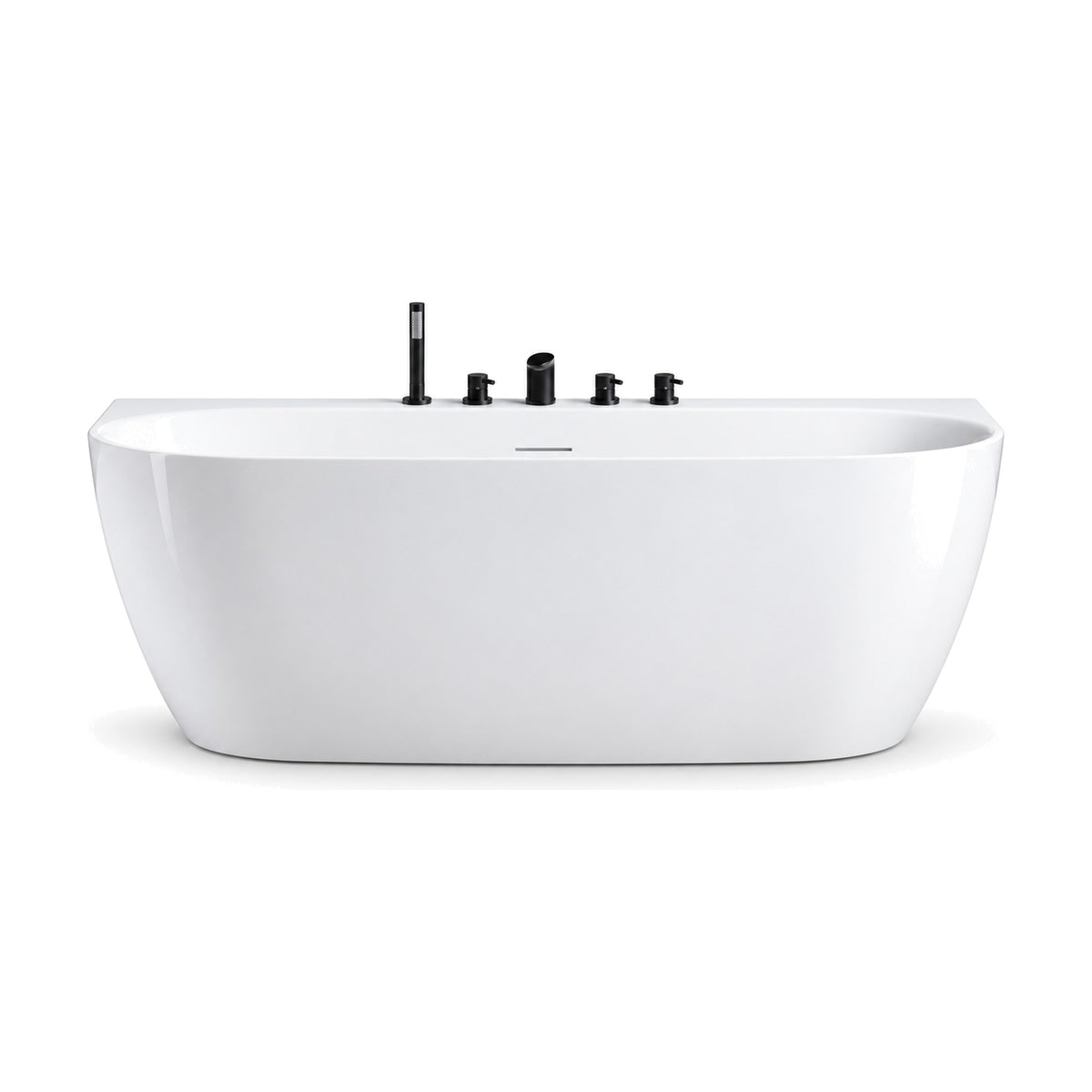

SANIKB D-8502 - glossy white D-shaped back-to-wall bathtub with a flat back deck carrying a 5-piece deck-mounted tap setSANIKB D-8502 dimension drawing
01 / 02
01 / 02

D-Shape Back-to-Wall Bathtub with Wide Rear Tap Deck, 67 in

SKU D-8502-170
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Back-to-wall freestanding bathtub
Size 67" × 31.5" × 22.8" (1700 × 800 × 580 mm) Custom sizes
Mount Back-to-wall (one long side to the wall)
Finish
White
Product PDF D-8502-170

SANIKB D-8502 is a D-shaped acrylic back-to-wall bathtub built around a wide rear tap deck. The back rim is wider than the front and takes a 5-piece deck-mounted tap set; whether the tap set is supplied is agreed at quotation. The straight back stands against the wall, leaving the rounded front and both ends exposed. D-8502 is made in one size, SKU D-8502-170: 1700 × 800 × 580 mm (67 × 31.5 × 22.8 in).

Both ends are backrests, the drain is at the center, and the base is 1340 mm (53 in) long under the 1700 mm rim. Glossy white and cUPC certified, D-8502 is quoted within 12 business hours. Browse SANIKB freestanding bathtubs.

Product PDF D-8502-170

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8502

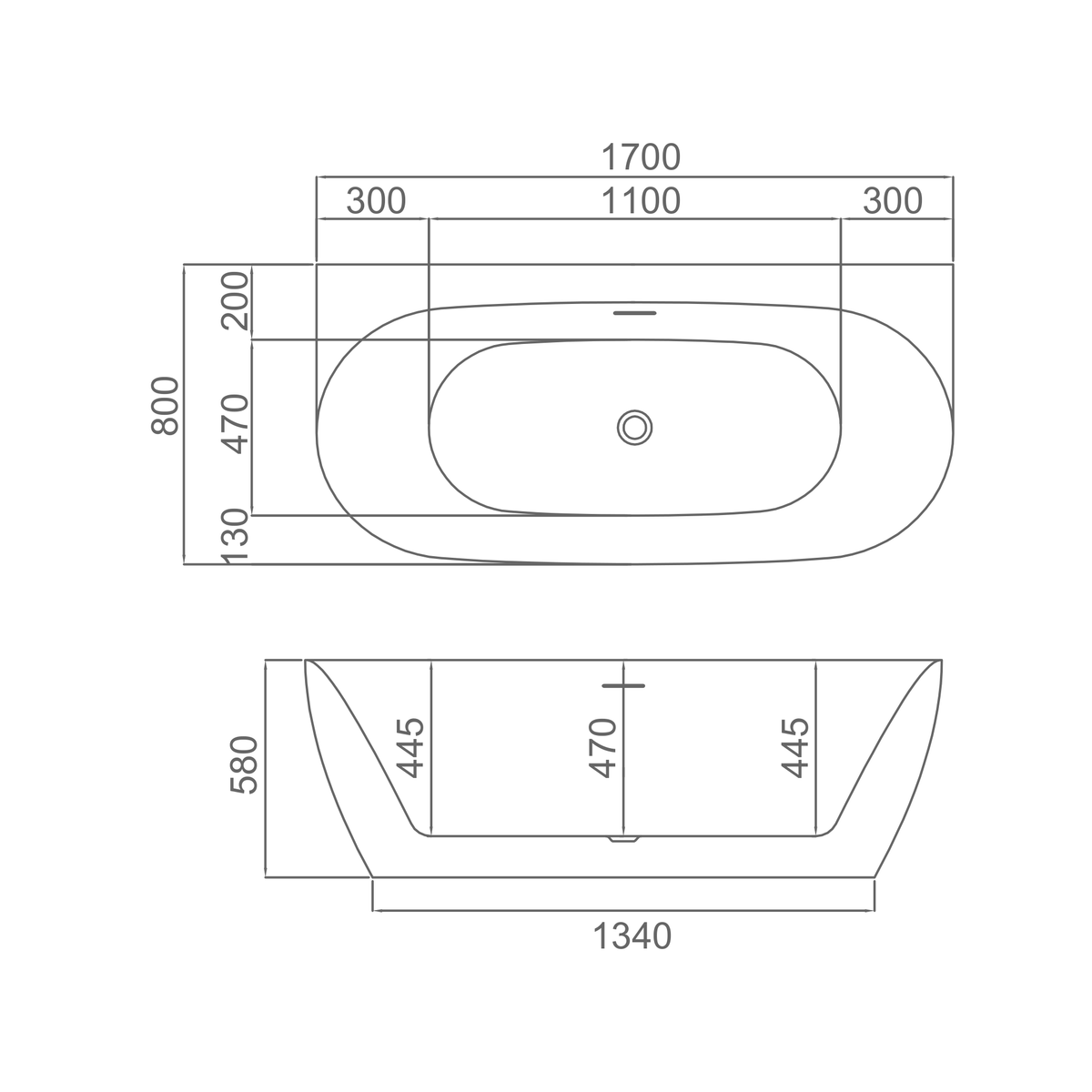

SANIKB D-8502 dimension drawing
Dimension drawing
Size range67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
InstallationBack-to-wall (one long side to the wall)
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about D-Shape Back-to-Wall Bathtub with Wide Rear Tap Deck, 67 in SKU D-8502-170
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Tap Deck

    Straight back, rounded front, rear tap deck

    D-8502 is a D shape: the back is straight so it stands against a wall, while the front and both ends are rounded. On the drawing the basin floor sits 200 mm (7.9 in) from the back edge and 130 mm (5.1 in) from the front edge.

    01 / TAP DECK

    5-piece tap set on the back deck

    The flat back deck takes a 5-piece deck-mounted tap set along the wall side. Tap scope and hole positions are agreed at quotation and confirmed on the approved drawing.

    02 / DOUBLE ENDED

    Two sloped ends, center drain

    Both ends are shaped as backrests and the drain sits at the center. Inner depth runs 445, 470 and 445 mm (17.5, 18.5 and 17.5 in) along the length.

    A back-to-wall D-shape keeps the tub against the wall where a fully freestanding tub would leave an unused gap behind it. Compare it with other shapes in the SANIKB bathtub range.

    Fit & Footprint

    1700 × 800 mm with a 1340 mm base

    D-8502 measures 1700 × 800 × 580 mm (67 × 31.5 × 22.8 in). Along the length, 300 mm (12 in) ends frame an 1100 mm (43 in) inner basin.

    Overall Size
    67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
    Installation
    Back-to-wall, flat to floor
    Faucet Mount
    Deck-mounted on the back deck
    Backrest
    Double-ended, center drain

    The base is 1340 mm (53 in) long, against the 1700 mm overall length. Across the 800 mm width, the drawing gives 200 mm from the back edge to the basin floor, a 470 mm (18.5 in) basin floor and 130 mm from the floor to the front edge.

    The flat back and its square corners are confirmed on the approved drawing before the layout is fixed.

    Construction & Finish

    Acrylic in glossy white

    D-8502 is formed from pure acrylic sheet and finished in white with a gloss surface.

    SANIKB D-8502 - glossy white D-shaped back-to-wall bathtub with a flat back deck carrying a 5-piece deck-mounted tap set

    White

    One color, one finish

    D-8502 is made in white, so every unit in an order arrives in the same finish.

    Because the back deck carries the taps, the rim on that side is wider than at the front. Allow for the deck width when the supply lines are positioned in the wall behind.

    Ask how the tub is protected in its carton and how damaged units are recorded on arrival.

    Put a damage-reporting window into the supply agreement.

    Compliance

    cUPC certification for D-8502

    Paperwork per model

    Ask for the certificate and drawing under D-8502 by name, separate from any other tubs in the same order.

    D-8502 carries cUPC certification. Request the certificate number and its validity against this model for your submittal package.

    State the target market and the paperwork required when you send the inquiry; written replies come back within 12 business hours.

    Procurement

    Ordering D-8502

    D-8502 is made in one size, SKU D-8502-170. Quantity and tap scope are set in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Sent within 12 business hours

    Lead time runs from sample approval, so the sample round belongs in the project schedule. For private label packaging and marking, see the SANIKB OEM and ODM program.

    Include these details with the RFQ

    • Quantity of D-8502-170
    • Target market and port of discharge
    • Tap scope for the back deck
    • Brand marking on the carton
    • Shipping window
    Request D-8502 Quote View OEM & ODM Program

    The lead time shown is indicative until it is written into the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    How big is D-8502?

    D-8502 is 1700 × 800 × 580 mm, or 67 × 31.5 × 22.8 in, made as SKU D-8502-170. The base is 1340 mm (53 in) long and the inner basin 1100 mm (43 in).

    Which side of D-8502 goes against the wall?

    The straight long side with the wide deck goes to the wall, and the rounded front and ends stay exposed. The flat back is confirmed on the approved drawing.

    Where do the taps go on D-8502?

    On the flat back deck, which takes a 5-piece deck-mounted tap set. Whether the tap set is supplied, and the hole positions, are agreed at quotation.

    Is D-8502 single or double ended?

    Double-ended. Both ends are sloped and the drain is at the center, with inner depths of 445, 470 and 445 mm (17.5, 18.5 and 17.5 in) along the length.

    What is D-8502 made of, and what finish does it have?

    It is formed from pure acrylic sheet, in white with a gloss surface. It sits flat on the floor with no feet.

    How do we request a quote for D-8502?

    Send the quantity of D-8502-170, your market, port and shipping window, and whether taps are needed. Replies are issued within 12 business hours, and standard lead time is 30-45 days after sample approval. D-8502 is cUPC certified.
