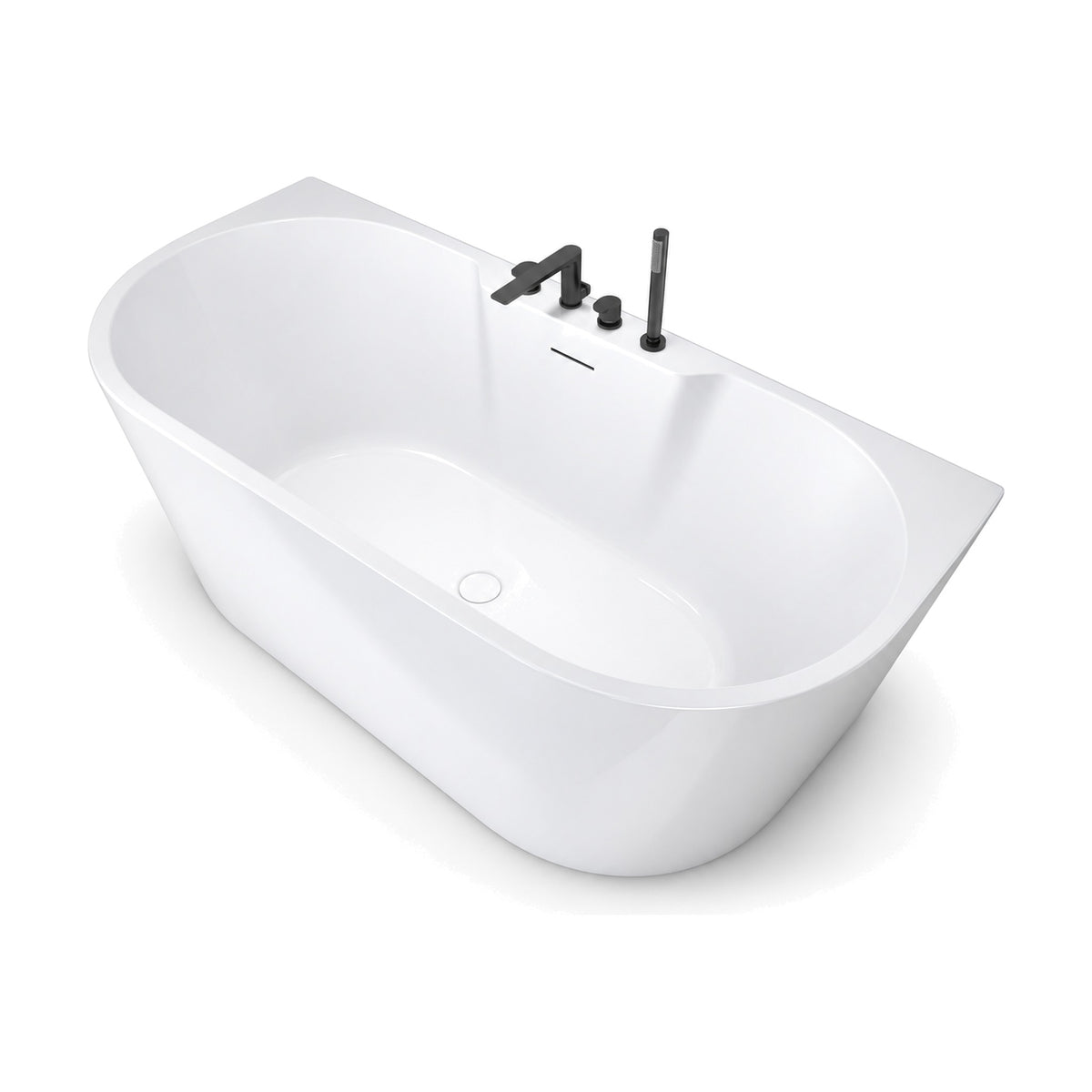

SANIKB D-8011T - glossy white D-shaped back-to-wall bathtub with slim rim and molded center tap platform with deck tapsSANIKB D-8011T dimension drawing
01 / 02
01 / 02

D-Shape Back-to-Wall Bathtub with Molded Center Tap Platform, 67 in

SKU D-8011T-170
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Back-to-wall freestanding bathtub
Size 67" × 31.5" × 22.8" (1700 × 800 × 580 mm) Custom sizes
Mount Back-to-wall (one long side to the wall)
Finish
White
Product PDF D-8011T-170

SANIKB D-8011T is a D-shaped acrylic back-to-wall bathtub with a slim rim and a molded tap platform set in the middle of its straight back. The platform takes deck-mounted taps, so the rest of the rim stays narrow and the taps sit centered on the tub rather than at one end. D-8011T is made in one size, SKU D-8011T-170: 1700 × 800 × 580 mm (67 × 31.5 × 22.8 in). The front and both ends are rounded, both ends are backrests, and the tub stands flat on the floor.

The platform is molded into the glossy white acrylic shell; its hole layout is confirmed on the approved drawing, and whether taps are supplied is agreed at quotation. D-8011T is cUPC certified, and SANIKB answers quote requests within 12 business hours. View SANIKB freestanding bathtubs.

Product PDF D-8011T-170

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8011T

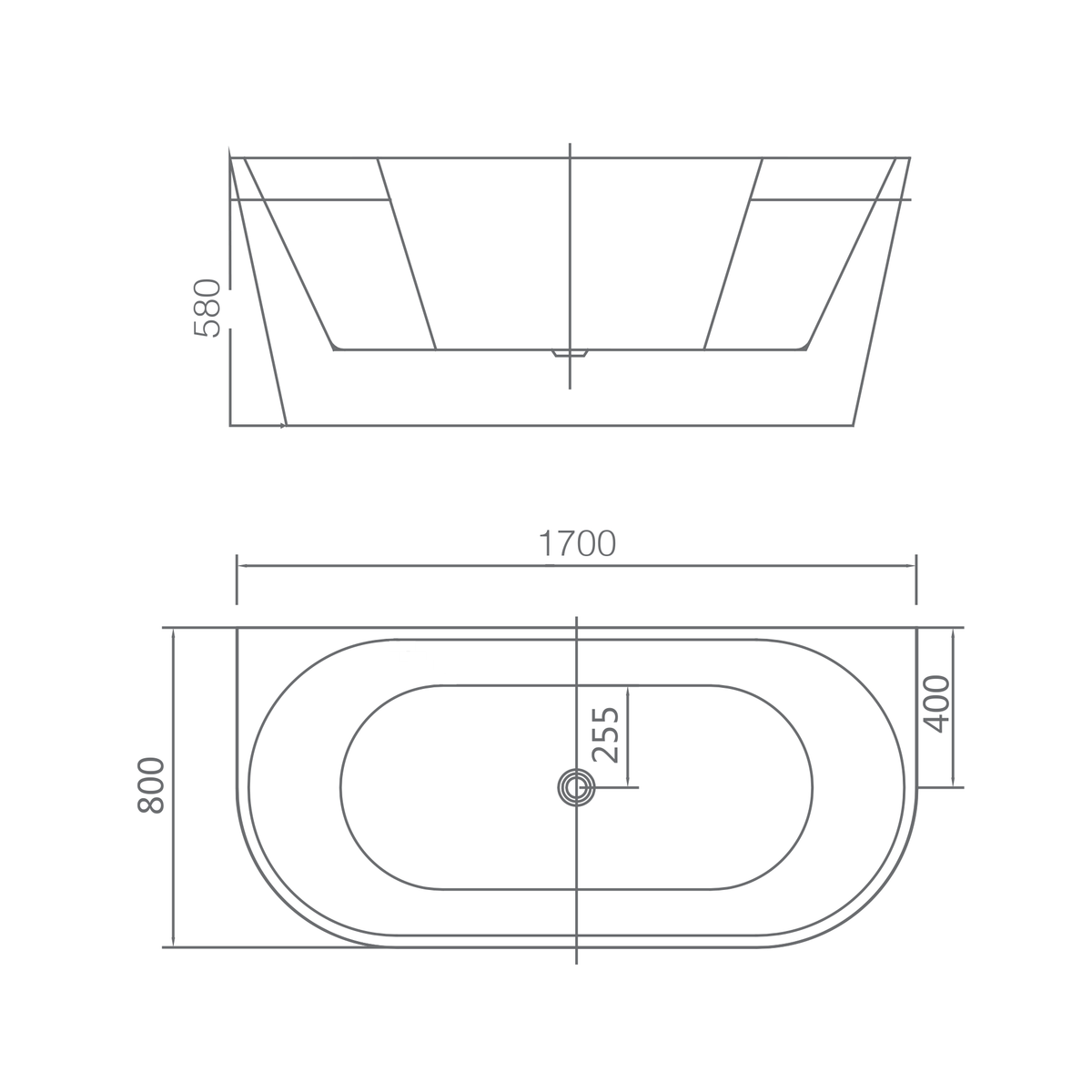

SANIKB D-8011T dimension drawing
Dimension drawing
Size range67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
InstallationBack-to-wall (one long side to the wall)
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about D-Shape Back-to-Wall Bathtub with Molded Center Tap Platform, 67 in SKU D-8011T-170
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Tap Platform

    Slim rim with a molded platform for taps

    D-8011T keeps a slim rim all round except at the middle of the straight back, where a molded platform carries deck-mounted taps.

    01 / TAP PLATFORM

    Taps at the center of the back

    The platform sits midway along the wall side, so the taps are centered on the tub rather than placed at one end. Whether taps are part of the order, and how the platform is drilled, are agreed at quotation.

    02 / DOUBLE ENDED

    Rounded ends shaped as backrests

    Both ends are backrests, so the bather can recline at either end. The front and ends are rounded, and the straight back stands against the wall.

    Inner length and drain position are confirmed on the approved drawing; compare D-8011T with the other D-shapes in the SANIKB bathtub range.

    Fit & Footprint

    1700 × 800 mm back-to-wall footprint

    D-8011T-170 measures 1700 × 800 × 580 mm, or 67 × 31.5 × 22.8 in, with the tap platform at the middle of the wall side.

    Overall Size
    67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
    Installation
    Back-to-wall, flat to floor
    Faucet Mount
    Deck-mounted on a molded back platform

    Inner length, drain position and platform width are confirmed on the approved drawing, so take them from there before the room layout is fixed.

    Route the tap supplies to the middle of the back wall, where the platform sits.

    Construction & Finish

    Glossy white acrylic with a slim rim

    D-8011T is made from pure acrylic sheet in white, with a gloss surface.

    SANIKB D-8011T - glossy white D-shaped back-to-wall bathtub with slim rim and molded center tap platform with deck taps

    White

    One finish for the order

    D-8011T is made in white. Keeping every unit in the same color and gloss level avoids mismatched tubs between rooms.

    The slim rim keeps the visible edge light; the only wide section is the tap platform on the wall side.

    Agree carton protection for the rim and platform edges, and how transit damage is reported, before shipment.

    Note any damage on the delivery receipt and report it inside the agreed window.

    Compliance

    D-8011T cUPC certification

    Named document set

    Certificates and drawings are issued under D-8011T by name. Put other models in the same order on separate lines.

    Model D-8011T is cUPC certified. Ask for the current certificate number and validity dates tied to this model before it enters a submittal.

    Tell SANIKB the destination market and which documents the project file needs; the written reply is sent within 12 business hours.

    Procurement

    Quoting D-8011T

    D-8011T is made in one size, SKU D-8011T-170. Tap scope and quantity are agreed in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Sent within 12 business hours

    Production follows sample approval, and the standard window runs 30-45 days after sample approval. Private label marking goes through the SANIKB OEM and ODM program.

    Include these details with the RFQ

    • Quantity of D-8011T-170
    • Market and destination port
    • Whether taps for the platform are required
    • Carton marking and brand label
    • Target shipping window
    Request D-8011T Quote View OEM & ODM Program

    Lead time is indicative until it is confirmed in the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the overall dimensions of D-8011T?

    D-8011T is made in one size, SKU D-8011T-170: 1700 × 800 × 580 mm, or 67 × 31.5 × 22.8 in. Inner dimensions and the drain position are confirmed on the approved drawing.

    How does the tap platform on D-8011T work?

    A molded platform in the middle of the straight back takes deck-mounted taps, while the rest of the rim stays slim. Plan the supply lines to the center of the wall side; tap scope is agreed at quotation.

    Is D-8011T double ended?

    Yes. Both rounded ends are shaped as backrests, and the straight back goes against the wall.

    How is D-8011T installed?

    It is a back-to-wall tub that stands flat on the floor with its straight side to the wall. The rounded front and ends stay exposed in the room.

    What color and material is D-8011T?

    D-8011T is made from pure acrylic sheet, in white with a gloss surface. White is the only color it is made in.

    How do we get a quote for D-8011T?

    Send the quantity, market, port and whether you need taps for the platform. A written quotation follows within 12 business hours. Production is scheduled at 30-45 days after sample approval. D-8011T is cUPC certified.
