Cushion-Shape Rectangular Freestanding Tub, Bowed Ends, 59 & 67 in

SKU D-8017-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 29.5" × 23.6" (1500 × 750 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8017-150

SANIKB D-8017 is a double-ended cushion-shape freestanding tub in white acrylic: roughly rectangular, with slightly bowed sides, outward-curving short ends and pointed corners. Faceted walls flare out from a smaller flat base to a thin rim, and the drain is centered.

The narrower D-8017-150 is 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in), and the wider D-8017-170 is 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). With no tap holes in the rim, it is set up for a floor-standing or wall-mounted filler and carries cUPC certification. Find related shapes in the freestanding bathtub collection.

Product PDF D-8017-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8017

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

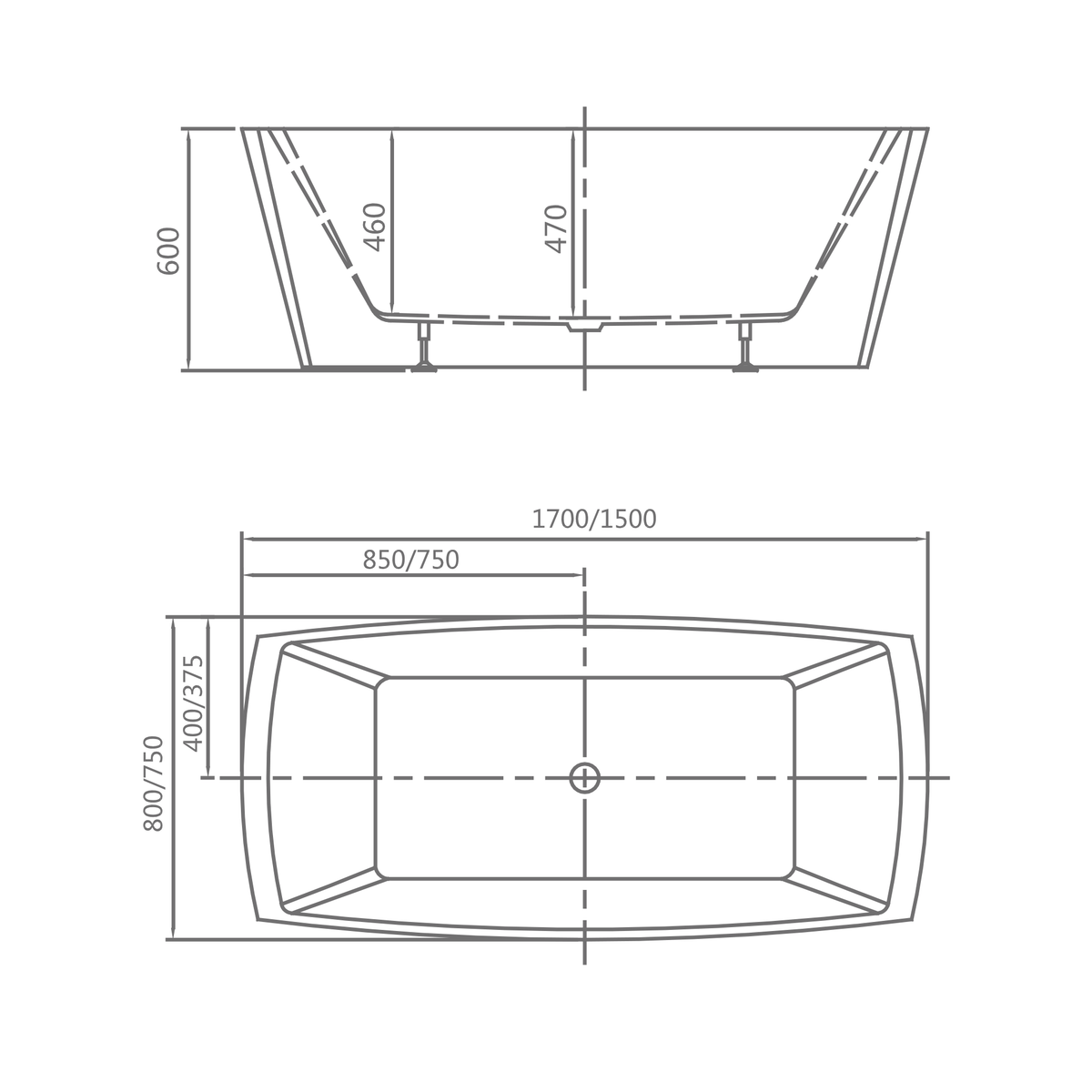

SANIKB D-8017 dimension drawing
Dimension drawing
Size range59" / 67" × 29.5" / 31.5" × 23.6" (1500 / 1700 × 750 / 800 × 600 mm)
Sizes59" x 30"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8017-15059" x 30"
D-8017-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 30"D-8017-15067" x 31"D-8017-170
Overall L×W×D
59″ × 29.5″ × 23.6″
1500 × 750 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Cushion-Shape Rectangular Freestanding Tub, Bowed Ends, 59 & 67 in SKU D-8017-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Plan & Walls

    Cushion plan with bowed short ends

    D-8017 starts from a rectangle and softens it: the short ends curve outward, the sides bow slightly, and the corners come to points. The plan is symmetric.

    01 / WALLS

    Faceted, flared walls

    The walls are faceted and lean out from a smaller base toward the thin rim, so the outline at the top is larger than the footprint.

    02 / BACKREST

    Recline at either end

    Both ends are shaped alike, and the drain is at the center of the floor. Inner depth is drawn at 460 mm and 470 mm (18.1 and 18.5 in).

    Other curved and angular outlines are in the freestanding bathtub range.

    Fit & Footprint

    Two sizes: 1500 x 750 and 1700 x 800 mm

    D-8017-150 is 59 x 29.5 x 23.6 inches (1500 x 750 x 600 mm) and D-8017-170 is 67 x 31.5 x 23.6 inches (1700 x 800 x 600 mm).

    D-8017-150
    59" x 29.5" x 23.6" (1500 x 750 x 600 mm)
    D-8017-170
    67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
    Drain (as drawn)
    Centered: 750 / 850 mm from the end, 375 / 400 mm from the side
    Faucet Mounting
    Floor-standing or wall; no rim holes

    The length and width are overall figures; the base is smaller because the walls flare as they rise.

    Take the D-8017 drain set-out from the approved drawing before rough-in.

    Construction & Finish

    White acrylic with faceted sides

    D-8017 is formed from pure acrylic sheet in white, facets and bowed ends alike.

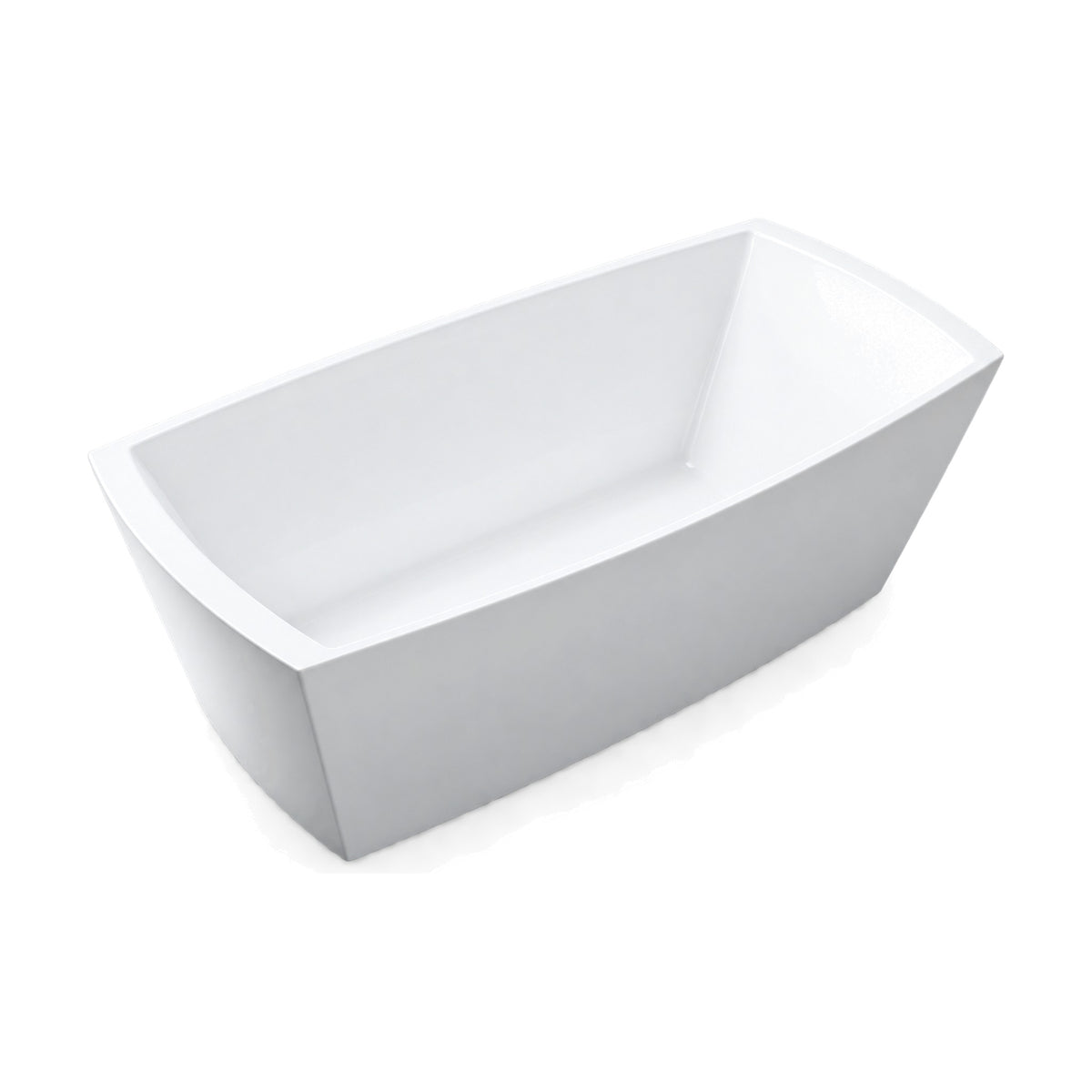

    SANIKB D-8017 - white cushion-shaped freestanding tub with bowed short ends, faceted flared walls and thin rim

    White

    Facets and sheen

    Faceted walls show the surface from several angles at once. Approve sheen and white tone on a D-8017 sample.

    The flat base sits straight on the floor without a plinth, so the floor should be level before placement.

    Record the approved D-8017 sample as the standard for finish.

    Compliance

    D-8017 cUPC details

    Size on every request

    Name D-8017-150 or D-8017-170 when asking for documents.

    D-8017-150 and D-8017-170 hold cUPC certification. The certificate number and validity are sent on request for submittals.

    Include the destination market and document list with your enquiry; the written answer on D-8017 comes back within 12 business hours.

    Procurement

    Quoting D-8017

    D-8017 is quoted per size, and production takes 30-45 days after sample approval.

    Size SKUs
    D-8017-150, D-8017-170
    Standard Lead Time
    30-45 days after sample approval

    The corner points and bowed ends need protection in transit; ask for them to be covered in the D-8017 carton specification.

    Include these details with the RFQ

    • D-8017-150 and D-8017-170 quantities
    • Destination market and port
    • Floor or wall filler plan
    • Carton marking
    • Shipping window requested
    Request D-8017 Quote View OEM & ODM Program

    Final D-8017 lead time is given in the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What sizes is the cushion-shaped D-8017 offered in?

    D-8017-150 is 750 mm wide at 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in), and D-8017-170 is 800 mm wide at 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    What is a cushion-shaped plan?

    On D-8017 it means a roughly rectangular outline with slightly bowed sides, outward-curving short ends and pointed corners, symmetric end to end.

    Where is the D-8017 drain?

    At the center: 750 or 850 mm from the end and 375 or 400 mm from the side, depending on size. The tub is double-ended.

    How deep is D-8017?

    Inner depth is drawn at 460 mm and 470 mm (18.1 and 18.5 in), in a 600 mm (23.6 in) high shell.

    What faucet suits D-8017?

    D-8017 has no tap holes in its thin rim; fill it from a floor-standing filler or a wall-mounted spout. Position it on the approved drawing so it clears the bowed ends.

    What do you need to quote D-8017?

    Quantities per SKU, destination port and filler choice. SANIKB quotes within 12 business hours, and production of D-8017 is scheduled for 30-45 days after sample approval.
