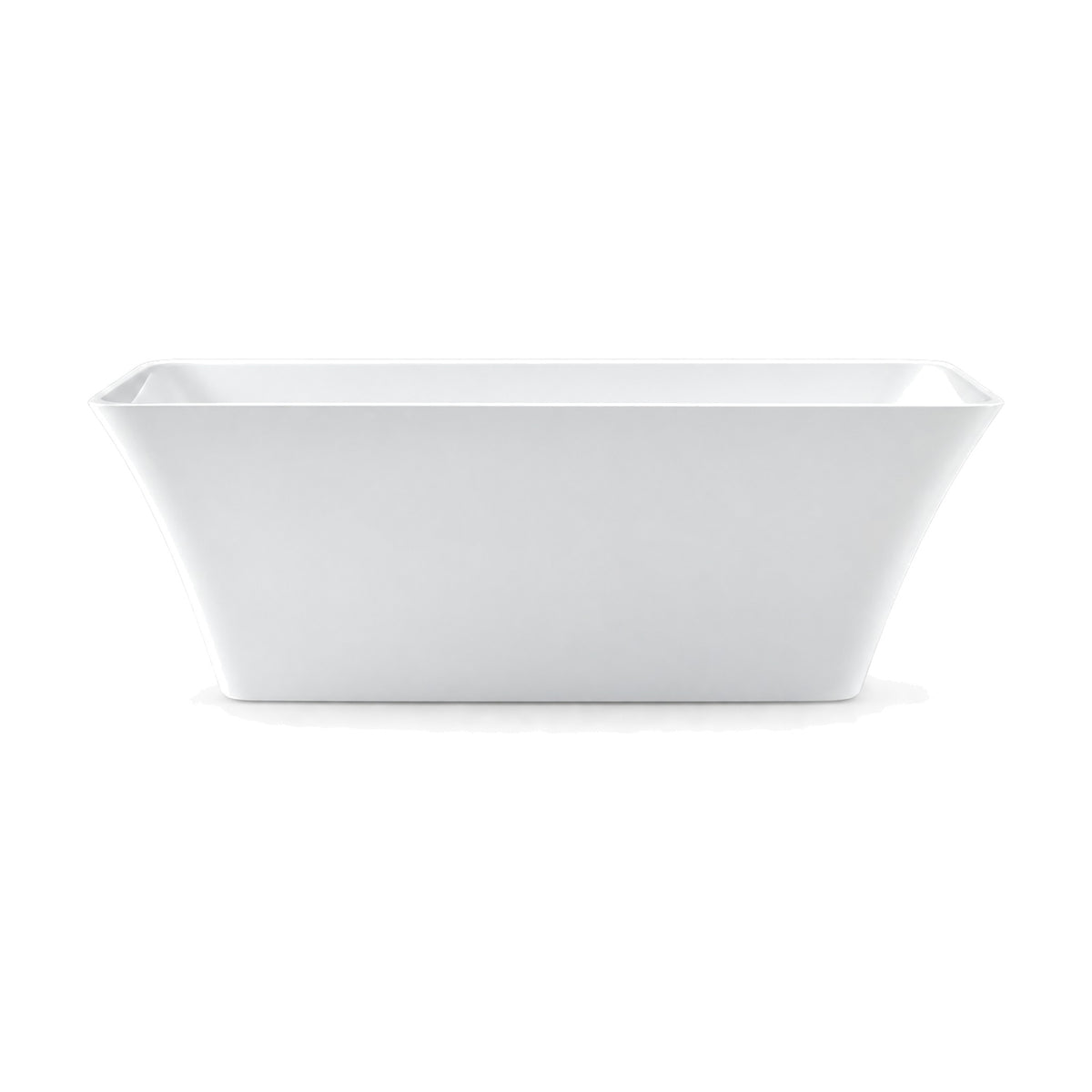

SANIKB D-8020 - white rounded-rectangle freestanding bathtub with concave flared ends, thin level rim and flat base

01 / 02

Concave-Flared Rounded Rectangle Freestanding Tub, 59-71 in

SKU D-8020-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (67 in) / 35 pcs (71 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 29.5" × 23.6" (1500 × 750 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8020-150

SANIKB D-8020 is a white acrylic freestanding bathtub with a rounded-rectangle plan, a thin level rim and ends that flare out from a flat base in a gentle concave curve. It is double-ended with a center drain and comes in three lengths at one width: D-8020-150 at 1500 × 750 × 600 mm (59 × 29.5 × 23.6 in), D-8020-170 at 1700 × 750 × 600 mm (67 × 29.5 × 23.6 in) and D-8020-180 at 1800 × 750 × 600 mm (71 × 29.5 × 23.6 in). Its thin rim has no tap holes, so each length is filled from a floor-standing or wall-mounted filler.

D-8020 is cUPC certified across all three lengths, and quotes go out within 12 business hours. Compare it across the SANIKB freestanding bathtub collection.

Product PDF D-8020-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8020

Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.

Size range59" / 67" / 71" × 29.5" × 23.6" (1500 / 1700 / 1800 × 750 × 600 mm)

Sizes59" x 30"67" x 30"71" x 30"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8020-150	59" x 30"
D-8020-170	67" x 30"
D-8020-180	71" x 30"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 3 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (67 in) / 35 pcs (71 in) · 1×40HQ

	59" x 30"D-8020-150	67" x 30"D-8020-170	71" x 30"D-8020-180
Overall L×W×D	59″ × 29.5″ × 23.6″ 1500 × 750 × 600 mm	67″ × 29.5″ × 23.6″ 1700 × 750 × 600 mm	71″ × 29.5″ × 23.6″ 1800 × 750 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Concave-Flared Rounded Rectangle Freestanding Tub, 59-71 in SKU D-8020-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Shape & Profile

Concave flared ends on a flat base

D-8020 has all four corners rounded and a symmetric side profile. Each end curves outward from the flat base up to the level rim.

01 / ENDS

A shallow concave sweep at each end

The end walls sweep out in a shallow concave line rather than a straight slope, which sets the outline of the tub from the side. Both concave ends are shaped as backrests.

02 / DRAIN

Center drain for either direction

The drain is drawn at the middle of the basin, so the bather can lie facing either end.

Because all three lengths share one 750 mm width, only the length clearance changes between room types. Oval and square shapes sit in the freestanding bathtub collection.

Fit & Lengths

Three lengths at 750 mm wide

Width and height stay at 750 mm (29.5 in) and 600 mm (23.6 in) on every D-8020. Only the length changes: 1500, 1700 or 1800 mm.

Lengths: 59", 67" or 71" (1500, 1700 or 1800 mm)
Width × Height: 29.5" × 23.6" (750 × 600 mm)
SKUs: D-8020-150, D-8020-170, D-8020-180
Faucet Mounting: No tap holes; floor-standing or wall-mounted filler

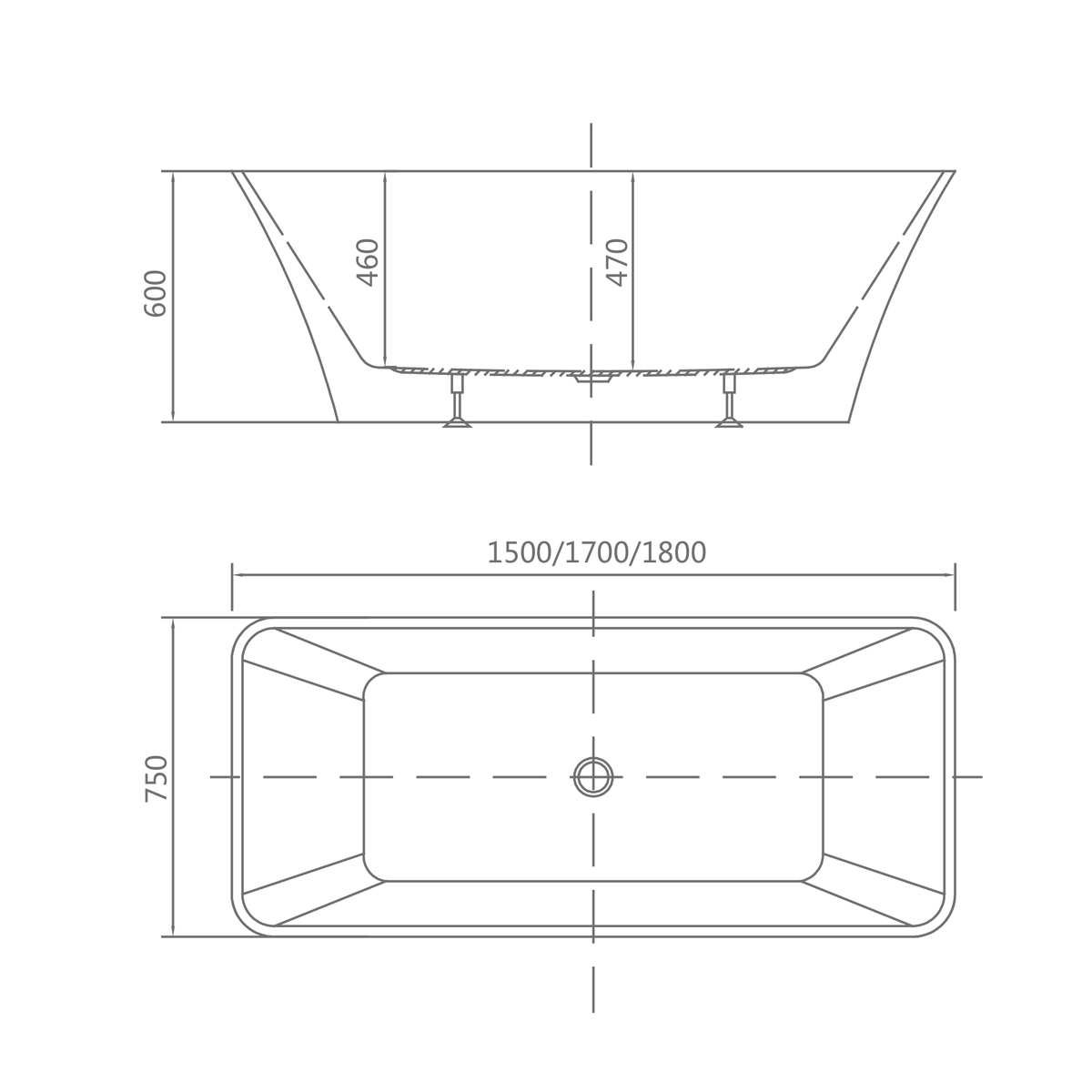

The drawing gives inner depths of 460 mm and 470 mm (18.1 and 18.5 in) for D-8020. On the 1800 mm size, check that the room still leaves space to walk past the ends once the tub is placed.

Assign each room its SKU before ordering, since the three lengths look alike once boxed.

Construction & Finish

White acrylic with a level thin rim

The D-8020 shell is pure acrylic sheet in white, the same across all three lengths. The rim is thin and runs level all the way round.

White

One finish across three lengths

Ordering all three D-8020 lengths in the same white keeps rooms of different sizes matched within one building.

The gloss level of D-8020 is confirmed on the approval sample at quotation.

Ask for lifting points to be marked on the 1800 mm cartons so site crews handle the long units correctly.

Keep the approved sample on file as the reference for incoming units.

Compliance

cUPC certification for D-8020

Three SKUs, one model

Keep D-8020-150, D-8020-170 and D-8020-180 apart on packing lists so each room receives the correct length.

D-8020 is cUPC certified at 1500, 1700 and 1800 mm. Ask for the certificate number and validity date with the three SKUs named on the document.

Send the destination market and a list of required documents with the D-8020 enquiry, and a written reply follows within 12 business hours.

Procurement

Ordering D-8020

All three lengths of D-8020 are made on a lead time of 30-45 days after sample approval.

Standard Lead Time: 30-45 days after sample approval
Quote Reply: within 12 business hours

Hotels with mixed room sizes can take one model in three lengths; list the quantity per length on the quotation.

Include these details with the RFQ

Quantity per length: 1500, 1700, 1800 mm
Floor or wall faucet
Drain trim finish
Destination market and port
Private label on the carton
Shipping window

Request D-8020 Quote View OEM & ODM Program

Treat this lead time as a guide until the quotation confirms it.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

Which lengths are offered for D-8020?

Three: 1500, 1700 and 1800 mm (59, 67 and 71 in). All are 750 mm (29.5 in) wide and 600 mm (23.6 in) high.

What does the side profile of D-8020 look like?

The ends flare out from a flat base in a gentle concave curve up to a thin, level rim. The profile is the same at both ends.

Where is the drain, and which end is the backrest?

The drain is at the center, and both ends are backrests, so D-8020 is double-ended.

How deep is the basin of the concave-flared D-8020?

Its drawing gives two inner depths, 460 mm and 470 mm (18.1 and 18.5 in), inside a body 600 mm high.

How is D-8020 installed?

Its outer body reaches the floor on a flat base, with no exposed feet or pedestal. Connect the floor waste at the center drain. The rim has no tap holes, so fill it from a floor-standing or wall-mounted filler.

What goes in a D-8020 enquiry?

Quantities for each length, faucet type, trim finish and destination. SANIKB answers quotes for D-8020 within 12 business hours, and every length ships on a lead time of 30-45 days after sample approval.
