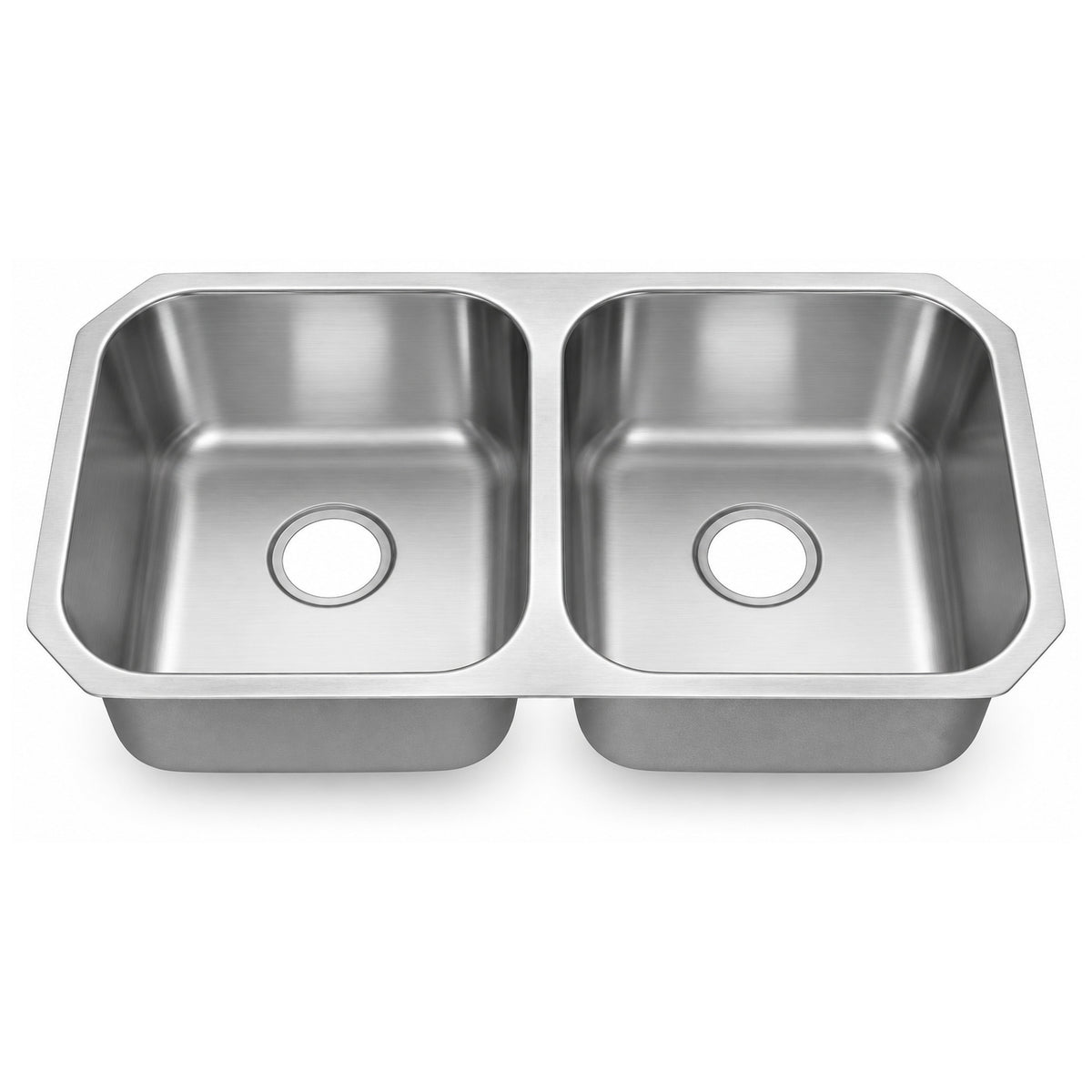

50/50 Double Bowl Undermount Sink with Chamfered Deck Corners, 32 Inch

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.
Two equal 14-5/8" × 16-1/2" bowls make 8247A a 50/50 double bowl undermount sink, with chamfered deck corners and a brushed satin 304 stainless steel finish. Overall size is 32-1/4" × 18-1/2" (820 × 470 mm).
Order it in 16G or 18G and in depths of 6", 7", 8" or 9". Noise-reduction padding is attached underneath, and the drain opening is 3-1/2". Built at our Foshan factory.
More in Undermount Kitchen Sinks
20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

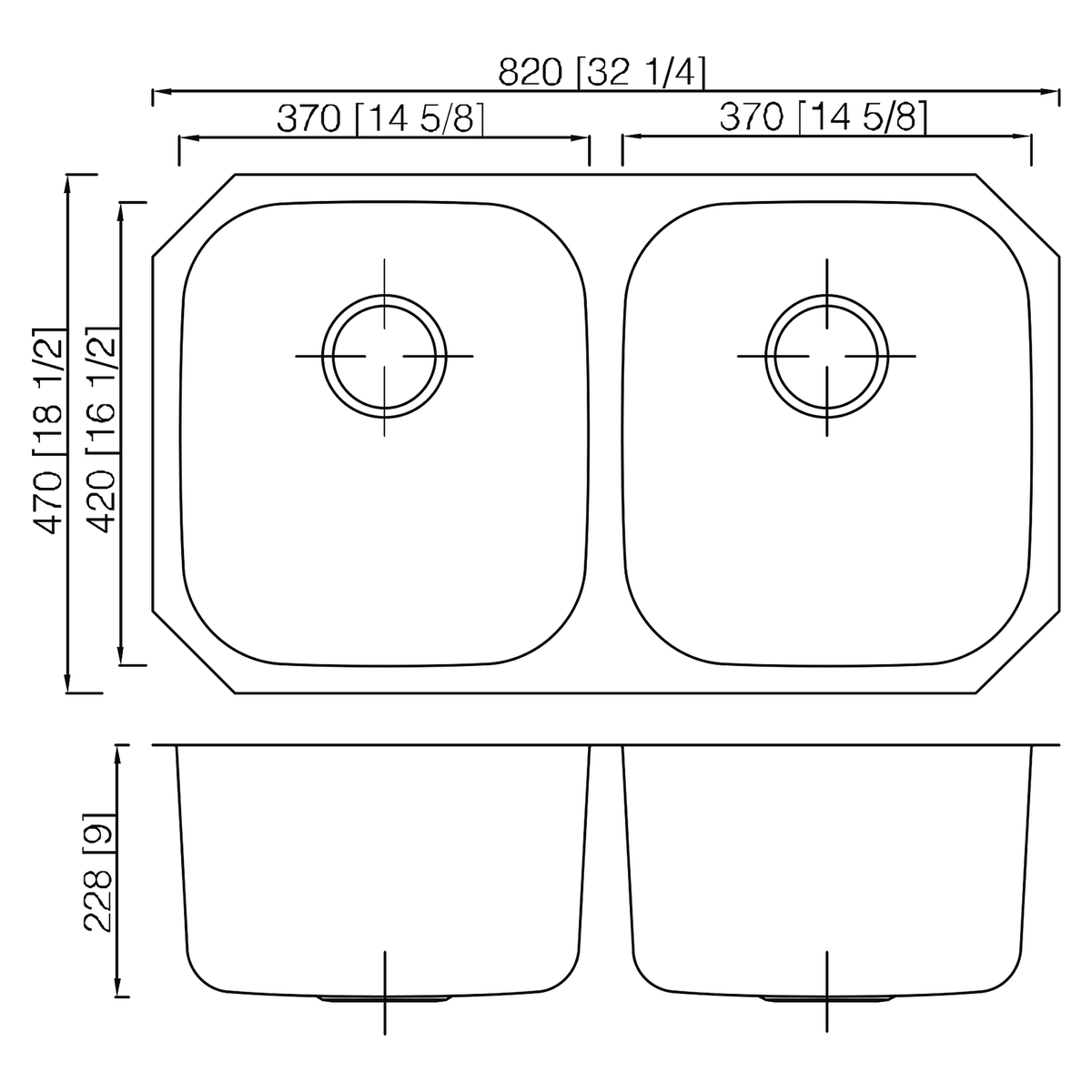

Dimension sheet
Sizes and cut data for 8247A
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
EQUAL BOWLS
50/50 double bowl undermount sink with chamfered deck
Brushed satin 304 stainless steel, pressed into two equal 14-5/8" × 16-1/2" bowls: 8247A is our 32-inch even split.
Even split
Both bowls match, so two people can wash and rinse at the same time with no larger side.
Chamfered deck corners
The deck corners are cut at an angle instead of square. Note it on the countertop template.
Four bowl depths
Depths of 6", 7", 8" and 9" are tooled, in 16G (1.5 mm) or 18G (1.2 mm).
SIZE TABLE
8247A outline, bowls and drain
- Model
- 8247A
- Overall size
- 32.3" × 18.5" (820 × 470 mm)
- Bowls
- 14-5/8" x 16-1/2" Each
- Bowl depths
- 6" / 7" / 8" / 9"
- Drain opening
- 3-1/2"
- Material
- 304 stainless steel
- Gauge
- 16G/18G
- Finish
- Brushed Satin
- Mount
- Undermount
FIT DETAIL
A 32-inch sink that stays shallow front to back
Overall, the sink spans 32-1/4" × 18-1/2" (820 × 470 mm). Front to back it measures 18-1/2", so a long double bowl does not ask for a deep cabinet.
Check the countertop cutout and the cabinet width together. Allow for the faucet deck behind the bowls and for the drain fittings below.
Underside padding for noise reduction is fixed at the factory.
COUNTER AND CABINET
Countertop and cabinet notes for 8247A
The rim sits below quartz or solid surface countertops, and the chamfered deck corners sit under the stone too. Give the fabricator the spec sheet so the template follows the deck shape.
Our other 50/50 double has slightly smaller bowls and no chamfered deck. Choose 8247A when the drawing calls for the angled corners or the extra bowl size.
Depth applies to both bowls on an order line, from 6" to 9". A developer can take the 9" depth for family units and a shallower bowl for studios in the same load.
PROCUREMENT
Container terms for 8247A
Production starts from 50 pcs, and one mixed 1×20 ft container can hold both gauges and every depth. Our quotation arrives within 12 business hours.
Send model, gauge, depth and quantity, or compare more kitchen sinks first.
