Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8359-150
SANIKB D-8359 - gloss white capsule freestanding tub with flared ends, center tap deck and 3-hole deck-mounted faucetSANIKB D-8359 dimension drawing
01 / 02
01 / 02

Capsule Freestanding Tub with Center Tap Deck and Scalloped Rim, 59 & 67 in

SKU D-8359-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 23.6" (1500 × 800 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8359-150

SANIKB D-8359 is a capsule-shaped freestanding bathtub in gloss white acrylic whose ends flare out toward a slim rim. At the middle of the back side the rim widens into a tap deck with three holes for a deck-mounted faucet; whether the faucet set is supplied is agreed at quotation. A scooped recess is formed in the rim at the middle of the long side opposite the overflow. It is built in 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in) as D-8359-150 and in 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in) as D-8359-170. D-8359 is cUPC certified, and quote requests are answered within 12 business hours.

Compare it with other SANIKB freestanding tubs.

Product PDF D-8359-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8359

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

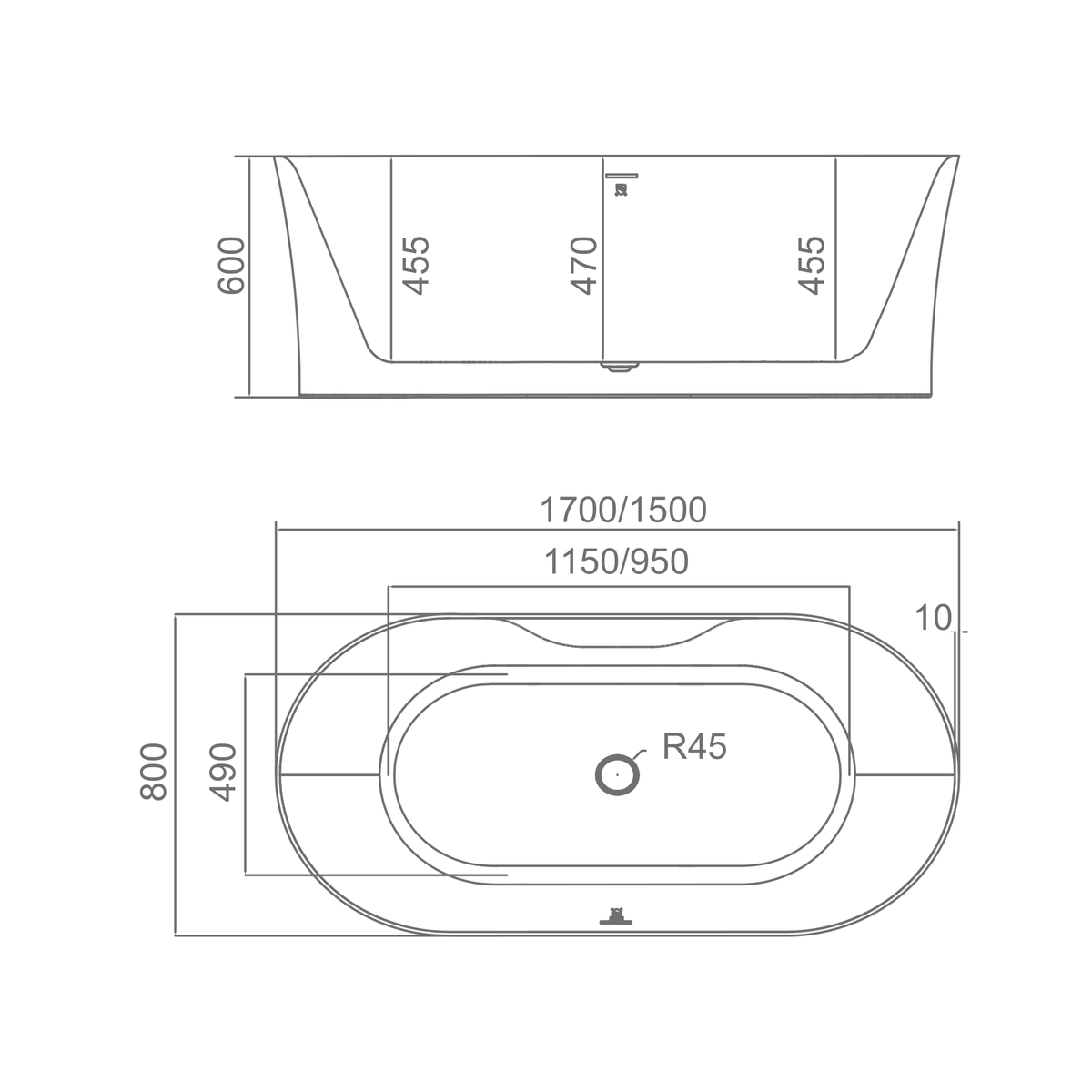

SANIKB D-8359 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 23.6" (1500 / 1700 × 800 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8359-15059" x 31"
D-8359-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8359-15067" x 31"D-8359-170
Overall L×W×D
59″ × 31.5″ × 23.6″
1500 × 800 × 600 mm
67″ × 31.5″ × 23.6″
1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Capsule Freestanding Tub with Center Tap Deck and Scalloped Rim, 59 & 67 in SKU D-8359-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Tap Deck

    Capsule tub with a widened center tap deck

    D-8359 sits on a symmetric stadium plan with flared ends and a slim 10 mm (0.4 in) lip. At the middle of the back side the rim widens into a deck for the faucet.

    01 / TAP DECK

    Room for a 3-hole faucet

    The widened section of the D-8359 back rim, centered on the length of the tub, has three faucet holes for a deck-mounted set. Whether the faucet set is supplied is agreed at quotation.

    02 / RIM RECESS

    Scalloped notch opposite the overflow

    The overflow is on one long side, and a scooped notch is formed in the rim at the middle of the other. The notch sits at mid-length, in line with the centered drain.

    Floor-filled capsule shapes are in the freestanding bathtub collection.

    Fit & Plumbing

    Inner basin 950 or 1150 mm by 490 mm

    D-8359 is 800 mm (31.5 in) wide and 600 mm (23.6 in) high, in 1500 mm (59 in) or 1700 mm (67 in) lengths. Inside, the basin measures 950 mm (37 in) or 1150 mm (45 in) long and 490 mm (19.3 in) wide.

    D-8359-150
    59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
    D-8359-170
    67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
    Faucet Mount
    Deck mounted, 3 holes, center of back rim
    Inner Depth
    470 mm (18.5 in) at drain; 455 mm (17.9 in) at ends

    The drain and the tap deck both fall at the middle of the tub's length, so the D-8359 supplies and waste are roughed in along one center line. Bring the supplies up behind the back rim before the tub goes in.

    Confirm the tap-hole spacing at quotation against the faucet chosen for the project.

    Material & Finish

    Gloss white acrylic, slim 10 mm lip

    D-8359 is made from pure acrylic sheet in gloss white; the lip is drawn at 10 mm (0.4 in).

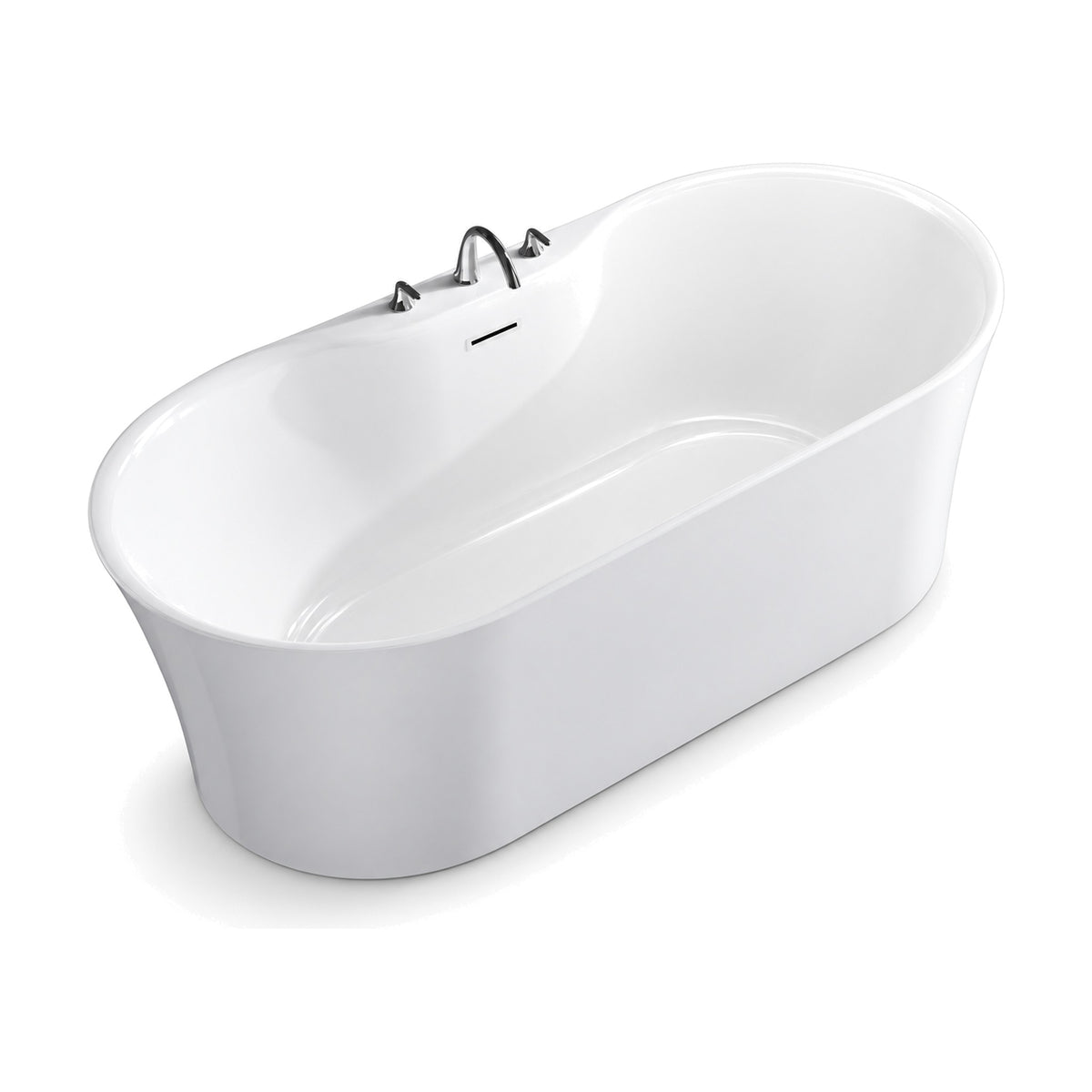

    SANIKB D-8359 - gloss white capsule freestanding tub with flared ends, center tap deck and 3-hole deck-mounted faucet

    White

    A gloss shell around the deck

    The tap deck and the rim recess are formed in the same gloss white shell. Hold the approved D-8359 sample as the reference for tone and sheen.

    The flared ends and the thin lip are exposed points in transit. Ask how the ends and the tap deck of D-8359 are protected inside the carton.

    Record any rim or deck damage on arrival, before installation.

    Compliance

    cUPC certification for D-8359

    List the tub on its own

    Request D-8359 paperwork by SKU; any faucet supplied for the deck should be documented as a separate item.

    D-8359 is cUPC certified. Ask for the current certificate details against model D-8359 and the ordered SKU before it is submitted.

    Say which market the tubs are going to in the enquiry; the written reply for D-8359 comes within 12 business hours.

    Procurement

    Ordering D-8359

    SANIKB manufactures D-8359 in 1500 and 1700 mm lengths and quotes each separately.

    Sizes
    1500 / 1700 mm
    Standard Lead Time
    30-45 days after sample approval

    D-8359 carries a standard lead time of 30-45 days after sample approval. Send the faucet model or hole spacing with the enquiry so the deck drilling can be confirmed on the quotation.

    Include these details with the RFQ

    • Quantities of D-8359-150 and D-8359-170
    • Faucet model or 3-hole spacing
    • Whether a faucet is part of the order
    • Destination market and port
    • Brand marking on cartons
    • Delivery window
    Request D-8359 Quote View OEM & ODM Program

    The quotation confirms the D-8359 schedule.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the D-8359 sizes?

    D-8359-150: 1500 x 800 x 600 mm (59 x 31.5 x 23.6 in). D-8359-170: 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in).

    Where does the deck faucet sit on D-8359?

    On the widened tap deck at the center of the back rim, which has three holes for a deck-mounted faucet. Whether the faucet set is supplied is agreed at quotation.

    What is the scooped recess in the D-8359 rim?

    D-8359 has a scooped recess in the rim at the middle of the long side opposite the overflow. It is part of the tub's shape.

    Does D-8359 recline at one end only?

    No. Either end serves as a backrest; D-8359 is double ended with a centered drain, so there is no left- or right-hand version.

    What should be roughed in before D-8359 is installed?

    Hot and cold supplies to the center of the back rim for the deck faucet, and the waste at the center drain. Take the waste position from the approved D-8359 drawing, and confirm the tap-hole spacing at quotation against the chosen faucet.

    How do we order D-8359?

    Include the 3-hole spacing of the chosen faucet so the tap deck can be checked, plus quantities for both lengths. A quote comes back within 12 business hours, and production takes the standard 30-45 days after sample approval.
