Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8021A-150

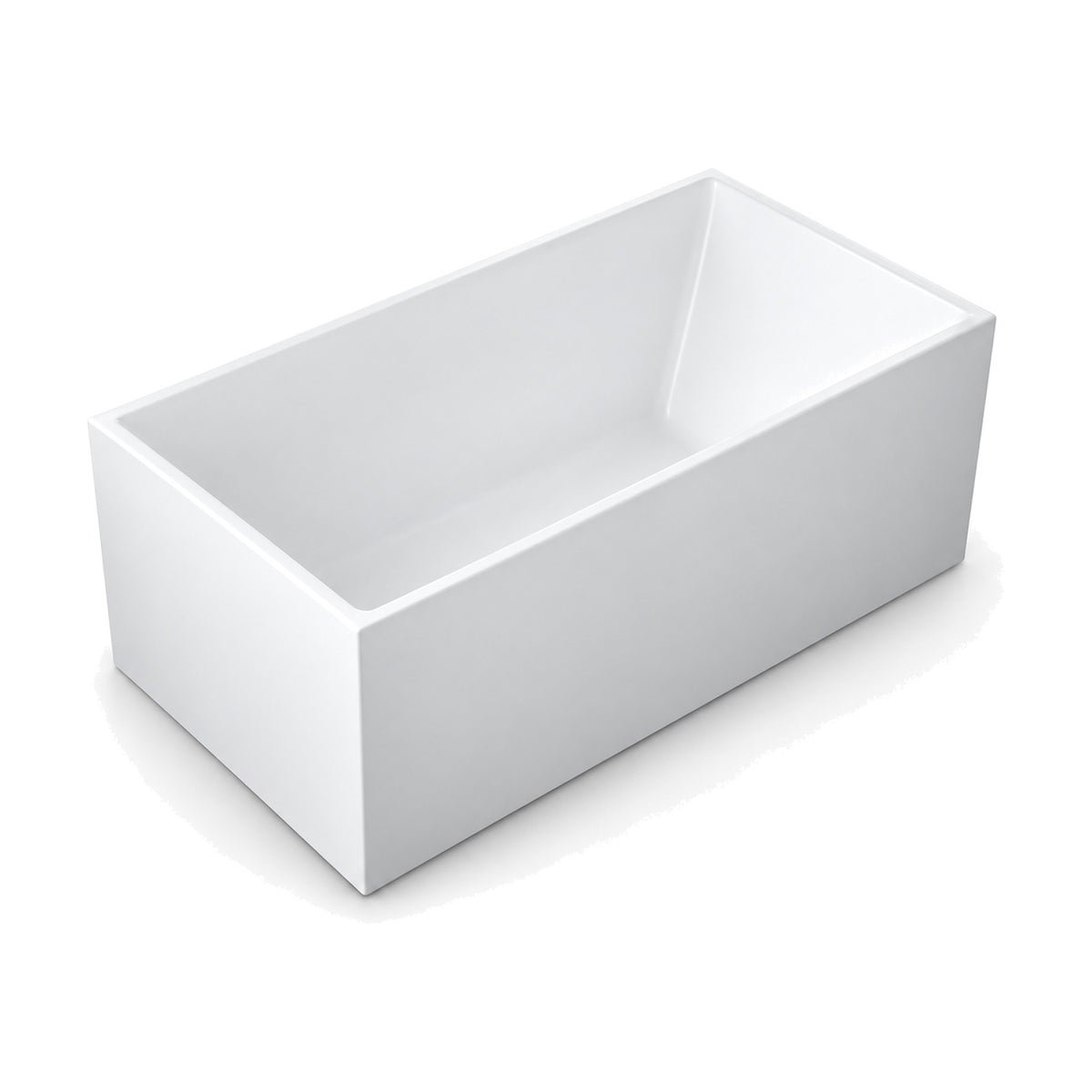

SANIKB D-8013A/D-8021A - white box-shaped rectangular freestanding tub with vertical walls, square corners and thin flat rim

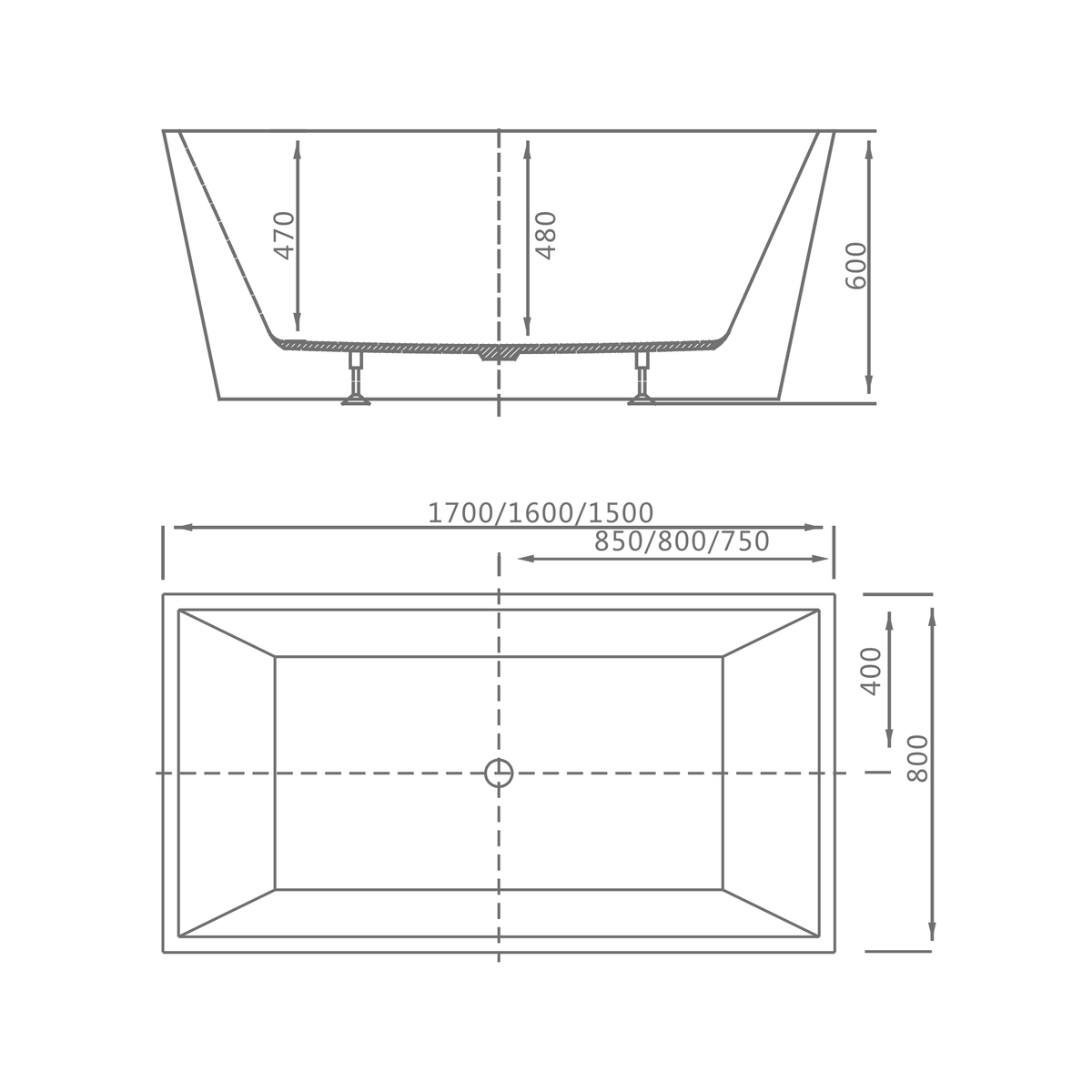

SANIKB D-8013A dimension drawing (1500/1600/1700 x 800 mm)

01 / 02

Box-Shaped Rectangular Freestanding Tub, 5 Sizes, 59-67 in

SKU D-8021A-150

Size

Certification

cUPC listed

Min. order

40 pcs (59 in) / 35 pcs (63–67 in) · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 59" × 29.5" × 23.6" (1500 × 750 × 600 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8021A-150

SANIKB D-8013A/D-8021A is a box-shaped rectangular freestanding tub in white acrylic, with vertical outer walls, square corners and a thin flat rim. It is double-ended with a center drain.

Five sizes. At 750 mm wide: D-8021A-150 (1500 x 750 x 600 mm, 59 x 29.5 x 23.6 in) and D-8021A-170 (1700 x 750 x 600 mm, 67 x 29.5 x 23.6 in). At 800 mm wide: D-8013A-150 (1500 x 800 x 600 mm, 59 x 31.5 x 23.6 in), D-8013A-160 (1600 x 800 x 600 mm, 63 x 31.5 x 23.6 in) and D-8013A-170 (1700 x 800 x 600 mm, 67 x 31.5 x 23.6 in). No tap holes in the rim, so use a floor-standing or wall-mounted filler; cUPC certified. See the freestanding bathtub range.

Product PDF D-8021A-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8013A/D-8021A

Every option below is a produced configuration with its own SKU. 5 sizes. Name the exact SKU on each purchase order line.

Size range59" / 63" / 67" × 29.5" / 31.5" × 23.6" (1500 / 1600 / 1700 × 750 / 800 × 600 mm)

Sizes59" x 30"59" x 31"63" x 31"67" x 30"67" x 31"

InstallationFreestanding

Finish White

MaterialAcrylic

Order codes

SKU	Size
D-8021A-150	59" x 30"
D-8013A-150	59" x 31"
D-8013A-160	63" x 31"
D-8021A-170	67" x 30"
D-8013A-170	67" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 5 sizes

Size & spec comparison

MaterialAcrylic

TypeFreestanding bathtub

MountingFreestanding

MOQ40 pcs (59 in) / 35 pcs (63–67 in) · 1×40HQ

	59" x 30"D-8021A-150	59" x 31"D-8013A-150	63" x 31"D-8013A-160	67" x 30"D-8021A-170	67" x 31"D-8013A-170
Overall L×W×D	59″ × 29.5″ × 23.6″ 1500 × 750 × 600 mm	59″ × 31.5″ × 23.6″ 1500 × 800 × 600 mm	63″ × 31.5″ × 23.6″ 1600 × 800 × 600 mm	67″ × 29.5″ × 23.6″ 1700 × 750 × 600 mm	67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Box-Shaped Rectangular Freestanding Tub, 5 Sizes, 59-67 in SKU D-8021A-150

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Shape & Walls

Vertical walls and square corners

D-8013A/D-8021A is a plain rectangular box: the outer walls rise straight up, the corners are square, and a thin flat rim closes the top. The plan is symmetric.

01 / WALLS

No flare, no taper

Because the outer walls are vertical, the footprint on the floor matches the rim outline. That makes D-8013A/D-8021A simple to set out against tile joints and nearby walls.

02 / INTERIOR

Center drain, double-ended

The drain sits at the midpoint of the length and 400 mm (15.7 in) from the side on the 800 mm widths. Inner depth is drawn at 470 mm and 480 mm (18.5 and 18.9 in).

Browse other rectangular options in the freestanding collection.

Fit & Footprint

Two widths, three lengths, five SKUs

D-8013A/D-8021A is made in 1500, 1600 and 1700 mm lengths (59, 63 and 67 in). The 1500 and 1700 mm lengths come in 750 mm (29.5 in) and 800 mm (31.5 in) widths; the 1600 mm length is 800 mm wide only.

750 mm Width: D-8021A-150 (59" x 29.5"), D-8021A-170 (67" x 29.5")
800 mm Width: D-8013A-150 (59" x 31.5"), D-8013A-160 (63" x 31.5"), D-8013A-170 (67" x 31.5")
Height: 23.6" (600 mm), all sizes
Faucet Mounting: Floor-standing or wall-mounted filler

For the 800 mm widths the drawing puts the drain 750, 800 or 850 mm from the end, by length, and 400 mm from the side. With vertical walls, the full outer dimensions apply at floor level.

The drawing covers the 800 mm widths; confirm the drain position for D-8021A-150 and D-8021A-170 on their approved drawings.

Construction & Finish

White acrylic box shell

The D-8013A/D-8021A shell is white acrylic, formed from pure acrylic sheet.

White

Flat faces on show

Large flat outer walls show the surface clearly, so the gloss level and white tone of D-8013A/D-8021A are approved on a sample first.

The shell stands directly on the floor with no plinth; a level floor keeps the flat rim true.

Retain the approved D-8013A/D-8021A sample as the finish reference.

Compliance

cUPC certification across D-8013A/D-8021A

Five SKUs, named separately

Specify which D-8013A/D-8021A SKUs need documents, since widths and lengths are recorded individually.

All five D-8013A/D-8021A sizes are cUPC certified. Certificate numbers and validity are provided for the SKUs in your submittal.

Put the destination market and the document list in your enquiry; a written answer from SANIKB follows within 12 business hours.

Procurement

Ordering D-8013A/D-8021A across sizes

D-8013A/D-8021A is quoted per SKU across its five sizes, with production 30-45 days after sample approval.

Size SKUs: D-8021A-150, D-8013A-150, D-8013A-160, D-8021A-170, D-8013A-170
Standard Lead Time: 30-45 days after sample approval

The 750 mm widths suit narrower rooms. Give the width and length split for D-8013A/D-8021A in the enquiry so the quotation lists each SKU.

Include these details with the RFQ

Quantity for each D-8013A/D-8021A SKU
Width: 750 or 800 mm
Destination port
Wall spout or floor-standing filler
Carton branding
Requested ship date

Request D-8013A/D-8021A Quote View OEM & ODM Program

D-8013A/D-8021A lead time is fixed when the quotation is issued.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

Which widths and lengths does D-8013A/D-8021A cover?

Five: D-8021A-150 (1500 x 750 x 600 mm, 59 x 29.5 x 23.6 in), D-8013A-150 (1500 x 800 x 600 mm, 59 x 31.5 x 23.6 in), D-8013A-160 (1600 x 800 x 600 mm, 63 x 31.5 x 23.6 in), D-8021A-170 (1700 x 750 x 600 mm, 67 x 29.5 x 23.6 in) and D-8013A-170 (1700 x 800 x 600 mm, 67 x 31.5 x 23.6 in).

What is the shape of D-8013A/D-8021A?

A plain box: straight vertical outer walls, square corners and a thin flat rim, sitting flat on the floor.

Is D-8013A/D-8021A double-ended?

Yes. The plan is symmetric and the drain is at the center, 400 mm (15.7 in) from the side on the 800 mm widths.

How deep is D-8013A/D-8021A inside?

The drawing gives inner depths of 470 mm and 480 mm (18.5 and 18.9 in) within a 600 mm (23.6 in) overall height.

What faucet types fit D-8013A/D-8021A?

The rim has no tap holes, so D-8013A/D-8021A takes either a floor-standing filler or a wall-mounted spout. Plan its location on the approved drawing for the SKU being installed.

How do I order a mix of D-8013A/D-8021A sizes?

List the D-8013A/D-8021A SKUs you need with quantities and the destination port. A written quote follows within 12 business hours, and the box-shaped shells are produced 30-45 days after sample approval.
