Black Box-Shaped Freestanding Tub with White Interior, 59 & 67 in

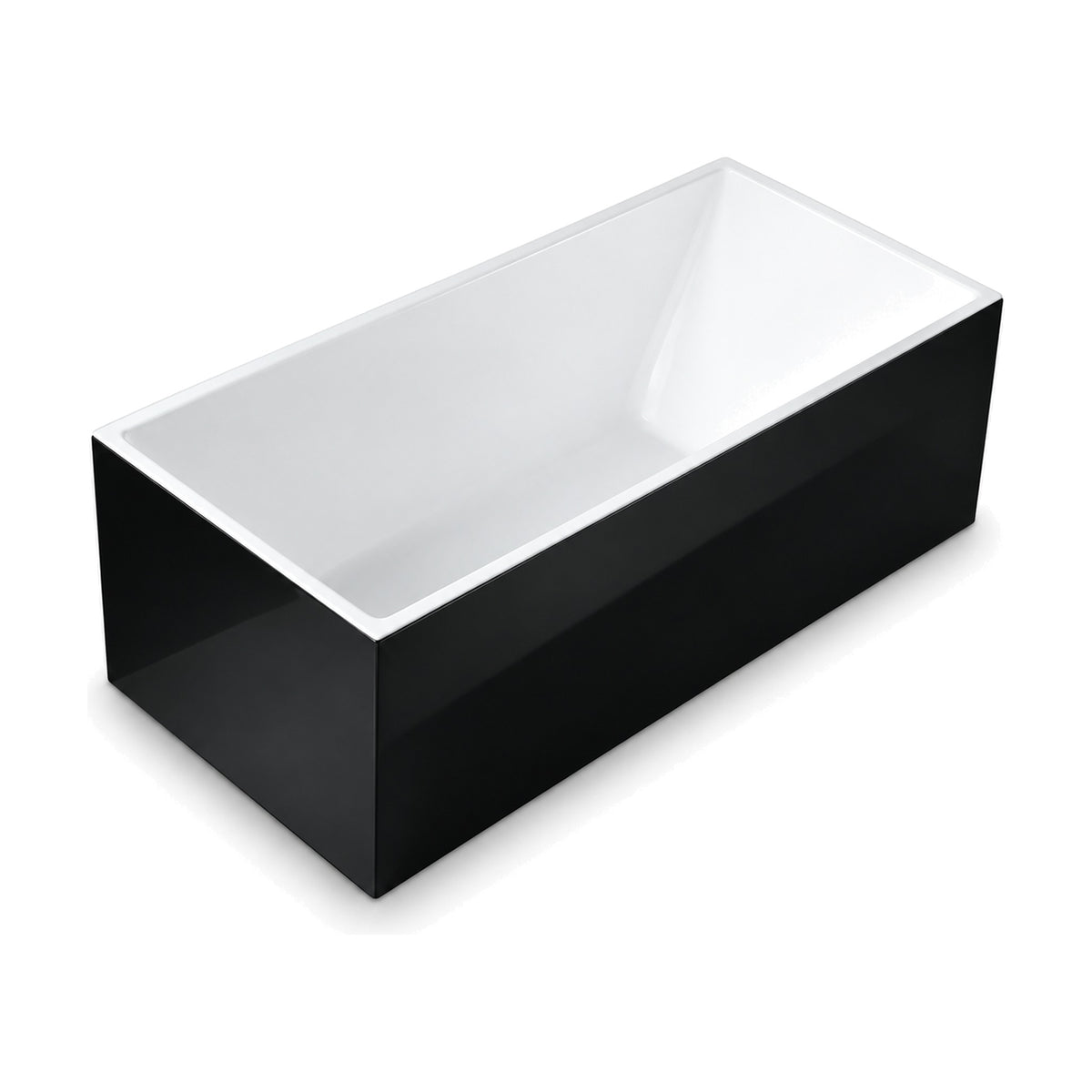

SANIKB D-8016A is a black box freestanding tub in two-tone acrylic: a gloss black outer skin, a white interior and a thin white rim. The outer walls are straight and vertical, the corners are square, and the shell sits flat on the floor. Inside, the drawing shows one raked backrest end, with the drain at the opposite end.
Sizes: D-8016A-150, 1500 x 750 x 600 mm (59 x 29.5 x 23.6 in), and D-8016A-170, 1700 x 800 x 600 mm (67 x 31.5 x 23.6 in). With no tap holes in the rim, it pairs with a floor-standing or wall-mounted filler, and it is cUPC certified. See the black bathtub collection.
More in Black Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
-
D-8025Black Rolled-Rim Double Slipper Freestanding Tub, 69 in69" × 32.7" × 34.8"Freestanding
-
D-8098WBBlack Two-Tone Double Slipper Freestanding Tub, Raked End, 67 & 71 in67" / 71" × 31.5" × 28.3"Freestanding
-
D-8075WBBlack Slipper Soaking Tub with White Interior on Plinth Base, 67 in67" × 31.5" × 26.8"Freestanding
-
FT083Black Rectangular Freestanding Tub with Flared Trapezoid Sides, 70 in70" × 31.5" × 22.8"Freestanding
-
FT013/FT014/FT023/FT024Black Rectangular Freestanding Tub, White Interior, 55-71 in55" / 59" / 67" / 71" × 29.5" / 31.5" × 23.2"Freestanding
-
D-8061ATwo-Tone Gloss Black Box Freestanding Tub, White Rim, 59-71 in59" / 67" / 71" × 31.5" × 23.6"Freestanding
-
FT091Black Oval Double-Ended Freestanding Tub, White Interior, 62 in62" × 28.7" × 23.2"Freestanding
-
FT029–FT031Black Exterior Double-Ended Oval Freestanding Tub, 59-67 in59" / 63" / 67" × 31.5" × 23.6"Freestanding
-
D-8012Black Two-Tone Double-Ended Freestanding Tub, 58-70 in58" / 61" / 65" / 70" × 31.3" / 31.5" / 31.7" × 22.8"Freestanding
Tub sheet
Size and installation of D-8016A
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| D-8016A-150 | 59" x 30" |
| D-8016A-170 | 67" x 31" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 59" x 30"D-8016A-150 | 67" x 31"D-8016A-170 | |
|---|---|---|
| Overall L×W×D | 59″ × 29.5″ × 23.6″ 1500 × 750 × 600 mm | 67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 12 business hours.
Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
12 consecutive years at KBIS and IBS.
Standard on every shipment.
Color & Shape
Gloss black outside, white inside
D-8016A pairs a glossy black exterior with a white interior and white rim. The outer walls are straight and vertical, giving a plain box outline with square corners.
Contrast at the rim
The thin white rim frames the black walls from above, and the white interior keeps the bathing surface light.
Single-ended layout

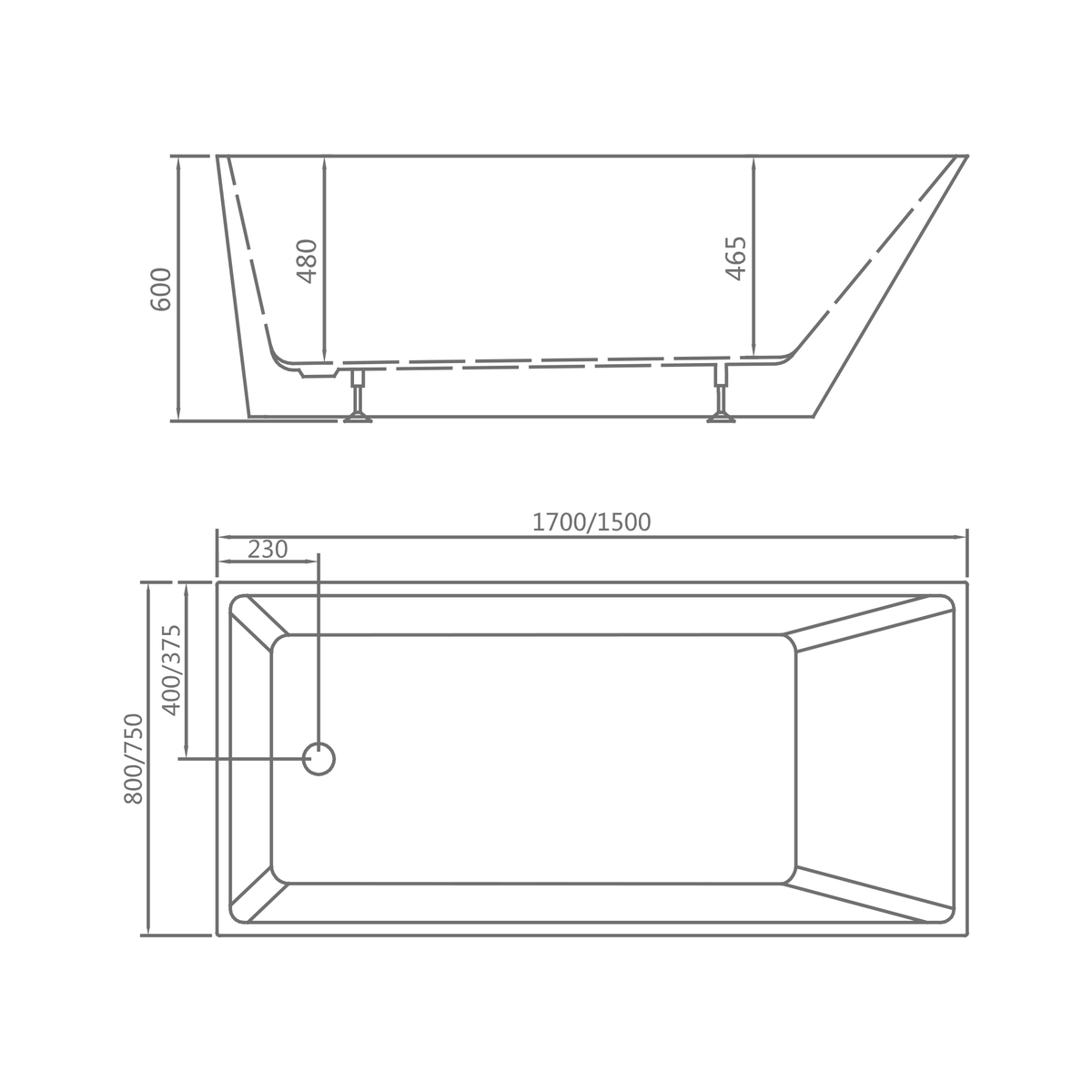

Inside, the drawing shows one raked end as the backrest under a level rim. The drain is 230 mm (9.1 in) from the opposite end.
More dark-finish tubs are grouped in the black bathtub range.
Fit & Footprint
750 or 800 mm wide, 600 mm high
D-8016A-150 measures 59 x 29.5 x 23.6 inches (1500 x 750 x 600 mm) and D-8016A-170 measures 67 x 31.5 x 23.6 inches (1700 x 800 x 600 mm).
- D-8016A-150
- 59" x 29.5" x 23.6" (1500 x 750 x 600 mm)
- D-8016A-170
- 67" x 31.5" x 23.6" (1700 x 800 x 600 mm)
- Inner Depth (as drawn)
- 18.9" at the drain end, 18.3" at the backrest (480 / 465 mm)
- Faucet Mounting
- Floor-standing or wall-mounted filler
The drain is centered in the width, 375 mm from the side on D-8016A-150 and 400 mm on D-8016A-170. The drain end is fixed, so settle which way the tub faces before the floor waste goes in.
Set the D-8016A floor waste from the approved drawing for the chosen size.
Construction & Finish
Two-tone acrylic, gloss exterior
The D-8016A shell is made from pure acrylic sheet. The exterior is gloss black; the interior and rim are white.
Black exterior with white interior
Color split to confirm
The line where the black exterior meets the white rim is a visible detail. Approve it on a D-8016A sample before the order goes into production.
Specify protective film on the black outer walls of D-8016A in the packing terms, as they stay fully on view once installed.
The approved D-8016A sample sets the reference for both colors.
Compliance
D-8016A is cUPC certified
Quote D-8016A-150 or D-8016A-170 on document requests.
Both D-8016A sizes carry cUPC certification. Request the certificate number and its validity for inclusion in the submittal.
Tell us the destination market and the paperwork you need; SANIKB sends a written response within 12 business hours.
Procurement
D-8016A ordering details
D-8016A is quoted by SKU, and the production window is 30-45 days after sample approval.
- Size SKUs
- D-8016A-150, D-8016A-170
- Standard Lead Time
- 30-45 days after sample approval
Where a project mixes black and white tubs, list every model and SKU on one enquiry so they can be quoted together.
Include these details with the RFQ
- Quantity for D-8016A-150 and D-8016A-170
- Destination port and country
- Floor-standing filler or wall spout
- Private label on packaging
- Preferred shipping window
Lead time for D-8016A is written into the quotation.
