Banded Roll-Top Freestanding Bathtub on Stepped Plinth, 59 & 67 in

SKU D-8308-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.1" × 23.6" (1500 × 790 × 600 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8308-150

SANIKB D-8308 is a double-ended freestanding bathtub in a classic stadium-oval form, finished in gloss white acrylic. A rolled lip tops the shell, molded horizontal bands run below the rim, and the flared bowl rests on a stepped plinth base. Two lengths are offered: D-8308-150 at 1500 x 790 x 600 mm (59 x 31.1 x 23.6 in) and D-8308-170 at 1700 x 790 x 600 mm (67 x 31.1 x 23.6 in).

The drain is centered and the overflow sits at the rim. No tap holes are cut in the rolled lip, so D-8308 takes a floor-standing or wall-mounted filler. It is cUPC certified; see the freestanding bathtub collection for related shapes.

Product PDF D-8308-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8308

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

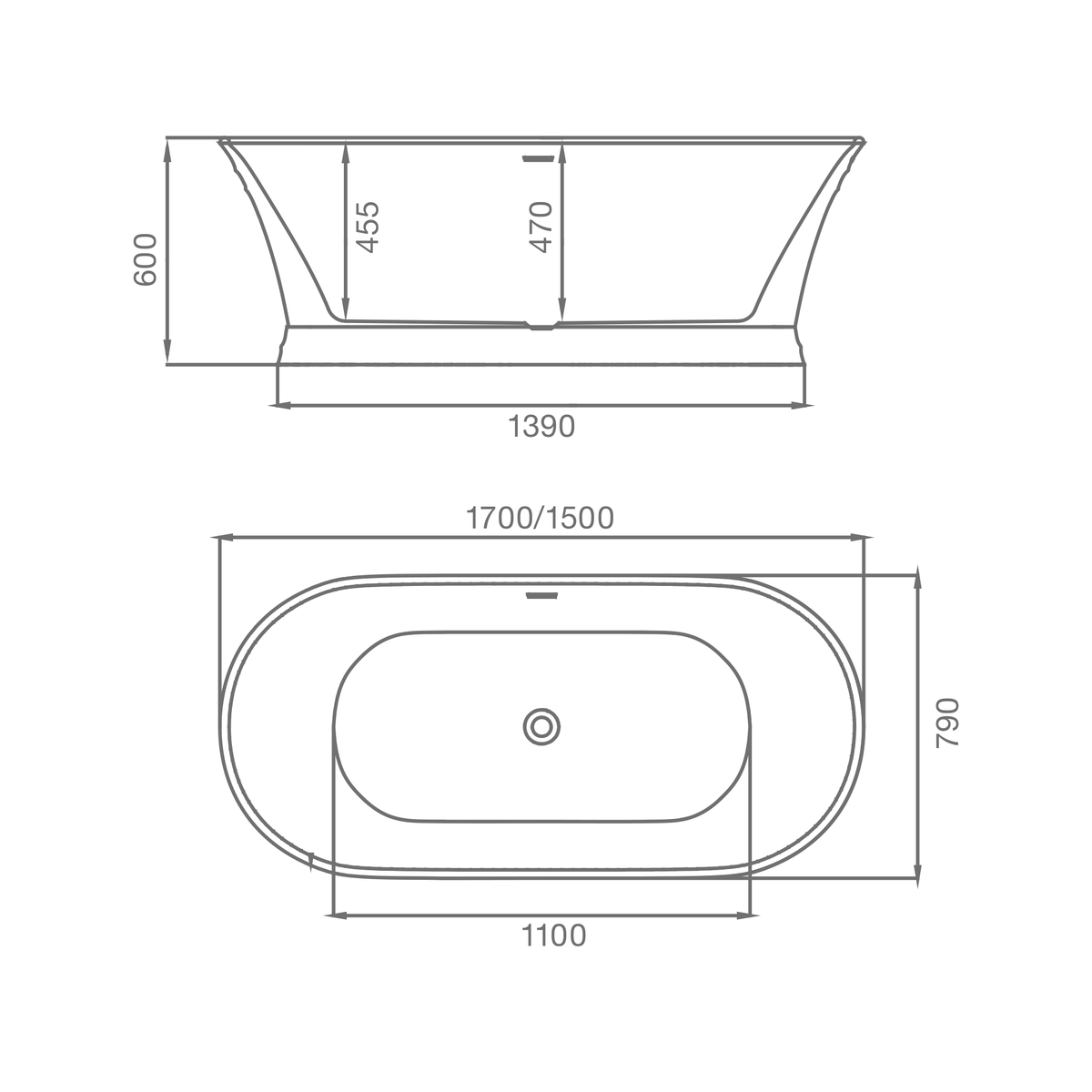

SANIKB D-8308 dimension drawing
Dimension drawing
Size range59" / 67" × 31.1" × 23.6" (1500 / 1700 × 790 × 600 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8308-15059" x 31"
D-8308-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8308-15067" x 31"D-8308-170
Overall L×W×D
59″ × 31.1″ × 23.6″
1500 × 790 × 600 mm
67″ × 31.1″ × 23.6″
1700 × 790 × 600 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Banded Roll-Top Freestanding Bathtub on Stepped Plinth, 59 & 67 in SKU D-8308-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Traditional Detailing

    Roll-top pedestal bathtub with molded bands

    D-8308 pairs a rolled lip with molded horizontal bands that run below it, above a flared bowl on a stepped plinth.

    01 / BANDS

    Horizontal bands below a rolled lip

    The rolled lip forms a rounded top edge. Directly beneath it, horizontal bands are molded into the shell, giving the side view a layered, traditional look.

    02 / PLINTH

    Flared bowl on a stepped pedestal

    The bowl flares outward above a pedestal base drawn at 1390 mm (55 in) long. The base is stepped rather than a plain block, which carries the layered look of the rim bands down to the floor.

    Other plinth and pedestal models sit alongside D-8308 in the freestanding tubs range.

    Fit & Drawing Figures

    1500 or 1700 mm long on a 790 mm width

    D-8308 shares a 790 mm (31.1 in) width and a 600 mm (23.6 in) height across both lengths. A center drain serves both.

    D-8308-150
    1500 x 790 x 600 mm (59 x 31.1 x 23.6 in)
    D-8308-170
    1700 x 790 x 600 mm (67 x 31.1 x 23.6 in)
    Base
    Stepped plinth; length per approved drawing
    Drain & Overflow
    Center drain, overflow at the rim

    The shared drawing for both lengths gives a 1390 mm (55 in) pedestal base, an inner length of 1100 mm (43 in) and inner depths of 455 mm (17.9 in) and 470 mm (18.5 in). These figures are not split by size, so check them against the approved drawing for the length you order.

    With no tap holes in the rim, the filler is a floor-standing unit beside the tub or a wall-mounted spout behind it.

    The plinth, not the bowl, meets the floor. Set out the floor waste from the plinth footprint on the approved drawing.

    Material & Finish

    Gloss white acrylic with molded detail

    D-8308 is formed from pure acrylic sheet in white, with a gloss surface over the bands and lip.

    SANIKB D-8308 - gloss white roll-top freestanding bathtub with molded horizontal bands on a stepped plinth base

    White

    Finish on a detailed profile

    The bands and rolled lip catch light differently from a plain wall. Judge the gloss on the approval sample, where the molded detail is visible.

    Molded bands and a stepped base add edges that need protecting in the carton. Agree the packing method and the damage reporting process before shipment.

    Hold the approval sample as the reference for color, gloss and band definition.

    Compliance

    cUPC certificate and drawing for D-8308

    Drawing and certificate together

    The drawing covers both lengths, so ask for the approved drawing and certificate to be issued against the specific D-8308 SKU being ordered.

    D-8308 is cUPC certified. When the tub is specified for a project, ask for the current certificate with its validity date so the submittal is complete.

    The destination market decides which documents go into the file, so state it at inquiry stage. The list is fixed in the quotation, returned within 12 business hours.

    Procurement

    Ordering D-8308 in 59 or 67 inch

    SANIKB builds D-8308 in two lengths and quotes each as a separate SKU.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Written quote within 12 business hours

    If a refurbishment mixes room sizes, list both SKUs on one inquiry so the quotation covers every room type in the same style. The lead time counts from approval of the sample.

    Include these details with the RFQ

    • Units required of D-8308-150 and of D-8308-170
    • Destination market and port
    • Floor-standing or wall-mounted filler
    • Finish of the rim overflow and drain fittings
    • Private label or carton marking
    • Required ship date
    Request D-8308 Quote View OEM & ODM Program

    Lead time is confirmed in the quotation.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What lengths does the roll-top D-8308 come in?

    D-8308-150 measures 1500 x 790 x 600 mm (59 x 31.1 x 23.6 in) and D-8308-170 measures 1700 x 790 x 600 mm (67 x 31.1 x 23.6 in). Width and height are shared, so only the length changes.

    Is D-8308 double-ended?

    Yes. The plan is a symmetric stadium with a center drain, so either end can serve as the backrest. The overflow is at the rim.

    Where does the filler go on D-8308?

    The rim of D-8308 has no tap holes, so it takes a floor-standing or wall-mounted filler. Fix the filler position on the approved drawing along with the center drain, so supply and waste can be run before the floor is finished.

    What does the plinth base mean for installation?

    The bowl sits on a stepped plinth, drawn at 1390 mm (55 in) long, and the plinth carries the tub on the floor. Take the waste position from the approved drawing so it lines up with the center drain inside the plinth footprint.

    What finish and style is D-8308?

    It is gloss white acrylic made from pure acrylic sheet. Molded horizontal bands run below the rolled lip, and the bowl stands on a stepped plinth.

    When can D-8308 ship after ordering?

    D-8308 ships on the standard lead time: 30-45 days after sample approval. It is cUPC certified, and an inquiry giving units per length receives a written quote within 12 business hours.
