SANIKB D-8072 - white gloss back-to-wall acrylic bathtub with flared walls, slim rim and a flat wall edgeSANIKB D-8072 dimension drawing
01 / 02
01 / 02

Back-to-Wall Freestanding Bathtub, Flared Slim-Rim Acrylic, 67 in

SKU D-8072
Size
Certification
Certification mark
cUPC listed
Min. order
35 pcs · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Back-to-wall freestanding bathtub
Size 67" × 31.5" × 22.8" (1700 × 800 × 580 mm) Custom sizes
Mount Back-to-wall (one long side to the wall)
Finish
White
Product PDF D-8072

SANIKB D-8072 is a double-ended back-to-wall bathtub in white gloss acrylic, made in one size: 1700 × 800 × 580 mm (67 × 31.5 × 22.8 in), SKU D-8072. Its walls flare out from a flat base that sits directly on the floor, the front corners are softly rounded, and a slim rim runs along the front and both ends while a raised flat edge meets the wall. With no tap holes in its slim rim, D-8072 is filled from a floor-standing or wall-mounted filler. D-8072 is cUPC certified, and a quote for D-8072 comes back within 12 business hours.

More back-to-wall options are in the SANIKB freestanding bathtubs collection.

Product PDF D-8072

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8072

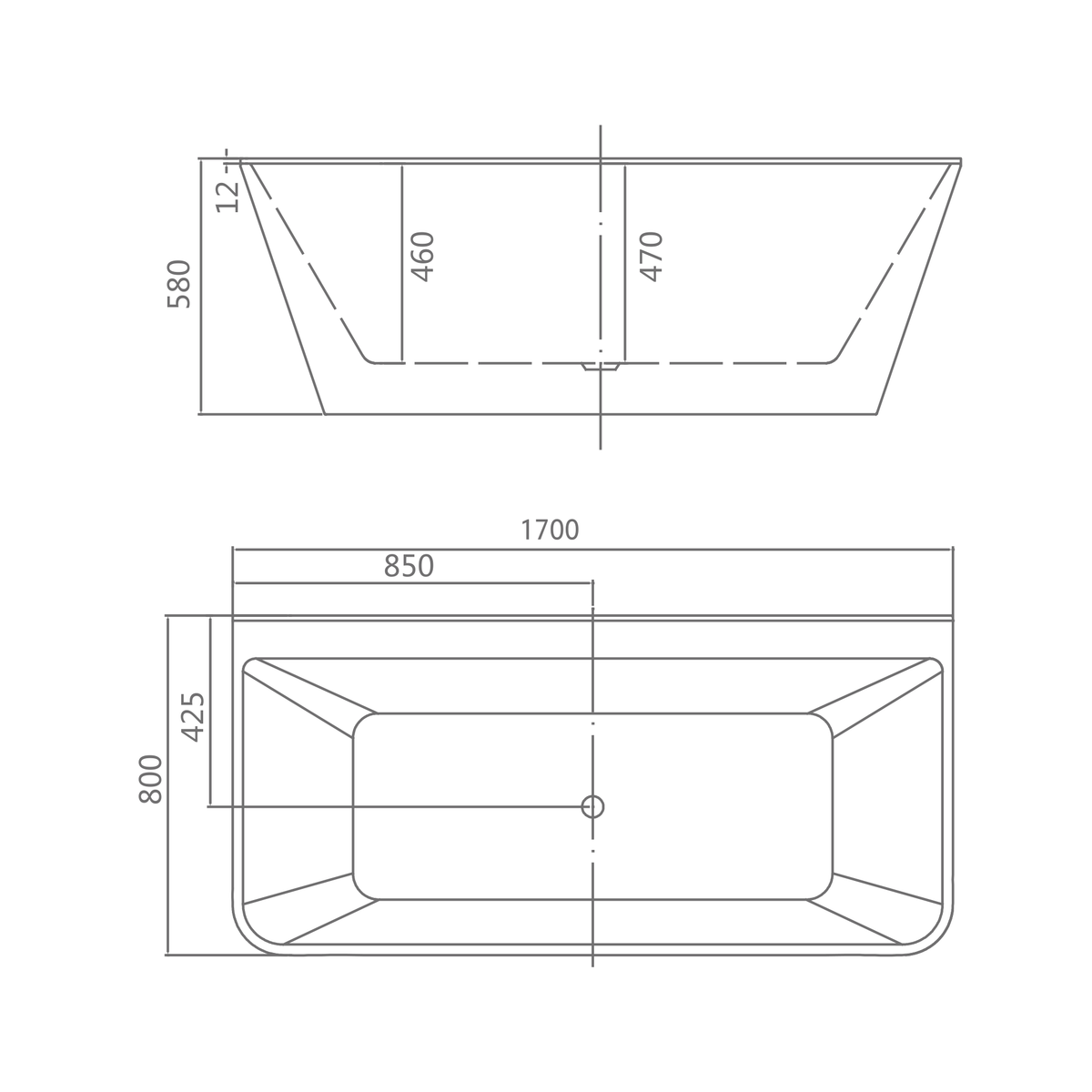

SANIKB D-8072 dimension drawing
Dimension drawing
Size range67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
InstallationBack-to-wall (one long side to the wall)
Finish White
MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Back-to-Wall Freestanding Bathtub, Flared Slim-Rim Acrylic, 67 in SKU D-8072
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Profile & Rim

    Flared walls, slim rim, straight wall edge

    D-8072 has walls that flare outward from a flat base in a symmetric profile. A slim rim runs across the front and both ends, while the long side that meets the wall is a raised, straight flat edge with square back corners.

    01 / DRAIN

    Drain at mid-length, 425 mm from the back

    The drain sits 850 mm from the end, at mid-length, and 425 mm from the back edge. That places it just off the width centerline, because the back deck is wider than the front. The drawing gives a 12 mm rim lip.

    02 / BOWL

    Double-ended bowl, no tap holes

    Both ends of the bowl are backrests, so either end can be used for reclining. The rim has no tap holes; water comes from a floor-standing or wall-mounted filler.

    Back-to-wall layouts with deck taps or a plinth base are also in the freestanding bathtub range.

    Fit & Footprint

    One size: 1700 × 800 × 580 mm

    D-8072 is made in a single size, 67 in long, 31.5 in wide and 22.8 in high, with inner depths of 460 mm and 470 mm.

    Overall Size
    67" × 31.5" × 22.8" (1700 × 800 × 580 mm)
    SKU
    D-8072
    Installation
    Back to wall, flat to the floor
    Material
    Acrylic, white gloss

    The tub sits directly on the floor with no plinth or feet. The straight back edge, with its square corners, is the side set against the wall; the rounded front corners face the room.

    Take the drain rough-in from the approved drawing, since the outlet is not on the width centerline.

    Construction & Finish

    White gloss acrylic on a flat base

    D-8072 is made from pure acrylic sheet in white gloss, shaped so the walls flare outward from a flat base.

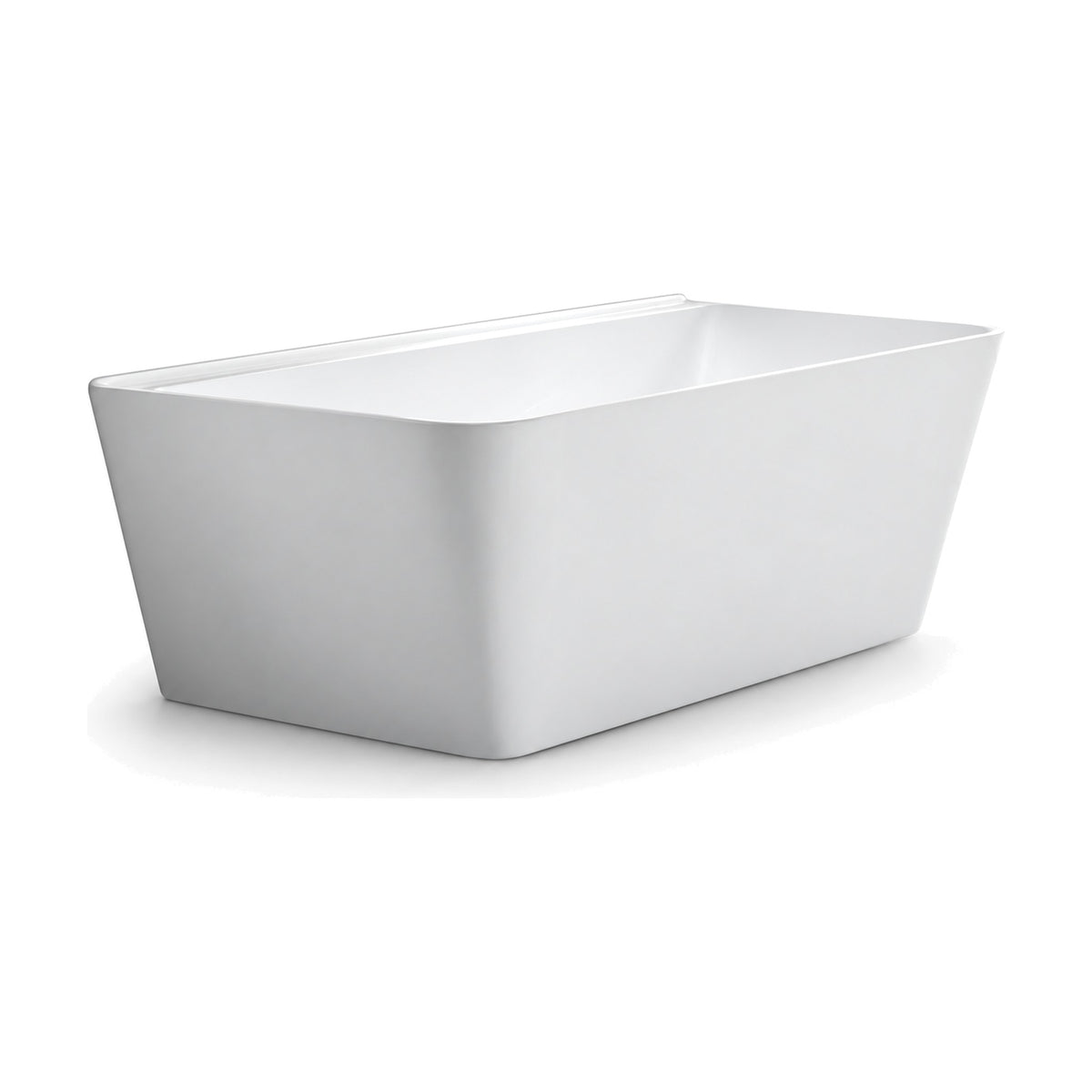

    SANIKB D-8072 - white gloss back-to-wall acrylic bathtub with flared walls, slim rim and a flat wall edge

    White

    One finish, one size

    D-8072 is made in white gloss. Name it on the order so any later units match the first delivery.

    Because the walls flare outward from the base, the outline at rim height is larger than the footprint on the floor. Take clearances to a vanity or door from the 1700 × 800 mm rim outline.

    The slim lip is exposed on three sides, so protect the rim edges in packing and agree a damage reporting procedure before the tubs ship.

    Keep a dated record of any damaged cartons at delivery for the claim.

    Compliance

    D-8072 cUPC certification

    One SKU, one document set

    D-8072 has a single SKU, D-8072, so documents are issued against that one reference.

    D-8072 holds cUPC certification. Ask for the certificate number and validity dates tied to D-8072 when you prepare submittals.

    Include the destination market and your document list in the inquiry, and a written reply follows within 12 business hours.

    Procurement

    Ordering D-8072

    Order under SKU D-8072. Quantities are confirmed in the quotation.

    Standard Lead Time
    30-45 days after sample approval
    Quote Reply
    Within 12 business hours

    Planning several models for one project? List each model and quantity on a single inquiry; other SANIKB tubs are in the bathtub manufacturer range.

    Include these details with the RFQ

    • Quantity of D-8072
    • Destination market and port
    • D-8072 filler: floor-standing or wall-mounted
    • Waste and overflow scope
    • Carton marking
    • Target shipping date
    Request D-8072 Quote View OEM & ODM Program

    The D-8072 lead time shown is indicative; the quotation confirms it.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What size is D-8072?

    It comes in one size: 1700 × 800 × 580 mm, or 67 × 31.5 × 22.8 in, SKU D-8072. That is the overall outline at the rim; the flared walls narrow toward the flat base.

    Which end of D-8072 is the backrest?

    Both. D-8072 is double-ended, with the drain at mid-length, 850 mm from either end, and 425 mm from the back edge.

    Where does the faucet go on D-8072?

    Off the tub. The slim rim is not drilled for taps, so D-8072 is filled from a floor-standing filler beside the tub or a wall-mounted spout. Confirm the supply position against the approved drawing.

    How is D-8072 installed against the wall?

    The long straight edge, with square back corners, goes against the wall. The tub stands flat on the floor without a plinth or feet, and the rounded front corners face the room.

    What finish does D-8072 have?

    White gloss on a pure acrylic shell, with a slim rim on the front and ends and a raised flat edge along the wall side.

    What should a D-8072 inquiry include?

    State the quantity of D-8072, the destination market and port, and the filler type. Replies come within 12 business hours, standard lead time is 30-45 days after sample approval, and the model is cUPC certified.
