Back-to-Wall Acrylic Bathtub, Plinth Base, 3-Hole Tap Deck, 59 & 67 in
Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

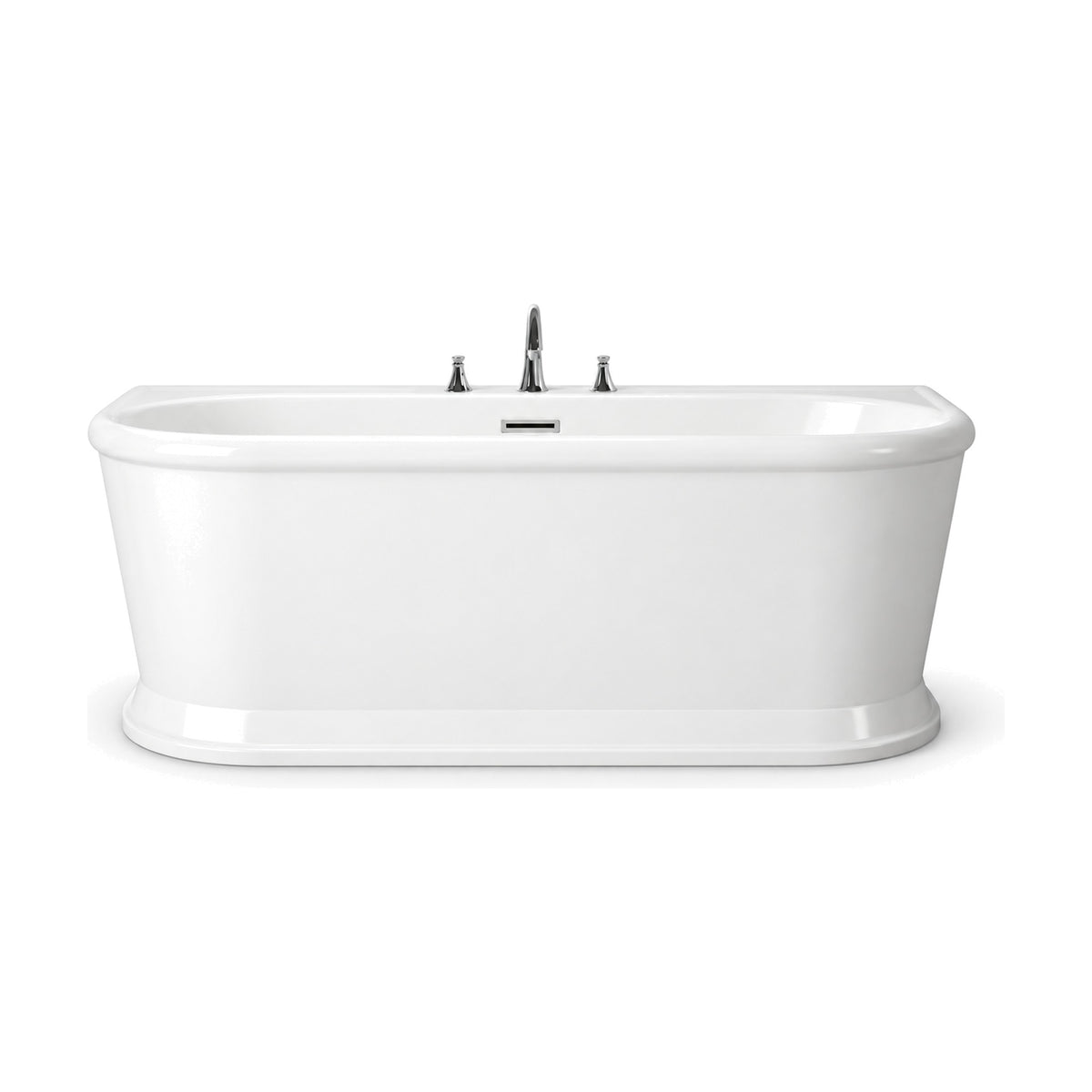

SANIKB D-8353 is a back-to-wall bathtub in white gloss acrylic that stands on a stepped plinth base instead of feet. Its straight back goes against the wall, the front corners are large-radius rounds, and a rolled lip runs around the front. The bowl rim is set 90 mm in from the back edge, leaving a back deck with three tap holes for a deck-mounted tap set; whether a tap set ships with the tub is settled at quotation. Two lengths share an 800 mm width: D-8353-150 at 1500 × 800 × 600 mm (59 × 31.5 × 23.6 in) and D-8353-170 at 1700 × 800 × 600 mm (67 × 31.5 × 23.6 in). Written quotes for either length of D-8353 are returned within 12 business hours.
Compare it with other back-to-wall and freestanding shapes in the SANIKB freestanding bathtub range.
More in Freestanding Bathtubs
MOQ per model · one 40HQ container, quantity set by tub size
Tub sheet
Size and installation of D-8353
Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.
Order codes
| SKU | Size |
|---|---|
| D-8353-150 | 59" x 31" |
| D-8353-170 | 67" x 31" |
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Compare · 2 sizes
Size & spec comparison
| 59" x 31"D-8353-150 | 67" x 31"D-8353-170 | |
|---|---|---|
| Overall L×W×D | 59″ × 31.5″ × 23.6″ 1500 × 800 × 600 mm | 67″ × 31.5″ × 23.6″ 1700 × 800 × 600 mm |
Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
Shape & Base
Flat back, rounded front, stepped plinth
D-8353 stands with its long straight side against a wall. The two front corners are large-radius rounds, the lip is rolled around the front, and the shell rests on a stepped plinth base rather than on feet.
Three tap holes behind the bowl
The bowl rim is set 90 mm in from the back edge, and D-8353 is shown with a 3-hole deck tap set on that strip. Tap-hole drilling is confirmed on the approved drawing, and whether the tap set ships with the tub is agreed at quotation.
Double-ended bowl, center drain
Both ends of the bowl are shaped as backrests and the drain is at the center. Inner depth is 455 mm at each end and 470 mm at the center.
Buyers comparing back-to-wall tubs usually weigh base style and tap position first. Other shapes are in the freestanding bathtub range.
Fit & Footprint
1500 or 1700 mm long on an 800 mm width
Both lengths share a width of 800 mm (31.5 in) and an overall height of 600 mm (23.6 in). Only the overall length and the inner bowl length change between the two SKUs.
- D-8353-150
- 59" × 31.5" × 23.6" (1500 × 800 × 600 mm)
- D-8353-170
- 67" × 31.5" × 23.6" (1700 × 800 × 600 mm)
- Installation
- Back to wall, straight back edge against one wall
- Material
- Acrylic, white gloss

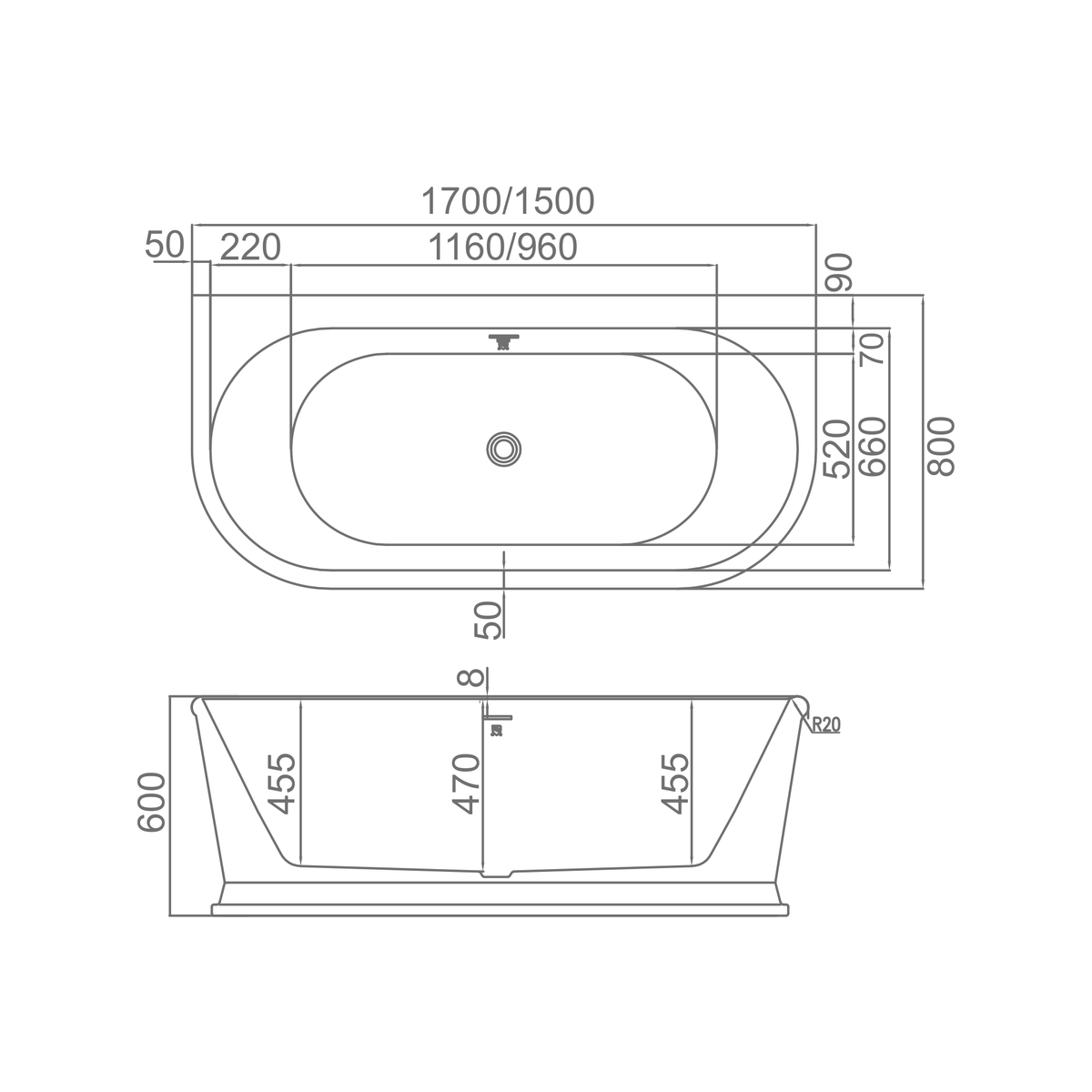

Along the length, the bowl opening starts 50 mm in from each end and slopes down to a basin floor 960 mm long on the 1500 mm size and 1160 mm on the 1700 mm size. Across the width, the bowl opening is 660 mm and the basin floor 520 mm.
Set the drain rough-in from the approved drawing, and check the wall line is straight along the full tub length before the plinth is placed.
Construction & Finish
Pure acrylic shell on a stepped plinth
D-8353 is made from pure acrylic sheet with a white gloss surface, a rolled front lip and a stepped plinth in place of feet.
White
Same finish on both lengths
D-8353 is made in white gloss only, so 1500 mm and 1700 mm units on the same project match.
Because the tub stands on its plinth rather than on separate feet, the floor must be level where the plinth sits.
Acrylic scuffs when units rub together in transit. Agree edge and face protection inside the carton, and how damage found on arrival is reported, before the first shipment.
Record any carton damage at delivery and report it within the agreed window.
Compliance
Compliance documents for D-8353
Request paperwork against D-8353 by name. If other SANIKB models ship on the same order, list each one so its documents are issued separately.
Before the tub is written into a submittal, request the current compliance document references and their validity for your destination market.
Name the market and the documents your project needs in the inquiry; a written reply on D-8353 is issued within 12 business hours.
Procurement
Ordering D-8353 by length
Each length has its own SKU: D-8353-150 for 1500 mm and D-8353-170 for 1700 mm.
- Standard Lead Time
- 30-45 days after sample approval
- Quote Reply
- Within 12 business hours
Order quantities are set per SKU at quotation. Other SANIKB tubs that can go on the same inquiry are in the bathtub manufacturer range, and own-brand cartons are covered under OEM and ODM service.
Include these details with the RFQ
- Quantity for D-8353-150 and D-8353-170
- Destination market and port
- Tap-hole drilling for the back deck
- Whether a deck tap set is part of the order
- Brand marking on carton
- Requested shipping window
The quotation fixes the D-8353 lead time; the figure above is a guide.
