SANIKB D-8160 - white asymmetric oval freestanding tub with swirl rim, straight walls and a rim-mounted bath/shower mixer

01 / 02

Asymmetric Oval Freestanding Tub, Swirl Rim, Deck-Mount Faucet, 63 in

SKU D-8160

Size

Certification

cUPC listed

Min. order

35 pcs · 1×40HQ

Lead time

30–45 days

Reply time

12 business hours

Material Acrylic

Type Freestanding bathtub

Size 63" × 31.5" × 22.8" (1600 × 800 × 580 mm) Custom sizes

Mount Freestanding

Finish

White

Product PDF D-8160

SANIKB D-8160 is an asymmetric oval freestanding bathtub: its rim follows a swirl instead of an even curve, so the two ends of the outline do not mirror each other. It is made in one size, SKU D-8160, at 1600 × 800 × 580 mm (63 × 31.5 × 22.8 in), in white acrylic formed from pure acrylic sheet. The walls rise straight and vertical to a slim flat rim, and the tub is shown with a bath/shower mixer set into the rim at one end; the tap-hole position is confirmed on the approved drawing, and whether the mixer is supplied is agreed at quotation. Inside, the basin measures 1050 × 500 mm (41.3 × 19.7 in) with a center drain. D-8160 is cUPC certified.

Compare it with symmetrical outlines in the SANIKB freestanding bathtub range. Quotations are returned within 12 business hours.

Product PDF D-8160

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8160

Size range63" × 31.5" × 22.8" (1600 × 800 × 580 mm)

InstallationFreestanding

Finish White

MaterialAcrylic

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five

Feasibility & certification checked per market

Have a spec file? Email it with your reference number

— Project brief B2B only

Enquiry about Asymmetric Oval Freestanding Tub, Swirl Rim, Deck-Mount Faucet, 63 in SKU D-8160

First name * Please enter your first name.

Company * Please enter your company name.

Email * Please enter a valid email.

WhatsApp (optional)

Comment *

Attachments (optional)

Drag & drop or browse PDF / IMG / XLS · 4MB ×3

Engineer reply within 12 business hours

12 consecutive years at KBIS and IBS.

— Most recent

Feb 2026 KBIS· Orlando, USA

Mar 2026 Expo Revestir· São Paulo, Brazil

16 years on the floor · 6 international shows annually

2026Expo Revestir

São Paulo, Brazil

2026KBIS

Orlando, Florida

2025KBIS

Las Vegas, USA

2025The Big 5

Dubai, UAE

2024IBS

Orlando, USA

2024Expo Guadalajara

Guadalajara, Mexico

2023Canton Fair

Guangzhou, China

2019Cersaie

Bologna, Italy

2018ISH

Frankfurt, Germany

2017The Big 5

Dubai, UAE

2014KBIS

Las Vegas — US debut

2012BAU

Munich, Germany

Standard on every shipment.

UDEM CE technical inspection certificate

Shape & Rim

Asymmetric oval plan with a swirl rim and upright walls

In plan, D-8160 is an asymmetric oval whose rim follows a swirl instead of an even curve. In elevation it is a plain rectangle: the walls run straight and vertical from the floor up to the slim flat rim.

01 / RIM

Slim flat rim with two offsets at one end

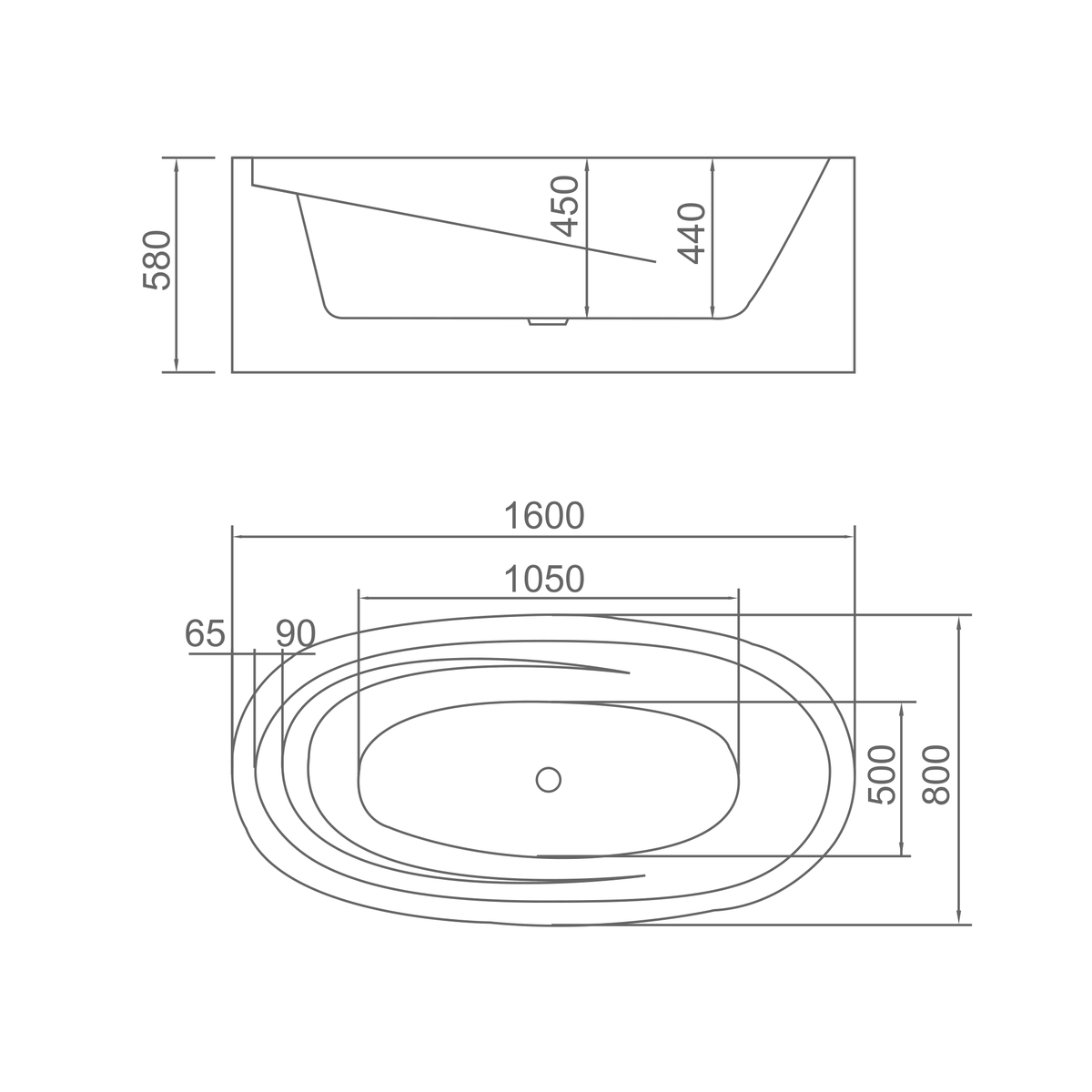

The rim is slim and flat across the top. The dimension drawing marks rim offsets of 65 mm and 90 mm (2.6 and 3.5 in) at the left end, which is why that end of the outline does not mirror the other.

02 / FAUCET

Deck-mounted mixer at one end

D-8160 takes a deck-mounted faucet and is shown with a bath/shower mixer set into the rim at one end. The tap-hole position is confirmed on the approved drawing, and whether the mixer is supplied is agreed at quotation.

03 / BASIN

1050 × 500 mm basin with a center drain

Inside, the basin measures 1050 × 500 mm (41.3 × 19.7 in) with the drain at the center. Inner depths are 450 mm and 440 mm (17.7 and 17.3 in), and one inner end is inclined to form the backrest.

Lay the swirl outline beside a symmetrical oval on the floor plan before choosing between them; symmetrical shapes sit in the freestanding bathtub range.

Fit & Footprint

One size: 1600 × 800 mm, 580 mm high

D-8160 is made in one size, SKU D-8160, at 63 by 31.5 by 22.8 inches (1600 by 800 by 580 mm). It stands directly on the floor with no feet or plinth.

Overall Size: 63" × 31.5" × 22.8" (1600 × 800 × 580 mm)
Inner Basin: 41.3" × 19.7" (1050 × 500 mm), center drain
Installation: Freestanding, flat to the floor
Faucet Mount: Deck mounted on the rim

With a deck-mounted mixer, the hot and cold supplies reach the rim from under the tub, so fix which end carries the mixer before the floor is closed. The waste sits under the center of the basin, independent of the mixer end.

Set the tub out from the approved drawing; on a swirl rim the two ends are easy to confuse.

Construction & Finish

Pure acrylic sheet, made in white

D-8160 is formed from pure acrylic sheet and made in white, with straight walls that keep the swirl of the rim crisp from every side.

White

Sheen confirmed on the sample

The approval sample sets the surface sheen for the order. Where the tub will sit beside other white fixtures, compare the sample with them before the order is placed.

Straight walls and a flat rim leave long, exposed edges in a carton. Agree corner and rim protection in the packing specification at quotation stage.

Check each carton on arrival and record any rim damage against the shipment.

Compliance

cUPC certification for D-8160

Documents tied to D-8160

Request paperwork against the model and its single SKU so the certificate file matches the size on the order.

D-8160 is cUPC certified. Ask for the certificate number and its validity date before the tub is written into a submittal, so the file matches the destination market.

Include the market and the documents you need in the first enquiry; written replies come back within 12 business hours.

Procurement

Quoting D-8160

D-8160 has one SKU, so the main scope question on the quotation is the mixer.

SKU: D-8160
Standard Lead Time: 30-45 days after sample approval

Production is scheduled once the sample is approved, and the lead time is counted from that approval. Private label marking is arranged through the SANIKB OEM and ODM program.

Include these details with the RFQ

Quantity of D-8160
Rim-mounted bath/shower mixer included, or tub only
Destination market and port
Certificate and submittal documents required
Brand marking on carton and label
Requested shipping window

Request D-8160 Quote View OEM & ODM Program

Read the lead time as indicative until it is written into the quotation.

How we work

From enquiry to shipment

A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

01

Send the enquiry

Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
Replied within 12 business hours
02

Our sales team contacts you

A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
Email or WhatsApp
03

Quotation

You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
FOB or CIF
04

Sample approval

We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
Before mass production
05

Production and shipment

Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
30–45 days after approval

50+ New models developed every year, tracking current North American and European trends

12 business hours Maximum first response to an enquiry

Since 2000 Foshan factory, B2B trade only

OEM and ODM to your specification

We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

Your logo on product, carton and documentation
Private-label packaging and manuals
Custom finish matched to your standard
Custom dimensions and tooling where volume supports it
Product development from your reference or price target
Destination-market documentation prepared on request

Get a quote View OEM & ODM program

FAQs

How big is D-8160?

D-8160 is made in one size, SKU D-8160, measuring 1600 x 800 x 580 mm (63 x 31.5 x 22.8 in). Inside, the basin is 1050 x 500 mm (41.3 x 19.7 in), with inner depths of 450 mm and 440 mm (17.7 and 17.3 in).

What does the swirl rim look like?

The plan is an asymmetric oval, and the rim follows a spiral, or swirl, rather than an even curve. The rim is slim and flat, with offsets of 65 mm and 90 mm at the left end of the dimension drawing, and the walls below it run straight and vertical.

Is there a backrest, and where is the drain?

One inner end is inclined to form the backrest, and the drain sits at the center of the basin. Check which end carries the backrest on the approved drawing before the mixer end is fixed.

How is the faucet mounted on D-8160?

D-8160 takes a deck-mounted faucet and is shown with a bath/shower mixer set into the rim at one end. Whether the mixer is supplied is agreed at quotation, and the tap-hole position is confirmed on the approved drawing.

What is D-8160 made of, and what color is it?

It is formed from pure acrylic sheet and made in white. The surface sheen is confirmed on the approval sample, so compare the sample with other fixtures in the room before ordering.

How do we get a quotation for D-8160?

Send the quantity for D-8160, the mixer scope and the destination market. Quotations are returned within 12 business hours. D-8160 is cUPC certified, and standard lead time is 30-45 days after sample approval.
