Home› Bath & Fixtures› Shower & Bath› Bathtubs› D-8378-150
SANIKB D-8378 - matte white angular freestanding bathtub with bowed long sides, clipped corners and thin rimSANIKB D-8378 dimension drawing
01 / 02
01 / 02

Angular Rectangular Freestanding Tub with Bowed Sides, 59 & 67 in

SKU D-8378-150
Size
Certification
Certification mark
cUPC listed
Min. order
40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
Lead time
30–45 days
Reply time
12 business hours
Material Acrylic
Type Freestanding bathtub
Size 59" × 31.5" × 24.0" (1500 × 800 × 610 mm) Custom sizes
Mount Freestanding
Finish
White
Product PDF D-8378-150

SANIKB D-8378 is an angular freestanding bathtub in matte white acrylic, drawn as a faceted cushion-rectangle: the long sides bow out slightly and the corners are clipped. Walls flare outward from a narrower base up to a thin rim, and the drain is centered with the overflow midway along one long side.

The shorter D-8378-150 is 1500 x 800 x 610 mm (59 x 31.5 x 24.0 in); the longer D-8378-170 is 1700 x 800 x 610 mm (67 x 31.5 x 24.0 in). It is double-ended and cUPC certified; the rim has no tap holes, so pair it with a floor-standing or wall-mounted filler. See the freestanding bathtub collection.

Product PDF D-8378-150

More in Freestanding Bathtubs

MOQ per model · one 40HQ container, quantity set by tub size

View all 152

Tub sheet

Size and installation of D-8378

Every option below is a produced configuration with its own SKU. 2 sizes. Name the exact SKU on each purchase order line.

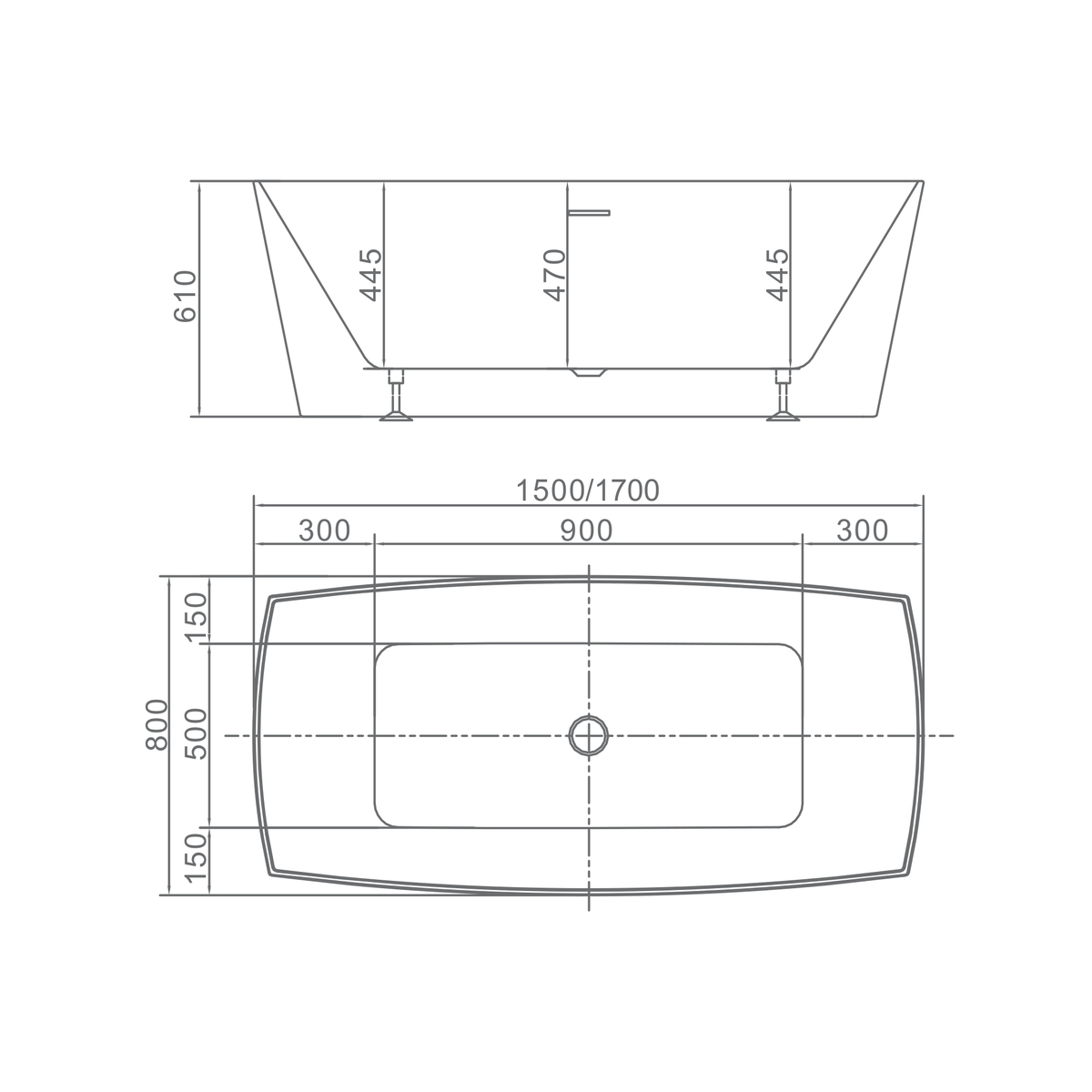

SANIKB D-8378 dimension drawing
Dimension drawing
Size range59" / 67" × 31.5" × 24.0" (1500 / 1700 × 800 × 610 mm)
Sizes59" x 31"67" x 31"
InstallationFreestanding
Finish White
MaterialAcrylic

Order codes

SKUSize
D-8378-15059" x 31"
D-8378-17067" x 31"

Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.

Compare · 2 sizes

Size & spec comparison

MaterialAcrylic
TypeFreestanding bathtub
MountingFreestanding
MOQ40 pcs (59 in) / 35 pcs (67 in) · 1×40HQ
59" x 31"D-8378-15067" x 31"D-8378-170
Overall L×W×D
59″ × 31.5″ × 24.0″
1500 × 800 × 610 mm
67″ × 31.5″ × 24.0″
1700 × 800 × 610 mm

Common specs above apply to every size; the table compares only what changes by size. Custom sizes available for OEM/ODM.

Send a spec. Get a real quote in 12 business hours.

Engineer-reviewed. cUPC · CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Email it with your reference number
— Project brief B2B only
Enquiry about Angular Rectangular Freestanding Tub with Bowed Sides, 59 & 67 in SKU D-8378-150
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 12 business hours

    12 consecutive years at KBIS and IBS.

    — Most recent
    Feb 2026 KBIS· Orlando, USA
    Mar 2026 Expo Revestir· São Paulo, Brazil
    16 years on the floor · 6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Orlando, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2018 ISH

    2018ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2012 BAU

    2012BAU

    Munich, Germany
    — Major shows attended over the years Canton Fair · Cersaie Bologna · BAU Munich · ISH Frankfurt · The Big 5 Dubai · Expo Revestir · Coverings Chicago · Expo Guadalajara

    Standard on every shipment.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    Shape & Edges

    Faceted plan with bowed long sides

    D-8378 is symmetric in plan, with slightly convex long sides and clipped corners that give it crisp edges. The walls widen from base to rim.

    01 / FACETS

    Crisp corners, gentle bow

    D-8378 bows its long sides outward a little and cuts its corners at an angle. The outline stays angular all round, with no flat side for setting against a wall.

    02 / BACKREST

    Double-ended interior

    D-8378 is double-ended, so either end can take the backrest. The drawing puts inner depth at 470 mm (18.5 in) in the middle and 445 mm (17.5 in) at each end.

    More freestanding outlines are shown in the freestanding range.

    Fit & Footprint

    610 mm tall on an 800 mm width

    Both D-8378 sizes stand 610 mm (24.0 in) high and 800 mm (31.5 in) wide, in lengths of 1500 mm (59 in) or 1700 mm (67 in).

    D-8378-150
    59" x 31.5" x 24.0" (1500 x 800 x 610 mm)
    D-8378-170
    67" x 31.5" x 24.0" (1700 x 800 x 610 mm)
    Inner Depth (as drawn)
    17.5" ends, 18.5" center (445 / 470 mm)

    The 1500 mm drawing splits the length into 300 + 900 + 300 mm and the width into 150 + 500 + 150 mm. Because the walls flare, the base on the floor is smaller than the rim outline, which matters when the floor waste is set out.

    Fix the D-8378 drain point from the approved drawing for the chosen length.

    Construction & Finish

    Matte white acrylic, thin rim

    The shell of D-8378 is made from pure acrylic sheet and finished in matte white.

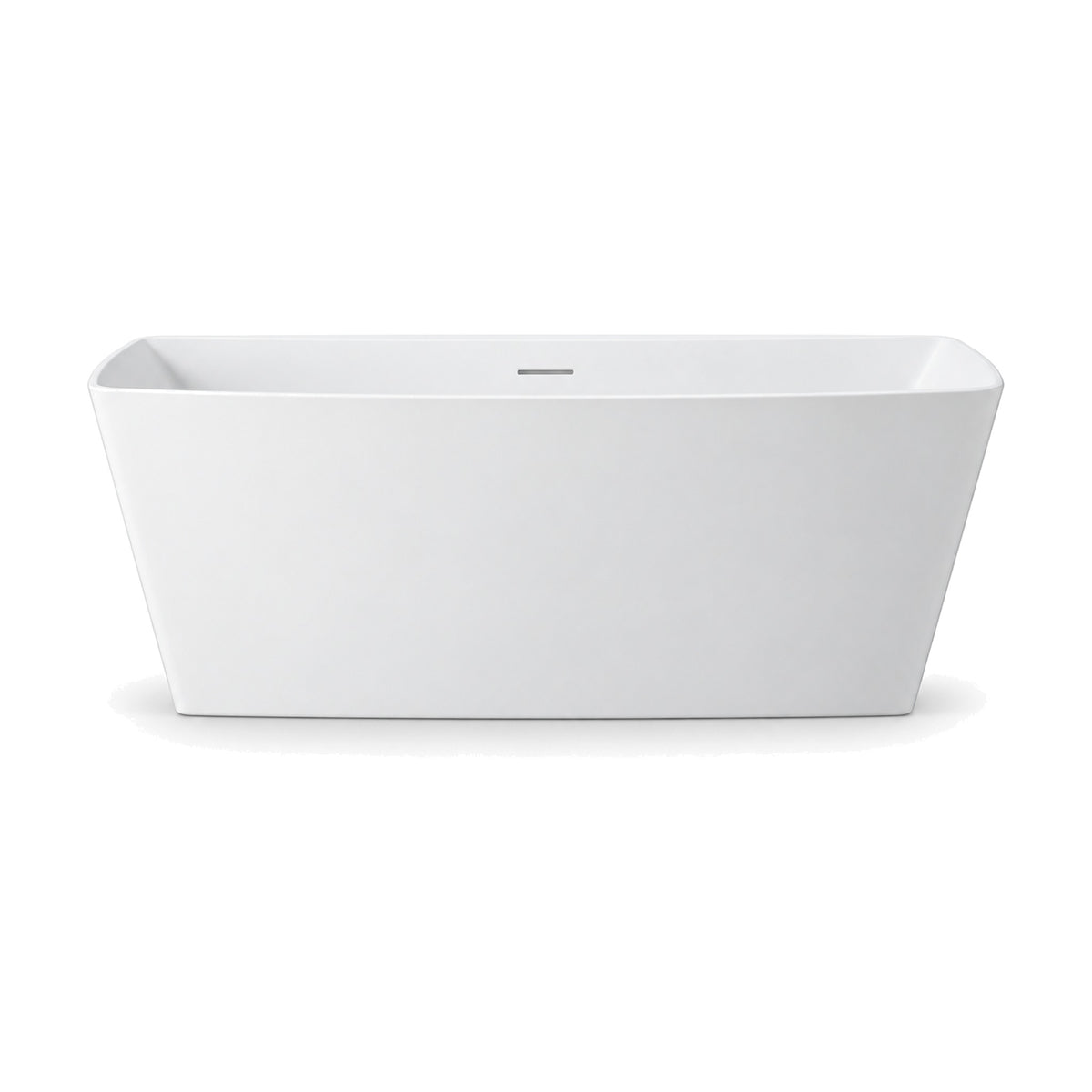

    SANIKB D-8378 - matte white angular freestanding bathtub with bowed long sides, clipped corners and thin rim

    White

    Flat light on facets

    The clipped corners and bowed sides catch light differently on a matte surface than on gloss. Review D-8378 on a sample under the project's lighting.

    The thin rim keeps the faceted outline visible from above as well as from the side.

    Keep the approved D-8378 sample on file as the finish reference.

    Compliance

    D-8378 certification

    SKU-specific documents

    Reference D-8378-150 or D-8378-170 on every document request.

    D-8378 holds cUPC certification in both lengths. The certificate number and validity are supplied on request for submittals.

    Tell us the destination market and the documents required, and the written reply on D-8378 follows within 12 business hours.

    Procurement

    Ordering D-8378

    Quotations for D-8378 list each size separately, each on a lead time of 30-45 days after sample approval.

    Size SKUs
    D-8378-150, D-8378-170
    Standard Lead Time
    30-45 days after sample approval

    Angular corners are the first point of contact in handling, so specify corner guards for D-8378 in the packing terms.

    Include these details with the RFQ

    • D-8378-150 and D-8378-170 order quantities
    • Market and discharge port
    • Floor-standing or wall filler requirement
    • Private label details
    • Planned shipping date
    Request D-8378 Quote View OEM & ODM Program

    The D-8378 quotation confirms the lead time.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 12 business hours
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    12 business hours Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request
    Get a quote View OEM & ODM program

    FAQs

    What are the D-8378 dimensions?

    Both sizes are 610 mm tall: D-8378-150 at 1500 x 800 x 610 mm (59 x 31.5 x 24.0 in) and D-8378-170 at 1700 x 800 x 610 mm (67 x 31.5 x 24.0 in), each with the faceted outline.

    What shape is D-8378?

    A faceted cushion-rectangle in plan: slightly convex long sides, clipped corners and walls that flare from a narrower base to a thin rim. It is symmetric and has no flat side.

    Where on the faceted D-8378 are the drain and overflow?

    The drain is at the center of the floor and the overflow is midway along one long side. The layout is symmetric, so the tub is double-ended.

    How deep is the D-8378 interior at the center and ends?

    Inner depth is drawn at 470 mm (18.5 in) in the middle and 445 mm (17.5 in) at the ends.

    Which faucet types suit D-8378?

    D-8378 has no tap holes in its thin rim, so it takes a floor-standing or wall-mounted filler. Mark the filler position on the plan to suit the center drain and the double-ended layout.

    What should an enquiry for D-8378 include?

    Quantity per SKU, destination port, filler type and label needs. SANIKB answers within 12 business hours, and production takes 30-45 days after sample approval.
