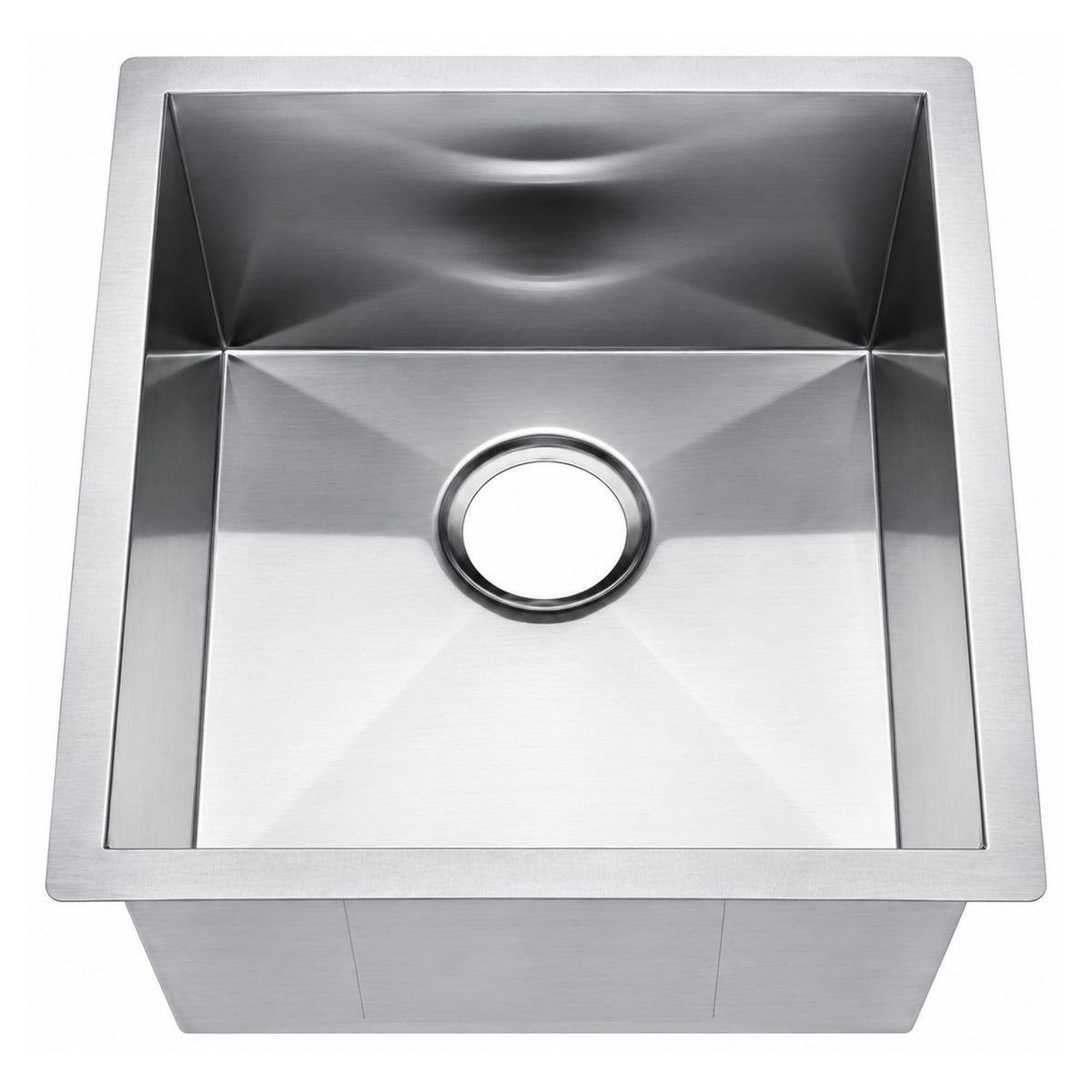

93-Degree Sharp-Edge Undermount Single Bowl Sink 17-1/4 x 19-5/6

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.
Bars, suites and prep stations: 17199R-T is a compact undermount single bowl in 304 stainless steel with a 93-degree sharp edge. Its 15-1/4" × 17-5/6" bowl fits a 17-1/4" × 19-5/6" (438 × 504 mm) outline.
Choose 16-gauge (1.5 mm) or 18-gauge (1.2 mm) sheet and a depth from 6" to 10". Our Foshan factory finishes it in brushed satin, with a 3-1/2" drain opening.
More in Undermount Kitchen Sinks
20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

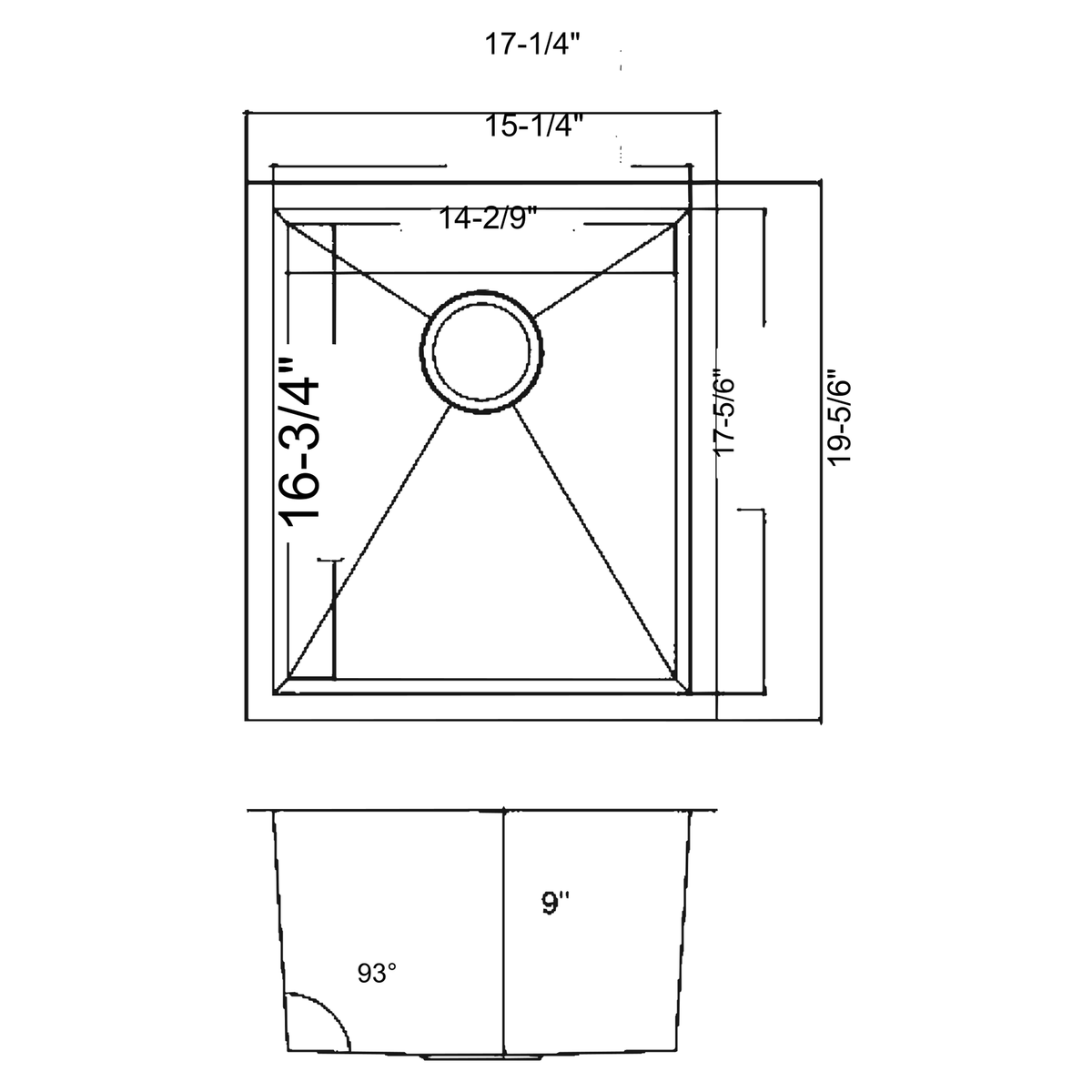

Dimension sheet
Sizes and cut data for 17199R-T
Send a spec. Get a real quote in 1 business day.
Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.
We send quotes within 1 business day after receiving the necessary product, quantity and destination details.
12 editions of the International Builders' Show (IBS).
Factory documentation
Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.
CRISP EDGE
Single bowl undermount kitchen sink, 93 degree edge
17199R-T is a 93 degree sharp edge undermount single bowl sink, installed beneath the countertop. As an undermount kitchen sink it leaves the opening as one clean line, with no rim above the worktop.
Its 15-1/4" × 17-5/6" bowl sits inside a 17-1/4" × 19-5/6" outline. Cabinet makers can work from one outline for both gauges and all five depths, whatever the kitchen layout.
Unlike a drop in sink, an undermount sink needs a cutout drawing before the worktop is cut. Browse similar formats in undermount kitchen sinks when a project also needs larger bowls.
MEASUREMENTS
17199R-T size, bowl and drain figures
- Model
- 17199R-T
- Overall size
- 17.2" × 19.8" (438 × 504 mm)
- Bowl size
- 15-1/4"X17-5/6"
- Bowl depths
- 6" / 7" / 8" / 9" / 10"
- Drain opening
- 3-1/2"
- Material
- 304 stainless steel
- Gauge
- 16G/18G
- Finish
- Brushed Satin
- Mount
- Undermount
Outline: 438 × 504 mm. Check cabinet width and cabinet depth against both figures.
OPTIONS
Gauge and depth choices for one outline
16G or 18G
16-gauge is 1.5 mm and 18-gauge is 1.2 mm. Both keep the same outline and bowl.
Five bowl depths
Depths run 6" to 10" in 1" steps. Pick 6" for shallow cabinets and 10" where the most bowl volume is needed.
Stainless steel finish
304 stainless steel with a brushed satin finish, in the same outline for both gauges.
PROJECT FIT
Where this compact kitchen sink earns its place
Hotel groups can specify this undermount sink for suite wet bars and back-of-house prep corners. One cabinet size serves both 16G and 18G versions.
Developers add it as a second kitchen sink on an island, where one stainless steel undermount sink suits daily use. For a main kitchen, choose one of the wider stainless models instead.
Leave room behind the bowl for the faucet, and check cabinet depth against the 504 mm outline dimension before ordering.
DOCUMENTS
Spec sheet support for submittals
A model spec sheet accompanies 17199R-T for specifiers and showroom buyers. Ask for it with your quotation when a submittal pack is needed.
ENQUIRY
Request a 17199R-T quotation
A 50 pcs minimum applies, and mixed container loading is accepted.
We reply within 12 business hours from our Foshan factory.
Include in your message
- Model 17199R-T and quantity
- Gauge: 16G or 18G
- Depth for each line
- Destination country
- Private-label carton needs
How we work
From enquiry to shipment
A factory-direct process built for importers, distributors and project buyers. No trading layer in between.
-
01
Send the enquiry
Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.
-
02
Our sales team contacts you
A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.
-
03
Quotation
You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.
-
04
Sample approval
We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.
-
05
Production and shipment
Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.
OEM and ODM to your specification
We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.
- Your logo on product, carton and documentation
- Private-label packaging and manuals
- Custom finish matched to your standard
- Custom dimensions and tooling where volume supports it
- Product development from your reference or price target
- Destination-market documentation prepared on request
