SANIKB 22189R-T — 93-Degree Sharp Edge Single Bowl Undermount Stainless Steel Sink 22.5x18.5SANIKB 22189R-T dimension drawingSANIKB 22189R-T compatible accessories22189R-T sharp-corner stainless sink in a hotel suite wet bar
01 / 04

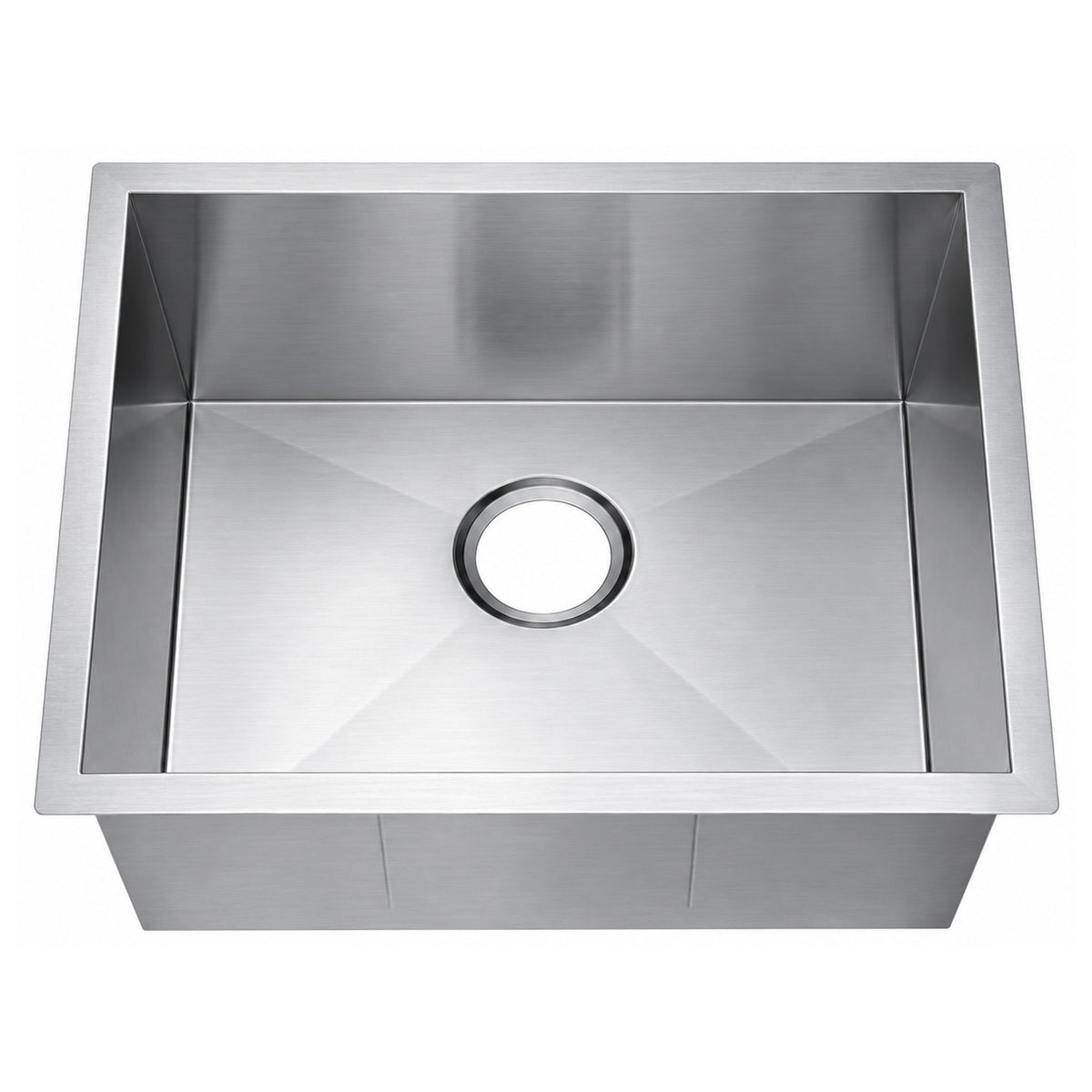

93-Degree Sharp Edge Single Bowl Undermount Stainless Steel Sink 22.5x18.5

SKU 22189R-T
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Undermount Single Bowl Kitchen Sink
Size 22.5" × 18.5" (572 × 470 mm) Custom sizes
Mount Undermount
Finish
Brushed Satin

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

For 22.5 x 18.5 cutouts, 22189R-T gives you a 20-1/2" × 16-1/2" single bowl with a 93-degree sharp edge, cut from 304 stainless steel and finished in brushed satin. Overall size is 22-1/2" × 18-1/2" (572 × 470 mm).

Gauge choice is 16G or 18G, and five depths run from 6" to 10". We make it ourselves in Foshan, with noise-reduction padding fitted under the bowl and a 3-1/2" drain opening.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for 22189R-T

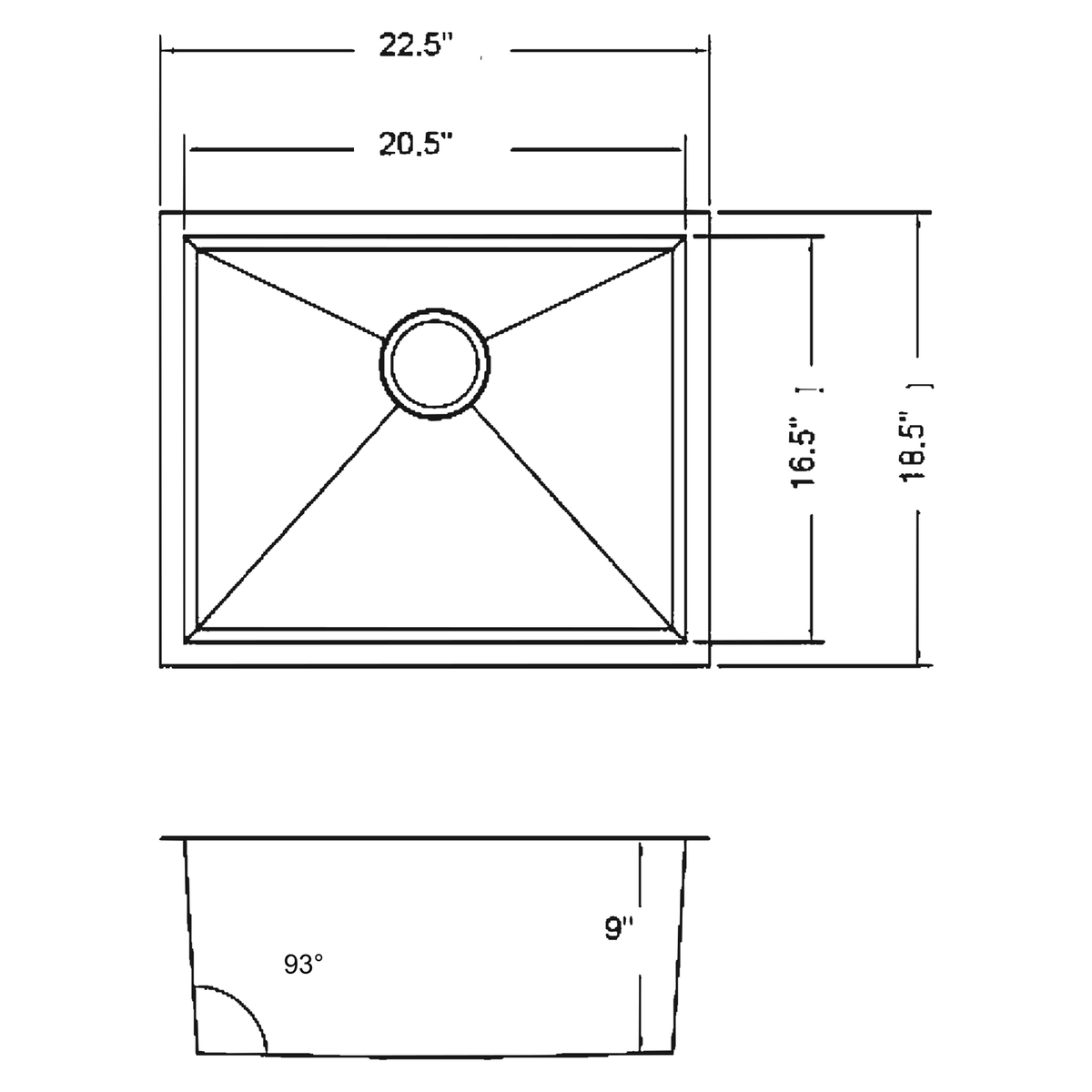

SANIKB 22189R-T dimension drawing
Dimension drawing
Overall size22.5" × 18.5" (572 × 470 mm)
Bowl20-1/2"x 16-1/2"
Depth6" / 7" / 8" / 9" / 10"
Gauge16G/18G
Drain3-1/2"
FinishBrushed Satin
Material304 stainless steel

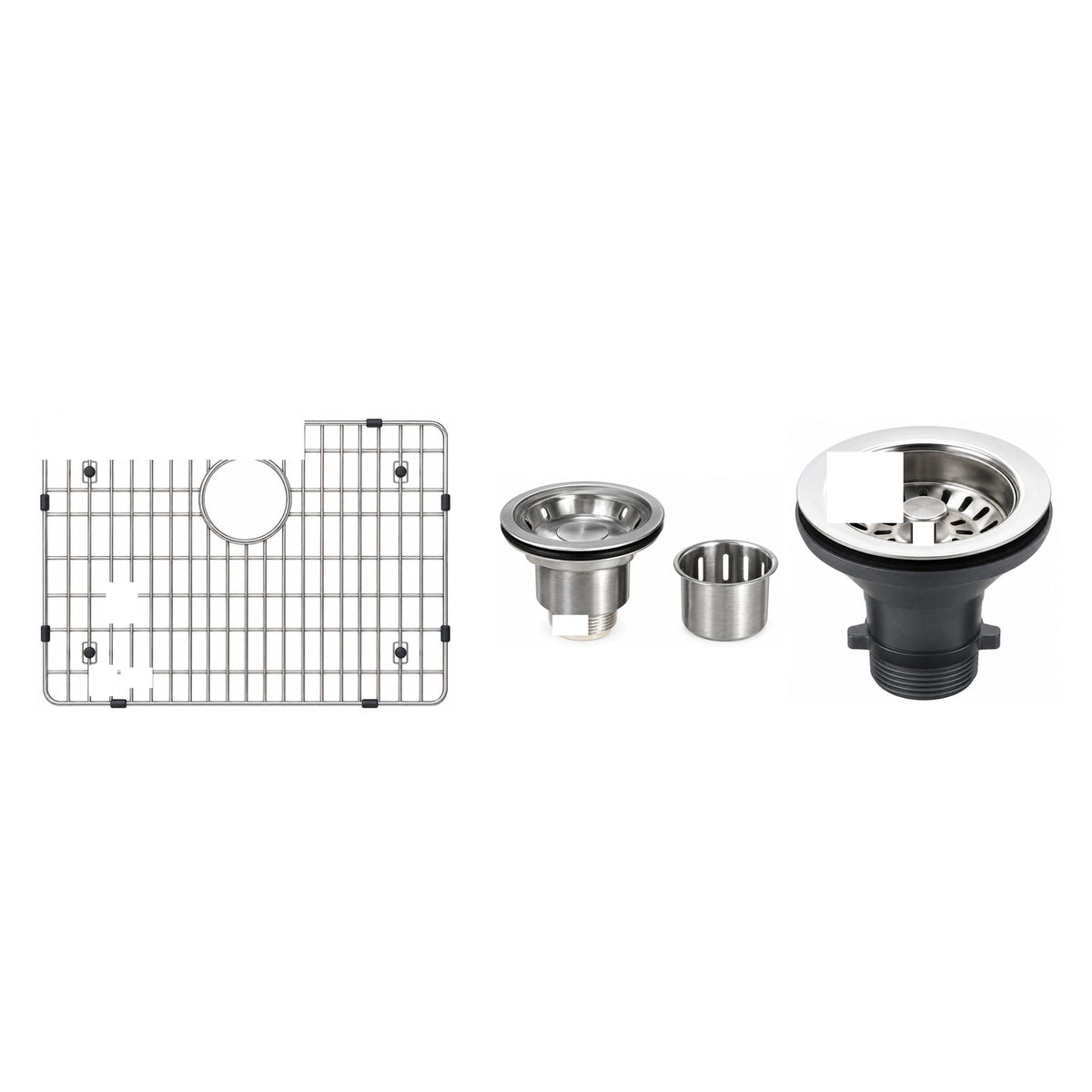

SANIKB 22189R-T compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about 93-Degree Sharp Edge Single Bowl Undermount Stainless Steel Sink 22.5x18.5 SKU 22189R-T
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    PLAN THE CUTOUT

    22.5 x 18.5 undermount single bowl sink

    Size the base cabinet to the 22-1/2" × 18-1/2" (572 × 470 mm) outline, and cut the countertop to the 20-1/2" × 16-1/2" bowl with its 93-degree sharp edge.

    SANIKB 22189R-T — 93-Degree Sharp Edge Single Bowl Undermount Stainless Steel Sink 22.5x18.5

    Brushed Satin

    304 stainless steel, brushed satin

    One finish and one material across both gauges, so a mixed order looks uniform once installed.

    EDGE AND SIZE

    Sharp 93-degree edge against its zero-radius sibling

    93-degree sharp edge

    The bowl wall meets the rim at 93 degrees, giving a near-square edge under the countertop.

    Against 22189S

    22189S is 22" × 18" with a 20" × 16" bowl and zero-radius corners. This model is larger in both directions.

    Five depths

    Order 6", 7", 8", 9" or 10", in 16-gauge (1.5 mm) or 18-gauge (1.2 mm) steel.

    SIZES

    22189R-T sizes and bowl data

    Model
    22189R-T
    Overall size
    22.5" × 18.5" (572 × 470 mm)
    Bowl size
    20-1/2"x 16-1/2"
    Bowl depths
    6" / 7" / 8" / 9" / 10"
    Drain opening
    3-1/2"
    Material
    304 stainless steel
    Gauge
    16G/18G
    Finish
    Brushed Satin
    Mount
    Undermount

    COUNTER FIT

    Fitting 22189R-T under the countertop

    Below quartz or solid surface countertops, the sharp edge leaves a clean line at the cutout. There is no apron and no top flange; this stainless steel sink is undermount only.

    22189S-T shares the 22-1/2" × 18-1/2" outline and bowl size, so the edge profile is the real difference between the two. Quote both while the drawings are still open on that detail.

    ROOM PLANNING

    Room planning for a 22.5 x 18.5 footprint

    Short sink runs in studios, bar corners and compact galleys decide the cabinet before the sink is chosen. Measure the base cabinet inside width first, then compare it with the outline above.

    Leave deck space behind the bowl for the faucet. Where a dishwasher or appliance sits beside the sink, check clearances on the plan rather than on site.

    Quotations are returned within 12 business hours. Send model, gauge, depth and quantity, or start from undermount kitchen sinks.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    What base cabinet does a 22.5 x 18.5 undermount single bowl sink need?

    22189R-T is 22-1/2" × 18-1/2" (572 × 470 mm) outside with a 20-1/2" × 16-1/2" bowl. Measure the inside width of the base cabinet against that outline. Both gauges and all five depths share it, so a mixed order still needs only one cabinet size.

    What does the 93-degree edge mean for specifiers?

    It is a sharp-edged bowl profile, not a rounded one. Specifiers choose it when the drawing shows a crisp line around the bowl. If the brief wants square inside corners instead, ask about 22189S, our zero-radius bowl, which is slightly smaller at 22" × 18".

    Can gauges and depths be mixed on one 22189R-T order?

    They can. Five depths, 6", 7", 8", 9" and 10", and both gauges are tooled. A mixed 1×20 ft container is accepted, with a 50 pcs MOQ. List the quantity per combination so the quotation shows the full load and your stock plan stays clear.

    Can I put our brand on 22189R-T cartons?

    Brand marking is possible because SANIKB builds the sink in its own Foshan factory. Share artwork and quantity, and we fold the carton work into the quotation. The OEM/ODM service page explains how programmes start. Name the carton marking you need on each line.
