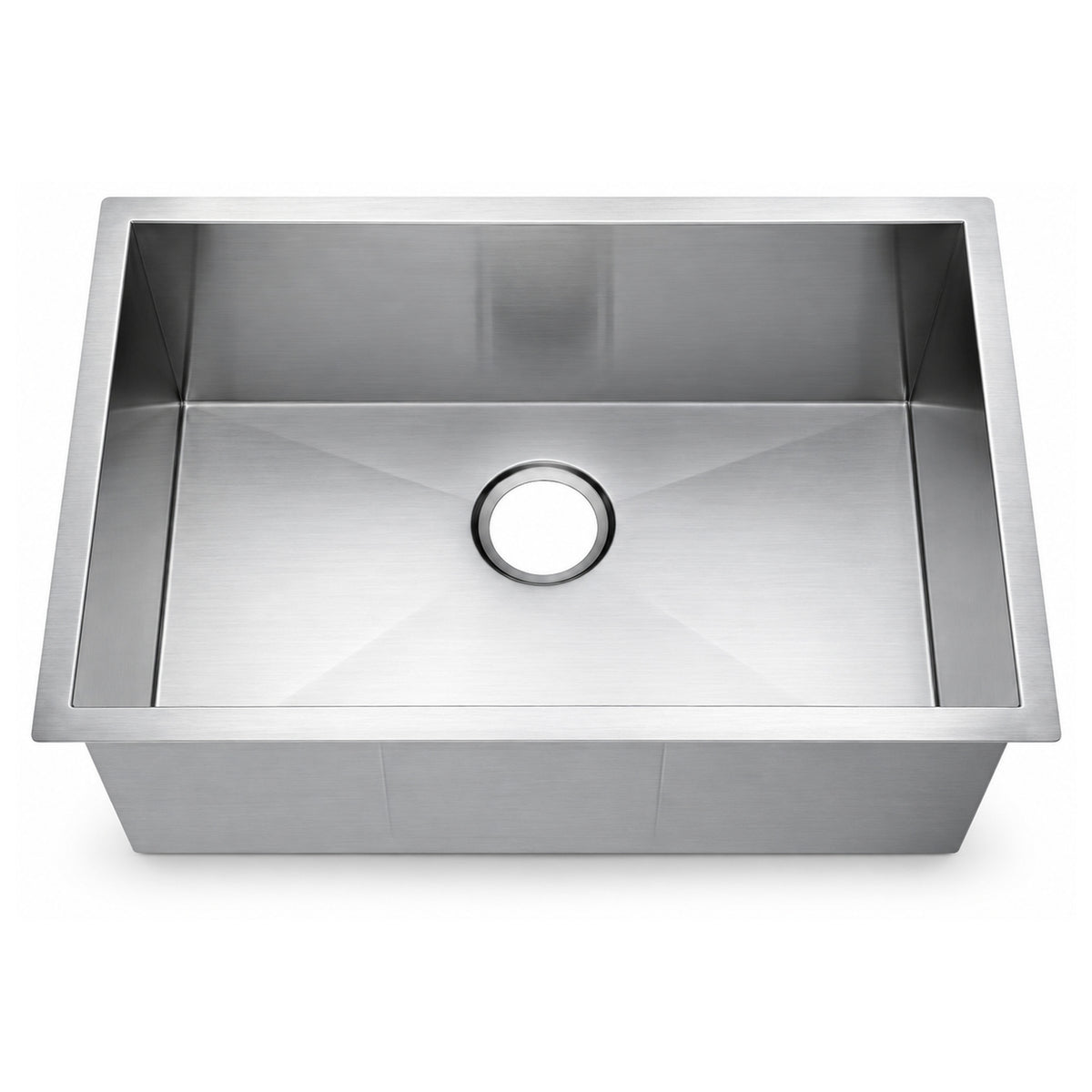

SANIKB 27189R-T — 27-Inch Undermount Single Bowl Stainless Kitchen Sink, 25-Inch Bowl WidthSANIKB 27189R-T dimension drawingSANIKB 27189R-T compatible accessories27189R-T stainless single-bowl sink in a boutique hotel kitchenette
01 / 04

27-Inch Undermount Single Bowl Stainless Kitchen Sink, 25-Inch Bowl Width

SKU 27189R-T
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Undermount Single Bowl Kitchen Sink
Size 27.0" × 18.6" (686 × 473 mm) Custom sizes
Mount Undermount
Finish
Brushed Satin

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

SANIKB 27189R-T is a 27 inch undermount single bowl sink in brushed 304 stainless steel. Its 25" × 16-5/8" bowl sits in a 27" × 18-5/8" (686 × 473 mm) outline with a 3-1/2" drain opening.

Order 16G or 18G sheet in any of five depths, 6" up to 10". Cartons leave our Foshan factory with noise-reduction padding already attached to the underside of the bowl.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for 27189R-T

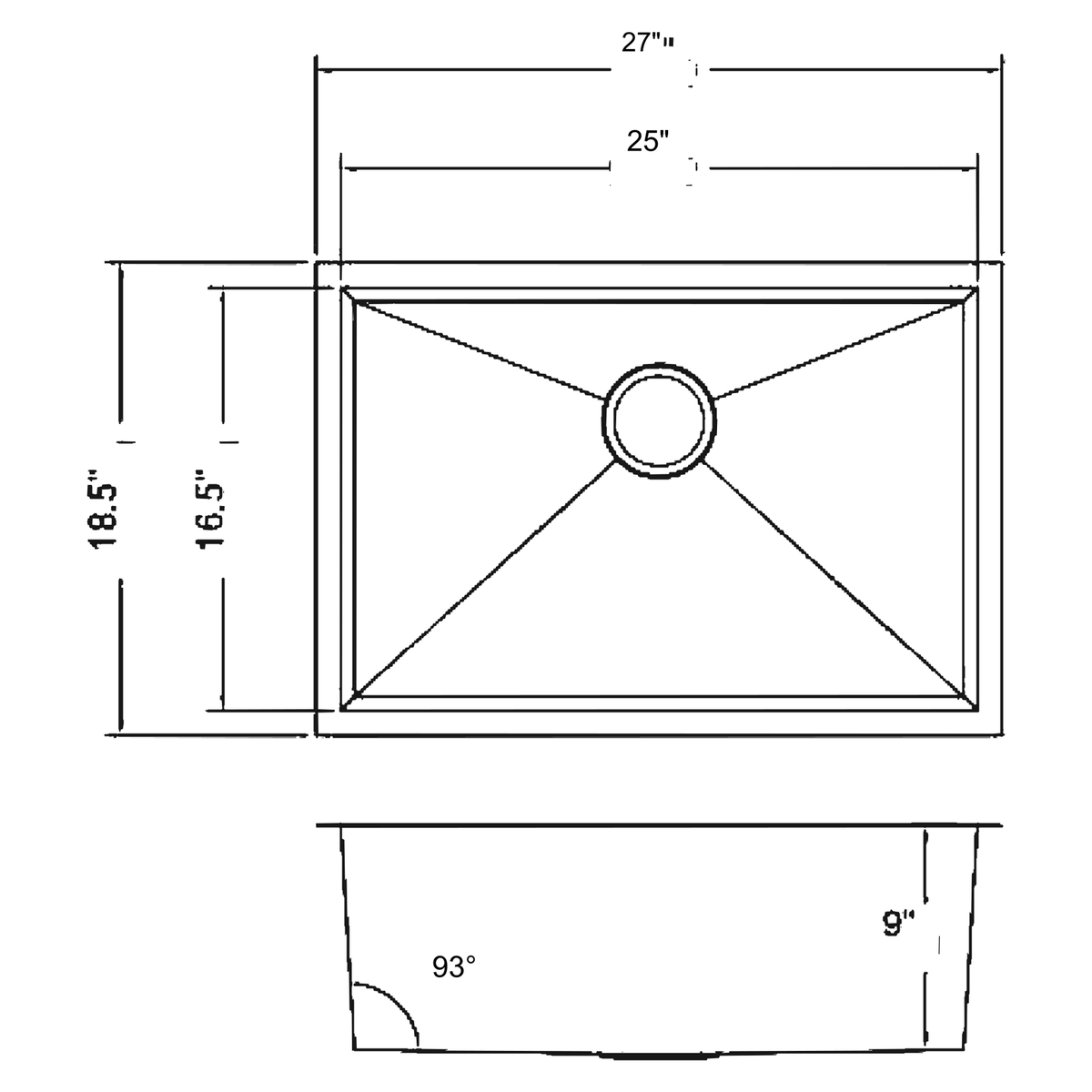

SANIKB 27189R-T dimension drawing
Dimension drawing
Overall size27.0" × 18.6" (686 × 473 mm)
Bowl25" X 16-5/8"
Depth6" / 7" / 8" / 9" / 10"
Gauge16G/18G
Drain3-1/2"
FinishBrushed Satin
Material304 stainless steel

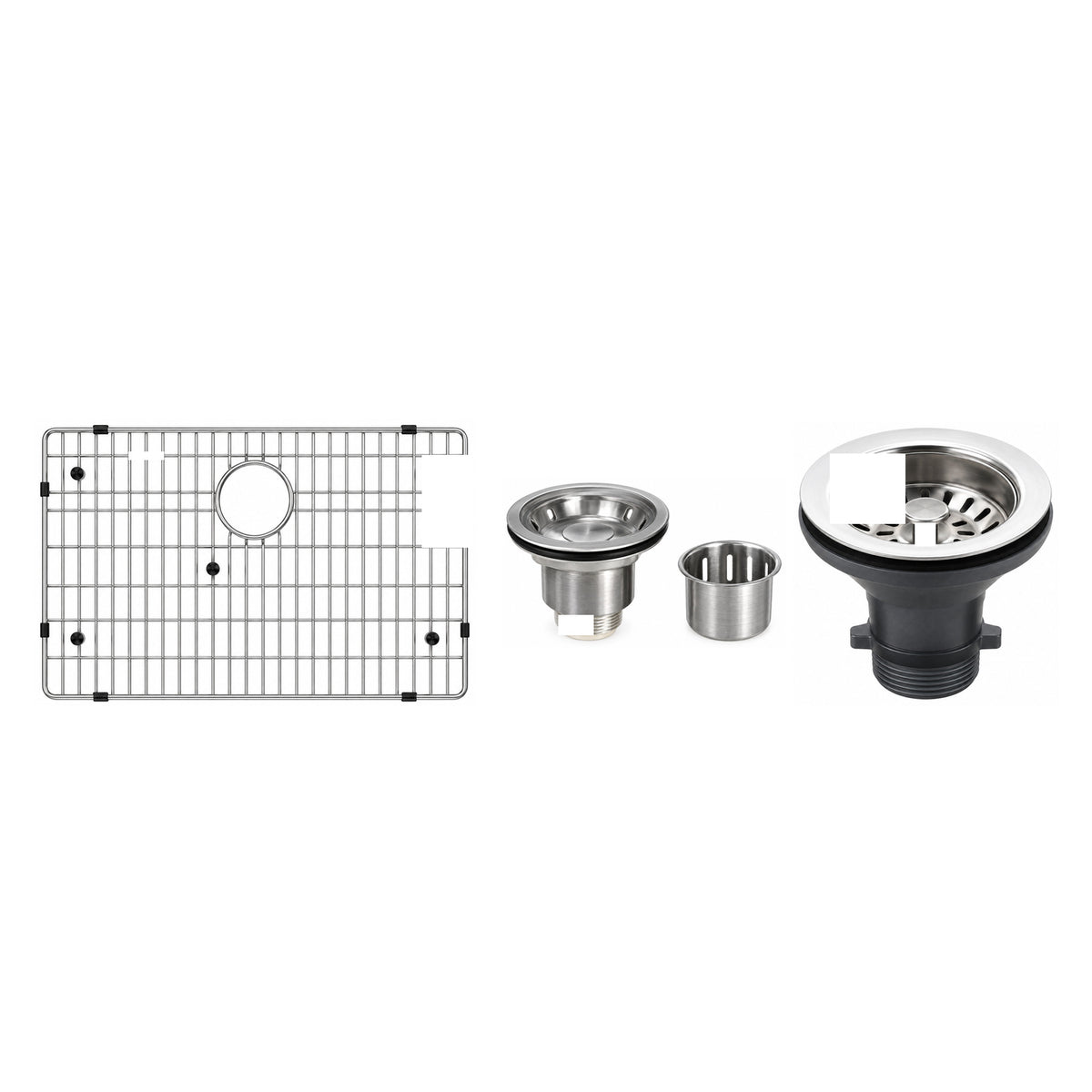

SANIKB 27189R-T compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about 27-Inch Undermount Single Bowl Stainless Kitchen Sink, 25-Inch Bowl Width SKU 27189R-T
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    CABINET FIRST

    Fitting a 27 inch undermount kitchen sink

    Start with the base cabinet, not the bowl. A 27 inch undermount single bowl sink like 27189R-T hangs entirely below the counter, so the cabinet has to clear a 27" × 18-5/8" outline and the stone edge becomes the visible rim. As a stainless steel kitchen sink in 304 stainless steel, it is made for undermount installation.

    One wide bay

    The bowl dimensions are 25" × 16-5/8" with no divider, so large pans and stockpots sit flat and the cook never works around a partition.

    Five tooled depths

    Bowl depth runs 6", 7", 8", 9" or 10". Shallow depths suit low cabinets; 10" gives the most capacity.

    Two sheet gauges

    Sink gauge is 16 gauge (1.5 mm), the heavier sheet, or 18 gauge (1.2 mm), lighter. Outline and finish stay identical either way.

    SPEC TABLE

    27189R-T measurements and materials

    Model
    27189R-T
    Overall size
    27.0" × 18.6" (686 × 473 mm)
    Bowl size
    25" X 16-5/8"
    Bowl depths
    6" / 7" / 8" / 9" / 10"
    Drain opening
    3-1/2"
    Material
    304 stainless steel
    Gauge
    16G/18G
    Finish
    Brushed Satin
    Mount
    Undermount

    BEFORE CUTTING

    Countertop and cabinet checks before templating

    Give the fabricator the 27189R-T spec sheet to template the countertop opening. The base cabinet and its supports must clear the exterior dimensions, the full 27" × 18-5/8" (686 × 473 mm) body underneath.

    Leave counter space behind the bowl for the faucet and any soap dispenser. The drain opening is 3-1/2", so check the waste line against the bowl depth you pick.

    With quartz or solid surface as the countertop material, the stone edge runs straight into the bowl, so the reveal is a fabrication decision. Agree it with the fabricator in writing before the first cut is made.

    Noise-reduction padding is already attached to the underside of the bowl when cartons leave Foshan, so installers have nothing extra to fit.

    SIZE LADDER

    Choosing between two 27 inch single bowls

    Our other 27-inch single bowl measures 18" front to back and comes in four depths. 27189R-T adds 5/8" of outline and a fifth depth, 10".

    Pick 27189R-T when the cabinets are deep and the kitchen cooks in large vessels. Pick the shorter body when the counter run is tight. A double bowl sink splits the width into two smaller bays; this deep single bowl keeps it open. Either way, measure the clear cabinet width first, because doors and side panels take away usable space.

    Mixed-depth schedules are common in multi-unit work: shallow bowls in compact apartments, 10" bowls in family kitchens. Because the footprint never moves, the cabinet shop can build one carcass for every unit type.

    Depth changes only the bowl. The outline holds from 6" to 10", so one cabinet drawing covers every unit in a mixed-depth project. Gauge works the same way: 16G and 18G share the outline, so the choice rests on the project specification.

    ORDERING

    Container planning for 27189R-T

    Minimum order is 50 pcs. Gauges and depths can travel together in one mixed 1×20 ft container, all with the same satin finish, which suits developers who need shallow and deep units in the same building.

    Buyers who resell usually split the first order across two or three depths, then reorder the one that moves. That pattern works here because every depth shares one outline and one 3-1/2" drain opening.

    Send the model, gauge, depth and quantity for each line; our factory answers within 12 business hours. While you plan, browse more undermount kitchen sinks from the same Foshan line.

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    What cutout does a 27 inch undermount single bowl sink need?

    27189R-T has a 25" × 16-5/8" bowl inside a 27" × 18-5/8" (686 × 473 mm) outline, and the base cabinet must clear that full outline. Your countertop fabricator should template the opening from the 27189R-T spec sheet, so ask for it when you request a quote.

    Is this a 27 inch undermount kitchen sink for deep cabinets?

    Yes, it suits deep cabinets. 27189R-T offers 6", 7", 8", 9" and 10" bowls on the same 27" outline, so the deepest version gives maximum capacity while the shallow ones fit low cabinet builds. Before ordering the 10" depth, check the trap and disposal clearance inside the base unit.

    Does the finish change between 16G and 18G?

    No. Both gauges are 304 stainless steel with a brushed satin finish, and the outline does not change. The only difference is sheet thickness, 1.5 mm for 16G and 1.2 mm for 18G. Choose by project specification; the two look the same once installed under the counter.

    Can gauges and depths be mixed on one order?

    Yes. The minimum is 50 pcs, and different gauges and depths can share a mixed 1×20 ft container. Name one gauge and one depth on each order line so cartons are packed and marked for the exact combination you need at every building or showroom.

    How do we start a private-label order?

    Send logo artwork and the target quantity with the model code. We make the sink in our factory in Foshan, so carton marking is handled during quotation. Programme details are on the OEM/ODM service page, and branded lines can still differ in gauge and depth on one order.
