SANIKB 22189S — 22x18 Zero-Radius Undermount Single Bowl Kitchen Sink, 20x16 BasinSANIKB 22189S dimension drawingSANIKB 22189S compatible accessories22189S stainless undermount sink in a hotel kitchenette
01 / 04

22x18 Zero-Radius Undermount Single Bowl Kitchen Sink, 20x16 Basin

SKU 22189S
Certification
Certification mark
Min. order
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days
Reply time
1 business day
Material 304 stainless steel
Type Undermount Single Bowl Kitchen Sink
Size 22.0" × 18.0" (559 × 457 mm) Custom sizes
Mount Undermount
Finish
Brushed Satin

Wholesale · 20 ft / 40 ft · Mix available · Below 1 container: your own China forwarder required.

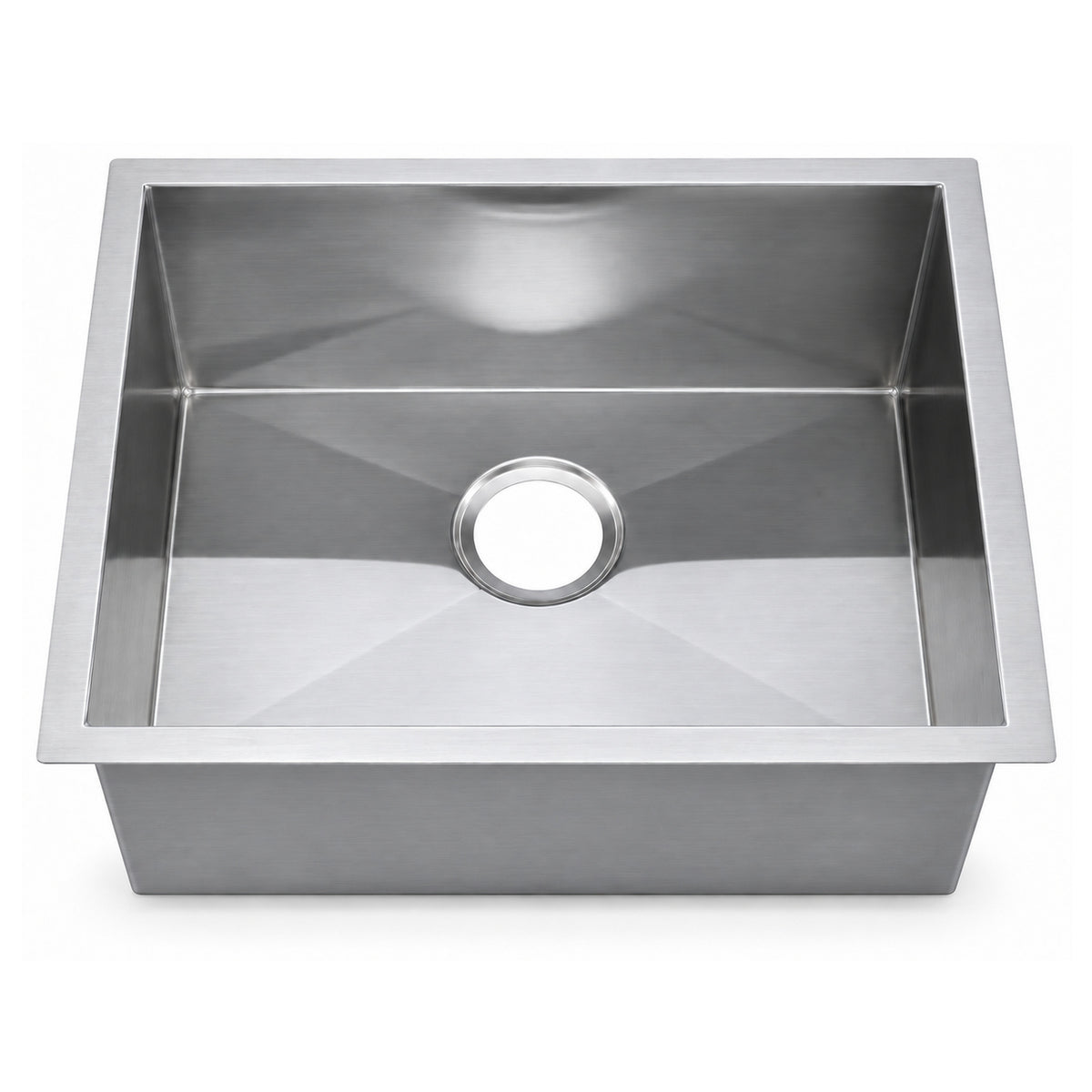

SANIKB 22189S is a 22 x 18 zero radius undermount sink in 304 stainless steel with a brushed satin finish. One 20" × 16" bowl sits in a 22" × 18" (559 × 457 mm) outline, with a 3-1/2" drain opening.

Choose 16G (1.5 mm) or 18G (1.2 mm) sheet and a bowl depth from 6" to 10". Noise-reduction padding is attached underneath, and each sink ships 1PC / Box from our Foshan factory.

More in Undermount Kitchen Sinks

20 ft / 40 ft containersBelow 1 container: your own China forwarder required. · Mix models and categories. No retail.

View all 86

Dimension sheet

Sizes and cut data for 22189S

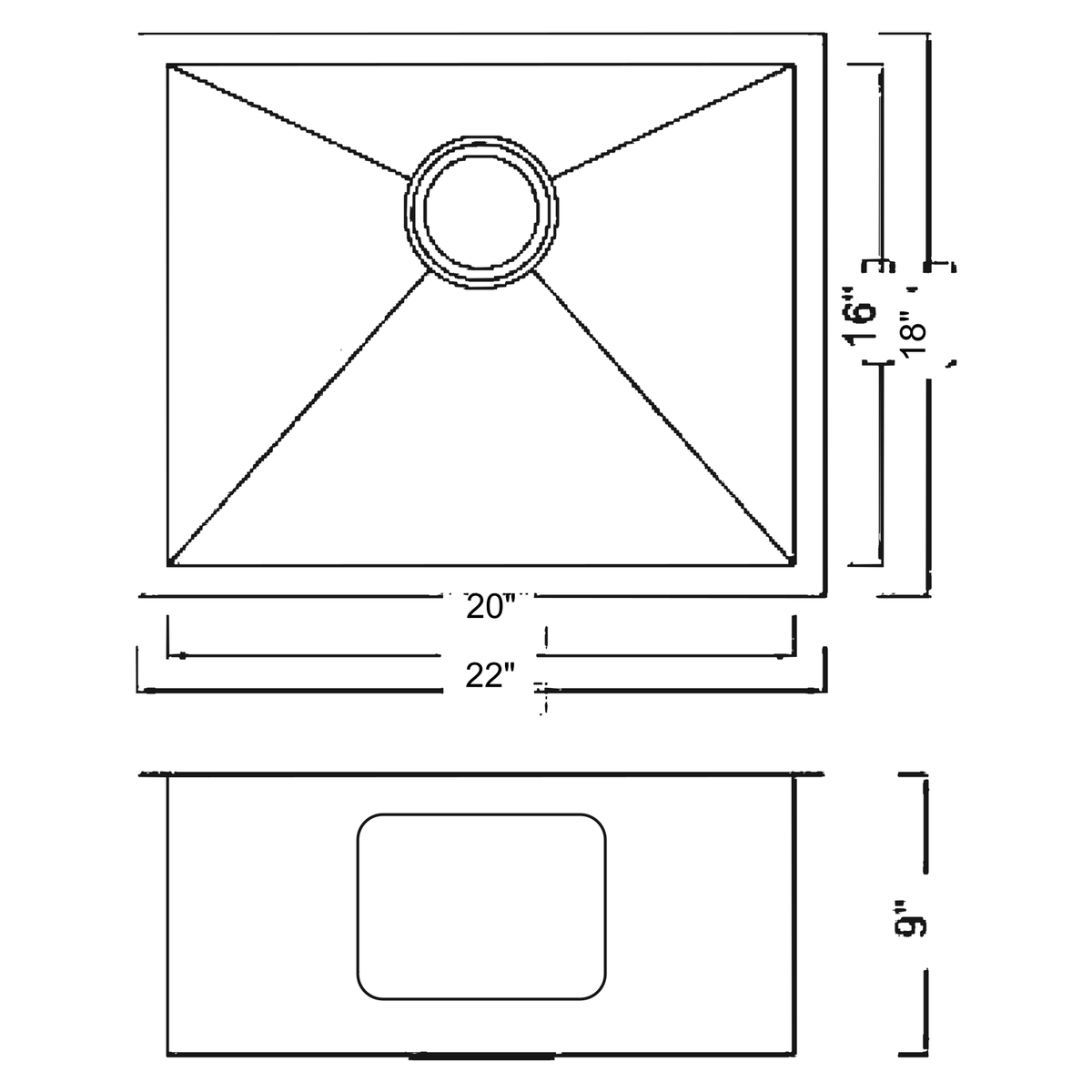

SANIKB 22189S dimension drawing
Dimension drawing
Overall size22.0" × 18.0" (559 × 457 mm)
Bowl20" X 16"
Depth6" / 7" / 8" / 9" / 10"
Gauge16G/18G
Drain3-1/2"
FinishBrushed Satin
Material304 stainless steel

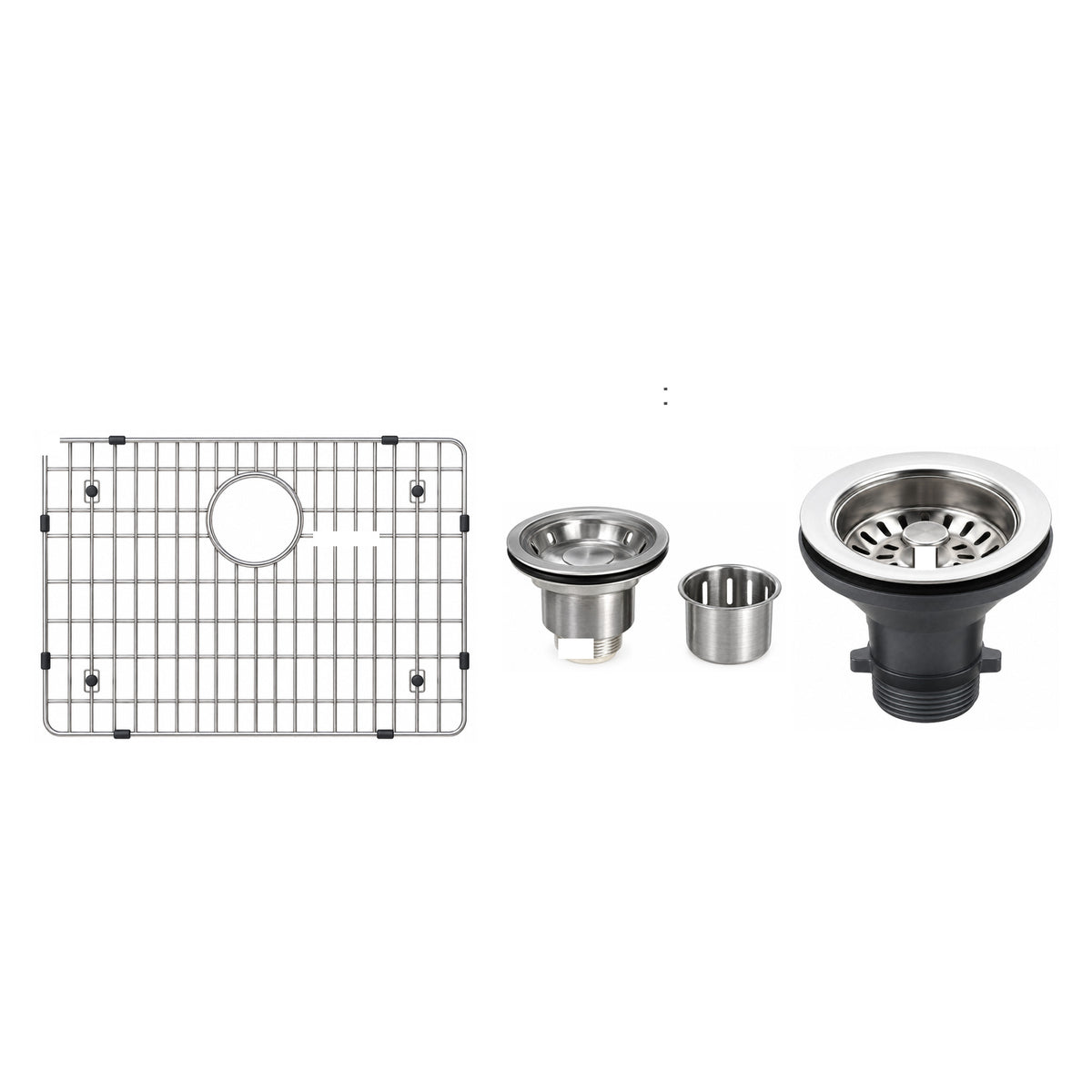

SANIKB 22189S compatible accessories
Compatible accessories

Send a spec. Get a real quote in 1 business day.

Engineer-reviewed. CE · ISO 9001 ready. 30–45 day lead time, FOB or CIF.

We send quotes within 1 business day after receiving the necessary product, quantity and destination details.

One itemised quote — not five
Feasibility & certification checked per market
Have a spec file? Attach it to your inquiry below.
— Project brief B2B only
Enquiry about 22x18 Zero-Radius Undermount Single Bowl Kitchen Sink, 20x16 Basin SKU 22189S
Please enter your first name.
Please enter your company name.
Please enter a valid email.
Please enter your phone number.

Wholesale · 20 ft / 40 ft · Mix available

Drag & drop or browse PDF / IMG / XLS · 4MB ×3
    Engineer reply within 1 business day

    12 editions of the International Builders' Show (IBS).

    — Most recent
    Feb 2026 KBIS · Orlando, USA
    Mar 2026 Expo Revestir · São Paulo, Brazil
    6 international shows annually
    2026 Expo Revestir

    2026Expo Revestir

    São Paulo, Brazil
    2026 KBIS

    2026KBIS

    Orlando, Florida
    2025 KBIS

    2025KBIS

    Las Vegas, USA
    2025 The Big 5

    2025The Big 5

    Dubai, UAE
    2024 IBS

    2024IBS

    Las Vegas, Nevada, USA
    2024 Expo Guadalajara

    2024Expo Guadalajara

    Guadalajara, Mexico
    2023 Canton Fair

    2023Canton Fair

    Guangzhou, China
    2019 Cersaie

    2019Cersaie

    Bologna, Italy
    2019 ISH

    2019ISH

    Frankfurt, Germany
    2017 The Big 5

    2017The Big 5

    Dubai, UAE
    2014 KBIS

    2014KBIS

    Las Vegas — US debut
    2013 BAU

    2013BAU

    Munich, Germany

    Factory documentation

    Certification scope depends on the selected model and destination market. Request model-specific documents with your quotation.

    IAPMO cUPC certificate
    ISO 9001 quality management certificate
    WRAS approved product certificate
    IAPMO certificate of listing
    UDEM CE technical inspection certificate

    COMPACT BUILDS

    Compact 22 x 18 zero radius undermount sink

    Studio apartments, hotel kitchenettes and staff break rooms rarely have room for a full-size bowl. This 22 x 18 zero radius undermount sink gives them one 20" × 16" bowl inside a 22" × 18" (559 × 457 mm) outline.

    Square-cornered bowl

    Zero-radius corners keep the 20" × 16" bowl square, so a rectangular tray or pan sits flush against the wall.

    Five depths on one tool

    Order 6", 7", 8", 9" or 10". Shallow bowls suit low cabinets; the deepest depth takes stock pots.

    Two sheet thicknesses

    16-gauge (1.5 mm) is the thicker sheet and 18-gauge (1.2 mm) the lighter one. Both share one outline.

    SIZE SHEET

    22189S footprint, bowl and drain figures

    Model
    22189S
    Overall size
    22.0" × 18.0" (559 × 457 mm)
    Bowl size
    20" X 16"
    Bowl depths
    6" / 7" / 8" / 9" / 10"
    Drain opening
    3-1/2"
    Material
    304 stainless steel
    Gauge
    16G/18G
    Finish
    Brushed Satin
    Mount
    Undermount
    Packing
    1PC / Box

    Measured outside, the sink is 2" longer and 2" wider than the bowl. Size the base cabinet to clear the outline; take the countertop opening from the 22189S spec sheet.

    WHERE IT FITS

    Where a 22-inch bowl earns its place

    Multifamily developers specify it for studio and one-bedroom units where the sink run is short. A single bowl also leaves counter space for a drying rack or a cutting board.

    Hotel and serviced-apartment kitchenettes can keep one sink model across room types. Retail showrooms can display it beside our larger single bowls to show the size step.

    Both gauges share the 22" × 18" outline, so switching from 18G to 16G late in a project leaves the countertop cutout unchanged.

    COUNTER AND CABINET

    Counter and cabinet planning for 22189S

    Undermount sinks of this size go under short kitchen runs, wet bars and prep corners. The rim sits below quartz or solid surface countertops, so the stone edge frames the square bowl directly.

    Check the cabinet width against the 22" outline and leave deck space behind the bowl for the faucet. Plan the strainer and waste fittings around the 3-1/2" drain opening.

    Our longer single bowls add bowl length but need a wider base cabinet. 22189S is the model to quote where the cabinet run cannot take them.

    ENQUIRY

    What to send for a 22189S quote

    A 22189S order needs 50 pcs minimum, packed 1PC / Box. Mixed loading in a 1×20 ft container is accepted, and we reply within 12 business hours.

    Details that speed up the quotation

    • Model 22189S and quantity
    • Gauge: 16G or 18G
    • Bowl depth: 6", 7", 8", 9" or 10"
    • Destination port and container mix
    • Logo or carton changes for private label

    How we work

    From enquiry to shipment

    A factory-direct process built for importers, distributors and project buyers. No trading layer in between.

    1. 01

      Send the enquiry

      Tell us the model, quantity, destination market and any branding or packaging requirement. A spec sheet or drawing helps but is not required to start.

      Replied within 1 business day
    2. 02

      Our sales team contacts you

      A named account manager follows up by email or WhatsApp, confirms the specification and clarifies anything missing before pricing.

      Email or WhatsApp
    3. 03

      Quotation

      You receive a written quotation with unit price, MOQ, packing details, lead time and the trade term you asked for. Entry, mid and premium build levels can be quoted side by side.

      FOB or CIF
    4. 04

      Sample approval

      We send a sample for finish, function and packaging sign-off. Branded samples are produced once artwork is confirmed.

      Before mass production
    5. 05

      Production and shipment

      Mass production starts after sample approval and deposit. QC and inspection run before loading, then the order ships to the agreed port.

      30–45 days after approval
    50+ New models developed every year, tracking current North American and European trends
    1 business day Maximum first response to an enquiry
    Since 2000 Foshan factory, B2B trade only

    OEM and ODM to your specification

    We develop to a brief. Send a reference model, a drawing or simply the price band and market you are targeting, and we will propose what fits. Entry, mid and premium builds are all available from the same factory.

    • Your logo on product, carton and documentation
    • Private-label packaging and manuals
    • Custom finish matched to your standard
    • Custom dimensions and tooling where volume supports it
    • Product development from your reference or price target
    • Destination-market documentation prepared on request

    FAQs

    Does a 22 x 18 zero radius undermount sink need a special cabinet?

    No special cabinet is needed, only one that clears the outline. 22189S measures 22" × 18" (559 × 457 mm) outside, and the bowl inside is 20" × 16". Both gauges share that outline, so a single cabinet drawing covers 16G and 18G units on the same project.

    What do zero-radius corners change for the buyer?

    They give the bowl square inside corners instead of rounded ones, so the 20" × 16" bowl keeps its full width right into each corner. Rectangular trays and pans sit flat against the walls. Choose 22189S when the drawing shows a square bowl rather than a radiused one.

    Can one order mix bowl depths and gauges?

    Yes. Five depths (6", 7", 8", 9", 10") and two gauges (16G and 18G) are tooled for this model. A mixed 1×20 ft container is accepted, so one load can carry several combinations. State the split per depth and gauge, and keep to the 50 pcs MOQ.

    Can 22189S carry our own label?

    Yes. We build the sink in our own factory in Foshan, so private-label cartons and logo marking go through the same quotation as the sinks. Send artwork and target quantity with your enquiry, or read about our OEM/ODM service first. A model spec sheet is available for your own sales files.

    How is 22189S packed for shipping?

    Each sink ships 1PC / Box, so installer and showroom orders are picked by the single unit rather than by multi-packs. For developers, one box per sink means one carton per apartment, and spare units can stay boxed in the warehouse for later phases.
