Ribbed Column Faucet Collection (116)

Ribbed Column wraps cylindrical valve bodies in a horizontal ribbed texture and pairs them with slim pin levers and round tube spouts that curve down or bend at a right angle. The six-piece set includes a single-hole faucet in standard and tall vessel heights, a widespread faucet, a two-hole faucet with a separate side valve, a two-handle three-hole wall-mount faucet, a single-lever wall-mount faucet with a separate valve and a diverter shower valve trim kit, all brass in Gun Metal Grey and all cUPC listed. SANIKB supplies the set for wholesale, hotel and project orders with OEM/ODM options.

Service
OEM / ODM · free mold from 300 pcs
MOQ
20 ft / 40 ft containersBelow 1 container: your own China forwarder required.
Lead time
30–45 days after sample
6 products

Horizontal ribs, slim pins

Ribbed Column: a gunmetal faucet line built around one texture

Series 116 is a six-piece gunmetal faucet family where every body is a cylinder wrapped in horizontal ribs, topped by a slim pin lever and finished in Gun Metal Grey over brass.

The ribbing is the identity of the line. It runs around each valve body, so whether a guest sees a deck-mounted single-hole tap or a wall plate in the shower, the same texture repeats. Spouts are round tubes that either curve down or turn at a right angle, which keeps the silhouette simple next to the busier ribbed column.

Because there is only one finish in this collection, the decision for a buyer is not color matching. It is choosing the right body for each basin and wall: deck or wall, one, two or three holes, standard height or tall vessel. All six models carry cUPC in their tags and share the same brass body material and the same minimum order of 100 pcs per model.

B064 and SP064, decoded

All six Ribbed Column codes in one table

Every model in the collection is listed below with the mount and fixture data from its spec sheet.

Swipe to compare all specifications

CodeFixtureMountFinishMOQ

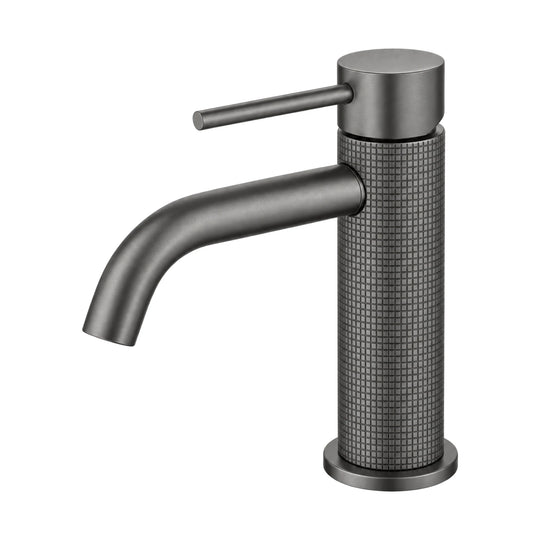

Single hole, two heightsB064 01/02Single-hole bathroom faucetDeck-mounted, single holeGun Metal Grey100 pcs
Two holeB064 29Two-hole bathroom faucetDeck-mounted, two holesGun Metal Grey100 pcs

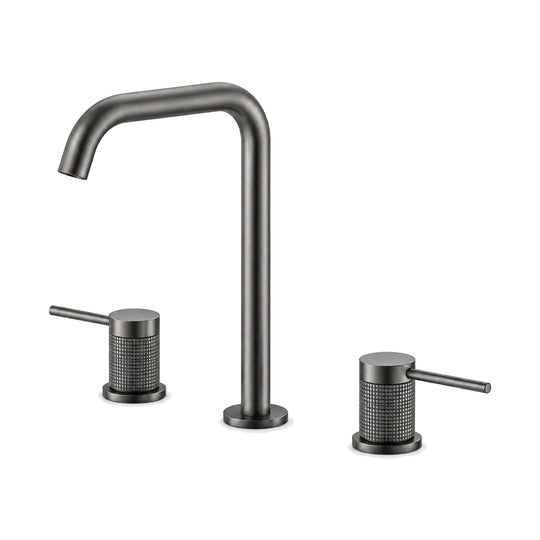

WidespreadB064 04Widespread bathroom faucetDeck-mounted, three holesGun Metal Grey100 pcs

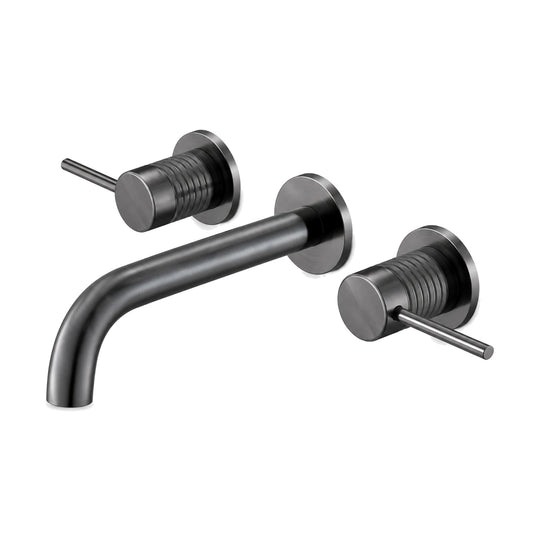

Two-handle wall mountB064 06Wall-mount bathroom faucetWall-mountedGun Metal Grey100 pcs
Single-lever wall mountB064 28 45Wall-mount bathroom faucetWall-mountedGun Metal Grey100 pcs
Shower trimSP064 22Shower valve trim kitWall-mounted trim, in-wall valveGun Metal Grey100 pcs

Five codes share the B064 root for basin faucets; the shower trim uses the SP064 prefix. B064 01/02 is one model code covering both the standard and the tall vessel height, so state which height you need.

Basin first, code second

Pairing pieces by the basin you are specifying

Read the countertop drawing before the catalog. The hole count and basin type point to one code each.

Gun metal grey single hole bathroom faucet with ribbed knurled body, pin lever and C-curved spout — SANIKB B064 01 45 1One hole, two heightsB064 01/02 is tagged for both standard and tall vessel heights, so one code can be ordered at either height.Gun metal grey two-piece deck faucet: tall right-angle bent spout and ribbed side valve with pin lever — SANIKB B064 29 45 1Two drilled holesB064 29 pairs the ribbed spout column with a separate side valve, for tops cut with two holes.Gun metal grey widespread bathroom faucet with tall right-angle tube spout and ribbed pin lever handles — SANIKB B064 04 45 1Three-hole topsB064 04 is the deck-mounted, three-hole widespread option for vanities already drilled that way.Gun metal grey three-hole wall mount faucet with curved spout between two ribbed valves with pin levers — SANIKB B064 06 45 1Wall spout, two handlesB064 06 is the two-handle, three-hole wall version, useful where the counter stays clear of fittings.Gun metal grey two-piece wall mount faucet with curved tube spout and textured round valve with pin lever — SANIKB B064 28 45 1Wall spout, one leverB064 28 45 gives a single lever on the wall with a separate valve.Gun metal grey round valve trim with ribbed cylinder, pin lever and diverter knob, with rough-in body — SANIKB SP064 22 45 1Shower wallSP064 22 is a diverter trim kit for an in-wall valve, carrying the ribbed texture into the shower.

Identical on every 116 code

What stays fixed across the gunmetal set

These values repeat on all six models, so they do not need to be negotiated model by model.

Body material
Brass
Finish
Gun Metal Grey
Certification tag
cUPC
Minimum order
100 pcs per model
Series and set tag
116
Pricing
Quoted per order

Accounts that want ribbed metal

Who orders Ribbed Column

Hotel and hospitality projects

A guest bathroom can take a basin faucet and the SP064 22 shower trim from the same series, so the ribbed texture and dark finish read as one design across the room.

Distributors and showrooms

Six codes is a compact range to stock. It covers single-hole, two-hole, widespread and wall-mounted basins plus a shower trim without needing a second finish.

Contractors on multi-unit jobs

Mixed unit plans can stay on B064 01/02 by ordering standard height for some units and tall vessel for others.

Private label buyers

Brands that want a textured dark-metal line under their own name can discuss packaging and marking through our OEM/ODM service at /pages/oem-odm-service.

A 116 inquiry, field by field

Sending a Ribbed Column RFQ

  1. List codes with suffixes

    Write each model exactly, such as B064 01/02 with the height noted for the single-hole faucet, B064 28 45 for the single-lever wall faucet and SP064 22 for the shower trim.

  2. Give quantities against the minimum

    Each model is ordered from 100 pcs. Note the quantity per code and whether the whole set ships together.

  3. Describe the rough-in side

    Say whether the wall-mount pieces and the shower trim go into new walls or existing ones, so we can confirm which valve and trim parts belong in the shipment.

  4. Add branding and destination

    Include delivery country, port and any private label or packaging request. Pricing is quoted per order, and a written reply follows within 12 business hours.
