Ribbed left-bowl wall hung basin

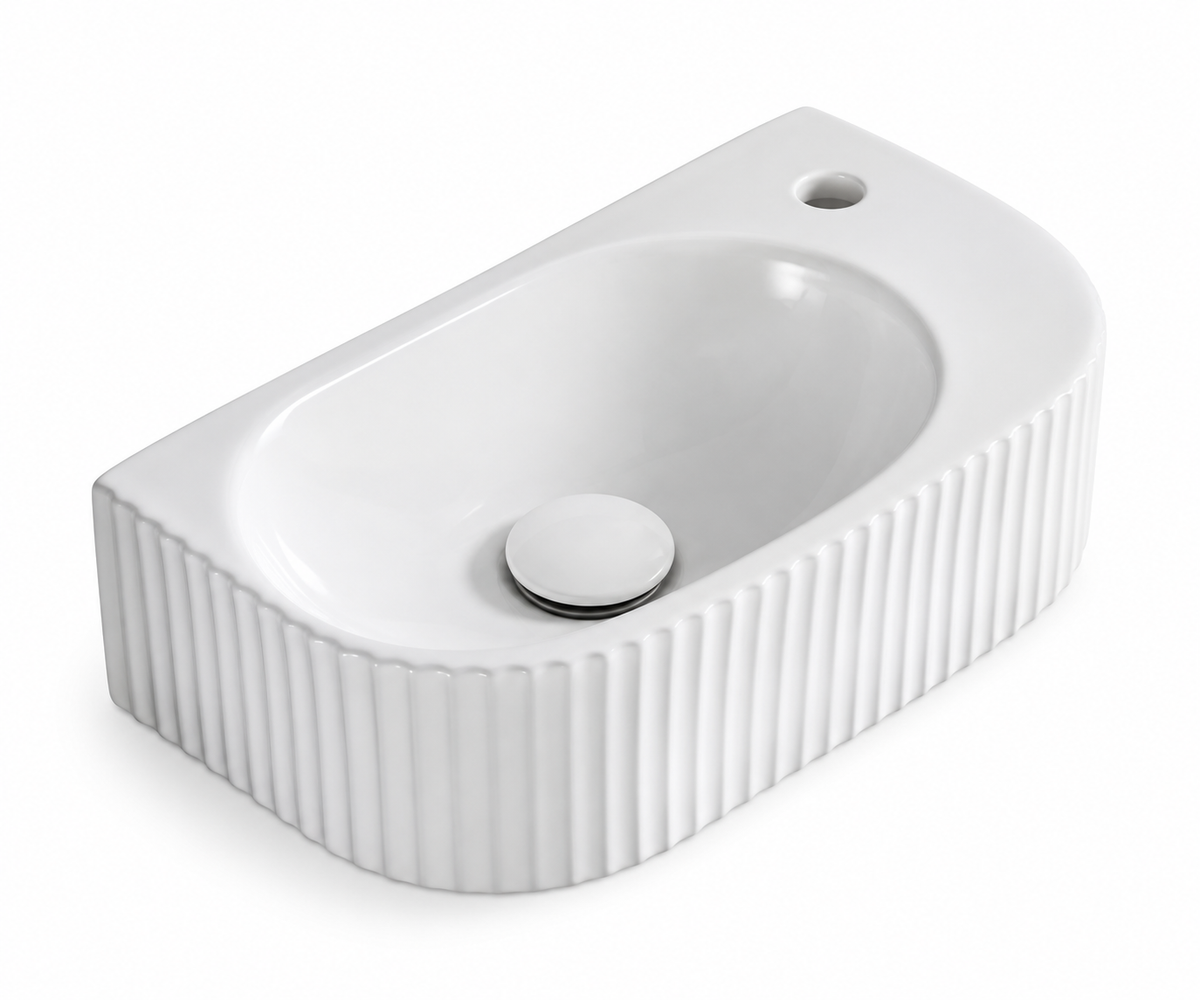

SHY-3128L combines a smooth oval bowl on the left with a vertically ribbed outer skirt. This ribbed left-bowl wall hung basin has a single tap opening in the rear-right platform. The factory plan shows a straight rear edge and a straight front middle section between two broad rounded front corners. White ceramic continues around the bowl and the adjoining platform as one body. The catalogue gives 400 × 220 × 120 mm for the complete exterior. Select the left bowl arrangement by checking the original plan and photograph together, keeping the rear-right tap position and ribbed frontage in the project specification.
Shape & size
Shape and size of SHY-3128L
Exterior
Vertical ribs around the outside
Closely spaced vertical ribs run down the white exterior skirt. The original side drawing repeats these lines, distinguishing the outside body from the smooth bowl interior.
Bowl
A smooth oval bowl on the left
The left-hand wash area has an oval outline in the factory top plan. Its smooth inner sides lead toward the circular waste position shown in the photograph.
Tap platform
The opening sits at the rear right
A single circular tap opening occupies the platform beside the bowl's rear-right end. The photograph and plan establish this location independently of the model suffix.
Outer outline
Straight rear and front middle, broad rounded front corners
The top plan shows a full straight rear edge, short straight sides and a straight front middle section joined by two broad rounded front corners. This outer contour is distinct from the oval line defining the wash bowl.
Dimensions
400 × 220 × 120 mm for the complete body
The 400 mm length and 220 mm projection refer to the whole plan, including the tap platform. The side drawing supplies the 120 mm exterior height.
