Rectangular Basin with Offset Tap Hole
The rectangular basin with offset tap hole places its smaller tap opening to the right of a larger circular rear-deck opening. D561A, D561 and D561B share this visibly asymmetric arrangement. A short horizontal slot appears on the inner rear face, while the sloping bowl floor has no circular drain opening in the factory photographs or plans. Straight front and side walls retain a plain white ceramic profile. The widths are 500, 600 and 700 mm, each with a 350 mm front-to-back dimension and 130 mm overall height. The catalogue lists both above-counter and wall-hung mounting for these three matching bodies.
Shape & size
Shape and size of D561A / D561 / D561B
Every option below is a produced configuration with its own SKU. 3 sizes. Name the exact SKU on each purchase order line.
-
NO. D561A500 × 350 × 130 mm -
NO. D561600 × 350 × 130 mm -
NO. D561B700 × 350 × 130 mm
Mixed-configuration orders are accepted within one purchase order. Confirm the SKU, finish and size on the quotation before sample approval. Request the full configuration list.
Two rear-deck circles
Smaller tap hole to the right of the larger opening
The top plan shows unequal circles on the rear deck. The factory photograph places the tap at the smaller right-hand position; the larger opening’s function is not specified.
Sloping uninterrupted floor
No circular opening within the bowl floor
The original plans and photographs leave the bowl floor without a round drain hole. Retain this source geometry rather than adding a conventional central opening.
Inner rear face
A short horizontal slot below the deck
A narrow horizontal opening appears in the back face of the bowl. The visible slot and rear-deck circles define this configuration; the source does not establish its concealed plumbing.
350 mm front to back
500, 600 and 700 mm with the same rear layout
D561A, D561 and D561B change width while keeping a 130 mm total height and the asymmetric rear opening arrangement.

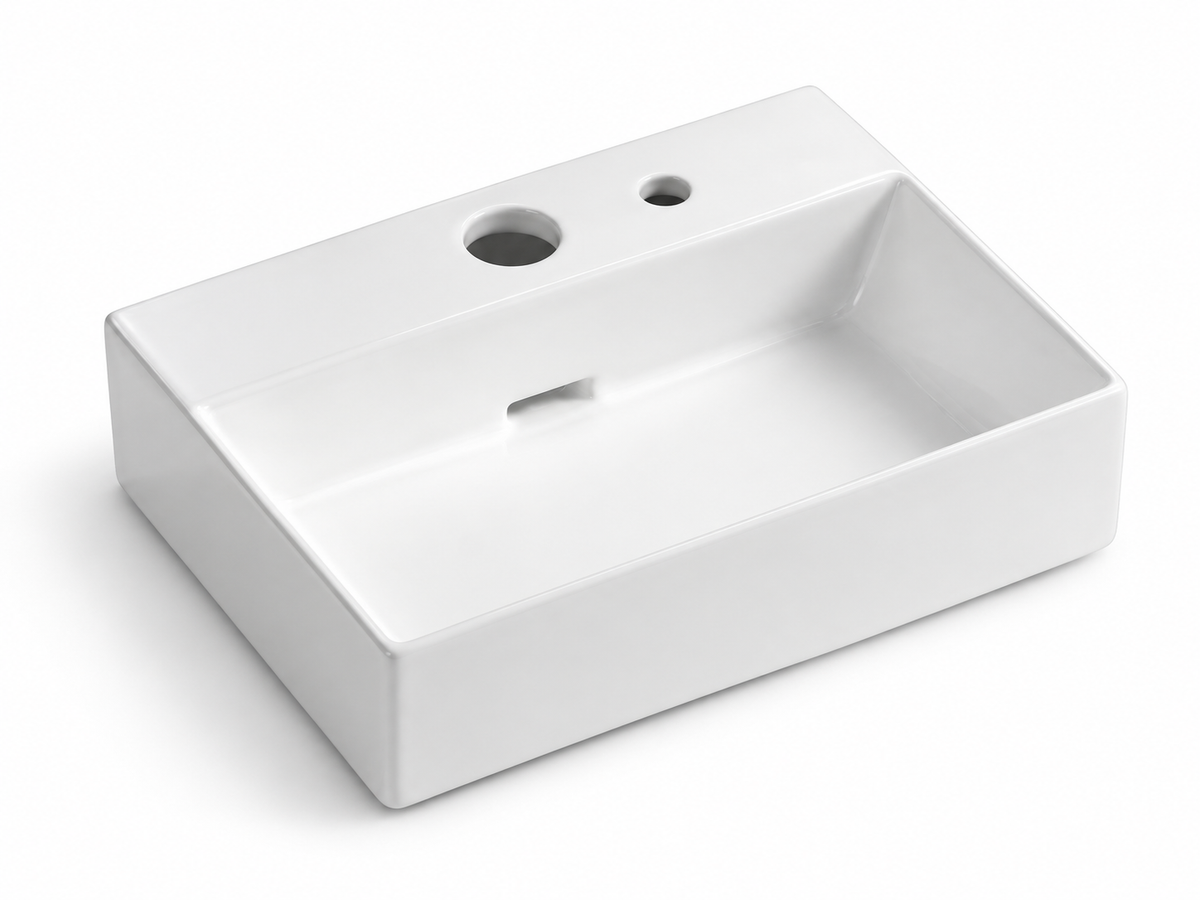

D561A
500 × 350 × 130 mm

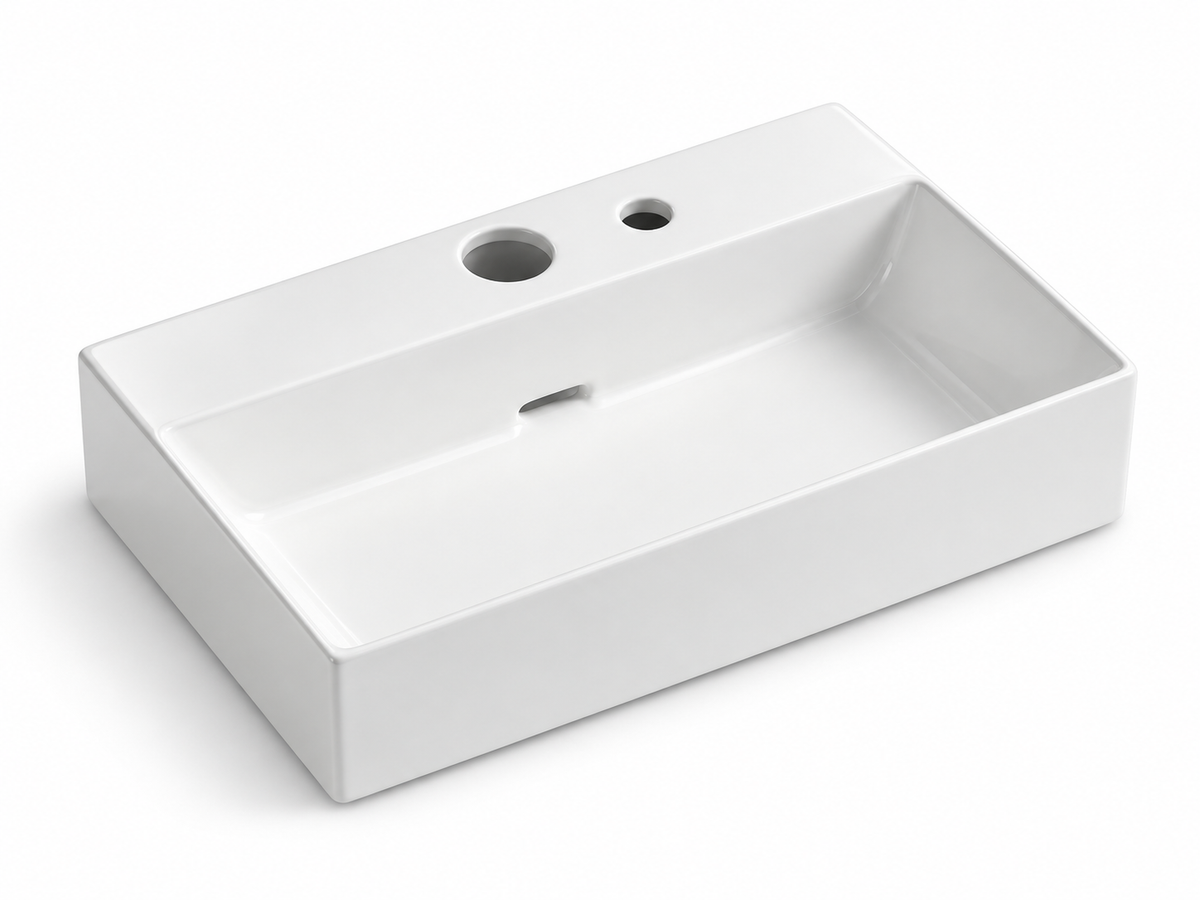

D561
600 × 350 × 130 mm

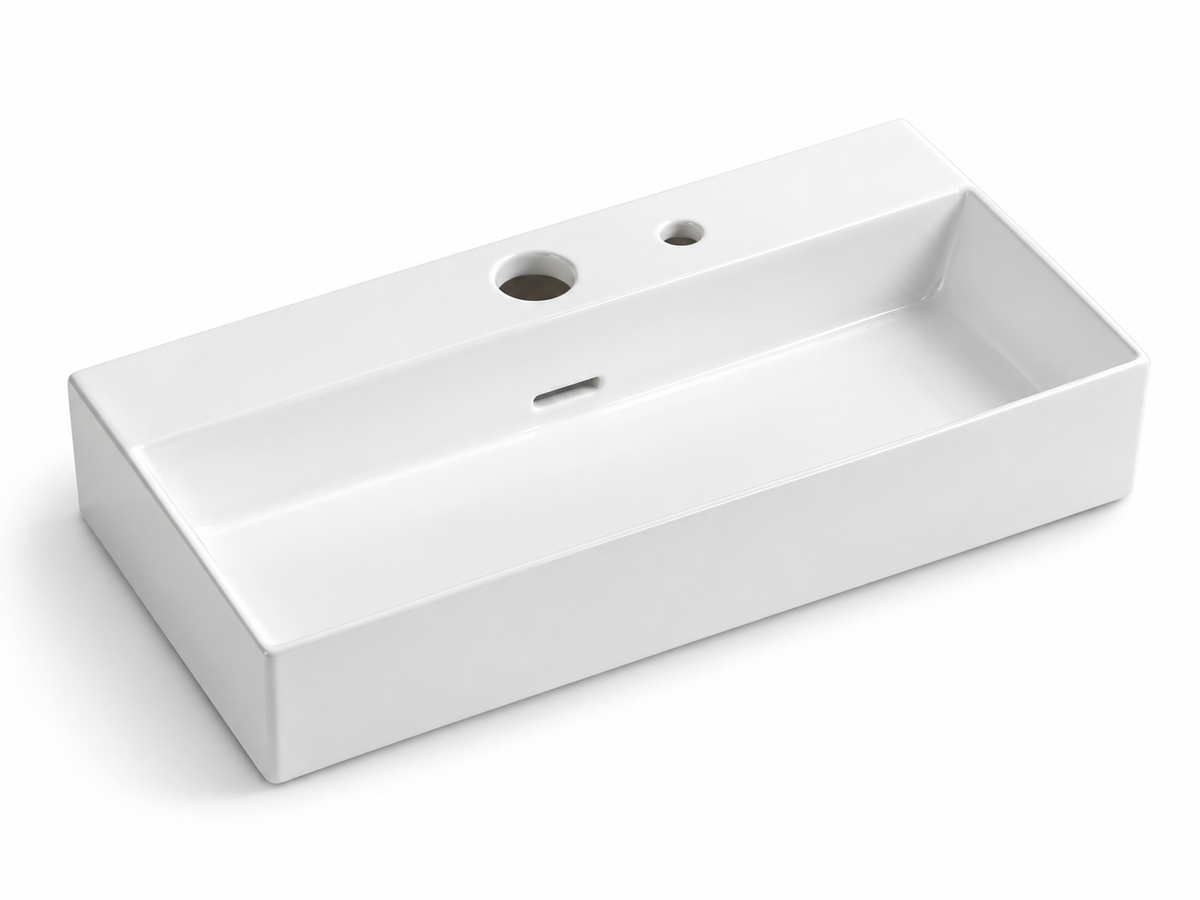

D561B
700 × 350 × 130 mm
Two listed mounting categories
Above-counter or wall-hung body selection
The printed mounting description lists both categories for each model. Specify the model width and required mounting category together.
D561 body and mounting selection
- D561A — 500 × 350 × 130 mm
- D561 — 600 × 350 × 130 mm
- D561B — 700 × 350 × 130 mm
- Above counter / Wall hung
- Required quantity
