Narrow Right-Bowl Wall Hung Basin

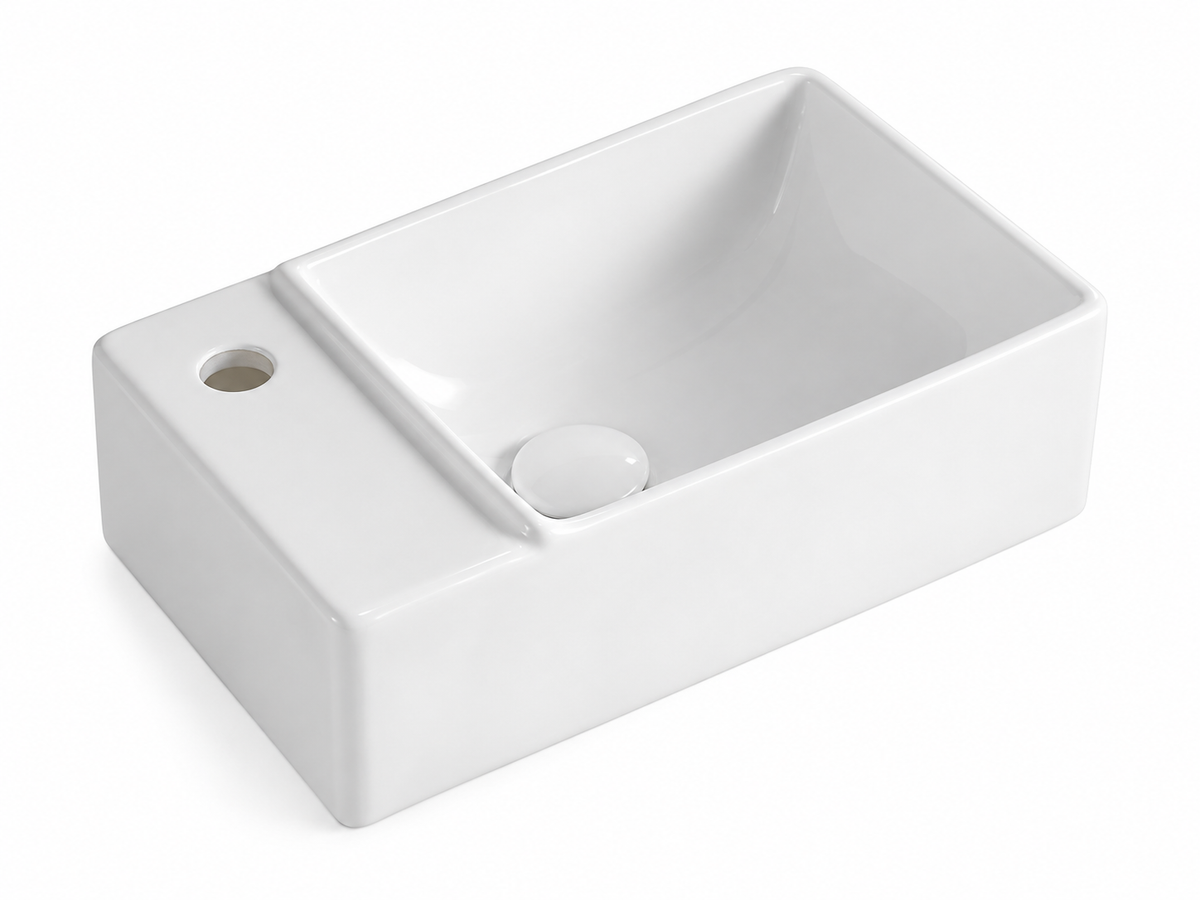

A left-end tap platform identifies this narrow right-bowl wall hung basin in the factory plan. The white ceramic bowl sits to its right, inside a straight rectangular outer frame. The overall body measures 400 × 220 × 130 mm. Its angled inner walls lead down toward a circular waste position, while the raised edge separates the bowl from the flat tap area. Read the plan with the left deck and right bowl marked together. Check the selected tap arrangement and wall fixing requirements against that layout. The tap and underside connection shown in the reference image do not establish the quoted supply scope.
Shape & size
Shape and size of SHY-3127R
LEFT TAP POSITION
A single opening at the left end
The top plan places one circular tap opening within the left platform. Its location distinguishes this body from a basin with a platform at the opposite end.
RIGHT-HAND BOWL
The basin sits beside the left platform
The rectangular bowl occupies the right section of the ceramic body. In the photograph, its inner walls slope down from the rim toward the circular waste position.
DECK AND BOWL
A visible edge between the two zones
The photograph shows a clear raised boundary at the side of the bowl next to the tap area. The left platform remains flat while the adjacent bowl slopes inward.
400 × 220 MM
The platform stays within the outer rectangle
The published 400 mm length and 220 mm front-to-back width describe the complete footprint, including the left deck. The source does not separately measure either zone.
130 MM BODY HEIGHT
Read the side elevation with the plan
A straight front apron belongs to the 130 mm overall body height shown in the side drawing. Coordinate this exterior profile and the actual deck orientation before confirming wall mounting.
