Commercial Undermount Sink Specification: 8 Checks Before Countertop Fabrication

A mismatched sink drawing can force a fabricator to rework—or replace—a finished quartz slab. The sink may be a relatively small line item, but the wrong cutout can delay the countertop, cabinet, plumbing, and installation work at the same time.

Before approving a commercial undermount sink, verify eight things: the application and material, current model drawing, cutout and reveal, bowl and drain layout, surrounding countertop and cabinet clearances, separate bathroom requirements where applicable, installation components, and future replacement plan.

1. Match the Sink Material to Its Commercial Application

“Commercial” does not describe one universal bowl size, material, or construction. A food-preparation area, bar station, hotel pantry, public restroom, and healthcare facility all place different demands on an undermount sink.

For stainless steel, review the declared steel grade, gauge, actual thickness in millimeters, bowl construction, finish, sound pads, and undercoating. A 16-gauge sink is thicker than an 18-gauge model, but gauge alone does not establish the quality or suitability of the complete sink.

For ceramic undermount bathroom sinks, check the actual basin dimensions, weight, overflow configuration, finish, and stated dimensional tolerance. The cabinet and mounting system must be suitable for the selected material.

Foodservice buyers should also define whether the fixture will be used for handwashing, food preparation, general cleanup, or warewashing. These uses are not automatically interchangeable. Refer to the FDA Food Code and the current applicable supplement, then verify which requirements have been adopted by the relevant state or local authority.

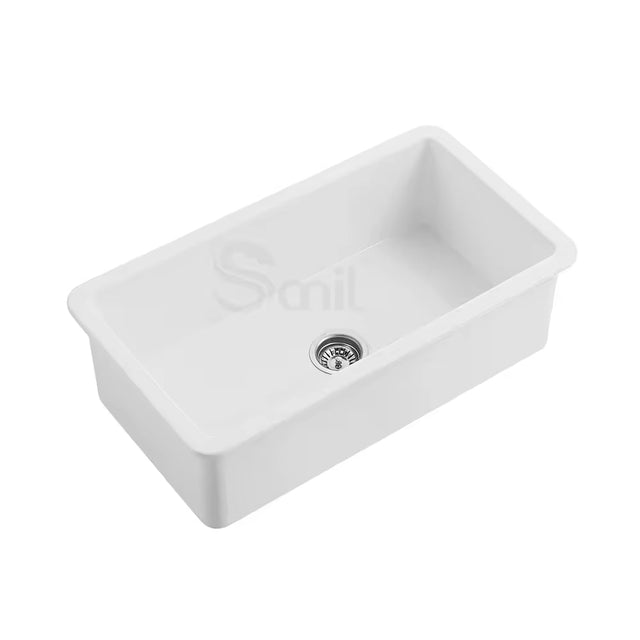

Once the application and material are clear, compare suitable models in the SANIKB undermount kitchen sink collection. For a deeper discussion of stainless steel grades and thickness, use the SANIKB commercial stainless steel kitchen sink sourcing guide.

2. Approve the Commercial Undermount Sink Drawing, Not a Nominal Size

Two commercial undermount sinks described as the same nominal width may still have different outside dimensions, rim profiles, corner radii, bowl openings, and cabinet requirements.

Before releasing the countertop, review the current model drawing for:

• Overall length and width
• Usable interior bowl dimensions
• Bowl depth
• Rim width and profile
• Corner radius
• Drain centerline
• Minimum cabinet width
• Faucet and backsplash clearance
• Product weight
• Drawing or document revision

Nominal size is useful for narrowing the product range. It is not a fabrication dimension.

At SANIKB, we treat nominal size as a selection filter, not as approval for a countertop opening. The final cutout should follow the selected model information rather than a template taken from a similar-looking undermount sink.

For preliminary cabinet planning, refer to the SANIKB standard kitchen sink size reference. Final fabrication should still be based on the approved model drawing.

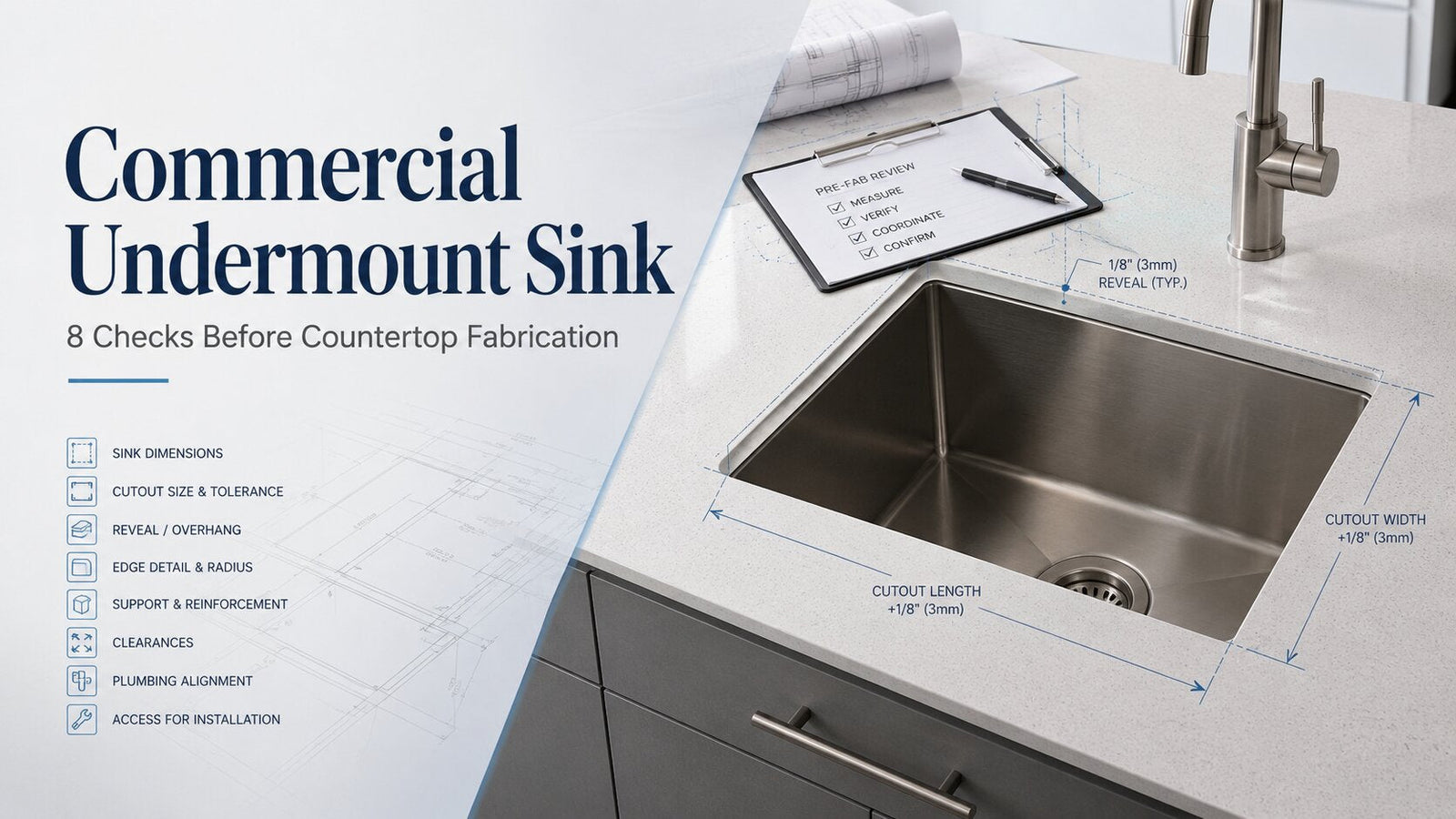

3. Lock the Undermount Sink Cutout and Reveal

With an undermount installation, the finished countertop edge remains visible around the basin. The cutout shape, edge finish, and reveal therefore become part of the completed installation.

Specify one reveal before fabrication:

• Positive reveal: A section of the sink rim remains visible.
• Flush reveal: The countertop edge aligns with the bowl opening.
• Negative reveal: The countertop extends over part of the sink rim.

There is no reveal that works best for every project. The decision depends on the sink’s rim geometry, countertop material, cleaning preference, visual requirements, and the fabricator’s approved method.

Unlike a drop-in model, an undermount sink does not have an exposed top flange that can conceal small differences in the opening. The buyer, designer, fabricator, and installer should therefore work from the same cutout and reveal decision.

For a broader comparison of installation labor, countertop compatibility, sealing, and future replacement, see the SANIKB undermount vs. drop-in sink project guide.

4. Match the Bowl and Drain Layout to the Workflow

A larger or deeper basin is not automatically the better commercial choice.

A single bowl provides uninterrupted working space for trays, cookware, and larger containers. A divided bowl separates tasks but reduces the usable width of each compartment. A deeper bowl adds working volume, although it also occupies more space below the countertop.

Drain position affects the cabinet layout as well. A rear or offset drain may preserve usable storage space, while a centered drain may align more easily with an existing plumbing plan.

Compare:

• Single bowl versus divided bowl
• Shallow versus deep basin
• Centered versus offset drain
• Compact bar sink versus full kitchen bowl
• Rounded versus tighter internal corners
• Equal versus offset double-bowl layouts

The right configuration is the one that fits the actual workflow, plumbing plan, cabinet interior, and cleaning routine.

5. Review the Countertop, Cabinet, Faucet, and Plumbing Together

The sink should not be approved separately from the components around it.

Check that:

• The cabinet provides enough internal width and depth.
• The bowl does not conflict with drawers, traps, supply lines, or a disposer.
• The faucet directs water into the usable bowl area.
• There is enough material between the cutout, faucet holes, and backsplash.
• Plumbing connections remain accessible after installation.
• The countertop can support the proposed opening and mounting method.

Quartz, granite, natural stone, and solid-surface materials may have different edge, support, and fabrication requirements. The fabricator should approve the remaining material around the opening and confirm that the proposed cutout is suitable for the slab.

For quartz-specific coordination, refer to the SANIKB sink selection guide for quartz countertops.

6. Apply Separate Checks to Undermount Bathroom Sinks

A commercial undermount bathroom sink should not be specified with exactly the same checks as a kitchen, bar, or utility bowl.

When comparing undermount bathroom sinks, verify:

• Available vanity depth
• Usable countertop deck space
• Faucet projection and water trajectory
• Faucet-hole and backsplash clearance
• Overflow or non-overflow drain compatibility
• Soap dispenser or sensor-faucet placement
• Plumbing and maintenance access
• Consistency across repeated vanity units

Accessibility applies to the completed installation, not only to the basin. Section 606 of the 2010 ADA Standards for Accessible Design also addresses clear floor space, knee and toe clearance, mounting height, faucet controls, and exposed pipes.

For that reason, a standalone basin should not be described as ADA compliant without reviewing the full installed assembly.

Faucet requirements may also differ between private hotel bathrooms and public restrooms. The EPA WaterSense bathroom faucet guidance distinguishes private-use lavatory faucets from faucets intended for public use, so one faucet specification should not automatically be applied to both settings.

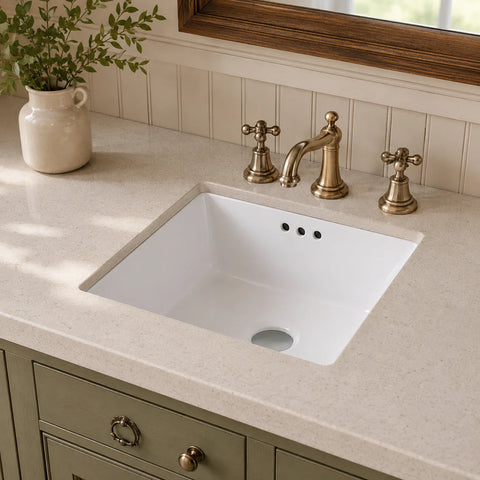

Suitable ceramic basins can be compared in the SANIKB undermount bathroom sink collection.

7. Confirm Support, Sealant, Noise Control, and Supplied Parts

An undermount sink needs a defined support method. Sealant should not be treated as the only structural support unless the approved installation system specifically permits it.

Before ordering, determine:

• Whether mounting clips are included
• Whether brackets, rails, or a cabinet-supported frame are required
• Whether the anchors suit the countertop material
• Whether the installer can reach the mounting points
• The sink’s weight and required load support
• Whether sound pads or anti-condensation undercoating are included
• The approved sealant type
• The required cure time before loading or water use

The purchase order should also distinguish among included, optional, and compatible components. Drains, strainers, overflow parts, mounting clips, support hardware, bottom grids, and cutout templates may be supplied differently from one model to another.

A product image showing an accessory does not mean that the accessory is included.

8. Plan for Replacement, Stock, and Warranty Review

The countertop opening is one of the least flexible parts of an undermount installation. A replacement with a different corner radius, rim profile, bowl opening, or drain position may not fit the existing cutout.

For hotels, schools, healthcare facilities, offices, and multifamily projects, retain:

• Exact model and variant
• Approved drawing and revision date
• Cutout dimensions
• Reveal selection
• Drain location
• Material, color, and finish
• Accessory part numbers
• Supplier records
• Warranty documents

Where a project holds replacement stock, verify that the stored sinks match the released production version rather than an early sample or superseded drawing.

Warranty terms also need review before purchase. Check whether coverage applies to the sink body, finish, glaze, mounting hardware, and accessories. Buyers should also identify any exclusions covering labor, removal, countertop damage, transportation, or reinstallation.

Frequently Asked Questions

What is the best reveal for a commercial undermount sink?

There is no single best reveal. A positive reveal leaves part of the rim visible, a flush reveal aligns the countertop edge with the bowl opening, and a negative reveal allows the countertop to overlap the rim. The appropriate choice depends on the sink geometry, countertop material, cleaning preference, and fabricator’s approved method.

Does every undermount sink require mounting clips?

Every undermount sink needs an approved support method, but that method is not always limited to clips. Depending on the sink material, weight, dimensions, countertop, and cabinet construction, the installation may use clips, brackets, rails, a frame, or cabinet-supported reinforcement.

Can an undermount commercial sink be replaced without replacing the countertop?

Sometimes. The replacement must work with the existing opening, corner radius, rim profile, reveal, and mounting arrangement. Matching the nominal width alone does not establish compatibility.

Does a commercial foodservice sink require NSF certification?

That depends on the fixture’s intended use and the authority having jurisdiction.

NSF/ANSI 2: Food Equipment establishes sanitation requirements covering the materials, design, fabrication, construction, and performance of food equipment, including sinks, tables, and counters.

Buyers should confirm whether certification or an official listing is required for the exact fixture and project. Do not describe a sink as NSF certified unless the specific model is supported by a current certification or official product listing.

What should the countertop fabricator receive before cutting?

The fabricator should receive the current model drawing, actual outside dimensions, bowl opening, corner radius, selected reveal, faucet-hole layout, and any applicable revision identifier. A category drawing, nominal dimension, or product photograph is not enough.

Eight-Point Commercial Undermount Sink Checklist

Before you release the countertop, work through the same eight checks covered above:

1. Application and material: Define the sink’s task and select a suitable construction material.
2. Model drawing: Approve the actual dimensions and current document revision.
3. Cutout and reveal: Lock the opening, corner radius, edge relationship, and reveal.
4. Bowl and drain layout: Match the configuration to the workflow and plumbing plan.
5. Surrounding assembly: Coordinate the countertop, cabinet, faucet, and plumbing.
6. Bathroom requirements: Where applicable, verify overflow, faucet, vanity, and accessibility details.
7. Installation components: Confirm support, sealant, noise control, cure time, and supplied parts.
8. Replacement planning: Record replacement information, stock needs, and warranty terms.
