Washdown One-Piece Toilet, 10/12 Inch Rough-In, 750 × 410 × 710 mm

HSJ-2362 is a 30 inch washdown one piece toilet with 10/12 inch rough-in versions and a 180 mm P-trap entry. Pick the outlet type first, then the distance. Floor-waste rooms pick 250 mm or 300 mm S-trap after the drain is measured. Wall-waste rooms pick the P-trap. Write the chosen entry and toilet count on every RFQ line, and request written confirmation from the factory of the outlet split before production.

Wall outlet bathrooms are served by the HSJ-2362 P-trap entry, printed with a 180 mm outlet. Buildings where waste stacks run behind the wall finish use this line instead of a floor drain. Floor mounted placement still applies, so the toilet stands on the finished floor with the outlet leaving at the back. A survey column marked S or P for each room keeps the two outlet types apart when the quantities are added up.

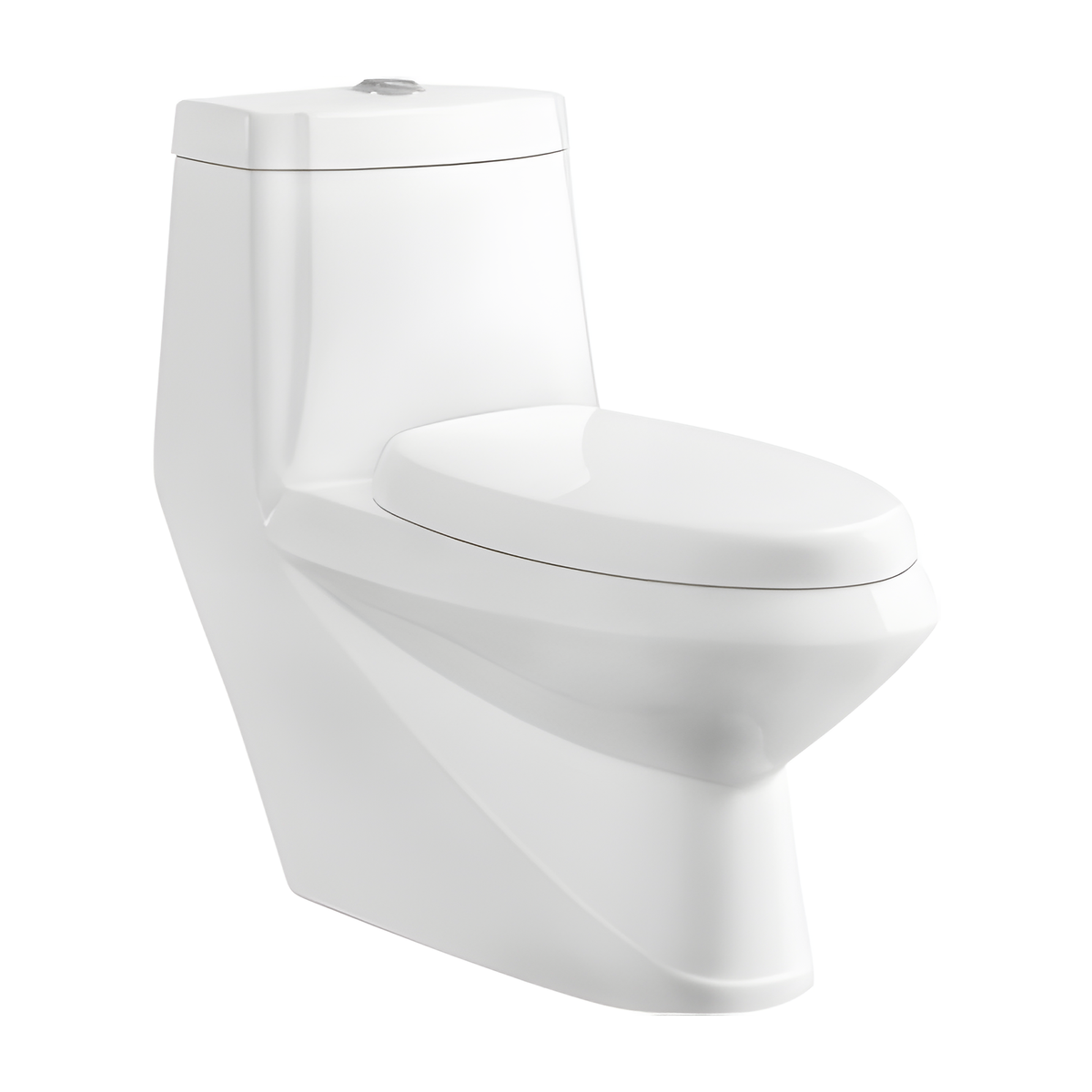

Flush type on HSJ-2362 is printed as washdown only, so every toilet on the order shares one flush. The one piece toilet design joins tank and toilet bowl in white ceramic, the single listed color. Buyers running a bathroom program across many rooms can fix flush and finish once and spend the rest of the specification on outlet and rough-in detail. That keeps the product line short and easy to check at delivery.

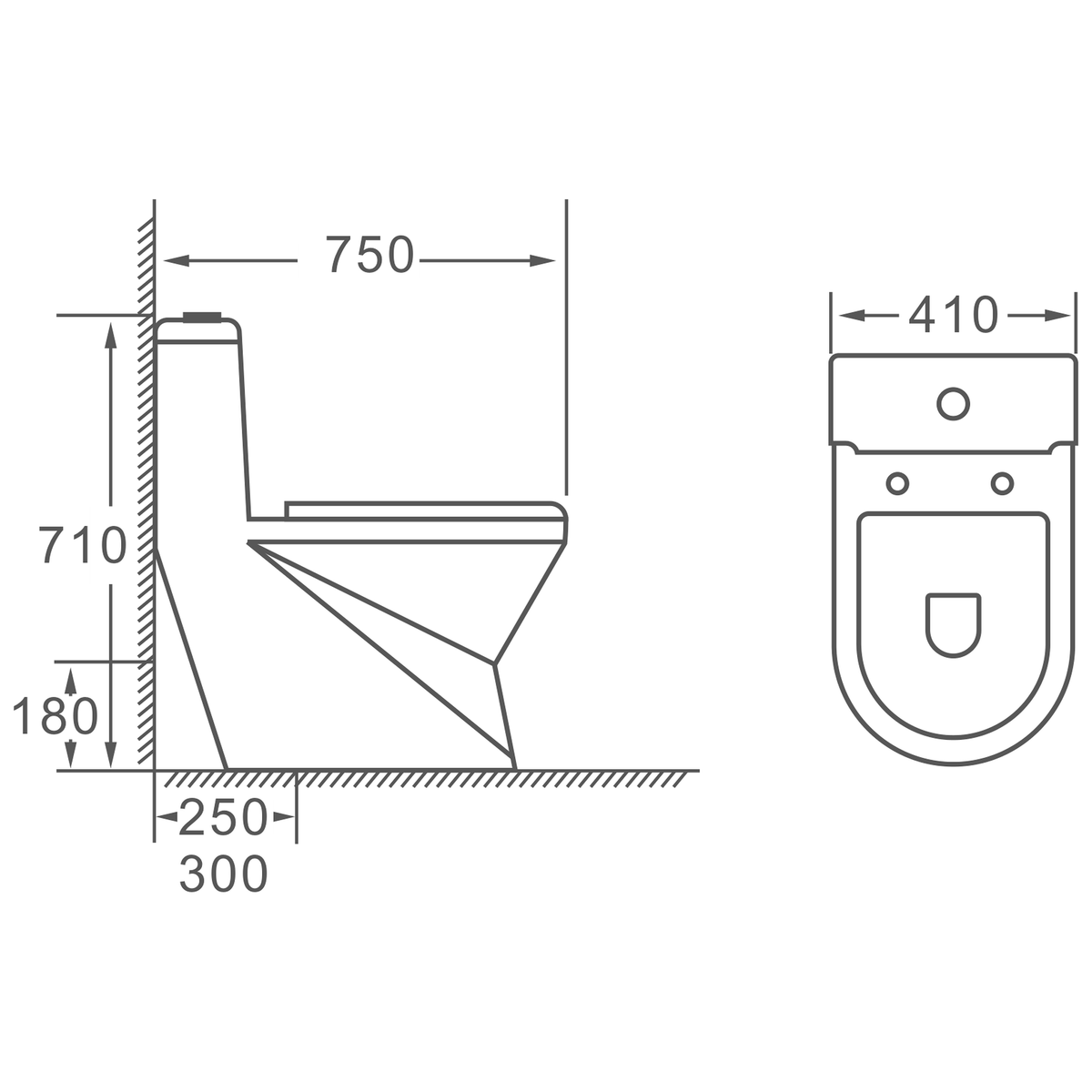

Width on HSJ-2362 is printed as 410 mm (16.1 in). Length is 750 mm (29.5 in), height 710 mm (28.0 in). The washdown body lists S-trap rough-ins of 250 mm (10 in) and 300 mm (12 in) and a 180 mm P-trap outlet. The 30 inch name rounds the 29.5 in length. Verify against the official technical drawing before fabrication of tiled boxing or built-in units.
