Rimless Swirl Flush Two-Piece Toilet TC-7102, 8/10 Inch Rough-In, 2 Finishes

TC-7102 works as the rear outlet toilet with tank once the 180 mm P-trap version is chosen. That version is the rear outlet; the S-trap version is the floor outlet with a 200 to 250 mm rough-in. Listed as a two-piece model, TC-7102 is a close coupled toilet with a separate cistern, and the catalog prints swirl flush and a rimless bowl for the model as a whole. Specify P-trap and the 180 mm value when requesting the price. Finish options are White on TC-7102 and Black on TC-7102B.

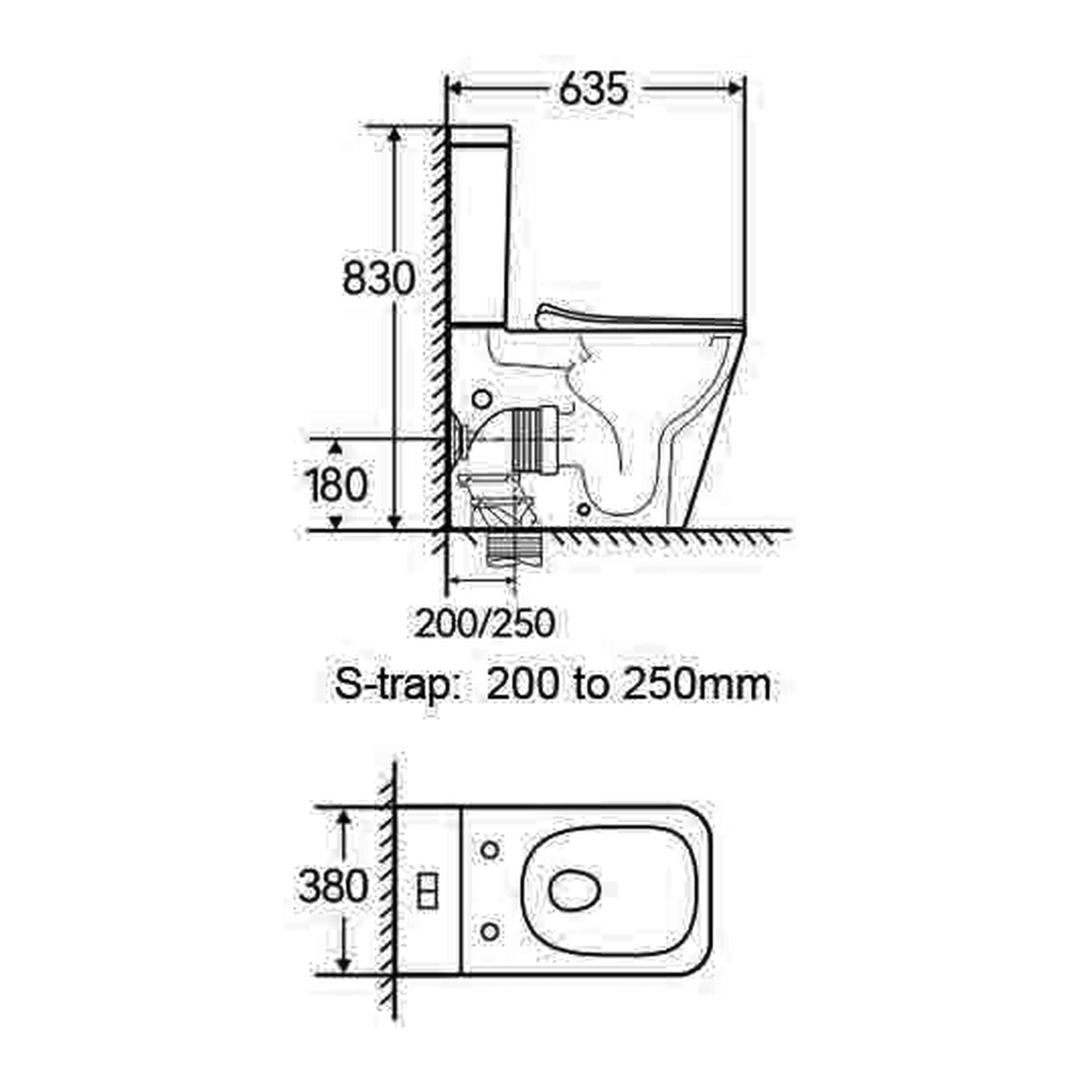

For floor drains, TC-7102 lists an S-trap printed at 200 to 250mm, or 8 to 10 in. The span is printed as one range rather than 2 separate versions. Confirm against the model spec sheet before ordering a large quantity. The S-trap and P-trap versions share swirl flush and the rimless bowl. The catalog prints one size for the model: 635 × 380 × 830 mm, or 25.0 × 15.0 × 32.7 in.

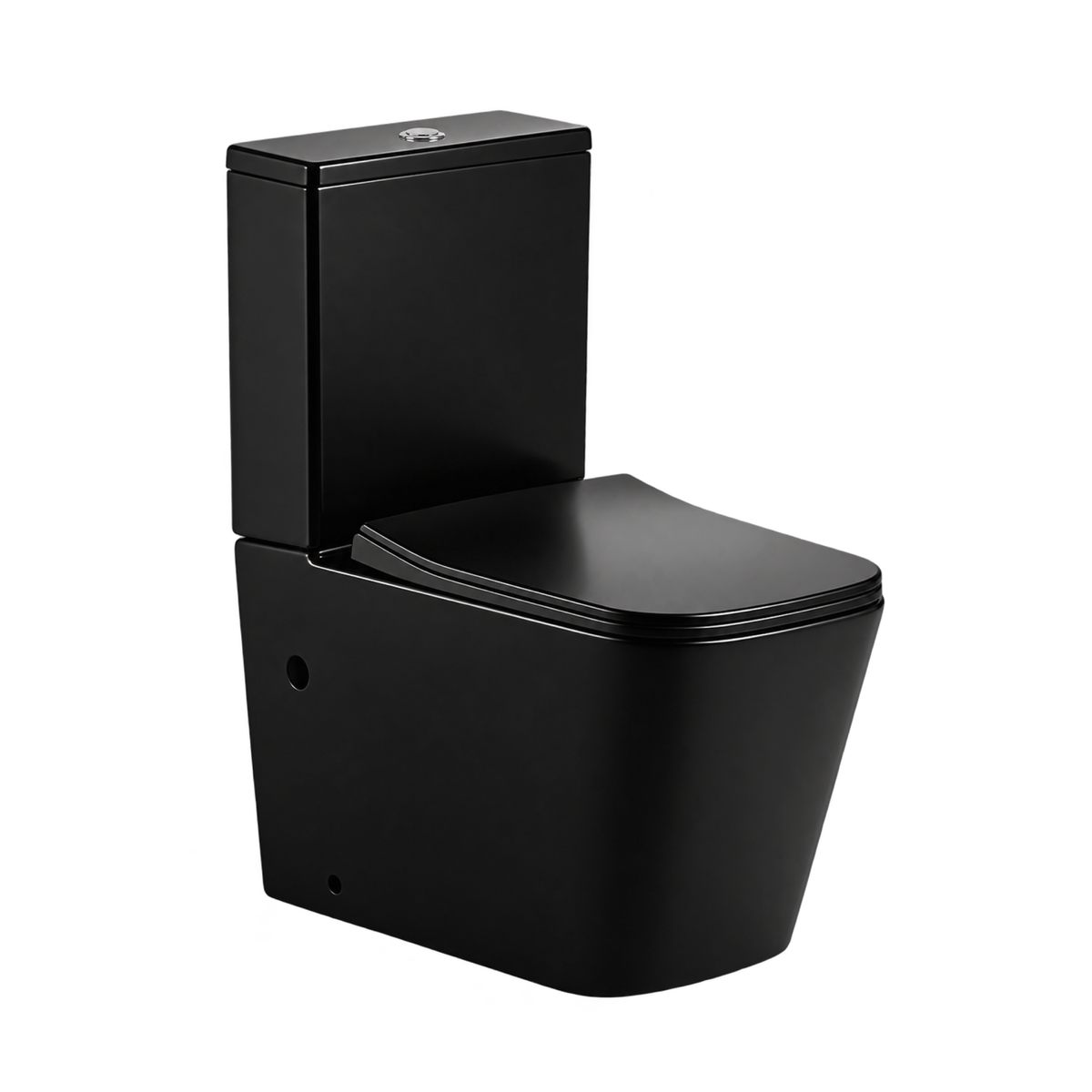

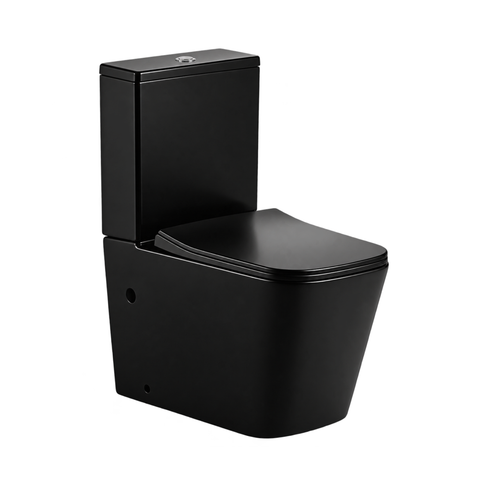

Flushing on TC-7102 is swirl, printed as super-swirling, inside a toilet bowl the catalog prints as "No Edge", a rimless design. The catalog also prints "Water Saving design to reach 4.5/5.2 Liters Per Flushing". Finish is White on TC-7102 and Black on TC-7102B. The factory catalog prints the CE mark against TC-7102; request the current CE declaration. More rimless models are in the rimless toilet collection. Both finish codes print 635 × 380 × 830 mm.
