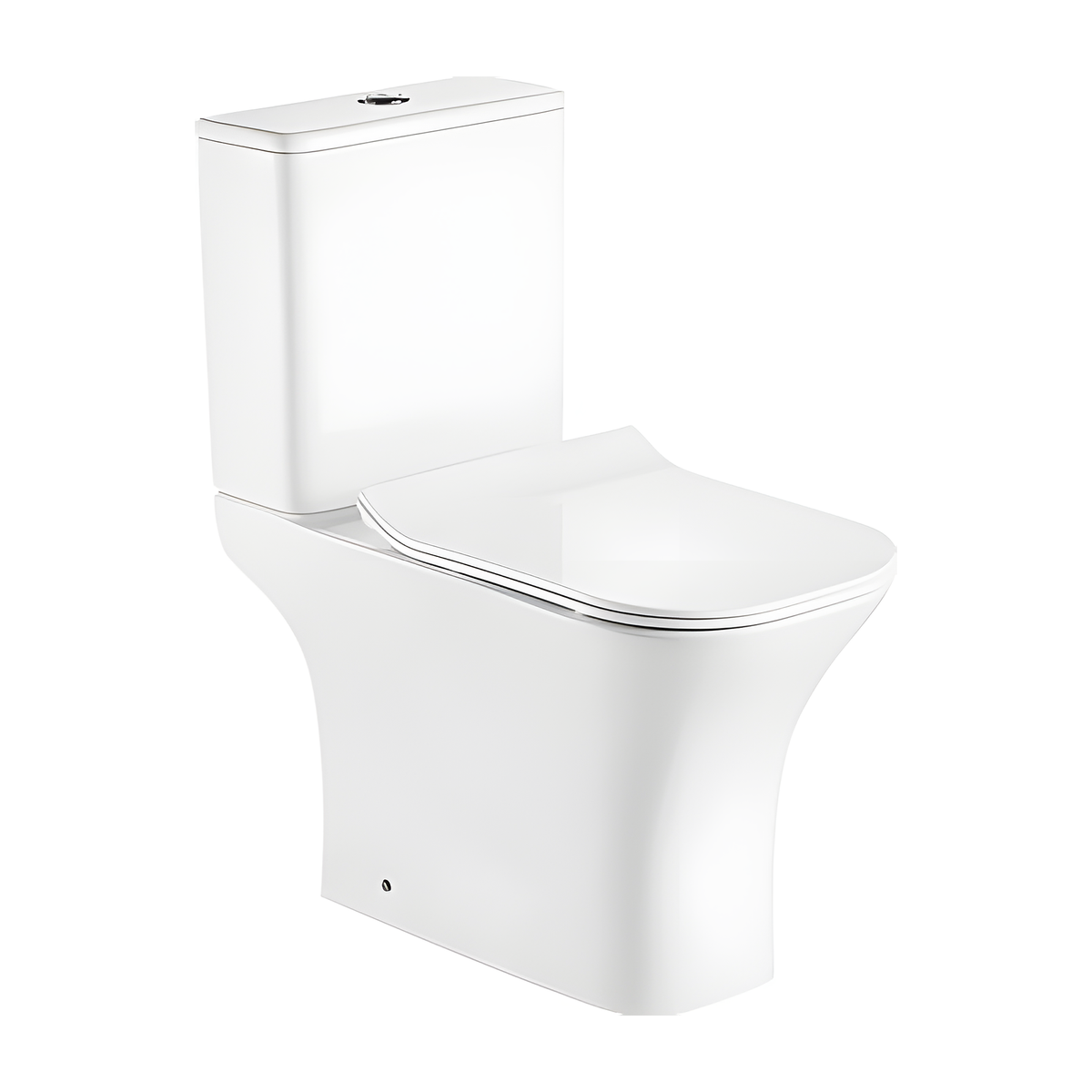

Rimless Washdown Two-Piece Toilet HSJ-3048, 10 Inch Rough-In

HSJ-3048 is a rimless washdown two piece toilet, 10 inch rough-in, whose bowl is printed as rimless. The rimless attribute is printed for the model, so every unit on the order carries it. The tank is a separate white ceramic piece that sits with the bowl as a two-piece set. Washdown is the single flush. Buyers writing a rimless bathroom specification can list this model with outlet and count as the only line fields. HSJ-3048 is floor-mounted in both outlet entries.

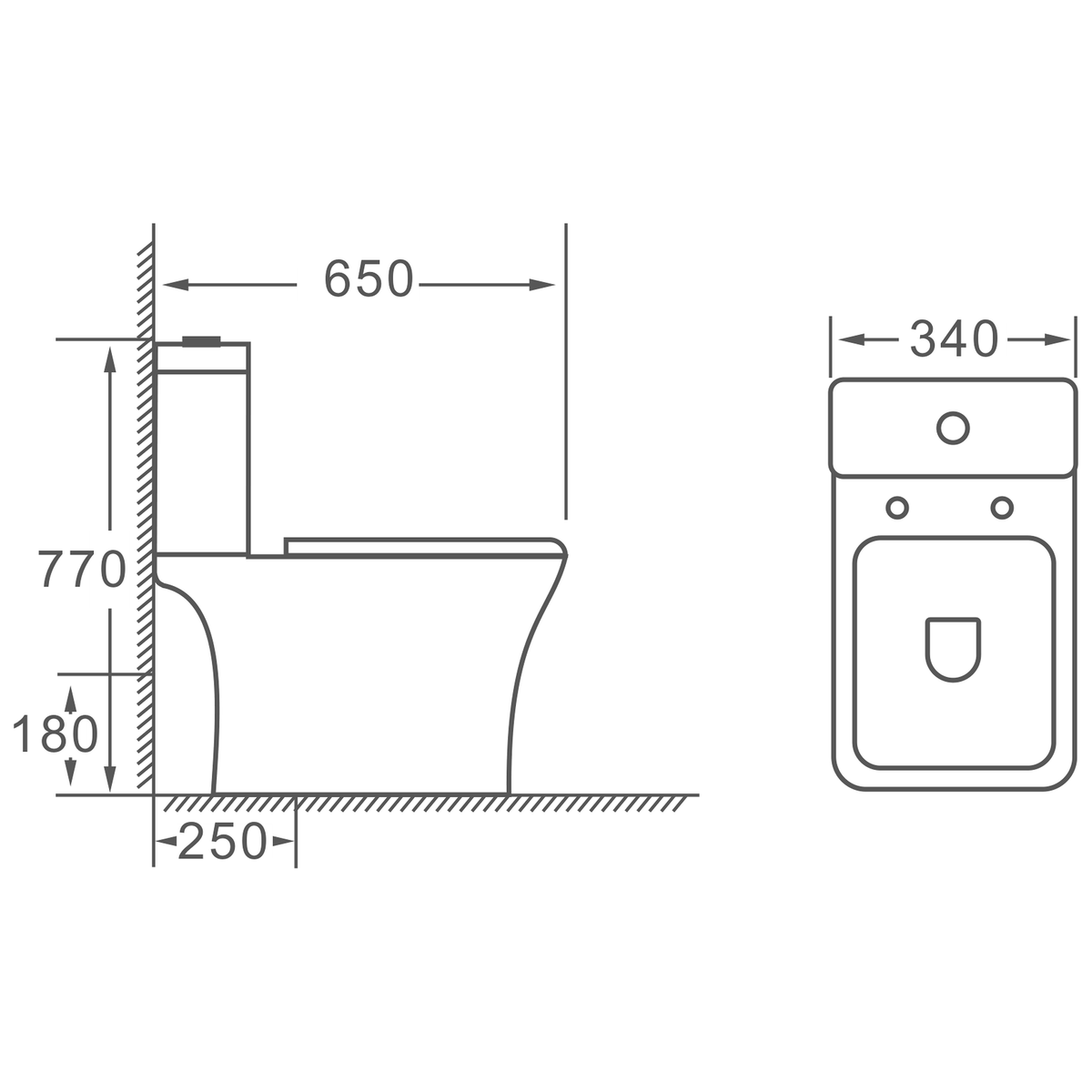

Length on HSJ-3048 is 650 mm (25.6 in), width is 340 mm (13.4 in), and height is 770 mm (30.3 in). The catalog reads the size in that order: length × width × height. The bowl is printed as rimless, washdown is the listed flush, and white ceramic is the listed color. Verify the size against the official technical drawing before ordering.

Two outlet entries are printed for HSJ-3048: a 250 mm (10 in) S-trap and a 180 mm P-trap. The S-trap entry is printed at a 250 mm (10 in) rough-in, and no other S-trap rough-in is listed. Wall wastes take the 180 mm P-trap entry. Group the order by entry and total the toilets per line. Confirm against the model spec sheet for both entries before release. White ceramic and washdown flush stay fixed on both lines.
