695 mm One-Piece Toilet, 10 Inch Rough-In

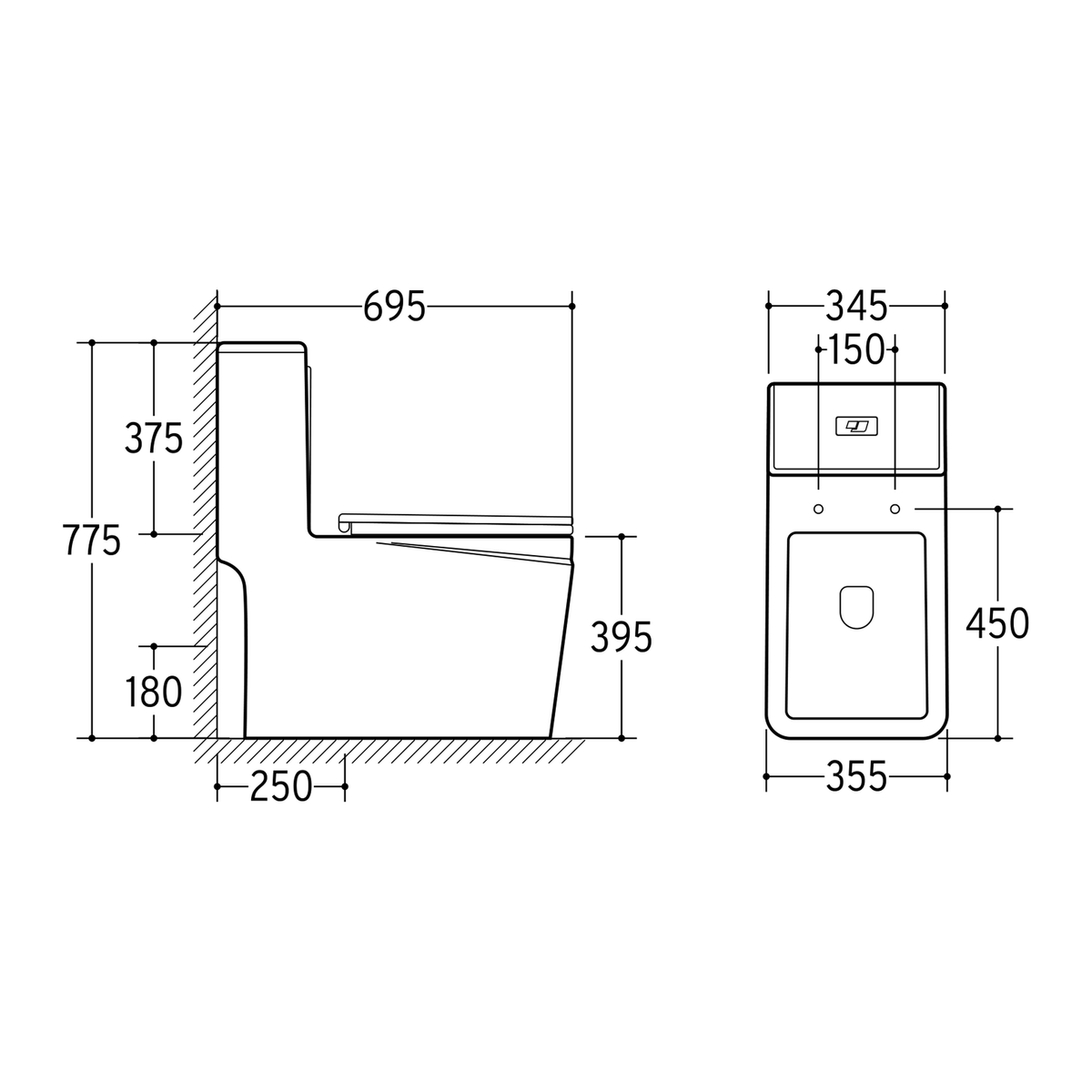

On NBK-3075, the 27 inch one piece toilet label comes from a printed 695 mm length (27.4 in). The original body drawing gives an overall width of 355 mm (14.0 in), while the printed catalog specification lists 345 mm. Height reaches 775 mm (30.5 in). In the catalog order, those read length × width × height. The model is made in white ceramic and listed for floor mounting rather than as a wall hung toilet.

On the S-trap version, NBK-3075 takes a 250 mm (10 in) rough-in measured from the finished wall to the outlet center. The P-trap version is the floor mounted back outlet toilet option, printed at a 180 mm outlet height. When replacing an existing toilet, take the rough-in from the old pipe position before choosing. Match the model's listed rough-in to the measured drain, then confirm against the model spec sheet.

NBK-3075 is a single SKU, finished in White, with a ceramic body and floor mounting. Overall dimensions are 695 × 355 × 775 mm (27.4 × 14.0 × 30.5 in), using the original body drawing's 355 mm width. The printed catalog specification lists 695 × 345 × 775 mm. Outlet entries are the 250 mm (10 in) S-trap and the 180 mm P-trap. NBK-3048 appears under its own code at 690 × 370 × 770 mm. Choose NBK-3075 by its 355 mm width when side space is the limit. Certification documents for NBK-3075 are matched to the destination market at quotation.
