26 Inch Washdown Two-Piece Toilet, 10 Inch Rough-In

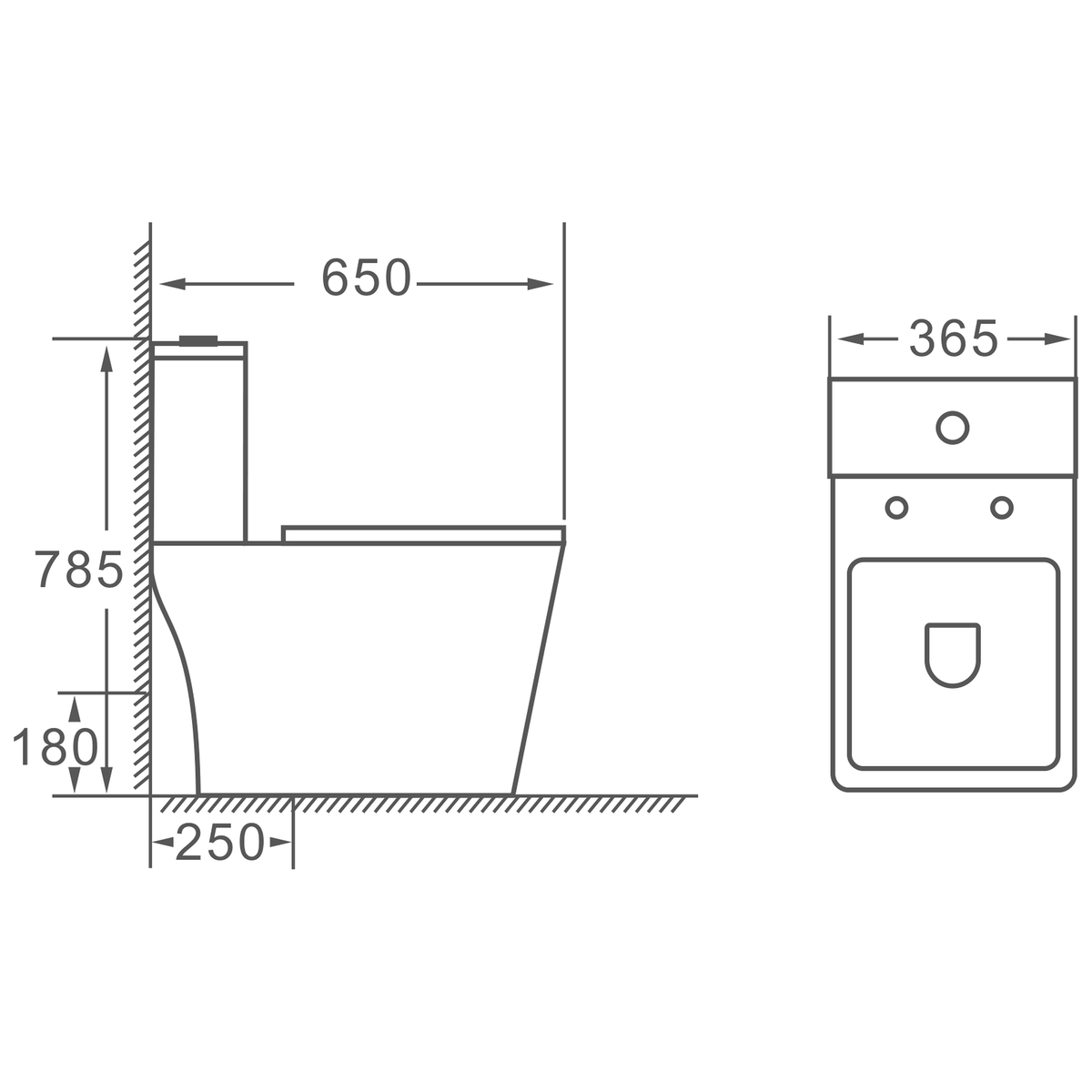

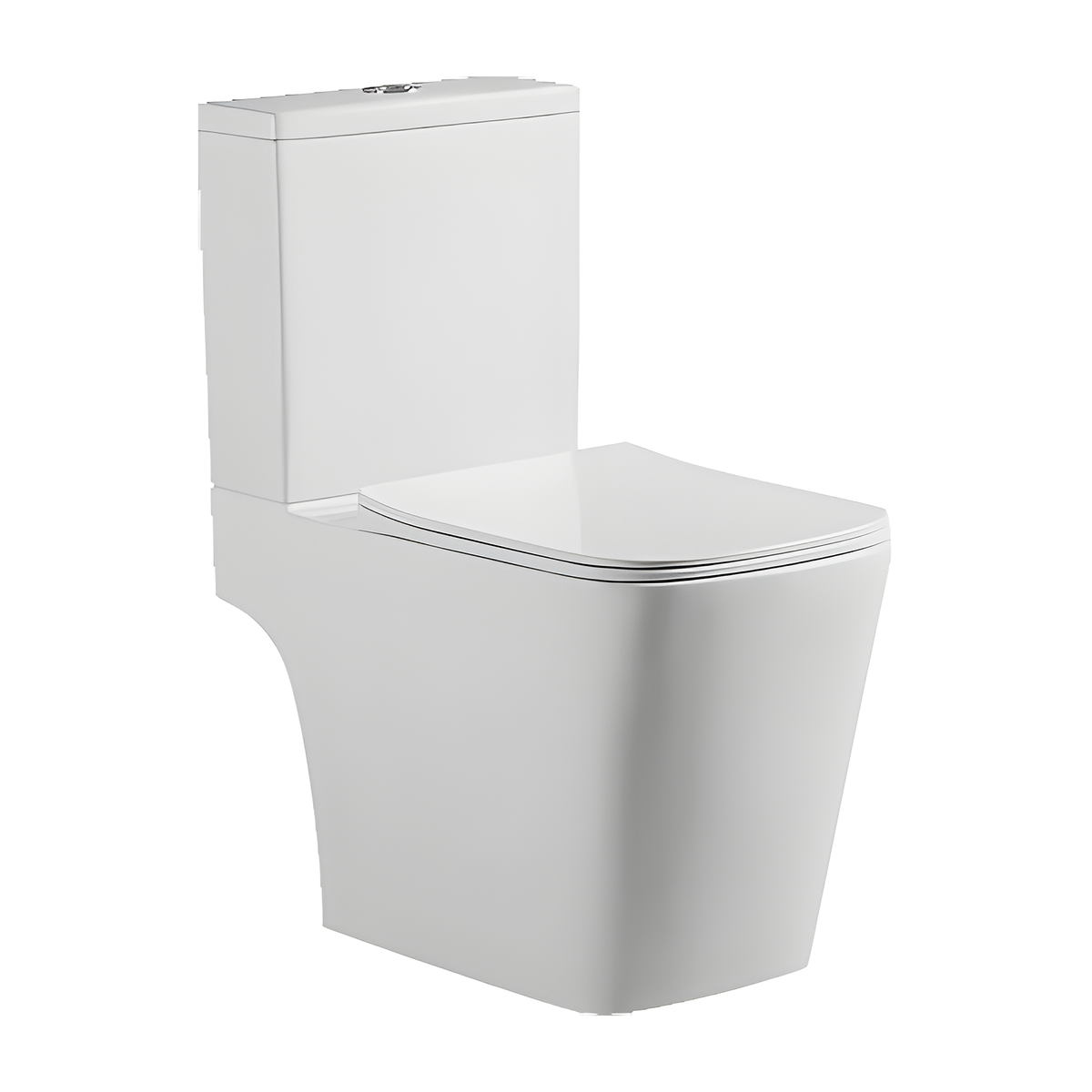

HSJ-3046 is a 26 inch washdown two piece toilet, 10 inch rough-in, with a printed size of 650 × 365 × 785 mm. The tank and bowl come as separate white ceramic pieces. Length is 650 mm (25.6 in). Width is 365 mm (14.4 in). Height is 785 mm (30.9 in). Verify these figures against the official technical drawing. The 250 mm S-trap and 180 mm P-trap entries share this printed size.

Two outlet entries are printed for HSJ-3046: a 250 mm (10 in) S-trap for floor drains and a 180 mm P-trap for wall wastes. Each entry is a separate RFQ line. Other rough-in distances need another model. Group rooms by entry and total the toilets. Confirm against the model spec sheet for each entry before release. Sites built around 10 inch drains can compare the 10 inch rough-in toilet collection.

Washdown is the one flush printed for HSJ-3046, and white ceramic is the one color. Every line on the order therefore shares flush and finish, as printed for the model. Outlet entry and quantity are the only fields left, and the printed 650 × 365 × 785 mm size covers both entries. Request written confirmation of the outlet split from the factory before shipment planning, and keep the survey with the purchase file for the site team.
