Washdown One-Piece Toilet, 10/12 Inch Rough-In, 700 × 385 × 760 mm

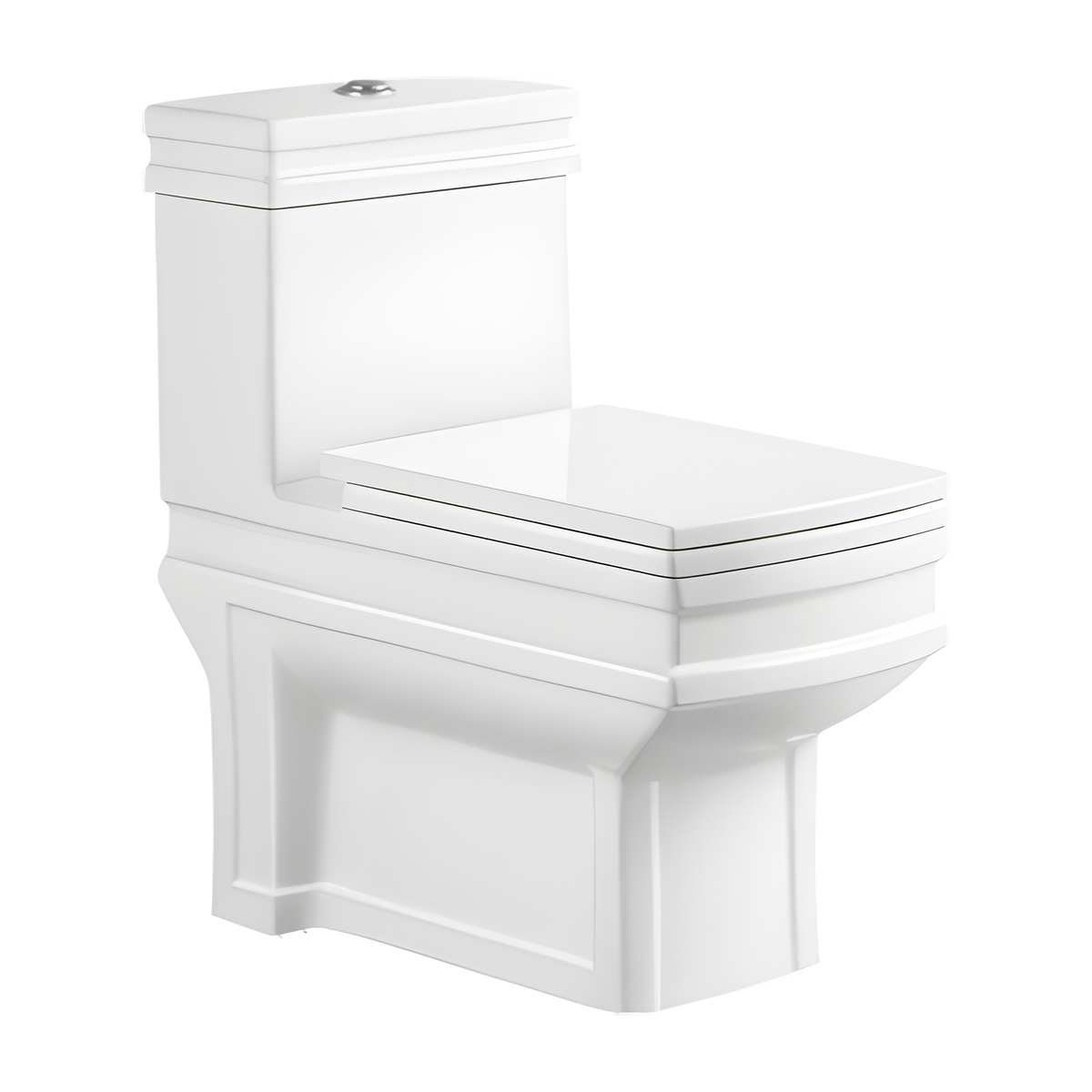

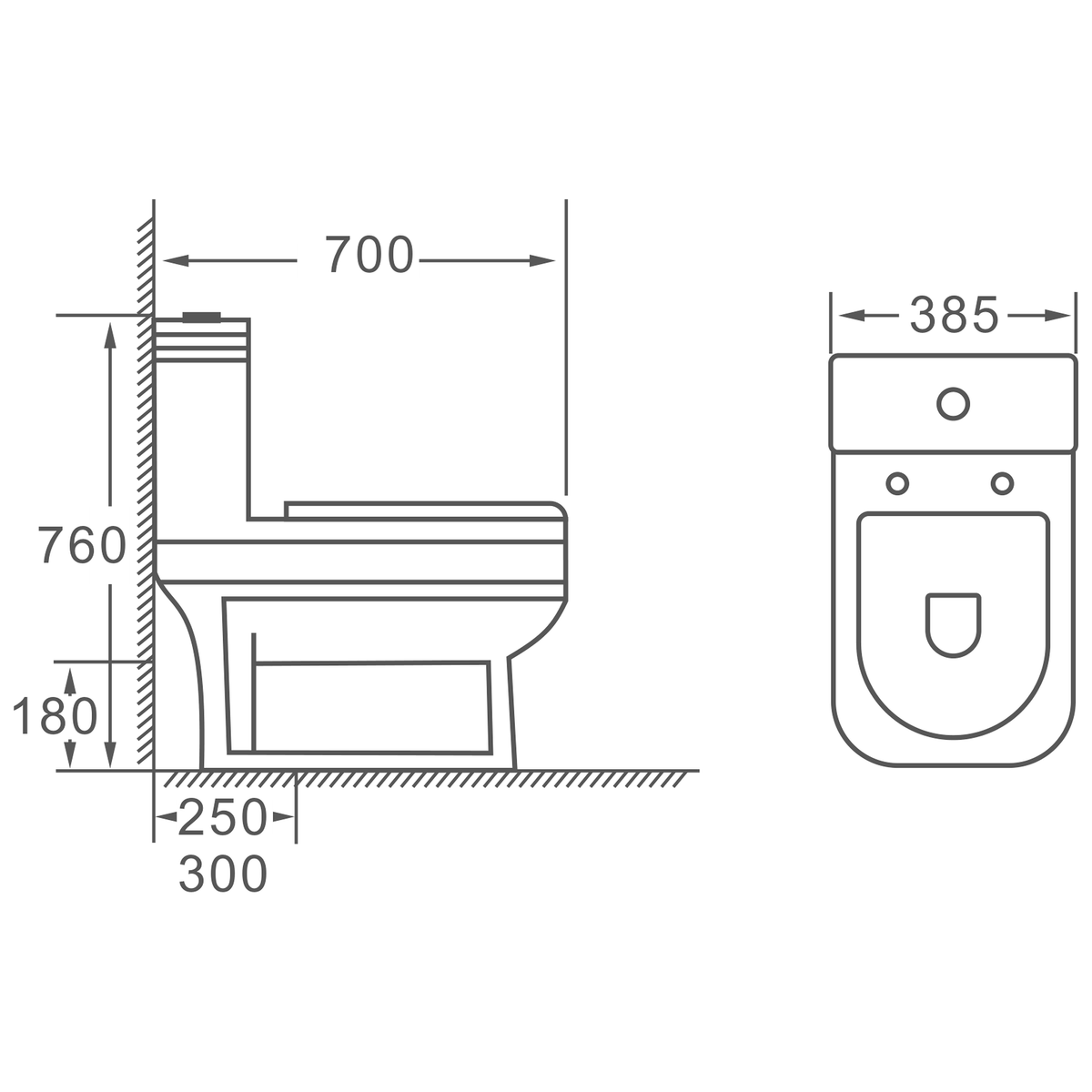

HSJ-2361 is a 28 inch washdown one piece toilet with 10/12 inch rough-in versions printed at 250 and 300 mm. Its body measures 700 × 385 × 760 mm (27.6 × 15.2 × 29.9 in), listed as length × width × height. A 180 mm P-trap outlet is also printed, and the body is white ceramic for floor mounting. Verify against the official technical drawing before fabrication of fixed furniture.

Rear discharge on HSJ-2361 is handled by the 180 mm P-trap entry. Rooms with floor drains use the 250 mm or 300 mm S-trap entries. A survey sheet listing outlet type and distance per room turns directly into RFQ lines. Mixed buildings stay on one model, which simplifies stocking spare units and site instructions. Each entry is a separate line with its own count. Record the measured distance next to each floor-drain room, and mark wall-waste rooms clearly so the P-trap total is not folded into an S-trap line by mistake.

Every HSJ-2361 entry carries a washdown flush, the single flush type printed for the model. Buyers who standardize on washdown across a building can specify this SKU without splitting by flush. White ceramic is the listed body color. Request written confirmation from the factory of outlet versions and counts before shipment planning starts. Floor mounted placement applies to every entry. With flush and color both fixed, the schedule only needs columns for room, outlet type, rough-in distance and quantity, which keeps the RFQ short and easy to audit.
