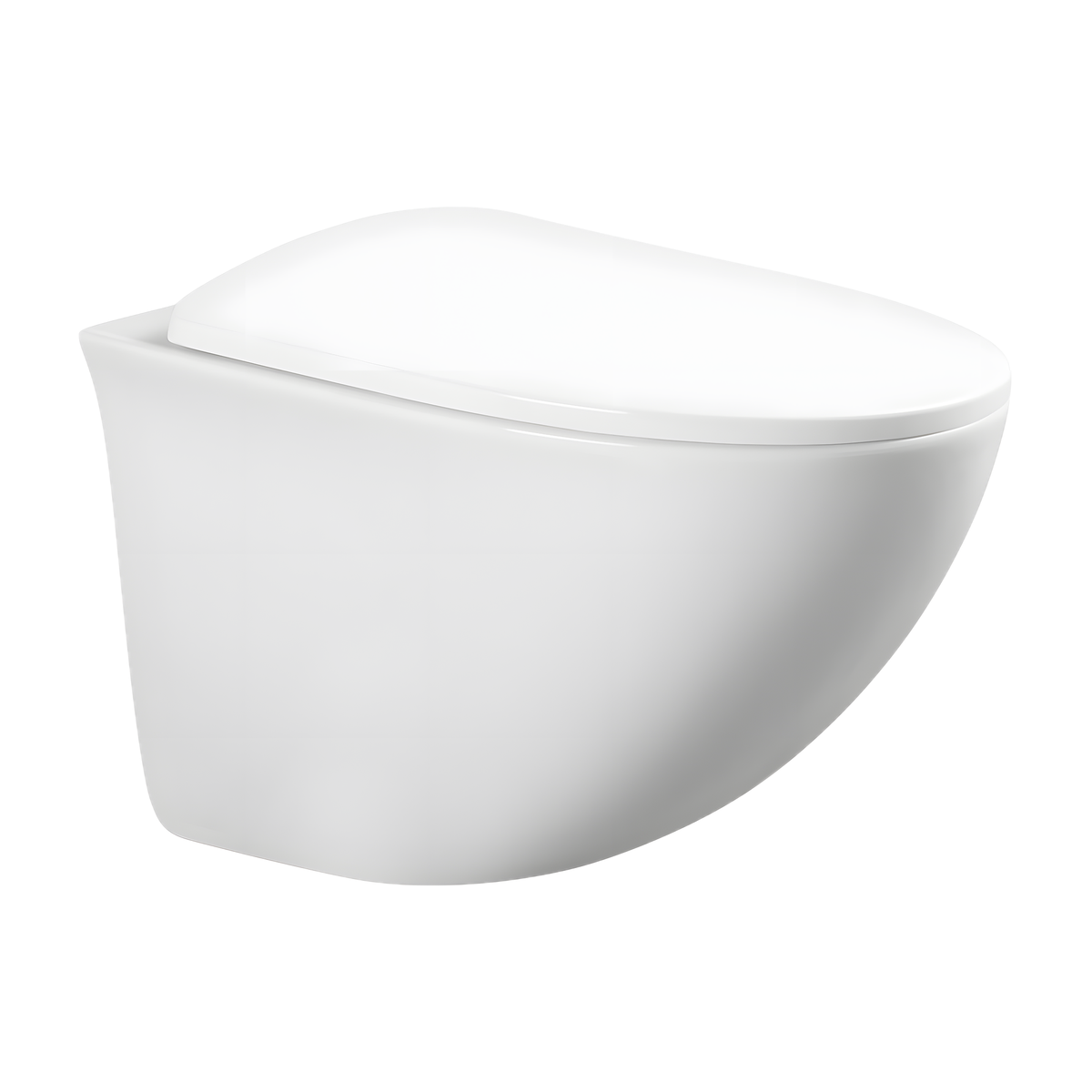

Rimless Wall-Hung Toilet, 185 mm P-Trap Outlet

Rear drainage defines LJ-E06 as one wall mounted back outlet toilet option, its P-trap set at 185 mm in the catalog. Outlet height is the value that has to meet the existing wall drain. Wall hung toilets with a back outlet are chosen by matching those 2 heights, so the drain should be measured before the code is listed on an order. The body is ceramic on a wall-hung mounting. Rimless is the printed bowl description. See the rimless toilet collection.

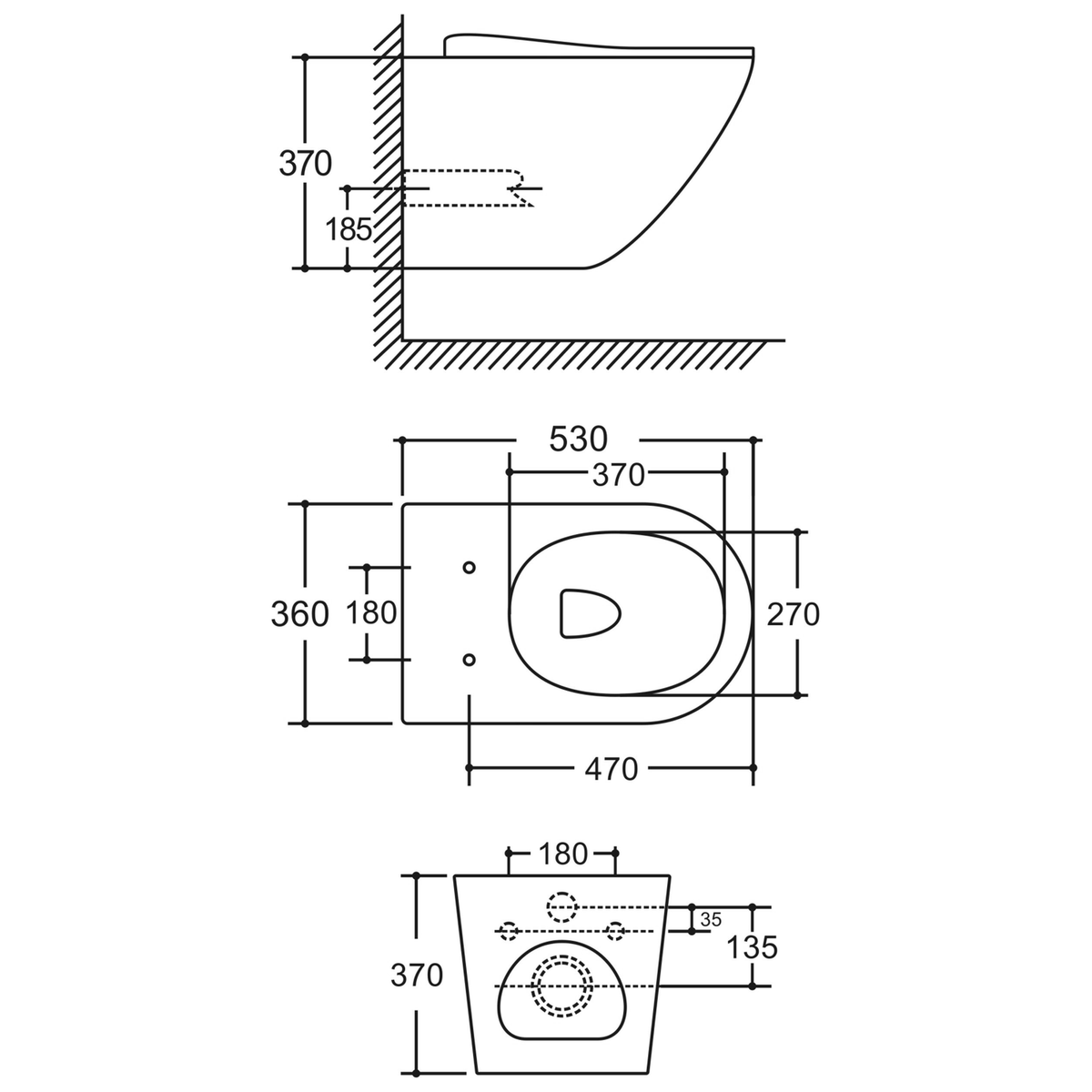

Size for LJ-E06 reads 530 × 360 × 370 mm, or 20.9 × 14.2 × 14.6 in, in the order length, width, height. The catalog prints one size for the model. Length is the first of those figures to set against the clear area on site. Rimless describes its bowl, and mounting is wall-hung. The printed name line reads LJ-E06 / Wall-hung Toilet, with a P-trap at 185 mm on the back of the pan.

White is the finish offered for LJ-E06, which is quoted as a single SKU. Certification documents for LJ-E06 are matched to the destination market at quotation. Printed supply data for the code cover the rimless bowl, the 185 mm P-trap outlet, the ceramic body and the 530 mm length. Those values come from the catalog page for LJ-E06 and form the basis of any quotation. Width is 360 mm (14.2 in).
