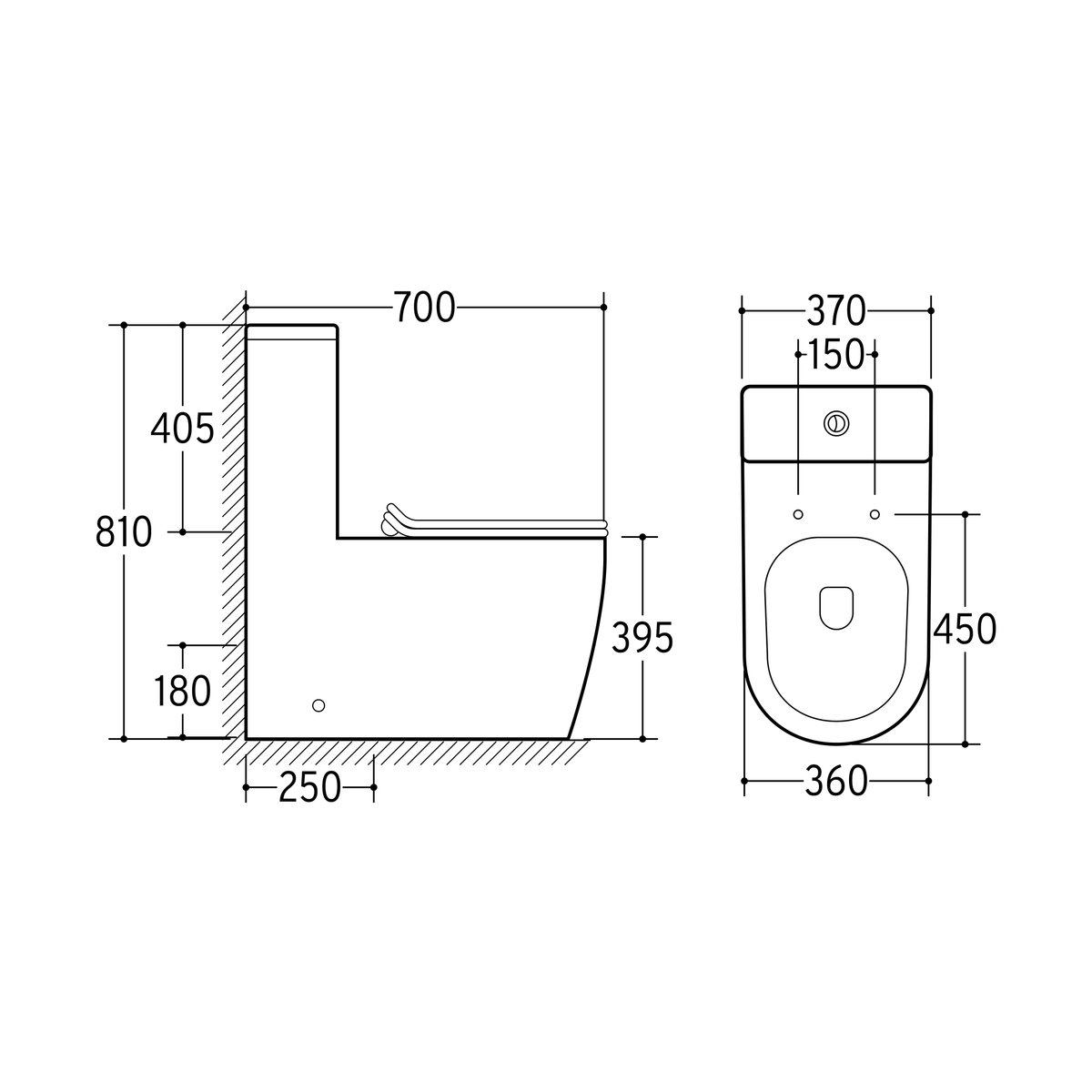

One-Piece Toilet, 10 Inch Rough-In, 700 × 370 × 810 mm

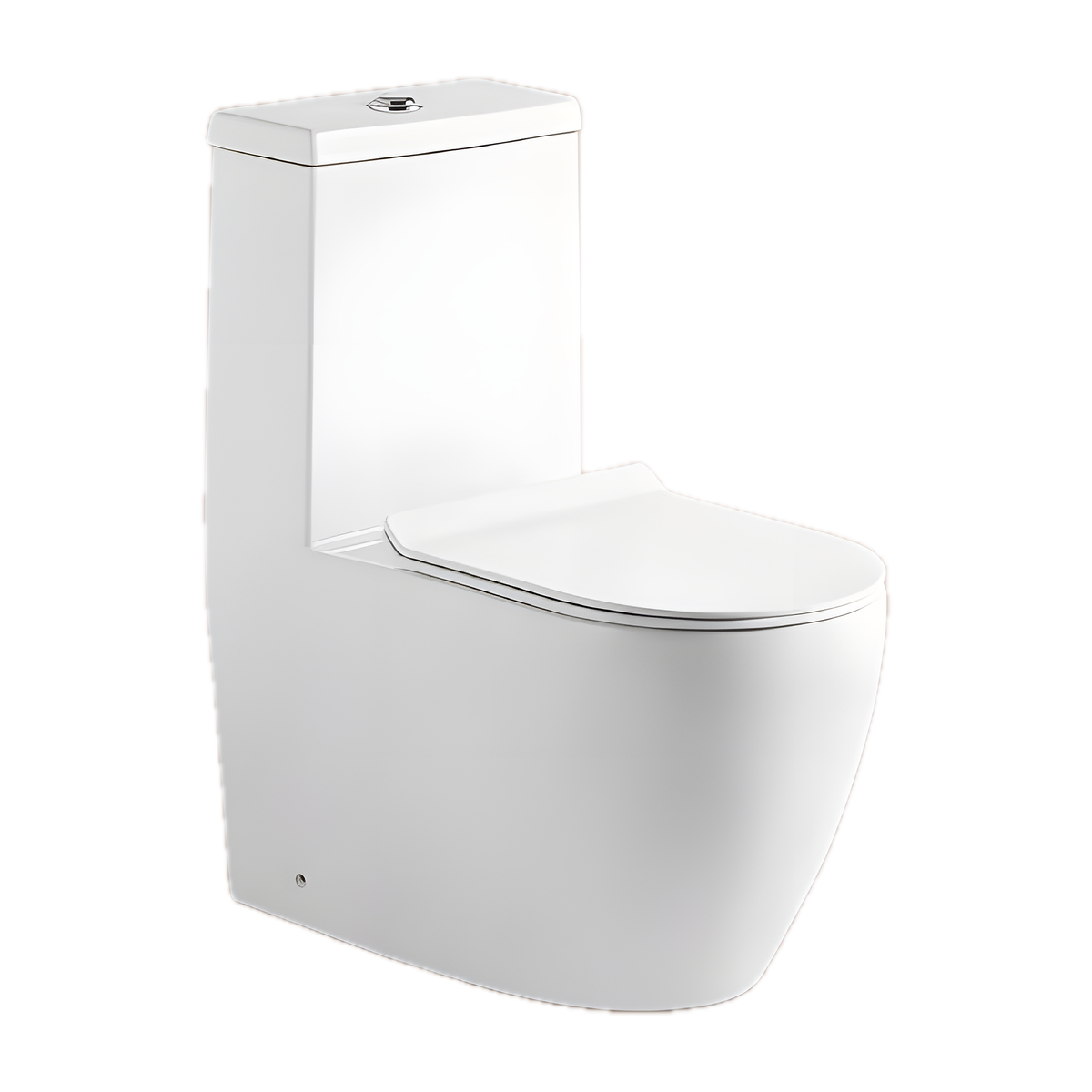

Ordered for a floor outlet, NBK-3073 becomes an s trap toilet with a 250 mm (10 in) rough-in and a printed height of 810 mm (31.9 in). Length is 700 mm (27.6 in) and width is 370 mm (14.6 in). Height matters on this code because it is the largest of the 3 printed figures. Next to NBK-3071, which lists 795 mm, NBK-3073 is printed 810 mm high. The body is a floor-mounted one-piece toilet in White ceramic.

Floor drains take the S-trap version of NBK-3073 at its 250 mm (10 in) rough-in. Rear outlets take the P-trap version, printed at a 180 mm outlet height. Match the model's listed rough-in to the measured drain, then confirm against the model spec sheet. On a replacing job, measure the old toilet's outlet before ordering, because the chosen version sets which outlet the new unit uses. White ceramic and floor mounting apply whichever outlet is ordered.

NBK-3073 is supplied as 1 SKU in White ceramic. The catalog prints its size as 700 × 370 × 810 mm (27.6 × 14.6 × 31.9 in). A 250 mm (10 in) S-trap rough-in and a 180 mm P-trap height are its 2 outlet entries, and the body is listed as a floor-mounted one-piece toilet. NBK-3071 sits under its own code, printed with a 795 mm height. White is the only finish listed for NBK-3073, and ceramic is its body material. Certification documents for NBK-3073 are matched to the destination market at quotation.
