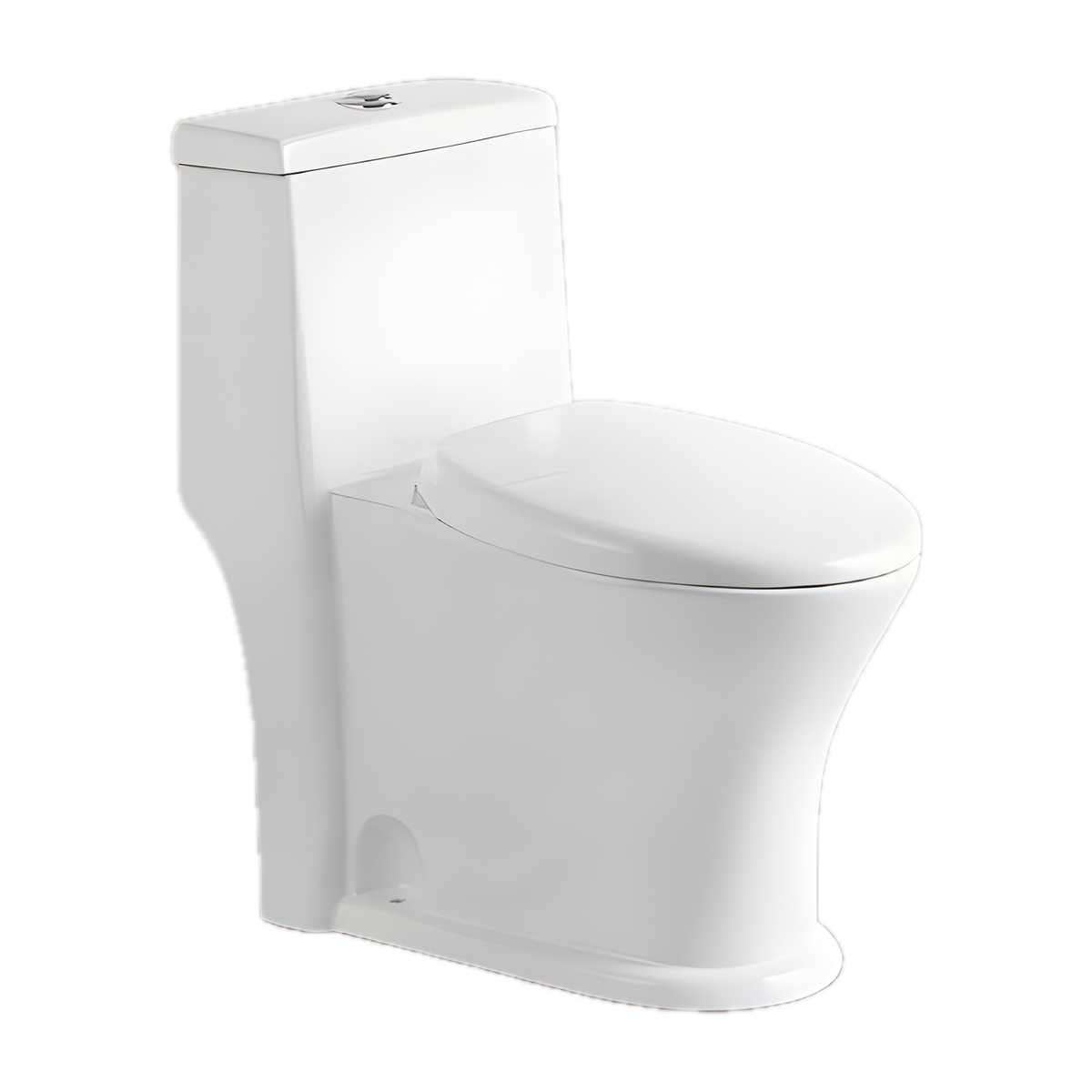

735 mm One-Piece Toilet, 10 Inch Rough-In

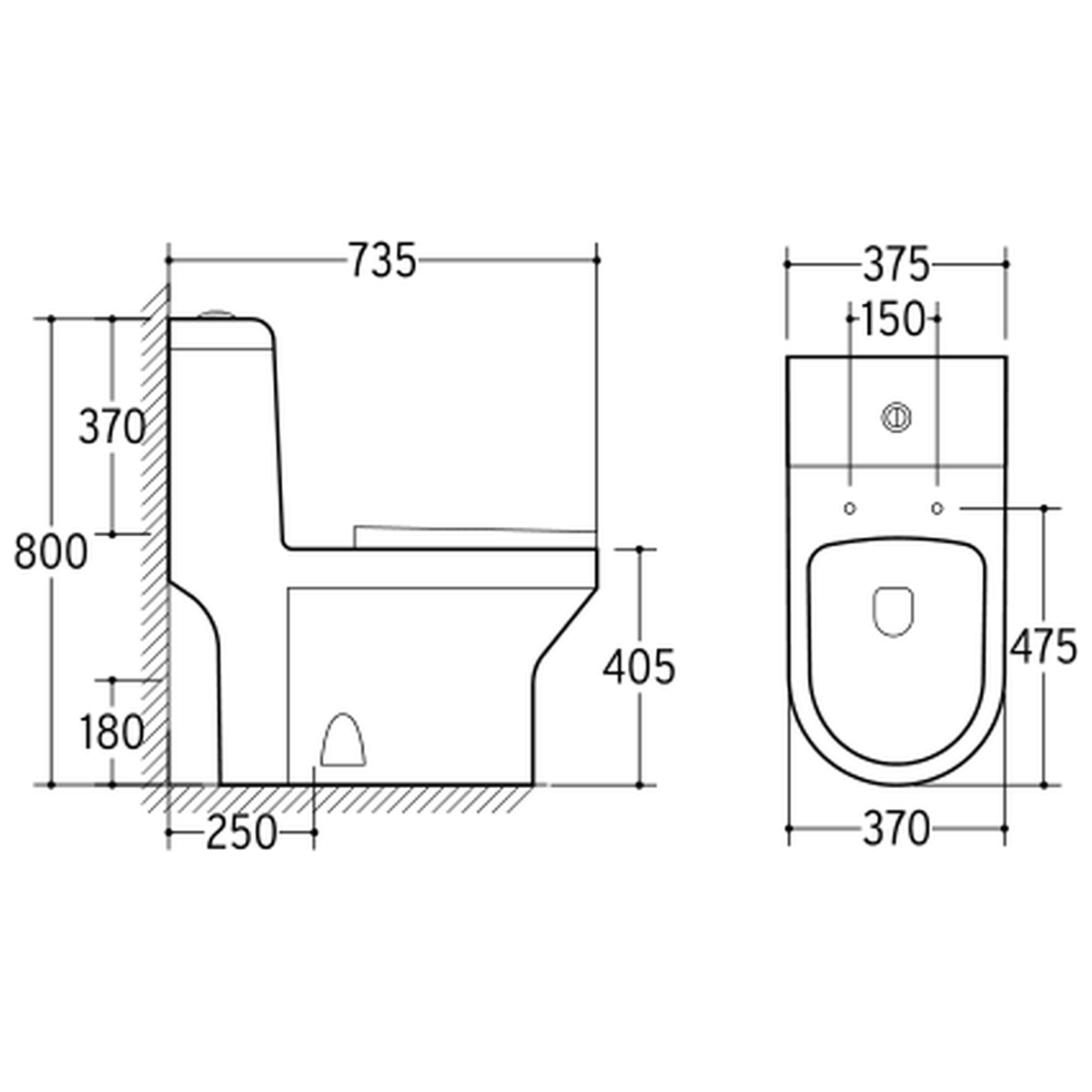

For a one piece toilet, 10 inch rough in planning on NBK-3005 begins with its 250 mm S-trap figure. Length is printed at 735 mm (28.9 in) and width at 375 mm (14.8 in), giving a 735 × 375 mm footprint on the floor. Height reaches 800 mm (31.5 in). The body is white ceramic, and the model is a floor-mounted item rather than a wall hung one. Use all 3 figures together when comparing NBK-3005 with other floor-standing toilets, since length, width and height are printed as one set.

NBK-3005 is a floor mount toilet with 2 printed outlet versions. The S-trap version carries the 250 mm (10 in) rough-in. The P-trap version prints a 180 mm outlet height, which describes a rear outlet rather than a wall distance. Match the model's listed rough-in to the measured drain, then confirm against the model spec sheet. When replacing an older unit, measure the existing pipe first and choose the version from that reading.

NBK-3005 is supplied under 1 SKU in White ceramic. Its printed size is 735 × 375 × 800 mm (28.9 × 14.8 × 31.5 in), length × width × height. Outlet options under that catalog item are an S-trap with a 250 mm (10 in) rough-in and a P-trap with a 180 mm outlet height. The catalog files the code under one-piece toilets for floor mounting. Certification documents for the model are matched to the destination market at quotation.
