مرحاض معلّق على الجدار بتدفق غسل مباشر، مخرج مصيدة P بقياس 180 مم، 560 × 350 × 340 مم

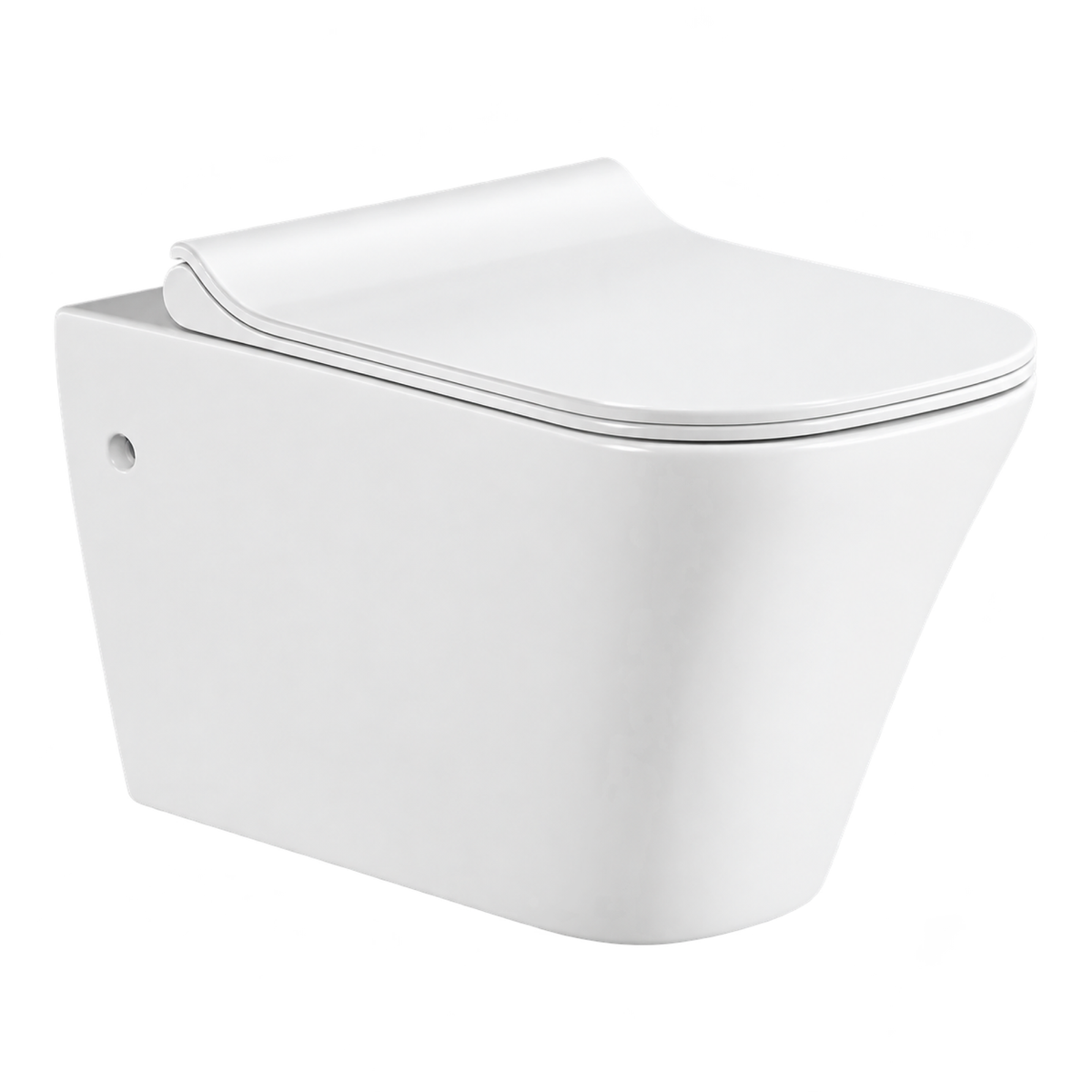

A cantilever toilet hangs on the wall with nothing beneath it touching the floor, and the FT-116 is listed that way as a washdown wall-hung closet. Wall-hung installation is the only installation type in its listing. For a distributor building a range of floating toilets, FT-116 supplies the washdown option at a printed length of 560 mm (22.0 in). Ceramic is the listed material, and the outlet is a rear P-trap.

Washdown is the one flush printed for FT-116. Its catalog name, Washdown wall-hung closet, states the flush and the mounting together. Waste exits at the back through a P-trap outlet listed as P-trap 180mm. That 180 mm is an outlet height, so it should be matched to the height of the wall drain rather than to any floor measurement. Confirm against the model spec sheet once the drain is measured. See the rear outlet toilet collection for side-by-side checks.

The printed body of the floating toilet FT-116 is 560 mm long, 350 mm wide and 340 mm high. In inches the figures read 22.0, 13.8 and 13.4. Washdown is the flush type named in the listing. With no pedestal, the bowl dimensions alone describe the ceramic body that hangs on the wall. Certification documents for the FT-116 are matched to the destination market at quotation.
