مرحاض معلّق على الجدار بتدفق ثنائي النفّاث، مخرج مصيدة P بقياس 180 مم، 3 تشطيبات

FT-176 is a 20-inch wall-hung toilet, 180 mm P-trap at the rear, with a printed length of 520 mm. At 20.5 in, FT-176 sits in the 20-inch class. The width of 360 mm and height of 310 mm (12.2 in) complete the size line. A floating design leaves the floor below the toilet open. Verify against the official technical drawing before fabrication.

Collision type flush wall-hung closet is the printed name for all 3 FT-176 codes, and a collision icon appears beside it. This page calls that flush type dual-jet. Waste exits through the rear wall at the 180 mm P-trap height rather than through the floor. Plumbing planning therefore centers on the height of the wall drain. Ceramic is the listed material for the bowl. Because the outlet sits at the rear, the waste connection is made in the wall.

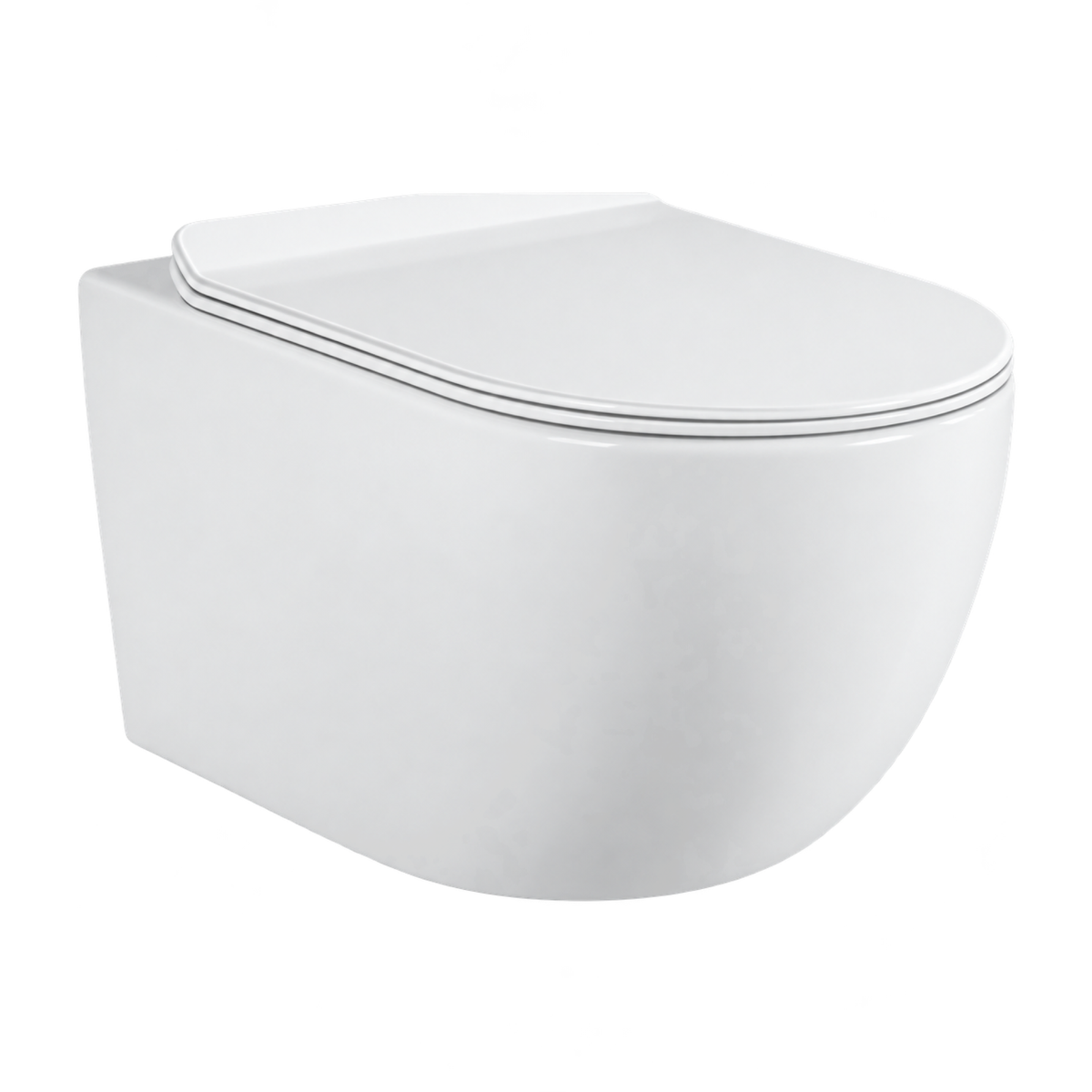

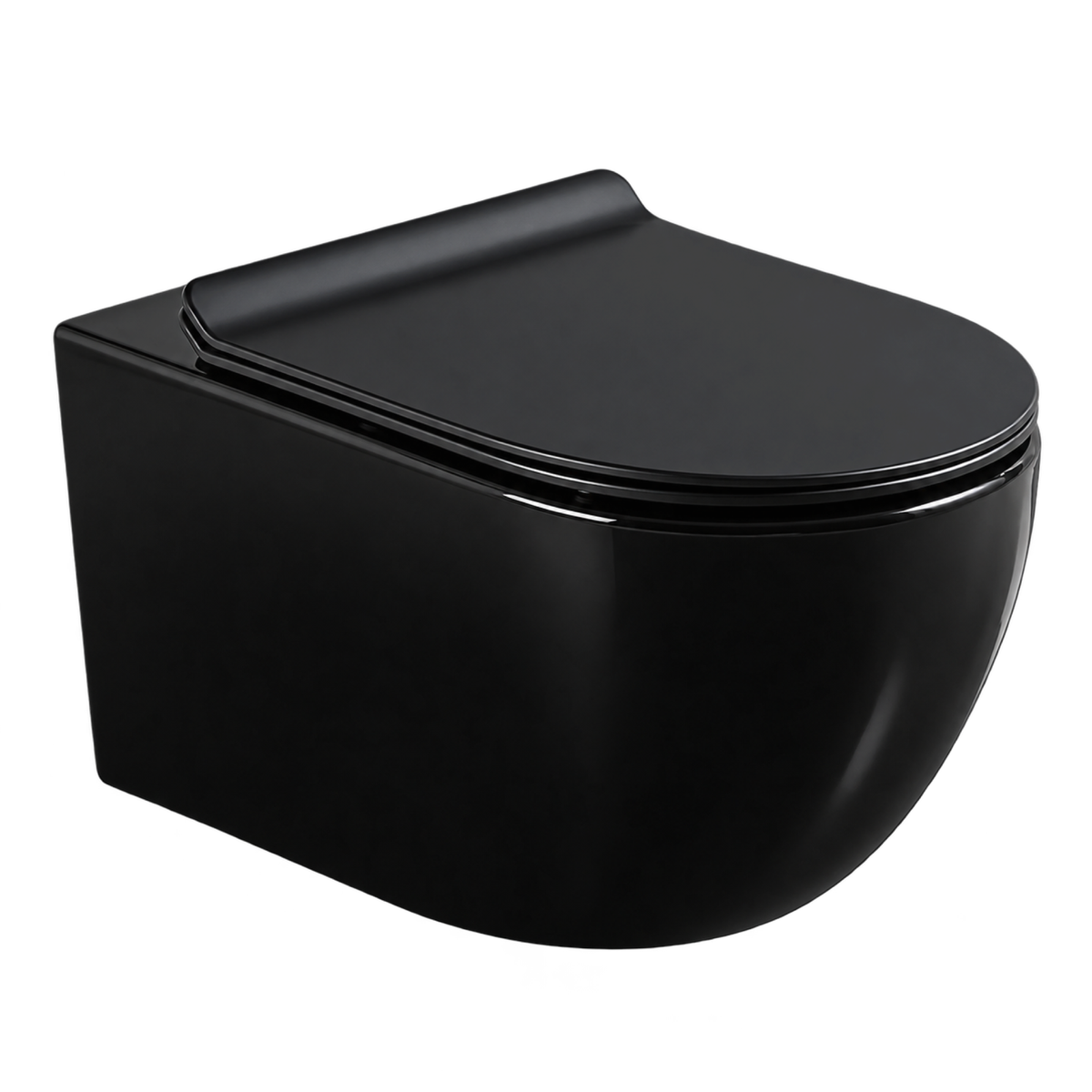

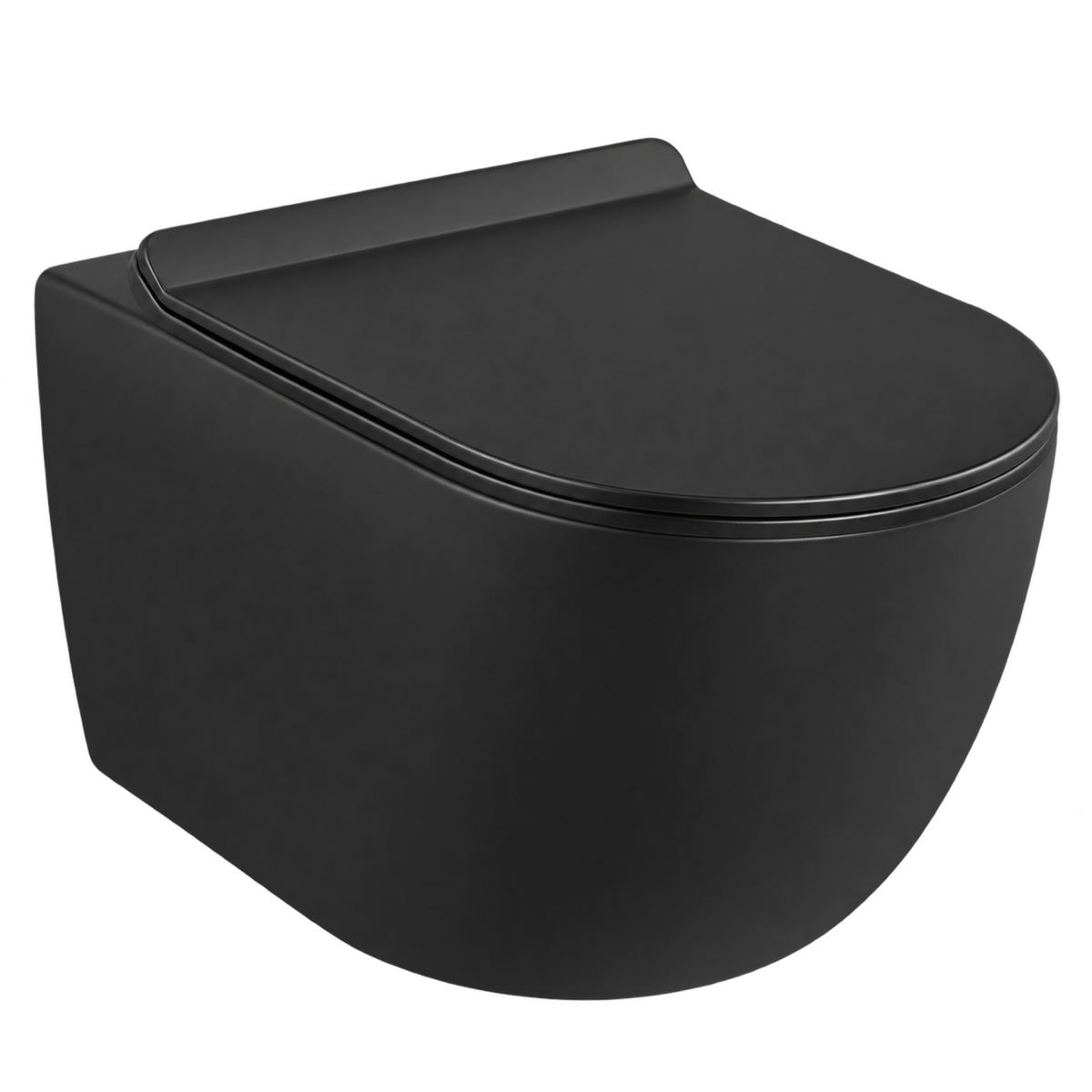

FT-176 comes as 3 codes: FT-176 in White, plus FT-176LH and FT-176YH in Black. Each code is ordered under its own printed SKU. On compliance, CE is the mark printed in the catalog for FT-176, and buyers should ask for the current CE declaration. Sibling FT-251 wall-hung toilet prints a swirl flush; FT-176 prints a collision flush. On outlet, FT-251 prints a 180 mm P-trap; FT-176 prints a 180 mm P-trap.
