مرحاض معلّق على الجدار بتدفق ثنائي النفّاث، مخرج مصيدة P بقياس 180 مم، 510 × 360 × 375 مم

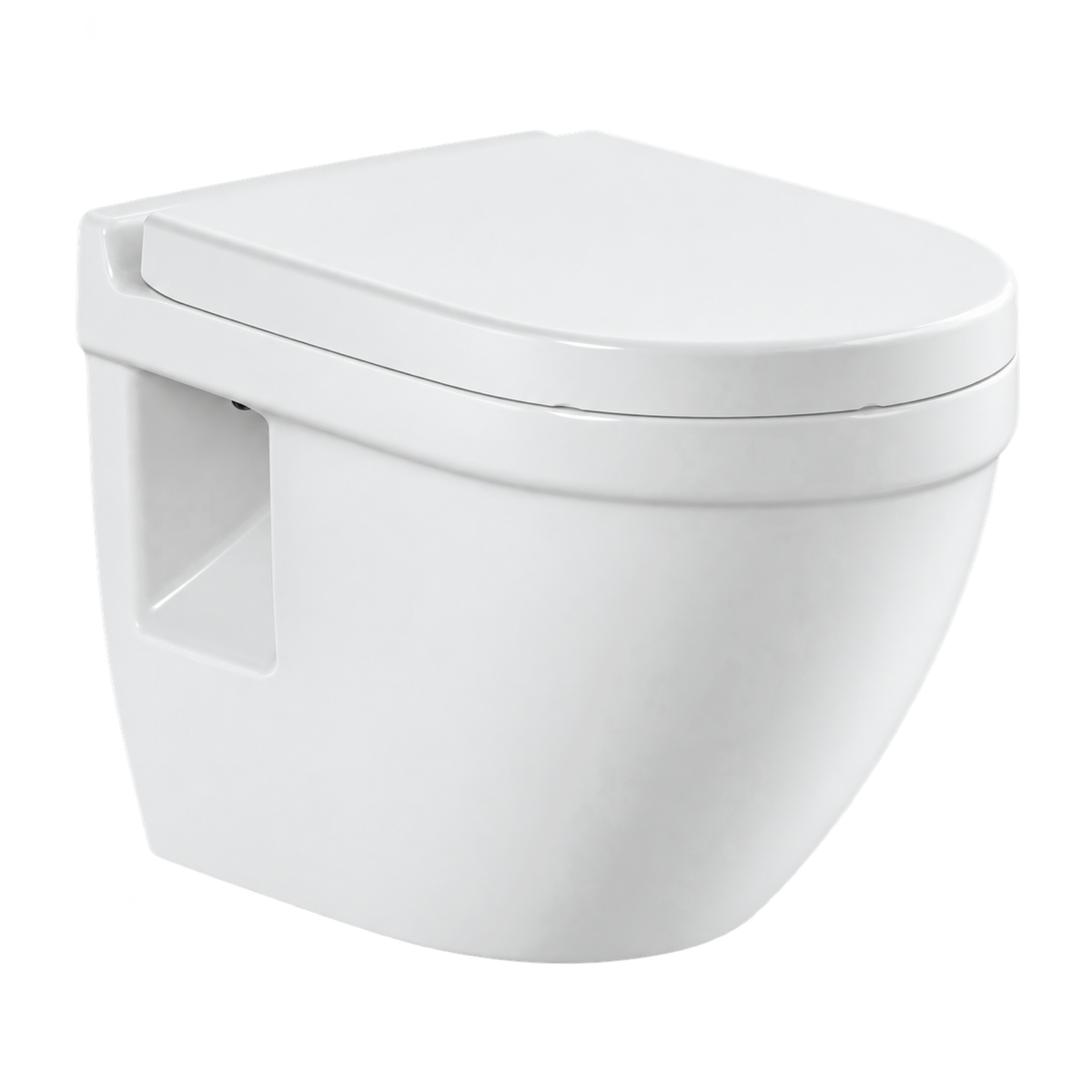

Start with the drain. The FT-114 is a 20-inch dual-jet wall-hung toilet, and its waste leaves through a rear P-trap outlet printed at 180 mm. That outlet height decides whether the bowl lines up with an existing wall drain, so it comes before any styling choice. The catalog line for the outlet reads P-trap 180mm, printed beside the collision flush icon on the same listing. Wall-hung installation is the only mounting listed for this toilet.

Collision type flush is the catalog wording for the FT-114 flush, and a collision icon is printed beside it. On this site that flush type is called dual-jet. The bowl it serves measures 510 mm long by 360 mm wide, or 20.1 by 14.2 in. Height reaches 375 mm (14.8 in) on the printed size line. Ceramic is the listed material. One flush type and one outlet are printed for the code, so a quote line for FT-114 needs no flush variant field.

Length is what makes the FT-114 a 20-inch wall hung toilet: 510 mm converts to 20.1 in. The printed width is 360 mm (14.2 in). The 375 mm height completes the printed size of 510 × 360 × 375 mm. Wall-hung installation is the printed mounting method, with a 180 mm P-trap outlet. Verify against the official technical drawing before fabrication. Certification documents for the FT-114 are matched to the destination market at quotation.
