مرحاض من قطعتين بلا حافة بتدفق دوّامي TC-7002، مسافة تركيب 8/10 بوصة، 2 تشطيبات

Rimless close coupled toilet buyers will find TC-7002 printed with "No Edge" for the bowl, and the model is listed as a two-piece toilet. Swirl flush, printed as super-swirling, is the single flush type. The catalog also prints "Water Saving design to reach 4.5/5.2 Liters Per Flushing" against the model. A rimless design paired with swirl flush is the reason to specify TC-7002 over rimmed two-piece models. Size is 635 × 380 × 830 mm.

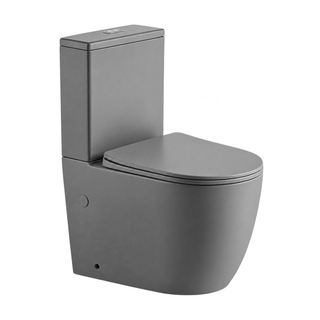

Finish on this model is set by the code: TC-7002 for White and TC-7002G for Gray. The catalog prints one size for the model, 635 × 380 × 830 mm, which is 25.0 × 15.0 × 32.7 in. Gray is printed only under TC-7002G, so the code alone identifies the finish. Both codes share swirl flush and the rimless "No Edge" bowl. The CE mark is printed against TC-7002, and the outlet is chosen between S-trap and P-trap versions.

Outlet choices on TC-7002 cover a 180 mm P-trap for a floor mounted rear outlet toilet layout and an S-trap printed at 200 to 250mm for floor drains. In inches that S-trap range reads 8 to 10 in. The factory catalog prints the CE mark against TC-7002; request the current CE declaration. Verify against the official technical drawing before fabrication. Swirl flush and the rimless bowl apply to both outlet versions.
